Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint
0399-T208 LINEAR TECH REFERENCE DESIGN LT8 Sumida America Components Inc.	2129	5.29	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	Flyback Converters	-	-	-	-	-	40µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	1.150 L x 0.827 W (29.20mm x 21.00mm)	0.465 (11.80mm)	-
750311660 FLYBACK TRANSFORMER WE-FB LT8300 Würth Elektronik	2249	4.54	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FB, MID-FLYLT	Active	For DC/DC Converters	Flyback Converters	LT8300	Linear Technology	36 ~ 72V	5V @ 20mA	1500Vrms	350µH @ 100kHz	190kHz	-40°C ~ 125°C	Surface Mount	-	0.415 (10.54mm)	0.385 L x 0.360 W (9.78mm x 9.14mm)
PA0648NL PWR XFMR 3:1:1 36V/72V/10V SMD Pulse Electronics Power	3769	3.22	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	-	-	-	-	-	-	-	-	-	-	Surface Mount	0.355 L x 0.340 W (9.02mm x 8.64mm)	0.300 (7.62mm)	-
750312366 POE TRANSFORMER WE-POE LT8300 Würth Elektronik	755	4.17	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-UNIT, MID-FLYLT	Active	For DC/DC Converters	Flyback Converters	LT8300	Linear Technology	18 ~ 75V	-	1500Vrms	400µH @ 10kHz	100kHz	-40°C ~ 125°C	Surface Mount	-	0.340 (8.64mm)	0.400 L x 0.526 W (10.16mm x 13.36mm)
750311559 FLYBACK TRANSFORMER WE-FB LT8300 Würth Elektronik	2778	5.39	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FB, MID-FLYLT	Active	For DC/DC Converters	Flyback Converters	LT8300	Linear Technology	35 ~ 75V	5V	1500Vrms	175µH @ 10kHz	200 ~ 300kHz	-40°C ~ 125°C	Surface Mount	-	0.415 (10.54mm)	0.385 L x 0.360 W (9.78mm x 9.14mm)
750316033 PUSH-PULL TRANSFORMER WE-PP Würth Elektronik	2096	6.00	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-PP, MID-PPTI	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	4.5 ~ 5.5V	-	-	-	150kHz	-40°C ~ 85°C	Surface Mount	0.485 L x 0.410 W (12.32mm x 10.41mm)	-	-

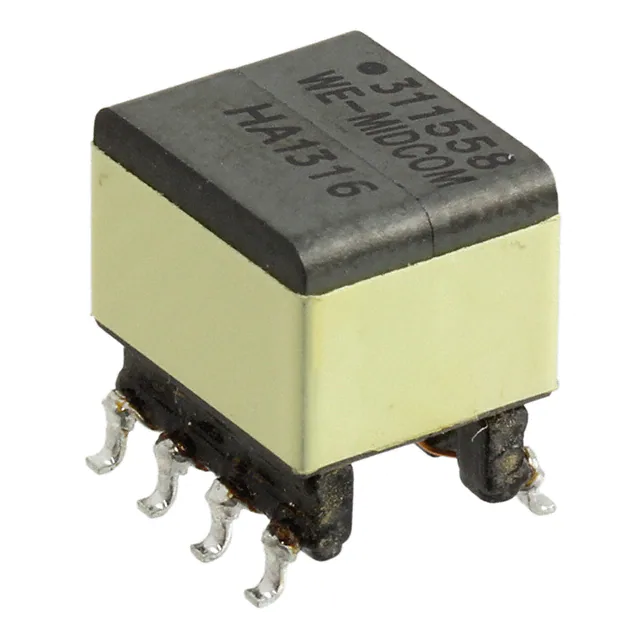

750311558 FLYBACK TRANSFORMER WE-FB Würth Elektronik	3175	6.21	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FB, MID-FLYLT	Active	For DC/DC Converters	Flyback Converters	LT8300	Linear Technology	35 ~ 75V	5V	1500Vrms	300µH @ 10kHz	200 ~ 300kHz	-40°C ~ 125°C	Surface Mount	-	0.415 (10.54mm)	0.385 L x 0.360 W (9.78mm x 9.14mm)
VPH2-0083-R PULSE XFMR 8.3UH SMD Eaton - Electronics Division	2118	9.21	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VERSA-PAC®	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	Surface Mount	0.642 L x 0.661 W (16.30mm x 16.80mm)	0.307 (7.80mm)	-
750871030 TRANS OFF LINE POWER ST VIPER17L Würth Elektronik	3625	6.53	- + Add To Cart Inquiry Now	Datasheet	Tray	WE-UNIT, MID-OLSTM	Active	For AC/DC Converters	Flyback Converters	VIPER17L	STMicroelectronics	120 ~ 385V	12V @ 10mA	4000Vrms	2.38mH @ 10kHz	60kHz	-40°C ~ 125°C	Through Hole	-	0.635 (16.13mm)	0.787 L x 0.975 W (20.00mm x 24.00mm)
VP3-0138-R PULSE XFMR 11.2UH SMD Eaton - Electronics Division	790	9.57	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VERSA-PAC®	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	Surface Mount	0.673 L x 0.878 W (17.10mm x 22.30mm)	0.331 (8.40mm)	-
VGT15SEFD-250S4A7 TRANSFORMERS FOR IGBT/FET TDK Corporation	900	12.49	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VGT	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	2600Vrms	2.6µH @ 100kHz	-	-40°C ~ 130°C	Surface Mount	0.906 L x 0.606 W (23.00mm x 15.40mm)	0.472 (12.00mm)	0.906 L x 0.606 W (23.00mm x 15.40mm)
750032052 TRANS POWER FOR LT3750 SMD Würth Elektronik	305	10.18	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FB	Active	For DC/DC Converters	Capacitor Charger	LT3751	Linear Technology	18 ~ 30V	-	1000Vrms	10µH @ 10kHz	-	-40°C ~ 125°C	Surface Mount	-	0.455 (11.58mm)	0.865 L x 1.130 W (21.97mm x 28.70mm)
VPH5-0155TR-R PULSE XFMR 22.3UH SMD Eaton - Electronics Division	345	10.56	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	VERSA-PAC®	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	Surface Mount	0.827 L x 1.122 W (21.00mm x 28.50mm)	0.425 (10.80mm)	-
VP4-0075-R PULSE XFMR 6.1UH SMD Eaton - Electronics Division	3950	9.83	- + Add To Cart Inquiry Now	Datasheet	Bulk	VERSA-PAC®	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	Surface Mount	0.709 L x 0.969 W (18.00mm x 24.60mm)	0.394 (10.00mm)	-
VP5-0067-R PULSE XFMR 4.3UH SMD Eaton - Electronics Division	3740	10.94	- + Add To Cart Inquiry Now	Datasheet	Bulk	VERSA-PAC®	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	Surface Mount	0.827 L x 1.122 W (21.00mm x 28.50mm)	0.425 (10.80mm)	-

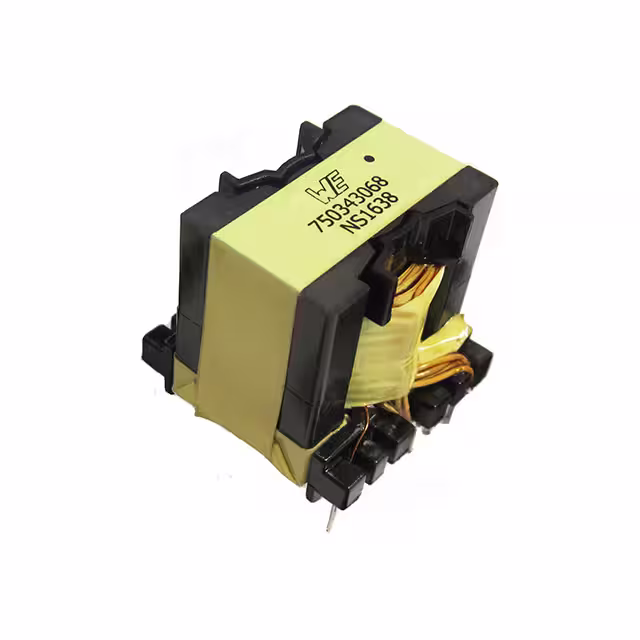

750343068 FLYBACK TRANSFORMER WE-FB Würth Elektronik	441	12.33	- + Add To Cart Inquiry Now	Datasheet	Tray	MID-OLTI	Active	For AC/DC Converters	Flyback Converters	-	Texas Instruments	-	-	3750Vrms	-	65kHz	-40°C ~ 125°C	Through Hole	-	1.154 (29.30mm)	-
750315827 FLYBACK TRANSFORMER WE-FB Würth Elektronik	3584	2.31	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	Flyback Converters	-	Linear Technology	36 ~ 72V	-	1875Vrms	150µH @ 10kHz	50 ~ 200kHz	-40°C ~ 125°C	Surface Mount	-	-	-
750313970 TRANS FLYBACK LT8301 Würth Elektronik	2396	4.93	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FB, MID-FLYLT	Active	For DC/DC Converters	Flyback Converters	LT8301	Linear Technology	18 ~ 42V	-	1500Vrms	40µH @ 10kHz	200 ~ 300kHz	-	Surface Mount	-	0.450 (11.43mm)	0.525 L x 0.600 W (13.34mm x 15.24mm)
7508170312 XFRMER FLYBACK AC/DC CONV SMD Würth Elektronik	3228	4.66	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-UNIT, MID-OLEE	Active	For AC/DC Converters	Flyback Converters	-	-	78 ~ 375V	16V @ 50mA	3000Vrms	1.99mH @ 10kHz	50kHz	-40°C ~ 125°C	Surface Mount	-	0.438 (11.13mm)	0.543 L x 0.941 W (13.80mm x 23.90mm)

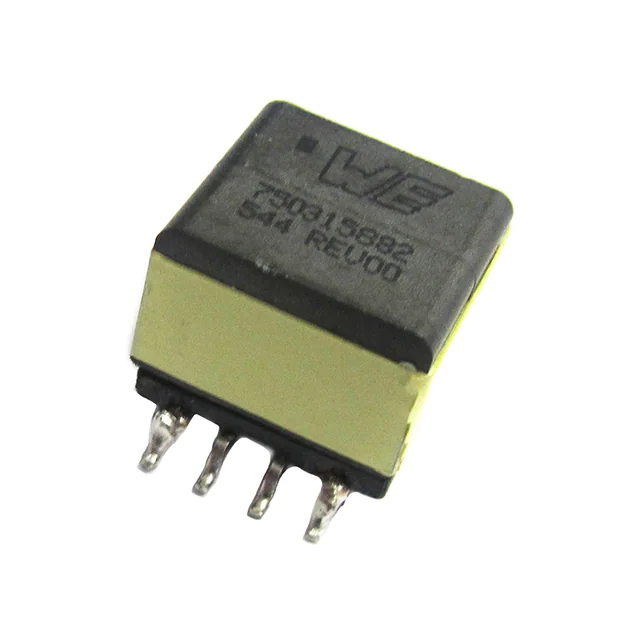

750315882 FLYBACK TRANSFORMER WE-FB Würth Elektronik	3823	5.27	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	Flyback Converters	-	Maxim Integrated	17 ~ 36V	-	1875Vrms	-	500kHz	-40°C ~ 125°C	Surface Mount	-	-	-
