Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint
VPH5-0067-R PULSE XFMR 9.65UH SMD Eaton - Electronics Division	2466	10.60	- + Add To Cart Inquiry Now	Datasheet	Bulk	VERSA-PAC®	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	Surface Mount	0.827 L x 1.122 W (21.00mm x 28.50mm)	0.425 (10.80mm)	-
VP4-0860-R PULSE XFMR 87UH SMD Eaton - Electronics Division	2743	10.63	- + Add To Cart Inquiry Now	Datasheet	Bulk	VERSA-PAC®	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	Surface Mount	0.709 L x 0.969 W (18.00mm x 24.60mm)	0.394 (10.00mm)	-
VP4-0060-R PULSE XFMR 4.9UH SMD Eaton - Electronics Division	2107	10.63	- + Add To Cart Inquiry Now	Datasheet	Bulk	VERSA-PAC®	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	Surface Mount	0.709 L x 0.969 W (18.00mm x 24.60mm)	0.394 (10.00mm)	-
VPH4-0140-R PULSE XFMR 23.7UH SMD Eaton - Electronics Division	2566	11.53	- + Add To Cart Inquiry Now	Datasheet	Bulk	VERSA-PAC®	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	Surface Mount	0.709 L x 0.969 W (18.00mm x 24.60mm)	0.394 (10.00mm)	-

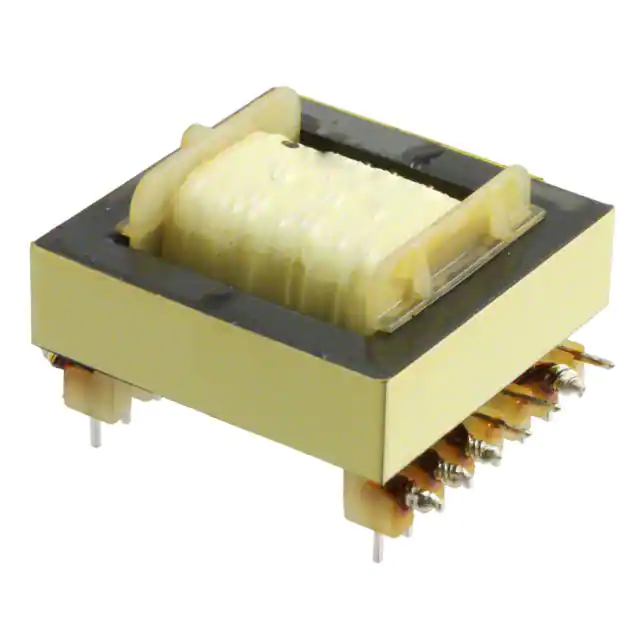

750310349 TRANS POWER FOR LT3751 SMD Würth Elektronik	3562	12.10	- + Add To Cart Inquiry Now	Datasheet	Tray	WE-FB	Active	For DC/DC Converters	Capacitor Charger	LT3751	Linear Technology	18 ~ 30V	-	1000Vrms	5µH @ 50kHz	-	-40°C ~ 125°C	Surface Mount	-	0.910 (23.11mm)	1.437 L x 1.653 W (36.50mm x 42.00mm)

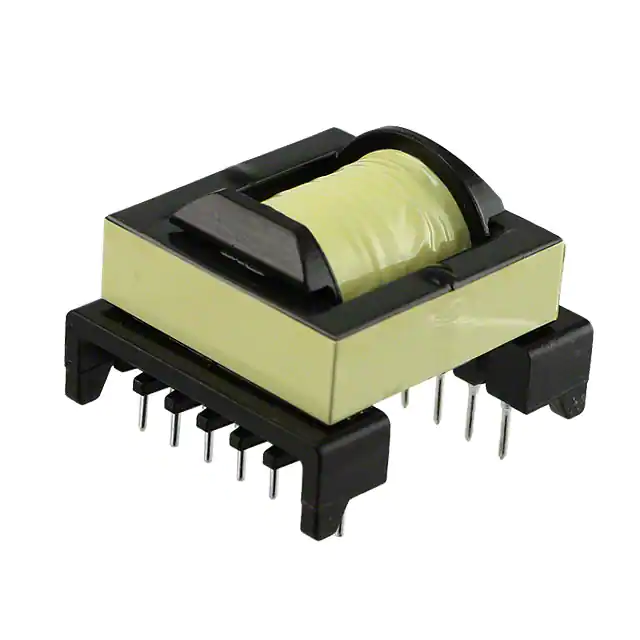

750813390 TRANSFORMER FLYBACK LT3799 Würth Elektronik	3570	15.73	- + Add To Cart Inquiry Now	Datasheet	Tray	WE-FB, MID-OLLT	Active	For AC/DC Converters	Flyback Converters	LT3799	Linear Technology	120 ~ 375V	-	4500Vrms	100µH @ 10kHz	75kHz	-	Through Hole	1.559 L x 1.700 W (39.60mm x 43.18mm)	1.205 (30.61mm)	1.559 L x 1.700 W (39.60mm x 43.18mm)

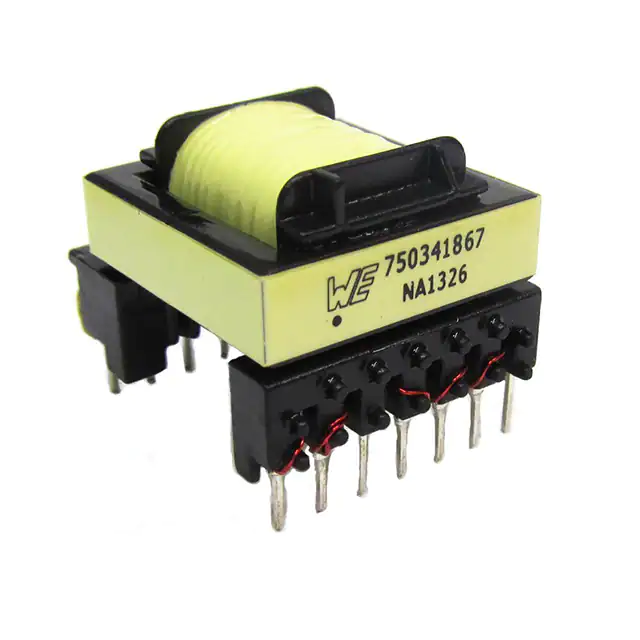

750341867 FLYBACK TRANSFORMER WE-FB Würth Elektronik	2378	9.99	- + Add To Cart Inquiry Now	Datasheet	Tray	MID-OLON	Active	For DC/DC Converters	Flyback Converters	-	On Semiconductor	-	-	3750Vrms	1.3mH @ 50kHz	-	-40°C ~ 125°C	Surface Mount	1.065 L x 1.270 W (27.05mm x 32.25mm)	0.900 (22.86mm)	-
VPH4-0047-R PULSE XFMR 7.94UH SMD Eaton - Electronics Division	2508	10.15	- + Add To Cart Inquiry Now	Datasheet	Bulk	VERSA-PAC®	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	Surface Mount	0.709 L x 0.969 W (18.00mm x 24.60mm)	0.394 (10.00mm)	-

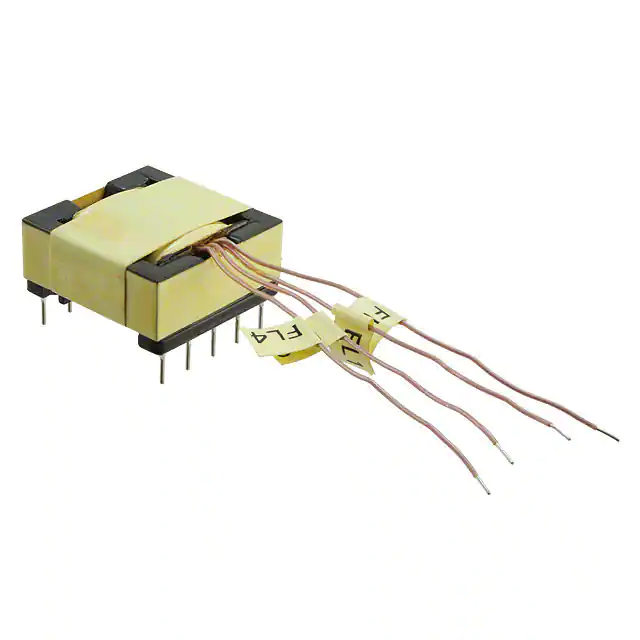

750311475 TRANS FLYBACK NCL30000 1.72MH Würth Elektronik	3587	11.54	- + Add To Cart Inquiry Now	Datasheet	Tray	WE-UNIT, MID-OLON	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	NCL30000	On Semiconductor	127 ~ 431V	-	4500Vrms	1.72mH @ 10kHz	39kHz	-40°C ~ 125°C	Through Hole	1.060 L x 1.050 W (26.92mm x 26.67mm)	0.575 (14.60mm)	1.060 L x 1.050 W (26.92mm x 26.67mm)
MTPL-2516-S15V PLANAR TRANSFORMER 2516 Vishay Dale	3896	17.17	- + Add To Cart Inquiry Now	Datasheet	Tray	MTPL-2516	Active	-	-	-	-	-	-	-	-	-	-55°C ~ 130°C	Through Hole	1.181 L x 1.024 W (30.00mm x 26.00mm)	0.650 (16.51mm)	-
PA0903NL XFMER, 5TP:5TP:4TS:5TPAUX NPB Pulse Electronics Power	3515	19.69	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	-	-	-	-	-	-	-	-	-	-	Surface Mount	1.160 L x 1.000 W (29.46mm x 25.40mm)	0.402 (10.20mm)	1.000 L x 1.160 W (25.40mm x 29.46mm)
PA3965.001NLT XFMR FLYBACK 7W REINFORCED NPB Pulse Electronics Power	2941	3.10	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PA3965.XXXNLT	Active	-	-	-	-	-	-	-	-	-	-	-	0.657 L x 0.500 W (16.70mm x 12.70mm)	0.557 (14.15mm)	0.657 L x 0.650 W (16.70mm x 16.50mm)
ECO2023SEO-D02V015 TRANSFORMERS FOR AC/DC FLYBACK C TDK Corporation	3249	7.02	- + Add To Cart Inquiry Now	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	-	-	50kHz	-30°C ~ 120°C	Through Hole	-	1.181 (30.00mm)	-
ECO2230SEO-D04V016 TRANSFORMERS FOR AC/DC FLYBACK C TDK Corporation	2843	7.02	- + Add To Cart Inquiry Now	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	-	-	50kHz	-30°C ~ 120°C	Through Hole	-	1.417 (36.00mm)	-
ECO2020SEO-D14V014 TRANSFORMERS FOR AC/DC FLYBACK C TDK Corporation	2336	7.02	- + Add To Cart Inquiry Now	Datasheet	Bulk	ECO	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	-	-	50kHz	-30°C ~ 120°C	Through Hole	-	1.063 (27.00mm)	-

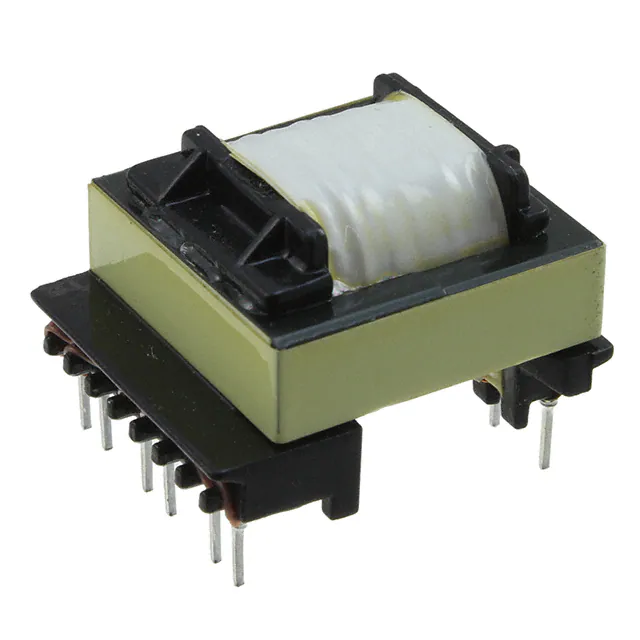

750341526 PWR XFRM FAIRCHILD FSL137MRIN Würth Elektronik	2713	7.04	- + Add To Cart Inquiry Now	Datasheet	Tray	MID-OLON	Active	For AC/DC Converters	Forward, Push-Pull Converters	-	-	60 ~ 600V	15V	4000Vrms	660µH @ 10kHz	67kHz	-40°C ~ 125°C	Through Hole	0.874 L x 0.984 W (22.20mm x 25.00mm)	0.650 (16.51mm)	0.874 L x 0.984 W (22.20mm x 25.00mm)

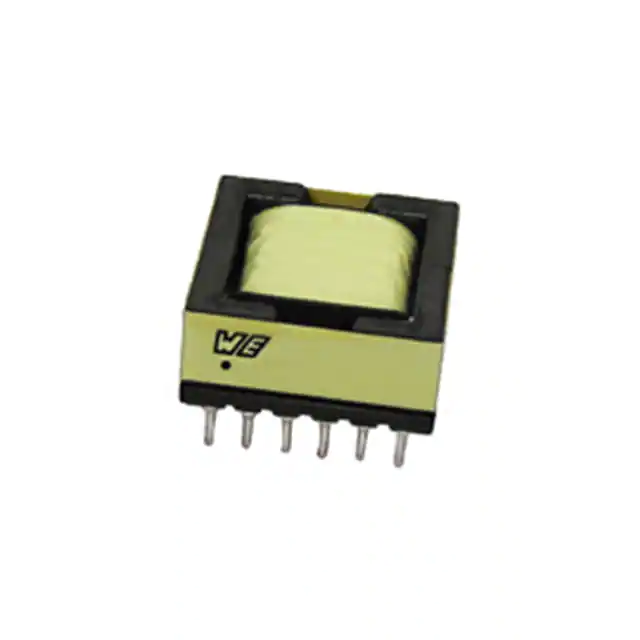

750318302 OFFLINE TRANSFORMER 17W EFD25 TH Würth Elektronik	2012	7.17	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	For DC/DC Converters	Flyback Converters	-	Analog Devices, Inc	120 ~ 375V	-	3000Vrms	450µH @ 10kHz	70kHz	-40°C ~ 125°C	Surface Mount	1.299 L x 1.035 W (33.00mm x 26.30mm)	0.563 (14.30mm)	1.299 L x 1.035 W (33.00mm x 26.30mm)

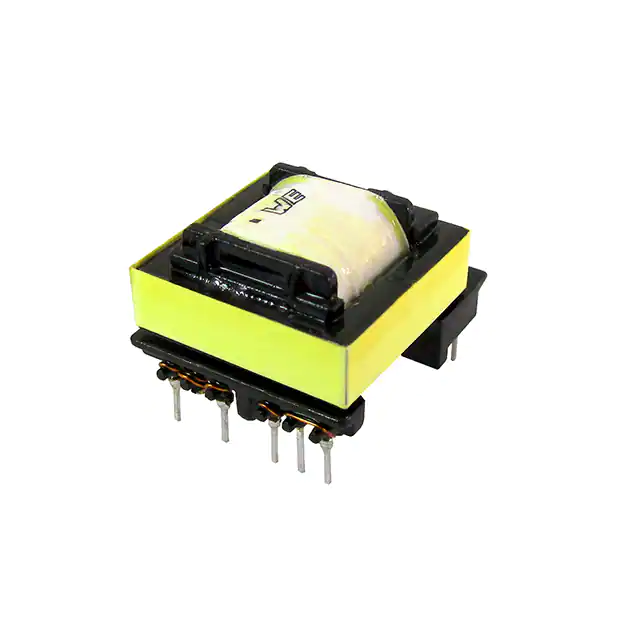

750343109 XFRMER FLYBACK AC/DC CONV TH Würth Elektronik	3168	7.56	- + Add To Cart Inquiry Now	Datasheet	Tray	WE-FB, MID-OLDIA	Active	For AC/DC Converters	Flyback Converters	-	Dialog Semiconductor	90 ~ 264V	14V	3000Vrms	490µH @ 10kHz	70kHz	-40°C ~ 125°C	Through Hole	0.874 L x 1.024 W (22.20mm x 26.00mm)	0.635 (16.13mm)	0.874 L x 1.024 W (22.20mm x 26.00mm)

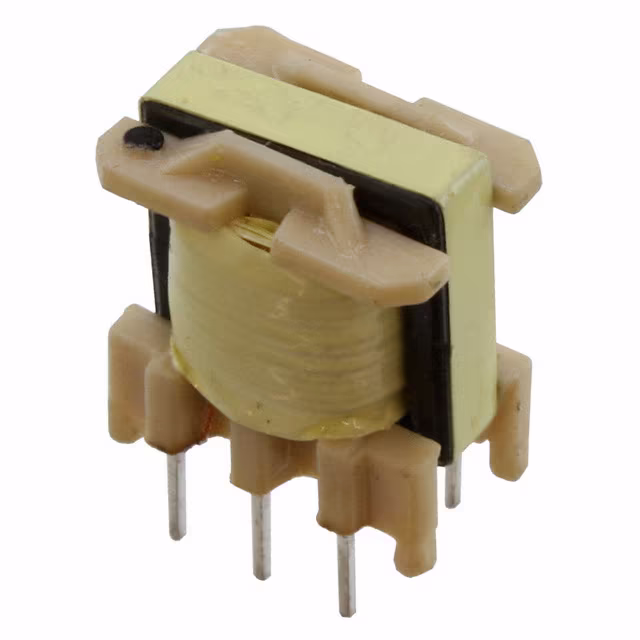

7491181024 TRANSFORMER OFF LINE 4000V Würth Elektronik	3711	7.74	- + Add To Cart Inquiry Now	Datasheet	Tray	WE-UNIT	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	NCP101x, NCP105x	On Semiconductor	120 ~ 385V	-	4000Vrms	2.8mH @ 10kHz	132kHz	-40°C ~ 125°C	Through Hole	0.591 L x 0.433 W (15.00mm x 11.00mm)	0.661 (16.80mm)	0.591 L x 0.433 W (15.00mm x 11.00mm)

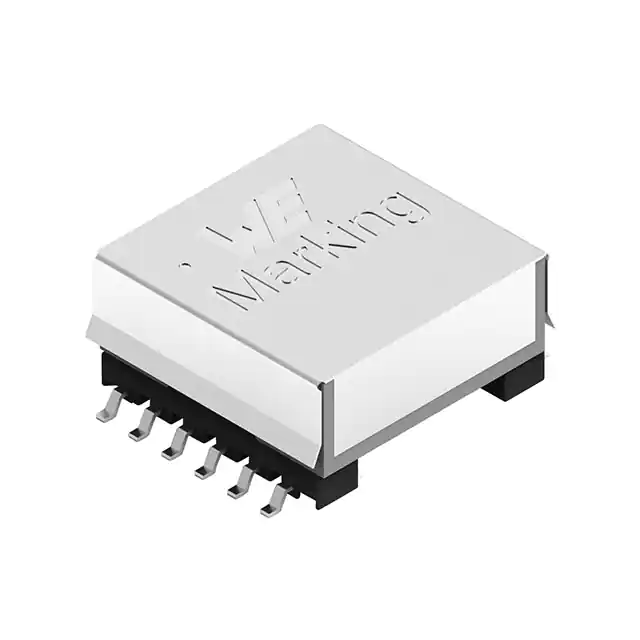

750319020 WE-POE POWER-OVER-ETHERNET TRANS Würth Elektronik	100	13.12	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MID-POE	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	33 ~ 57V	12V	1500Vrms	17µH @ 10kHz	250kHz	-40°C ~ 125°C	Surface Mount	1.102 L x 1.064 W (28.00mm x 27.03mm)	0.550 (13.97mm)	1.278 L x 1.064 W (32.45mm x 27.03mm)
