Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint
DECO2230SEO-00004 AC/DC CONVERTER TDK Corporation	3200	40.00	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DECO2425SEO-00003 AC/DC CONVERTER TDK Corporation	3783	40.00	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AEP-199SI 20.4UH 8% EP10 SMD TRANSFORMER Allied Components International	2842	2.50	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	1500V	20.4µH	-	-	Surface Mount	-	0.451 (11.45mm)	-
AEP7-4180 EP7 POWER TRANSFORMER Allied Components International	2471	2.85	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	625VAC	-	-	-	Surface Mount	0.394 L x 0.346 W (10.00mm x 8.80mm)	0.362 (9.20mm)	-
FLYT-001 FLYBACK TRANSFORMER FOR 3.5KW BA Premo	2146	7.00	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	-	Flyback Converters	-	-	-	-	-	6.3µH @ 100kHz	100kHz	-40°C ~ 125°C	Through Hole	0.600 L x 0.500 W (15.24mm x 12.70mm)	0.551 (14.00mm)	-
AER28-4702 200UH, ER28 TRANSFORMER Allied Components International	3317	12.50	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	-	-	-	-	-	-	-	200µH	-	-	Through Hole	1.220 L x 1.220 W (31.00mm x 31.00mm)	0.984 (25.00mm)	-
AEL25V-4162 1.3H 15% EL25 CORE THRU-HOLE Allied Components International	2635	12.50	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	600Vrms	-	-	-	Through Hole	1.043 L x 0.748 W (26.50mm x 19.00mm)	0.906 (23.00mm)	-

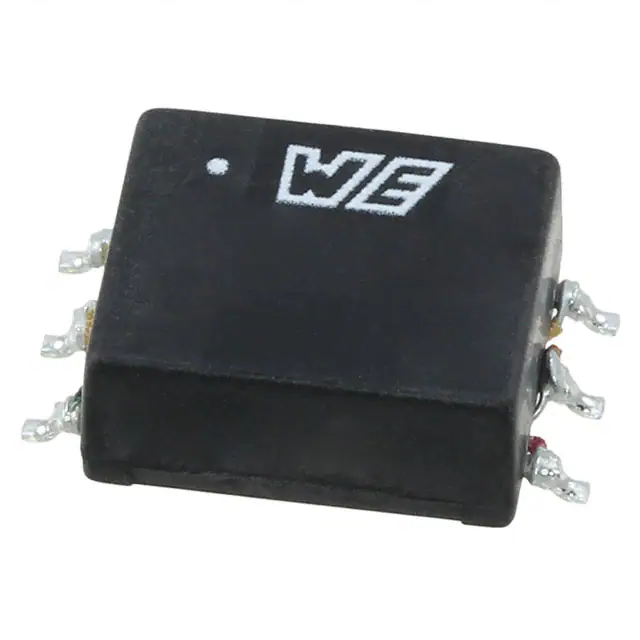

750315371 XFRMR FWD P-P DC/DC CONV SMD Würth Elektronik	3584	2.50	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-PP, MID-PPTI	Active	For DC/DC Converters	Forward, Push-Pull Converters	SN6505B	Texas Instruments	4.5 ~ 5.5V	-	2500Vrms	72µH @ 100kHz	400kHz	-40°C ~ 125°C	Surface Mount	0.327 L x 0.364 W (8.30mm x 9.25mm)	0.161 (4.10mm)	0.327 L x 0.496 W (8.30mm x 12.60mm)
750316030 PUSH-PULL TRANSFORMER WE-PP Würth Elektronik	2597	3.76	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-PP, MID-PPTI	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	4.5 ~ 5.5V	-	3125Vrms	-	400kHz	-40°C ~ 125°C	Surface Mount	0.327 L x 0.364 W (8.30mm x 9.25mm)	0.161 (4.10mm)	-
750316856 PUSH-PULL TRANSFORMER TOR5.8/3.1 Würth Elektronik	3574	4.49	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MID-PPTI	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	5V	-	2500Vrms	200µH @ 10kHz	420kHz	-40°C ~ 125°C	Surface Mount	0.450 L x 0.327 W (11.43mm x 8.30mm)	0.165 (4.20mm)	0.581 L x 0.327 W (14.75mm x 8.30mm)

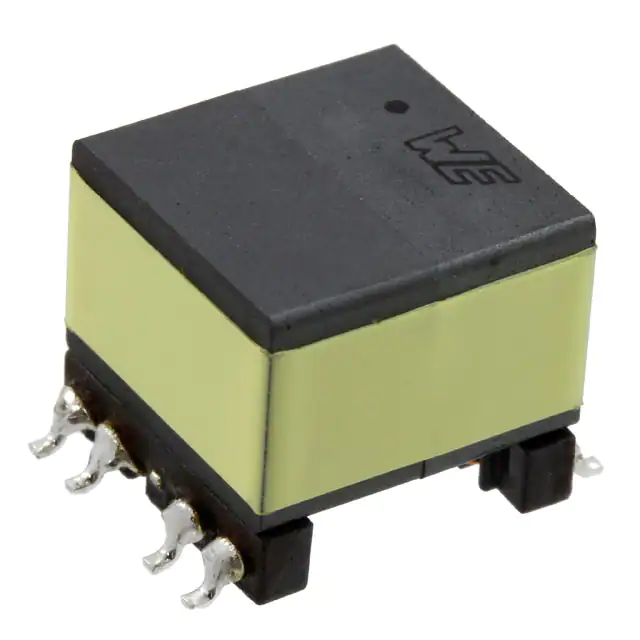

750312504 FLYBACK XFRM WE-FB LTC3300 Würth Elektronik	3183	5.62	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FB, MID-FLYLT	Active	For DC/DC Converters	Capacitor Charger	LTC3300-1, LTC6804-2, LTC3300ILXE-1, LTC6803IG-2	Linear Technology	-	-	500VDC	3.46µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	-	0.505 (12.83mm)	0.530 L x 0.699 W (13.46mm x 17.75mm)

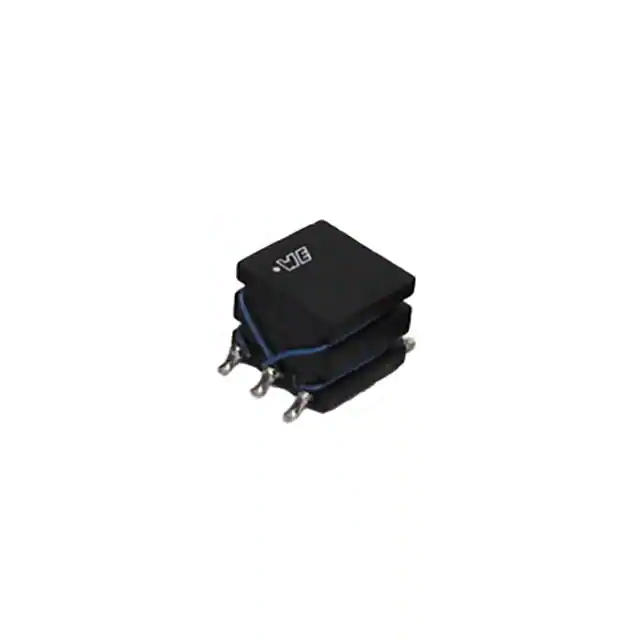

750343725 PUSH-PULL TRANSFORMER TOR4.3/2.8 Würth Elektronik	2079	7.34	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	-	-	Texas Instruments	5VDC	-	-	50µH @ 100kHz	420kHz	-40°C ~ 125°C	Surface Mount	0.360 L x 0.315 W (9.14mm x 8.00mm)	0.300 (7.62mm)	0.272 L x 0.480 W (6.91mm x 12.19mm)
750311607 TRANS FLYBACK LT3748 14UH SMD Würth Elektronik	3159	11.00	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FB	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	30 ~ 75V	-	1500Vrms	14µH @ 150kHz	-	-40°C ~ 125°C	Surface Mount	-	0.455 (11.56mm)	0.910 L x 1.150 W (23.11mm x 29.08mm)
750311797 TRANS FLYBACK LT3748 14UH SMD Würth Elektronik	3673	12.38	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FB	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	18 ~ 100V	12V	4000Vrms	14µH @ 150kHz	-	-40°C ~ 125°C	Surface Mount	-	0.455 (11.56mm)	0.910 L x 1.150 W (23.11mm x 29.08mm)
750316769 PUSH-PULL TRANSFORMER TOR4.3/2.8 Würth Elektronik	2542	3.83	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	MID-PPTI	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	Texas Instruments	5V	-	2500Vrms	60µH @ 10kHz	400kHz	-40°C ~ 125°C	Surface Mount	0.281 L x 0.265 W (7.14mm x 6.73mm)	0.165 (4.19mm)	0.412 L x 0.265 W (10.46mm x 6.73mm)
10380-T030 LINEAR TECH REFERENCE DESIGN LT8 Sumida America Components Inc.	3064	4.57	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	Flyback Converters	-	-	-	-	-	40µH @ 10kHz	-	-40°C ~ 125°C	Surface Mount	-	0.504 (12.80mm)	-
13324-T086 XFRMR Sumida America Components Inc.	560	4.66	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	4 ~ 36V	-	1500Vrms	40µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	0.591 L x 0.531 W (15.00mm x 13.50mm)	0.492 (12.50mm)	0.709 L x 0.531 W (18.00mm x 13.50mm)
13324-T087 XFRMR Sumida America Components Inc.	2295	4.66	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	4 ~ 18V	-	1500Vrms	40µH @ 100kHz	-	-40°C ~ 85°C	Surface Mount	0.591 L x 0.531 W (15.00mm x 13.50mm)	0.492 (12.50mm)	0.709 L x 0.531 W (18.00mm x 13.50mm)
750318525 FLYBACK TRANSFORMER 12W EPQ13 SM Würth Elektronik	2641	4.15	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	For DC/DC Converters	Flyback Converters	-	Analog Devices, Inc	36 ~ 57V	10.5V	1500Vrms	4.16µH @ 1kHz, 21.1µH @ 1kHz, 150µH @ 1kHz	250kHz	-40°C ~ 125°C	Surface Mount	0.719 L x 0.550 W (18.25mm x 13.97mm)	0.571 (14.50mm)	0.719 L x 0.550 W (18.25mm x 13.97mm)
750311659 FLYBACK TRANSFORMER WE-FB LT8300 Würth Elektronik	3462	3.97	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FB, MID-FLYLT	Active	For DC/DC Converters	Flyback Converters	LT8300	Linear Technology	36 ~ 72V	5V @ 20mA	1500Vrms	300µH @ 100kHz	180kHz	-40°C ~ 125°C	Surface Mount	-	0.415 (10.54mm)	0.385 L x 0.360 W (9.78mm x 9.14mm)
