Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint
YA9034-ALD TRANSFORMER COILCRAFT	647	9.09	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	-	Texas Instruments	4 ~ 65V	-	1500Vrms	36µH @ 300kHz	-	-40°C ~ 85°C	Surface Mount	-	0.417 (10.60mm)	0.402 L x 0.366 W (10.20mm x 9.30mm)
ZB1175-AED TRANSFORMER COILCRAFT	634	11.69	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Isolated Buck Converters	-	STMicroelectronics	-	-	-	18µH @ 500kHz	500kHz	-40°C ~ 125°C	Surface Mount	-	0.450 (11.43mm)	0.600 L x 0.531 W (15.24mm x 13.50mm)
ZB1053-AED TRANSFORMER COILCRAFT	823	9.70	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	-	Texas Instruments	4 ~ 42V	-	1500Vrms	12.5µH @ 300kHz	300kHz	-40°C ~ 85°C	Surface Mount	-	0.394 (10.00mm)	0.520 L x 0.430 W (13.21mm x 10.92mm)
ZA9668-AED TRANSFORMER COILCRAFT	629	11.69	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Isolated Buck Converters	-	STMicroelectronics	-	-	-	18µH @ 500kHz	500kHz	-40°C ~ 125°C	Surface Mount	-	0.450 (11.43mm)	0.600 L x 0.531 W (15.24mm x 13.50mm)
ZB1313-CLD TRANSFORMER COILCRAFT	2638	8.28	- + Add To Cart Inquiry Now	Datasheet	Strip	ZB1313-CL	Active	For DC/DC Converters	Flyback Converters	MAX17690	Maxim Integrated	18 ~ 38V	-	1500Vrms	10.5µH @ 150kHz	163kHz	-40°C ~ 85°C	Surface Mount	-	0.291 (7.40mm)	0.661 L x 0.642 W (16.80mm x 16.30mm)
ZB1050-AED TRANSFORMER COILCRAFT	831	9.70	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	-	Texas Instruments	4 ~ 42V	-	1500Vrms	12.5µH @ 300kHz	300kHz	-40°C ~ 85°C	Surface Mount	-	0.394 (10.00mm)	0.520 L x 0.430 W (13.21mm x 10.92mm)
ZA9670-BED TRANSFORMER COILCRAFT	833	10.11	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	LM25184	Texas Instruments	4 ~ 42V	-	1500Vrms	9µH	300kHz	-40°C ~ 85°C	Surface Mount	-	0.394 (10.00mm)	0.520 L x 0.430 W (13.21mm x 10.92mm)
ZB1055-AED TRANSFORMER COILCRAFT	770	9.70	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	-	Texas Instruments	4 ~ 42V	-	1500Vrms	14µH @ 300kHz	300kHz	-40°C ~ 85°C	Surface Mount	-	0.394 (10.00mm)	0.520 L x 0.430 W (13.21mm x 10.92mm)
ZA9709-AED TRANSFORMER COILCRAFT	3649	5.43	- + Add To Cart Inquiry Now	Datasheet	Strip	ZA9709	Active	For DC/DC Converters	Forward, Push-Pull Converters	SN6505B	Texas Instruments	3.3V	-	2500Vrms	145µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	-	0.171 (4.34mm)	0.512 L x 0.347 W (13.00mm x 8.82mm)
ZA9673-BED TRANSFORMER COILCRAFT	818	10.11	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	LM25184	Texas Instruments	4 ~ 42V	-	1500Vrms	7µH	300kHz	-40°C ~ 85°C	Surface Mount	-	0.394 (10.00mm)	0.520 L x 0.430 W (13.21mm x 10.92mm)
ZA9674-BED TRANSFORMER COILCRAFT	808	10.11	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	LM25184	Texas Instruments	4 ~ 42V	-	1500Vrms	9µH	300kHz	-40°C ~ 85°C	Surface Mount	-	0.394 (10.00mm)	0.520 L x 0.430 W (13.21mm x 10.92mm)
ZB1021-ALD TRANSFORMER COILCRAFT	498	6.31	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	-	-	-	-	17 ~ 36V	-	1500Vrms	22µH @ 150kHz	150kHz	-40°C ~ 85°C	Surface Mount	0.500 L x 0.413 W (12.70mm x 10.50mm)	0.433 (11.00mm)	0.600 L x 0.500 W (15.24mm x 12.70mm)
YA9037-ALD TRANSFORMER COILCRAFT	754	9.09	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	-	Texas Instruments	4 ~ 65V	-	1500Vrms	32µH @ 300kHz	-	-40°C ~ 85°C	Surface Mount	-	0.417 (10.60mm)	0.402 L x 0.366 W (10.20mm x 9.30mm)
ZB1054-AED TRANSFORMER COILCRAFT	849	9.70	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	-	Texas Instruments	4 ~ 42V	-	1500Vrms	12.5µH @ 300kHz	300kHz	-40°C ~ 85°C	Surface Mount	-	0.394 (10.00mm)	0.520 L x 0.430 W (13.21mm x 10.92mm)
YA9036-ALD TRANSFORMER COILCRAFT	635	9.09	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	-	Texas Instruments	4 ~ 65V	-	1500Vrms	30µH @ 300kHz	-	-40°C ~ 85°C	Surface Mount	-	0.417 (10.60mm)	0.402 L x 0.366 W (10.20mm x 9.30mm)
ZB1051-AED TRANSFORMER COILCRAFT	828	9.70	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	For DC/DC Converters	Flyback Converters	-	Texas Instruments	4 ~ 42V	-	1500Vrms	14µH @ 300kHz	300kHz	-40°C ~ 85°C	Surface Mount	-	0.394 (10.00mm)	0.520 L x 0.430 W (13.21mm x 10.92mm)
SRW20EF-X68H013 SRW20EF-X68H013 TDK Corporation	3740	0.00	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Last Time Buy	-	-	-	-	-	-	-	-	-	-	-	-	-	-

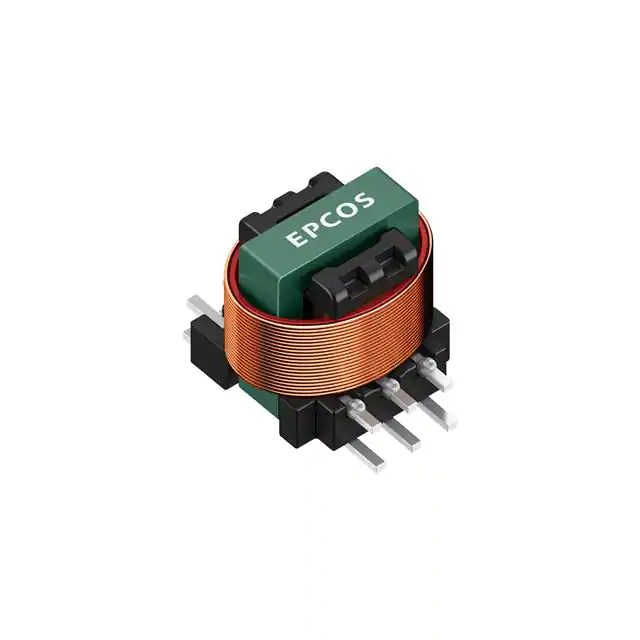

B78302A2403A003 E5 SMD TRANSFORMER 4 MH EPCOS - TDK Electronics	3343	5.02	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B78302	Active	-	-	-	-	-	-	-	4mH @ 50kHz	50kHz	-40°C ~ 125°C	Surface Mount	0.307 L x 0.264 W (7.80mm x 6.70mm)	0.264 (6.70mm)	0.346 L x 0.264 W (8.80mm x 6.70mm)
B78302A2402A003 E5 SMD TRANSFORMER 3 MH EPCOS - TDK Electronics	3498	5.02	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B78302	Active	-	-	-	-	-	-	-	3mH @ 50kHz	50kHz	-40°C ~ 125°C	Surface Mount	0.307 L x 0.264 W (7.80mm x 6.70mm)	0.264 (6.70mm)	0.346 L x 0.264 W (8.80mm x 6.70mm)
B78302A2401A003 E5 SMD TRANSFORMER 2 MH EPCOS - TDK Electronics	3458	5.02	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B78302	Active	-	-	-	-	-	-	-	2mH @ 50kHz	50kHz	-40°C ~ 125°C	Surface Mount	0.307 L x 0.264 W (7.80mm x 6.70mm)	0.264 (6.70mm)	0.346 L x 0.264 W (8.80mm x 6.70mm)
