Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
266J26 PWR XFMR LAMINATED 26.5VA CHAS Hammond Manufacturing	2625	38.34	- + Add To Cart Inquiry Now	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 13.4V, Series 26.8V	Parallel 2A, Series 1A	Dual	Dual	No	26.5VA	Chassis Mount	Wire Leads	82.55mm L x 52.32mm W	50.80mm	2000Vrms
266J16 PWR XFMR LAMINATED 16VA CHAS MT Hammond Manufacturing	3533	38.34	- + Add To Cart Inquiry Now	Datasheet	Bulk	266	Active	Laminated Core	117V, 234V	Parallel 8V, Series 16V	Parallel 2A, Series 1A	Dual	Dual	No	16VA	Chassis Mount	Wire Leads	82.55mm L x 48.26mm W	50.80mm	2000Vrms
266G9 PWR XFMR LAMINATED 4.5VA CHAS MT Hammond Manufacturing	3885	38.34	- + Add To Cart Inquiry Now	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 4.5V, Series 9V	Parallel 1A, Series 500mA	Dual	Dual	No	4.5VA	Chassis Mount	Wire Leads	60.45mm L x 37.59mm W	36.32mm	2000Vrms
266L14 PWR XFMR LAMINATED 28VA CHAS MT Hammond Manufacturing	2827	38.34	- + Add To Cart Inquiry Now	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 7V, Series 14V	Parallel 4A, Series 2A	Dual	Dual	No	28VA	Chassis Mount	Wire Leads	93.73mm L x 50.80mm W	58.67mm	2000Vrms
266M6 PWR XFMR LAMINATED 18.9VA CHAS Hammond Manufacturing	2643	38.34	- + Add To Cart Inquiry Now	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 3.15V, Series 6.3V	Parallel 6A, Series 3A	Dual	Dual	No	18.9VA	Chassis Mount	Wire Leads	82.55mm L x 52.32mm W	50.80mm	2000Vrms

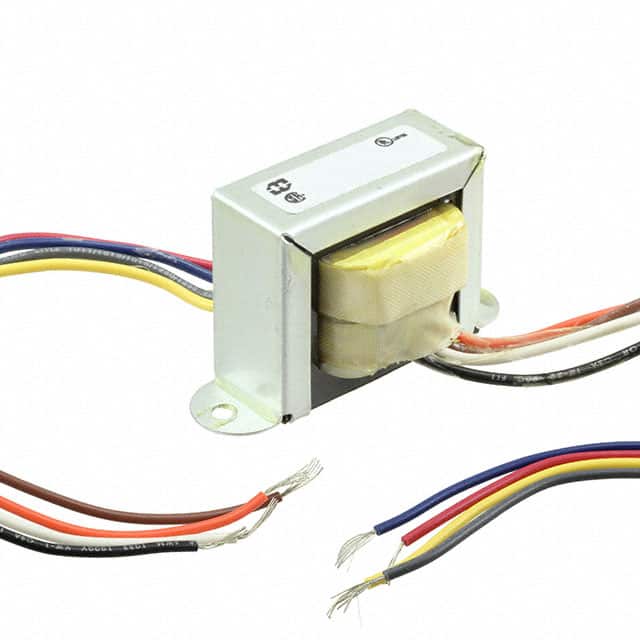

266G12 PWR XFMR LAMINATED 6.3VA CHAS MT Hammond Manufacturing	2127	38.34	- + Add To Cart Inquiry Now	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 6.3V, Series 12.6V	Parallel 1A, Series 500mA	Dual	Dual	No	6.3VA	Chassis Mount	Wire Leads	71.37mm L x 40.64mm W	42.67mm	2000Vrms
266G48 PWR XFMR LAMINATED 24VA CHAS MT Hammond Manufacturing	2358	38.68	- + Add To Cart Inquiry Now	Datasheet	Bulk	266	Active	Laminated Core	117V, 234V	Parallel 24V, Series 48V	Parallel 1A, Series 500mA	Dual	Dual	No	24VA	Chassis Mount	Wire Leads	82.55mm L x 50.80mm W	50.80mm	2000Vrms
166P11 PWR XFMR LAMINATED 55VA CHAS MT Hammond Manufacturing	3346	38.78	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	11V	5A	Single	Single	Yes	55VA	Chassis Mount	Wire Leads	93.73mm L x 54.10mm W	54.10mm	2000Vrms
166J50 PWR XFMR LAMINATED 50VA CHAS MT Hammond Manufacturing	2480	38.78	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	50V	1A	Single	Single	Yes	50VA	Chassis Mount	Wire Leads	93.73mm L x 54.10mm W	58.67mm	2000Vrms
166K35 PWR XFMR LAMINATED 52.5VA CHAS Hammond Manufacturing	2772	38.78	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	35V	1.5A	Single	Single	Yes	52.5VA	Chassis Mount	Wire Leads	93.72mm L x 54.10mm W	58.67mm	2000Vrms
166S5 PWR XFMR LAMINATED 50VA CHAS MT Hammond Manufacturing	3479	38.78	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	5V	10A	Single	Single	Yes	50VA	Chassis Mount	Wire Leads	93.73mm L x 54.10mm W	58.67mm	2000Vrms
166G80 PWR XFMR LAMINATED 40VA CHAS MT Hammond Manufacturing	2858	38.79	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	80V	500mA	Single	Single	Yes	40VA	Chassis Mount	Wire Leads	93.73mm L x 47.75mm W	58.67mm	2000Vrms
BE5G PWR XFMR LAMINATED 40VA CHAS MT Hammond Manufacturing	3985	39.27	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Laminated Core	240V	24V	1.67A	Single	Single	No	40VA	Chassis Mount	Wire Leads	66.04mm L x 59.18mm W	50.29mm	-
266L12 PWR XFMR LAMINATED 31.5VA CHAS Hammond Manufacturing	3995	39.53	- + Add To Cart Inquiry Now	Datasheet	Bulk	266	Active	Laminated Core	117V, 234V	Parallel 6.3V, Series 12.6V	Parallel 5A, Series 2.5A	Dual	Dual	No	31.5VA	Chassis Mount	Wire Leads	79.50mm L x 50.04mm W	69.85mm	2000Vrms
70083K XFRMR TOROIDAL 50VA THRU HOLE Talema Group LLC	3786	39.58	- + Add To Cart Inquiry Now	Datasheet	Tray	7XXXX	Active	Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 3.332A, Series 1.666A	Dual	Dual	No	50VA	Through Hole	PC Pin	82.40mm L x 82.40mm W	37.50mm	4000Vrms
262F12 PWR XFMR LAMINATED 26VA CHAS MT Hammond Manufacturing	2019	39.89	- + Add To Cart Inquiry Now	Datasheet	Bulk	262	Active	Laminated Core	115V	120V, 12.6V	140mA, 750mA	Single	Dual	No	26VA	Chassis Mount	Wire Leads	93.73mm L x 46.99mm W	58.67mm	-
262F6 PWR XFMR LAMINATED 26VA CHAS MT Hammond Manufacturing	2111	39.89	- + Add To Cart Inquiry Now	Datasheet	Bulk	262	Active	Laminated Core	115V	120V, 6.3V	140mA, 1.5A	Single	Dual	No	26VA	Chassis Mount	Wire Leads	93.73mm L x 46.99mm W	58.67mm	-
262D6 PWR XFMR LAMINATED 12VA CHAS MT Hammond Manufacturing	3076	40.28	- + Add To Cart Inquiry Now	Datasheet	Bulk	262	Active	Laminated Core	115V	120V, 6.3V	53mA, 900mA	Single	Dual	No	12VA	Chassis Mount	Wire Leads	82.55mm L x 41.15mm W	50.80mm	-
166M12 PWR XFMR LAMINATED 37.8VA CHAS Hammond Manufacturing	2497	40.28	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	12.6V	3A	Single	Single	Yes	37.8VA	Chassis Mount	Wire Leads	93.73mm L x 54.10mm W	58.67mm	2000Vrms
VPS24-7300 PWR XFMR LAMINATED 175VA CHAS MT Triad Magnetics	3002	40.47	- + Add To Cart Inquiry Now	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 14.6A, Series 7.3A	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.50mm L x 71.37mm W	95.25mm	4000Vrms

Total 6768 Records«Prev 1... 77 78 79 808182 83 84...339 Next»
