Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
187F12 PWR XFMR LAMINATED 100.8VA CHAS Hammond Manufacturing	3784	30.65	- + Add To Cart Inquiry Now	Datasheet	Box	187	Active	Laminated Core	115V	12.6V	8A	Single	Single	Yes	100.8VA	Chassis Mount	Solder, Quick Connect	102.36mm L x 66.68mm W	65.02mm	2000Vrms
187F20 PWR XFMR LAMINATED 100VA CHAS MT Hammond Manufacturing	2591	30.65	- + Add To Cart Inquiry Now	Datasheet	Box	187	Active	Laminated Core	115V	20V	5A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.36mm L x 66.68mm W	65.02mm	2000Vrms
166M8 PWR XFMR LAMINATED 25.5VA CHAS Hammond Manufacturing	3764	31.04	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	8.5V	3A	Single	Single	Yes	25.5VA	Chassis Mount	Wire Leads	82.55mm L x 44.45mm W	50.80mm	2000Vrms
166G60 PWR XFMR LAMINATED 30VA CHAS MT Hammond Manufacturing	3806	31.04	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	60V	500mA	Single	Single	Yes	30VA	Chassis Mount	Wire Leads	82.55mm L x 50.80mm W	50.80mm	2000Vrms
166G12 PWR XFMR LAMINATED 6.3VA CHAS MT Hammond Manufacturing	3895	31.30	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	12.6V	500mA	Single	Single	Yes	6.3VA	Chassis Mount	Wire Leads	71.37mm L x 38.10mm W	42.93mm	2000Vrms
166L20 PWR XFMR LAMINATED 40VA CHAS MT Hammond Manufacturing	3778	31.34	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	20V	2A	Single	Single	Yes	40VA	Chassis Mount	Wire Leads	93.73mm L x 47.75mm W	58.67mm	2000Vrms
166M16 PWR XFMR LAMINATED 48VA CHAS MT Hammond Manufacturing	2438	31.34	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	16V	3A	Single	Single	Yes	48VA	Chassis Mount	Wire Leads	93.73mm L x 54.10mm W	58.67mm	2000Vrms
186F12 PWR XFMR LAMINATED 100.8VA CHAS Hammond Manufacturing	3599	32.00	- + Add To Cart Inquiry Now	Datasheet	Box	186	Active	Laminated Core	115V, 230V	12.6V	8A	Dual	Single	Yes	100.8VA	Chassis Mount	Solder, Quick Connect	102.36mm L x 66.68mm W	65.02mm	2000Vrms
186F20 PWR XFMR LAMINATED 100VA CHAS MT Hammond Manufacturing	3568	32.00	- + Add To Cart Inquiry Now	Datasheet	Box	186	Active	Laminated Core	115V, 230V	20V	5A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.36mm L x 66.68mm W	65.02mm	2000Vrms
186F16 PWR XFMR LAMINATED 100VA CHAS MT Hammond Manufacturing	2488	32.00	- + Add To Cart Inquiry Now	Datasheet	Box	186	Active	Laminated Core	115V, 230V	16V	6.25A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.36mm L x 66.68mm W	65.02mm	2000Vrms
186F36 PWR XFMR LAMINATED 100.8VA CHAS Hammond Manufacturing	3253	32.00	- + Add To Cart Inquiry Now	Datasheet	Box	186	Active	Laminated Core	115V, 230V	36V	2.8A	Dual	Single	Yes	100.8VA	Chassis Mount	Solder, Quick Connect	102.36mm L x 66.68mm W	65.02mm	2000Vrms
186F28 PWR XFMR LAMINATED 100VA CHAS MT Hammond Manufacturing	2849	32.00	- + Add To Cart Inquiry Now	Datasheet	Box	186	Active	Laminated Core	115V, 230V	28V	3.57A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.36mm L x 66.68mm W	65.02mm	2000Vrms

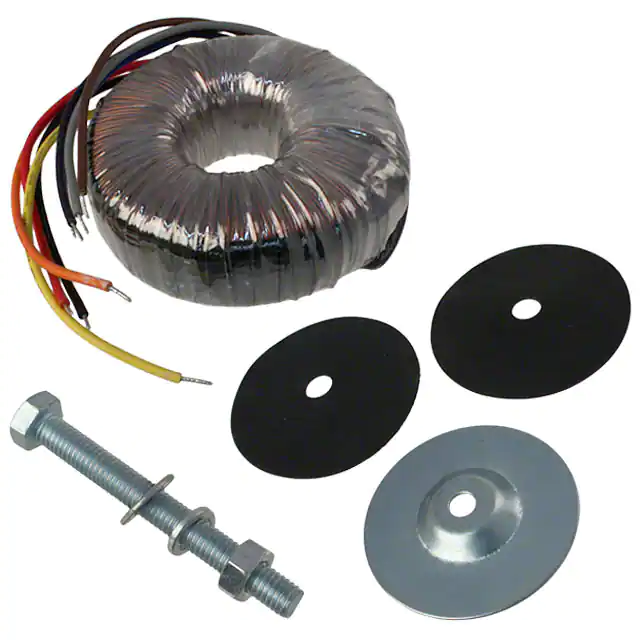

VPT18-2780 PWR XFMR TORO 50VA CHAS MT Triad Magnetics	3740	32.14	- + Add To Cart Inquiry Now	Datasheet	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 9V, Series 18V	Parallel 5.56A, Series 2.78A	Dual	Dual	No	50VA	Chassis Mount	Wire Leads	80.00mm Dia x 33.00mm W	36.0mm	4000Vrms
266LA12 PWR XFMR LAMINATED 24VA CHAS MT Hammond Manufacturing	3802	32.59	- + Add To Cart Inquiry Now	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 6V, Series 12V	Parallel 4A, Series 2A	Dual	Dual	No	24VA	Chassis Mount	Wire Leads	79.50mm L x 50.04mm W	69.85mm	2000Vrms
266J6 PWR XFMR LAMINATED 6.3VA CHAS MT Hammond Manufacturing	3738	32.59	- + Add To Cart Inquiry Now	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 3.15V, Series 6.3V	Parallel 2A, Series 1A	Dual	Dual	No	6.3VA	Chassis Mount	Wire Leads	71.37mm L x 40.64mm W	42.67mm	2000Vrms
266G14 PWR XFMR LAMINATED 7VA CHAS MT Hammond Manufacturing	3226	32.59	- + Add To Cart Inquiry Now	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 7V, Series 14V	Parallel 1A, Series 500mA	Dual	Dual	No	7VA	Chassis Mount	Wire Leads	71.37mm L x 40.64mm W	42.67mm	2000Vrms
266M2 PWR XFMR LAMINATED 7.5VA CHAS MT Hammond Manufacturing	2914	32.59	- + Add To Cart Inquiry Now	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 1.25V, Series 2.5V	Parallel 6A, Series 3A	Dual	Dual	No	7.5VA	Chassis Mount	Wire Leads	71.63mm L x 42.93mm W	42.93mm	2000Vrms
266L12B PWR XFMR LAMINATED 25.2VA CHAS Hammond Manufacturing	2486	32.59	- + Add To Cart Inquiry Now	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 6.3V, Series 12.6V	Parallel 4A, Series 2A	Dual	Dual	No	25.2VA	Chassis Mount	Wire Leads	79.50mm L x 50.04mm W	69.85mm	2000Vrms
229D30 PWR XFMR SEMI-TORO 48VA TH Hammond Manufacturing	2894	33.14	- + Add To Cart Inquiry Now	Datasheet	Bulk	229	Active	Semi-Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 3.2A, Series 1.6A	Dual	Dual	No	48VA	Through Hole	PC Pin	63.50mm L x 79.25mm W	35.05mm	1750Vrms
229D24 PWR XFMR SEMI-TORO 48VA TH Hammond Manufacturing	3710	33.14	- + Add To Cart Inquiry Now	Datasheet	Bulk	229	Active	Semi-Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 4A, Series 2A	Dual	Dual	No	48VA	Through Hole	PC Pin	63.50mm L x 79.25mm W	35.05mm	1750Vrms

Total 6768 Records«Prev 1... 75 76 77 787980 81 82...339 Next»
