Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

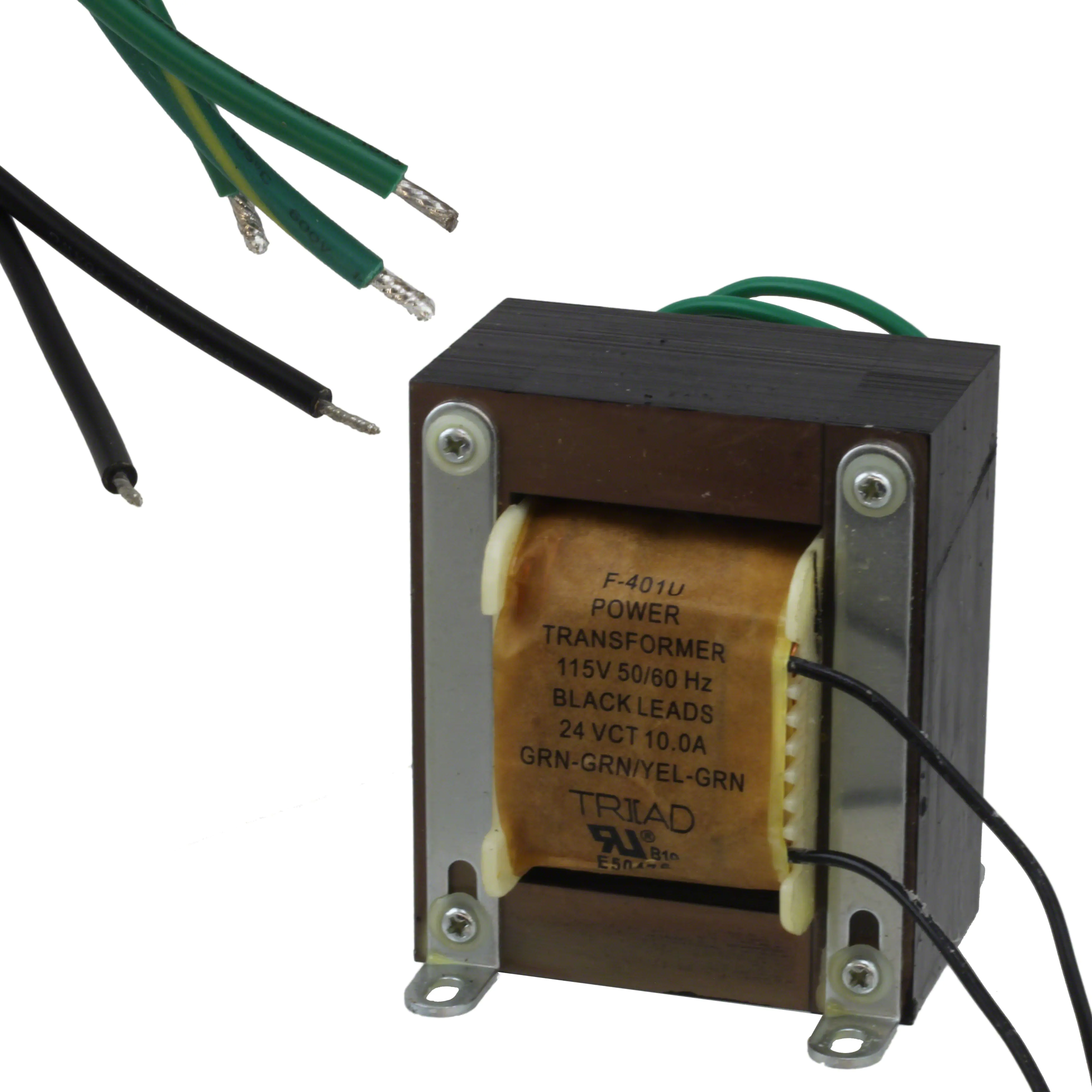

F-401U PWR XFMR LAMINATED 240VA CHAS MT Triad Magnetics	3817	48.66	- + Add To Cart Inquiry Now	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	24V	10A	Single	Single	Yes	240VA	Chassis Mount	Wire Leads	87.30mm L x 95.25mm W	104.77mm	1500Vrms
167R5 PWR XFMR LAMINATED 40VA CHAS MT Hammond Manufacturing	2345	49.51	- + Add To Cart Inquiry Now	Datasheet	Bulk	167	Active	Laminated Core	115V	5V	8A	Single	Single	Yes	40VA	Chassis Mount	Wire Leads	55.63mm L x 63.50mm W	66.80mm	2000Vrms
261E6 XFRMR LAMINATED 29VA CHAS MOUNT Hammond Manufacturing	3891	50.06	- + Add To Cart Inquiry Now	Datasheet	Bulk	261	Active	Laminated Core	115V	250V, 6.3V	91mA, 1A	Single	Dual	Yes	29VA	Chassis Mount	Wire Leads	93.73mm L x 46.99mm W	58.67mm	-
166U5 PWR XFMR LAMINATED 75VA CHAS MT Hammond Manufacturing	2147	50.21	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	5V	15A	Single	Single	Yes	75VA	Chassis Mount	Wire Leads	102.36mm L x 57.15mm W	66.80mm	2000Vrms
166Q14 PWR XFMR LAMINATED 84VA CHAS MT Hammond Manufacturing	3698	50.21	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	14V	6A	Single	Single	Yes	84VA	Chassis Mount	Wire Leads	102.36mm L x 63.50mm W	66.80mm	2000Vrms
166L42 PWR XFMR LAMINATED 84VA CHAS MT Hammond Manufacturing	2648	50.21	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	42V	2A	Single	Single	Yes	84VA	Chassis Mount	Wire Leads	102.36mm L x 63.50mm W	66.80mm	2000Vrms
167M18 PWR XFMR LAMINATED 54VA CHAS MT Hammond Manufacturing	2048	50.87	- + Add To Cart Inquiry Now	Datasheet	Bulk	167	Active	Laminated Core	115V	18V	3A	Single	Single	Yes	54VA	Chassis Mount	Wire Leads	63.50mm L x 69.85mm W	77.72mm	2000Vrms
185G28 PWR XFMR LAMINATED 175VA CHAS MT Hammond Manufacturing	3293	51.07	- + Add To Cart Inquiry Now	Datasheet	Bulk	185	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 12.5A, Series 6.25A	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.25mm L x 81.28mm W	95.25mm	4000Vrms
185G24 PWR XFMR LAMINATED 175VA CHAS MT Hammond Manufacturing	2534	51.07	- + Add To Cart Inquiry Now	Datasheet	Bulk	185	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 14.6A, Series 7.3A	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.25mm L x 81.28mm W	95.25mm	4000Vrms
185G20 PWR XFMR LAMINATED 175VA CHAS MT Hammond Manufacturing	3158	51.07	- + Add To Cart Inquiry Now	Datasheet	Bulk	185	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 17.6A, Series 8.8A	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.25mm L x 81.28mm W	95.25mm	4000Vrms
185G16 PWR XFMR LAMINATED 175VA CHAS MT Hammond Manufacturing	3629	51.07	- + Add To Cart Inquiry Now	Datasheet	Bulk	185	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 22A, Series 11A	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.25mm L x 81.28mm W	95.25mm	4000Vrms
185G10 PWR XFMR LAMINATED 175VA CHAS MT Hammond Manufacturing	3146	51.07	- + Add To Cart Inquiry Now	Datasheet	Bulk	185	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 35A, Series 17.5A	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.25mm L x 81.28mm W	95.25mm	4000Vrms
185G12 PWR XFMR LAMINATED 175VA CHAS MT Hammond Manufacturing	3552	51.07	- + Add To Cart Inquiry Now	Datasheet	Bulk	185	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 28A, Series 14A	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.25mm L x 81.28mm W	95.25mm	4000Vrms

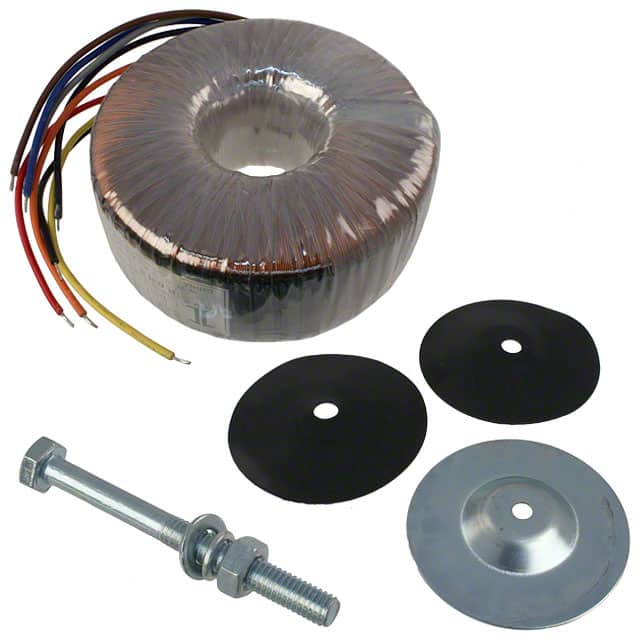

VPT230-700 PWR XFMR TORO 160VA CHAS MT Triad Magnetics	2302	51.28	- + Add To Cart Inquiry Now	Datasheet	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 115V, Series 230V	Parallel 1.4A, Series 700mA	Dual	Dual	No	160VA	Chassis Mount	Wire Leads	103.00mm Dia x 48.00mm W	52.0mm	4000Vrms
167M20 PWR XFMR LAMINATED 60VA CHAS MT Hammond Manufacturing	3569	52.09	- + Add To Cart Inquiry Now	Datasheet	Bulk	167	Active	Laminated Core	115V	20V	3A	Single	Single	Yes	60VA	Chassis Mount	Wire Leads	63.50mm L x 69.85mm W	77.72mm	2000Vrms
266M18 PWR XFMR LAMINATED 54VA CHAS MT Hammond Manufacturing	3443	52.69	- + Add To Cart Inquiry Now	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 9V, Series 18V	Parallel 6A, Series 3A	Dual	Dual	No	54VA	Chassis Mount	Wire Leads	102.36mm L x 63.50mm W	66.80mm	2000Vrms
266L28 PWR XFMR LAMINATED 56VA CHAS MT Hammond Manufacturing	3589	52.69	- + Add To Cart Inquiry Now	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 14V, Series 28V	Parallel 4A, Series 2A	Dual	Dual	No	56VA	Chassis Mount	Wire Leads	63.50mm L x 63.50mm W	77.72mm	2000Vrms
167L36 PWR XFMR LAMINATED 72VA CHAS MT Hammond Manufacturing	3902	52.81	- + Add To Cart Inquiry Now	Datasheet	Bulk	167	Active	Laminated Core	115V	36V	2A	Single	Single	Yes	72VA	Chassis Mount	Wire Leads	63.50mm L x 69.85mm W	77.72mm	2000Vrms
167Q12 PWR XFMR LAMINATED 75.6VA CHAS Hammond Manufacturing	2801	53.16	- + Add To Cart Inquiry Now	Datasheet	Bulk	167	Active	Laminated Core	115V	12.6V	6A	Single	Single	Yes	75.6VA	Chassis Mount	Wire Leads	63.50mm L x 69.85mm W	77.72mm	2000Vrms
1182D240 PWR XFMR TORO 30VA CHAS MT Hammond Manufacturing	3779	53.54	- + Add To Cart Inquiry Now	Datasheet	Box	1182	Active	Toroidal	117V	240V	125mA	Dual	Single	No	30VA	Chassis Mount	Wire Leads	76.20mm Dia	31.75mm	4000Vrms

Total 6768 Records«Prev 1... 80 81 82 838485 86 87...339 Next»
