Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
166N8 PWR XFMR LAMINATED 34VA CHAS MT Hammond Manufacturing	3726	33.60	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	8.5V	4A	Single	Single	Yes	34VA	Chassis Mount	Wire Leads	93.73mm L x 50.80mm W	58.67mm	2000Vrms
166F120 PWR XFMR LAMINATED 36VA CHAS MT Hammond Manufacturing	3883	33.60	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	120V	300mA	Single	Single	Yes	36VA	Chassis Mount	Wire Leads	93.73mm L x 47.75mm W	58.67mm	2000Vrms
187F24 PWR XFMR LAMINATED 96VA CHAS MT Hammond Manufacturing	2661	33.76	- + Add To Cart Inquiry Now	Datasheet	Box	187	Active	Laminated Core	115V	24V	4A	Single	Single	Yes	96VA	Chassis Mount	Solder, Quick Connect	102.36mm L x 66.68mm W	65.02mm	2000Vrms
266F48 PWR XFMR LAMINATED 12VA CHAS MT Hammond Manufacturing	3955	33.82	- + Add To Cart Inquiry Now	Datasheet	Bulk	266	Active	Laminated Core	117V, 234V	Parallel 24V, Series 48V	Parallel 500mA, Series 250mA	Dual	Dual	No	12VA	Chassis Mount	Wire Leads	73.15mm L x 44.20mm W	60.20mm	2000Vrms
166N12 PWR XFMR LAMINATED 50.4VA CHAS Hammond Manufacturing	3733	34.17	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	12.6V	4A	Single	Single	Yes	50.4VA	Chassis Mount	Wire Leads	93.73mm L x 50.80mm W	58.67mm	2000Vrms
166J33 PWR XFMR LAMINATED 33VA CHAS MT Hammond Manufacturing	2508	34.17	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	33V	1A	Single	Single	Yes	33VA	Chassis Mount	Wire Leads	82.55mm L x 50.80mm W	50.80mm	2000Vrms
166L18 PWR XFMR LAMINATED 36VA CHAS MT Hammond Manufacturing	3951	34.55	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	18V	2A	Single	Single	Yes	36VA	Chassis Mount	Wire Leads	93.73mm L x 54.10mm W	58.67mm	2000Vrms
166J36 PWR XFMR LAMINATED 36VA CHAS MT Hammond Manufacturing	2573	34.89	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	36V	1A	Single	Single	Yes	36VA	Chassis Mount	Wire Leads	93.73mm L x 47.75mm W	58.67mm	2000Vrms
185E10 XFRMR LAMINATED 80VA CHAS MOUNT Hammond Manufacturing	3145	37.12	- + Add To Cart Inquiry Now	Datasheet	Bulk	185	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 16A, Series 8A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 66.29mm W	76.20mm	4000Vrms
185E24 XFRMR LAMINATED 80VA CHAS MOUNT Hammond Manufacturing	3016	37.12	- + Add To Cart Inquiry Now	Datasheet	Bulk	185	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 6.6A, Series 3.3A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 66.29mm W	76.20mm	4000Vrms
185E20 XFRMR LAMINATED 80VA CHAS MOUNT Hammond Manufacturing	3358	37.12	- + Add To Cart Inquiry Now	Datasheet	Bulk	185	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 8A, Series 4A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 66.29mm W	76.20mm	4000Vrms

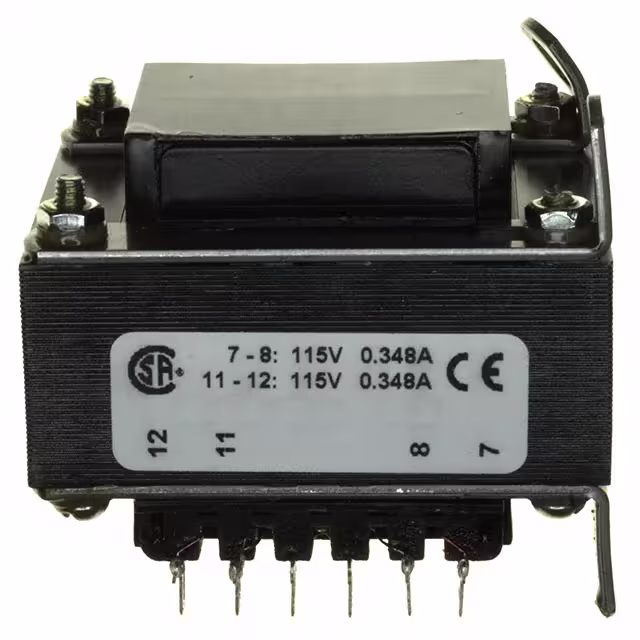

185E230 XFRMR LAMINATED 80VA CHAS MOUNT Hammond Manufacturing	3556	37.12	- + Add To Cart Inquiry Now	Datasheet	Bulk	185	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 700mA, Series 350mA	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 66.29mm W	76.20mm	4000Vrms
F-221U PWR XFMR LAMINATED 96VA CHAS MT Triad Magnetics	2244	37.86	- + Add To Cart Inquiry Now	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	12V	8A	Single	Single	No	96VA	Chassis Mount	Wire Leads	79.38mm L x 63.50mm W	96.82mm	1500Vrms
167L12 PWR XFMR LAMINATED 31.5VA CHAS Hammond Manufacturing	3743	37.98	- + Add To Cart Inquiry Now	Datasheet	Bulk	167	Active	Laminated Core	115V	12.6V	2.5A	Single	Single	Yes	31.5VA	Chassis Mount	Wire Leads	47.75mm L x 61.98mm W	63.50mm	2000Vrms
266FB24 PWR XFMR LAMINATED 9.6VA CHAS MT Hammond Manufacturing	3720	38.03	- + Add To Cart Inquiry Now	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 12V, Series 24V	Parallel 800mA, Series 400mA	Dual	Dual	No	9.6VA	Chassis Mount	Wire Leads	71.63mm L x 42.93mm W	42.93mm	2000Vrms
266GD12 PWR XFMR LAMINATED 8.4VA CHAS MT Hammond Manufacturing	2916	38.03	- + Add To Cart Inquiry Now	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 6V, Series 12V	Parallel 1.4A, Series 700mA	Dual	Dual	No	8.4VA	Chassis Mount	Wire Leads	71.63mm L x 42.93mm W	42.93mm	2000Vrms
266G16 PWR XFMR LAMINATED 8VA CHAS MT Hammond Manufacturing	2593	38.03	- + Add To Cart Inquiry Now	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 8V, Series 16V	Parallel 1A, Series 500mA	Dual	Dual	No	8VA	Chassis Mount	Wire Leads	71.37mm L x 40.64mm W	42.67mm	2000Vrms
266M16 PWR XFMR LAMINATED 48VA CHAS MT Hammond Manufacturing	3421	38.34	- + Add To Cart Inquiry Now	Datasheet	Bulk	266	Active	Laminated Core	117V, 234V	Parallel 8V, Series 16V	Parallel 6A, Series 3A	Dual	Dual	No	48VA	Chassis Mount	Wire Leads	101.60mm L x 58.42mm W	66.55mm	2000Vrms
266F20 PWR XFMR LAMINATED 6VA CHAS MT Hammond Manufacturing	2557	38.34	- + Add To Cart Inquiry Now	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 10V, Series 20V	Parallel 600mA, Series 300mA	Dual	Dual	No	6VA	Chassis Mount	Wire Leads	71.37mm L x 40.64mm W	42.67mm	2000Vrms
266GD24 PWR XFMR LAMINATED 16.8VA CHAS Hammond Manufacturing	3259	38.34	- + Add To Cart Inquiry Now	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 12V, Series 24V	Parallel 1.4A, Series 700mA	Dual	Dual	No	16.8VA	Chassis Mount	Wire Leads	82.55mm L x 52.32mm W	50.80mm	2000Vrms

Total 6768 Records«Prev 1... 76 77 78 798081 82 83...339 Next»
