Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
SM453229-381N7Y XFRMR LAN 10/100/1000 1:1 350UH Bourns Inc.	8196	0.86	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SM	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	-	0.114 (2.90mm)
PT61018PEL PULSE XFMR 1CT:1CT 350UH Bourns Inc.	10295	1.52	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
SM13126PEL 10/100 BASE TX LAN POE +85 C, IE Bourns Inc.	2924	2.17	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, SM	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	350µH	-	1:1	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)
PT61020EL PULSE XFMR 1CT:1 350UH Bourns Inc.	29127	2.73	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1	Surface Mount	0.694 L x 0.480 W (17.62mm x 12.20mm)	0.236 (6.00mm)
SM13072APEL LAN 10/100 BASE T XFORMER AECQ + Bourns Inc.	6327	3.15	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, SM	Active	LAN 10/100 Base-T	350µH	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.232 (5.90mm)

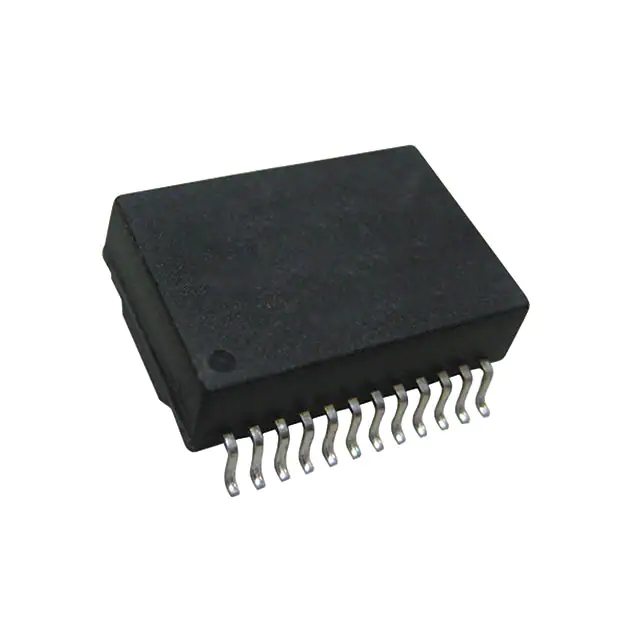

SM51625EL XFRMR LAN POE+ 1.2A 24SMD Bourns Inc.	7469	3.11	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SM	Active	LAN	10µH	-	1:1	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.246 (6.25mm)

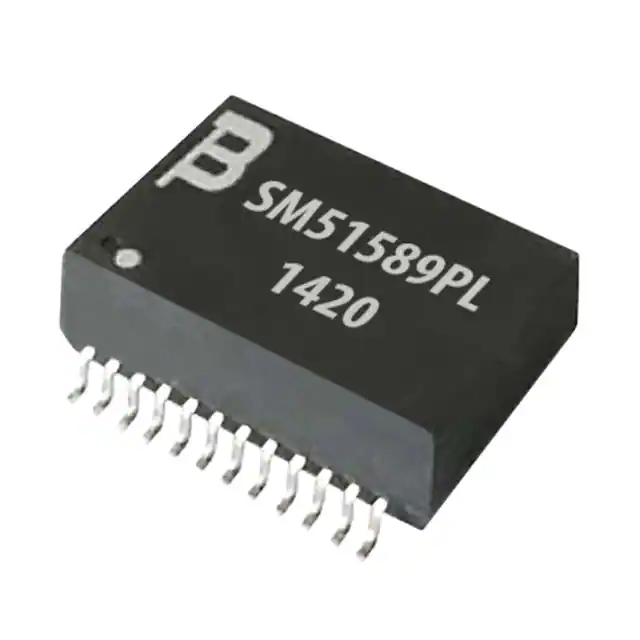

SM51589PEL PULSE XFMR 1CT:1CT 350UH Bourns Inc.	184	3.22	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.236 (6.00mm)

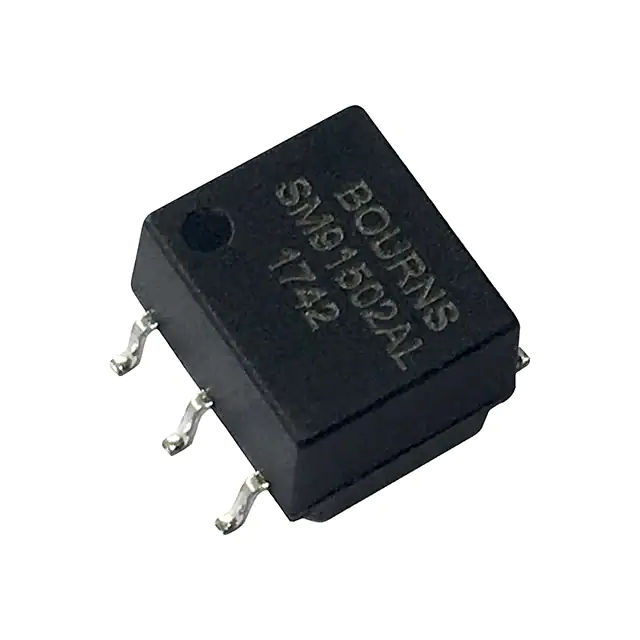

SM91502ALE BMS XFORMER 1-CH 1000V AECQ +125 Bourns Inc.	10236	4.30	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, SM	Active	-	150µH	-	1CT:1CT	Surface Mount	0.300 L x 0.265 W (7.62mm x 6.73mm)	0.225 (5.72mm)

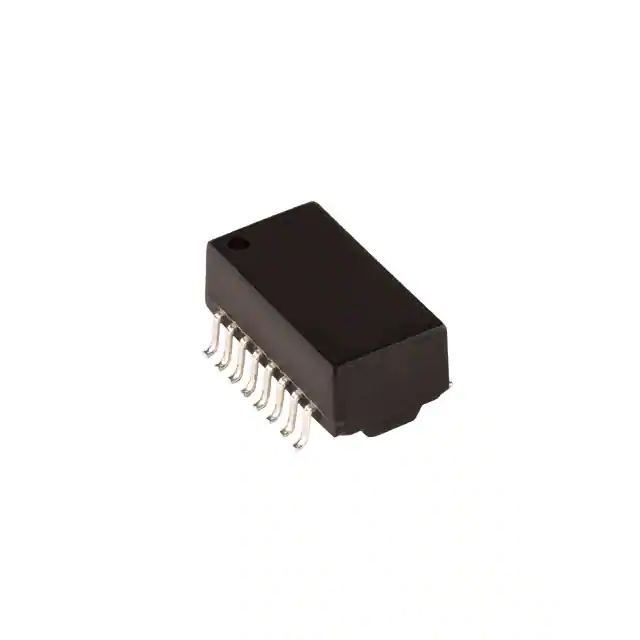

PT61018AAPEL-S PULSE XFMR 1CT:1CT 350UH Bourns Inc.	2973	5.32	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, PT	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.232 (5.90mm)

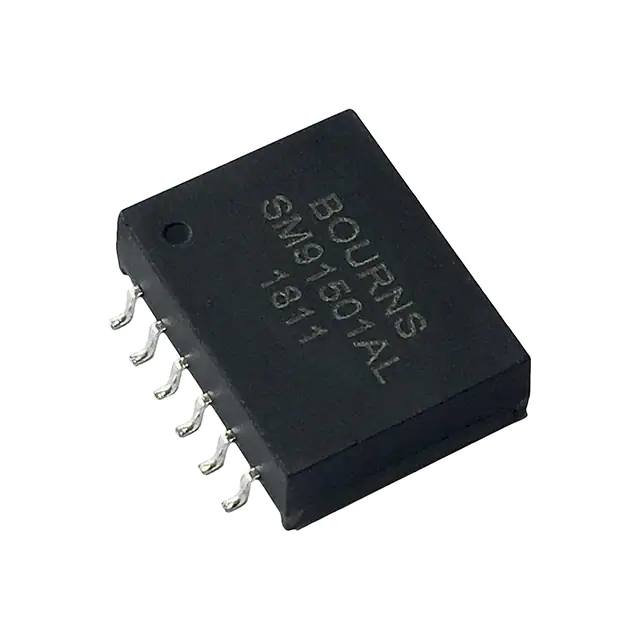

SM91501AL-E BMS XFORMER 2-CH 1600V AECQ +125 Bourns Inc.	3267	5.43	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, SM	Active	-	150µH	-	1CT:1CT	Surface Mount	0.583 L x 0.460 W (14.81mm x 11.68mm)	0.197 (5.00mm)

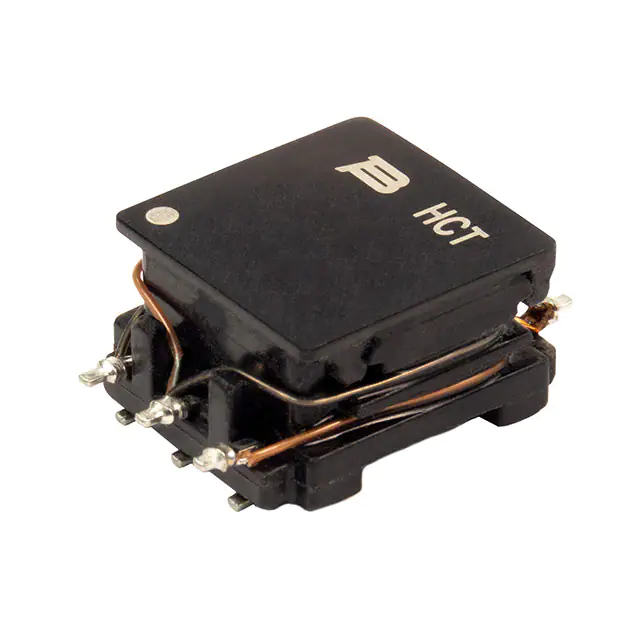

HCTSM80102AAL-E1 XFRMR POWER 1:2 250UH SMD Bourns Inc.	1550	3.13	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HCT	Active	-	250µH	11.0VµS	1:2	Surface Mount	0.598 L x 0.425 W (15.20mm x 10.80mm)	0.256 (6.50mm)
SM13100EL LAN 10/100 BASE T XFORMER 250VRM Bourns Inc.	1340	4.40	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, SM	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	-	-	0.504 (12.80mm)
SM91071AL-E XFRMR PULSE 10 BASE-T Bourns Inc.	2154	4.72	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	-	-	-

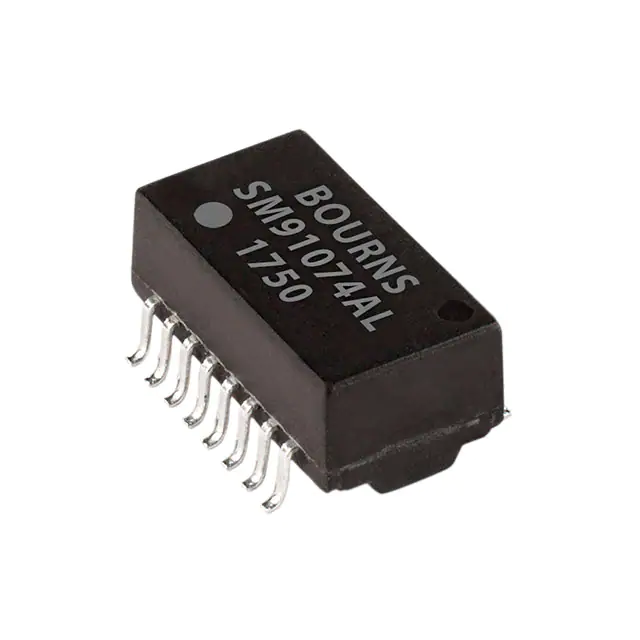

SM91074AL-E 10/100 BASE T XFORMER AECQ +125 Bourns Inc.	610	5.17	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200	Active	-	-	-	-	-	-	-
HCTSM80910BAL-E1 XFRMR POWER 9:10 300UH SMD Bourns Inc.	500	3.13	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HCT	Active	-	300µH	11.0VµS	9:10	Surface Mount	0.598 L x 0.425 W (15.20mm x 10.80mm)	0.256 (6.50mm)
SM91047EL PULSE XFMR 11.875:1 5MH Bourns Inc.	962	5.15	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	5mH	-	11.875:1	Surface Mount	0.531 L x 0.701 W (13.50mm x 17.80mm)	0.500 (12.70mm)

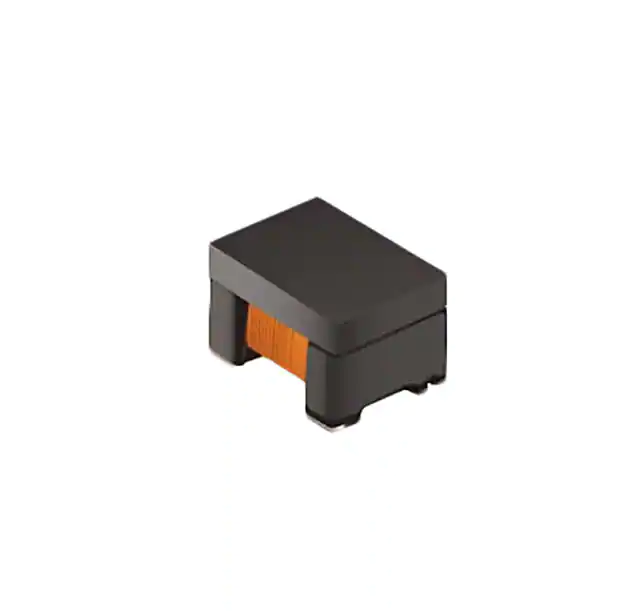

SM453230-121N7Y CHIP LAN XFMR,1 /2.5/5/10G,4.7X3 Bourns Inc.	1952	1.62	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SM	Active	LAN 1/2.5/5/10G Base-T	120µH	-	1:1	Surface Mount	0.185 L x 0.127 W (4.70mm x 3.22mm)	0.114 (2.90mm)

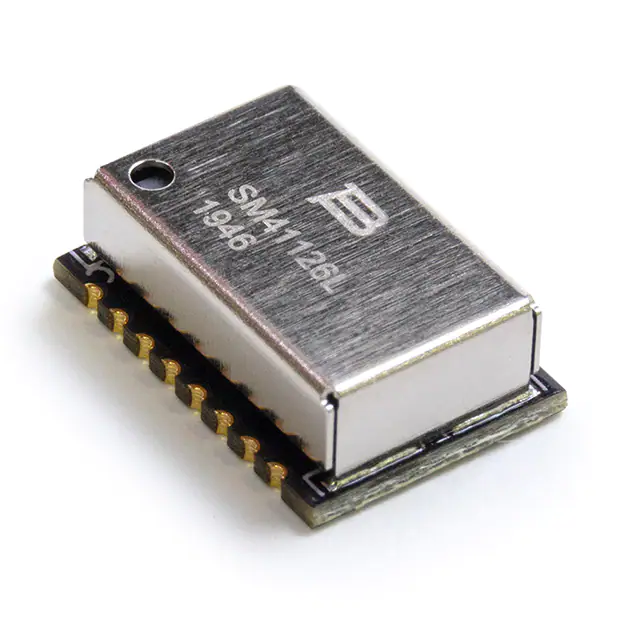

SM41126EL CHIP LAN XFMR MODULE,10/100 TX,W Bourns Inc.	1558	1.79	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	-	Surface Mount	0.500 L x 0.341 W (12.70mm x 8.66mm)	0.157 (3.99mm)

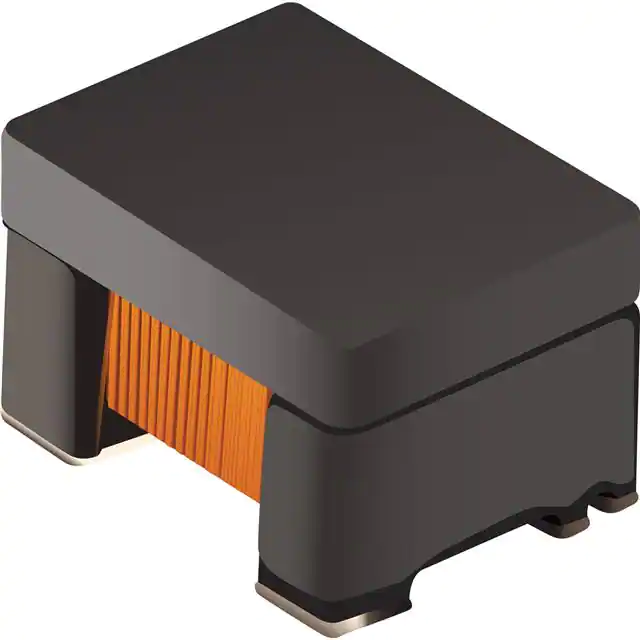

SM453230-121N7YP LAN XFMR,10GBE,POE+,IEEE Bourns Inc.	2000	1.77	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SM	Active	LAN 1/2.5/5/10G Base-T	120µH	-	1:1	Surface Mount	0.185 L x 0.127 W (4.70mm x 3.22mm)	0.114 (2.90mm)
PT61017XPEL 10/100 BASE T XFORMER,CMC(TX/RX) Bourns Inc.	2078	1.81	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PT	Active	LAN 10/100 Base-T	350µH	-	1:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.222 (5.65mm)

Total 97 Records«Prev12 3 4 5 Next»
