Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
S558-5500-68 XFRMR MODULE LAN 10/100BT SMD Bel Fuse Inc.	21230	4.69	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.20mm)	0.230 (5.84mm)
PH9185.034NLT TRANSFORMER 750UH 3:4 SMD Pulse Electronics Power	12284	4.55	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9185	Active	-	-	-	-	Surface Mount	0.394 L x 0.394 W (10.00mm x 10.00mm)	0.492 (12.50mm)
PH9185.011NLT TRANSFORMER 750UH 1:1 SMD Pulse Electronics Power	26229	4.55	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9185	Active	-	-	-	-	Surface Mount	0.394 L x 0.394 W (10.00mm x 10.00mm)	0.492 (12.50mm)
7490100111A TRANSFORMER LAN 10/100 SMD Würth Elektronik	30690	3.99	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.500 L x 0.346 W (12.70mm x 8.80mm)	0.250 (6.35mm)
PA1137NLT XFRMR 5V 13.5W 127UH POE EP13 Pulse Electronics Power	10717	4.69	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP13	Active	Isolation and Data Interface (Encapsulated)	127µH	-	1:0.125:0.208	Surface Mount	0.551 L x 0.695 W (14.00mm x 17.65mm)	0.500 (12.70mm)
PA2369NLT PULSE XFMR 37UH Pulse Electronics Power	1285	4.69	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	37µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
S558-5999-AB-F XFRMR MOD LAN GIGABIT EXTEMP 24P Bel Fuse Inc.	6845	4.70	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.522 L x 0.600 W (13.26mm x 15.24mm)	0.250 (6.35mm)
HM2101NLT XFMR CMC MODULE AECQ BATT MNGT Pulse Electronics Network	5469	5.08	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	150µH, 450µH	-	1:1	Surface Mount	0.300 L x 0.265 W (7.62mm x 6.73mm)	0.225 (5.72mm)
PE-68386NL PULSE XFMR 1:1 785UH Pulse Electronics Power	7201	2.86	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	-	785µH	9.7VµS	1:1	Surface Mount	0.340 L x 0.265 W (8.64mm x 6.73mm)	0.098 (2.49mm)

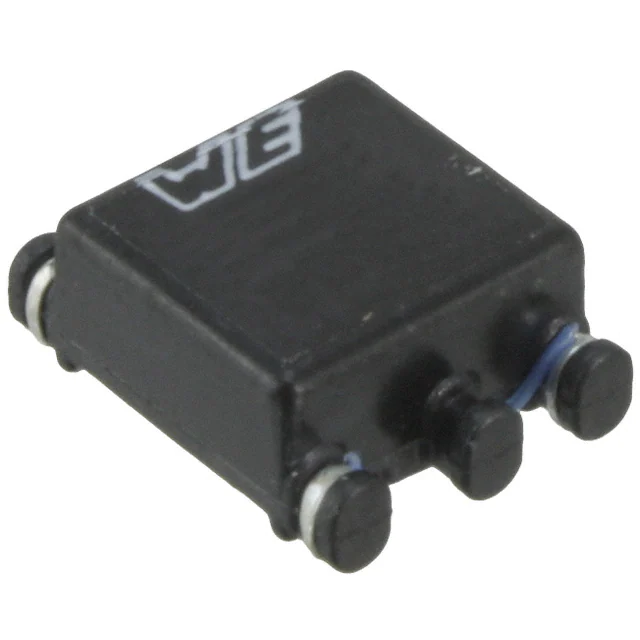

750110056 TRANSFORMER 70/80UH SMD Würth Elektronik	25629	4.30	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-AMT, MID-PMA	Active	Data/Voice Coupling	70µH	-	1.08:1	Surface Mount	0.265 L x 0.340 W (6.73mm x 8.64mm)	0.140 (3.55mm)
PT61018AAPEL-S PULSE XFMR 1CT:1CT 350UH Bourns Inc.	2973	5.32	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, PT	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.504 L x 0.272 W (12.80mm x 6.90mm)	0.232 (5.90mm)

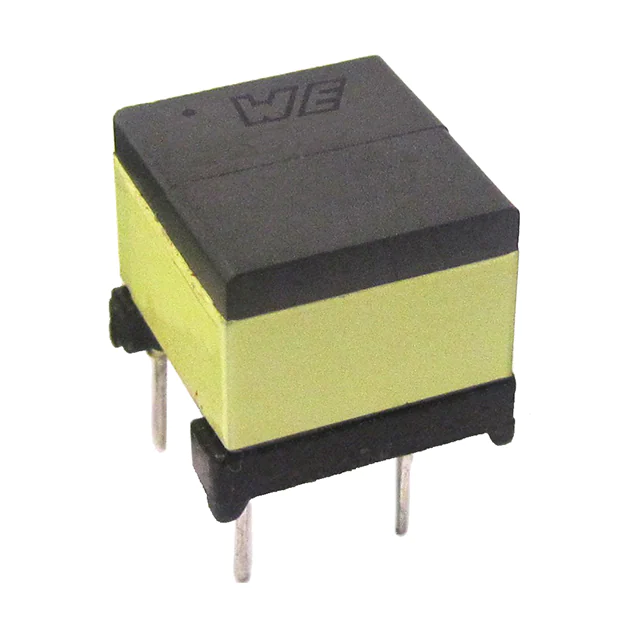

750510231 DIGITAL TRANSFORMER Würth Elektronik	16917	2.94	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	-	1mH	-	1:1	Through Hole	0.550 L x 0.550 W (13.97mm x 13.97mm)	0.530 (13.46mm)
H1260NLT XFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics Network	3060	5.38	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.235 (5.97mm)
B78416A2232A003 SMT TRANSFORMER FOR ULTRASONIC S EPCOS - TDK Electronics	9886	5.13	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B7416A	Active	-	3mH	-	-	Surface Mount	0.260 L x 0.260 W (6.60mm x 6.60mm)	0.280 (7.10mm)
H1260FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	17610	5.49	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.225 (5.72mm)
HX1260FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	7521	5.49	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)
HX1260NLT XFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics Network	5674	5.49	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Star Magnetics™	Active	LAN 10/100 Base-T	350µH, 400µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.235 (5.97mm)
HX2326NLT MODULE 10/100B-T POE SMD Pulse Electronics Network	7298	5.08	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.245 (6.22mm)
HX2326FNLT PULSE XFMR 1CT:1CT TX/RX Pulse Electronics Network	2728	5.53	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	120µH, 350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)
HM2113ZNLT XFMR CMC MODULE AECQ BATT MNGT Pulse Electronics Network	12191	5.56	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	150µH, 450µH	-	1:1	Surface Mount	0.354 L x 0.478 W (9.00mm x 12.15mm)	0.136 (3.45mm)

Total 7775 Records«Prev 1 234 5 6...389 Next»
