Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
S558-5999-AC-F MODULE XFRMR LAN GIGABIT 24P SMD Bel Fuse Inc.	1674	6.06	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN	-	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.522 L x 0.600 W (13.26mm x 15.24mm)	0.250 (6.35mm)
S558-5999-P3-F MODULE XFRMR LAN GIGABIT 24P SMD Bel Fuse Inc.	14943	6.31	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.20mm)	0.230 (5.84mm)

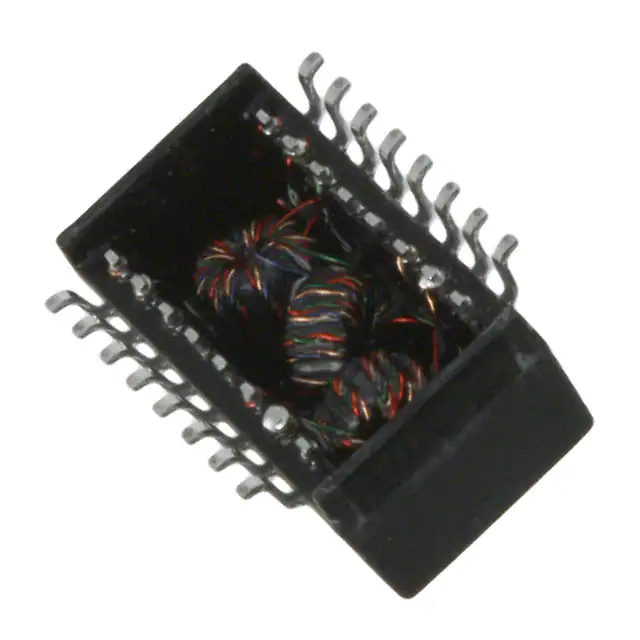

HX2019NLT XFRMR MAGNT MOD 1PORT POE 10/100 Pulse Electronics Network	5528	6.68	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1 Transmitter, 1:1 Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.245 (6.22mm)

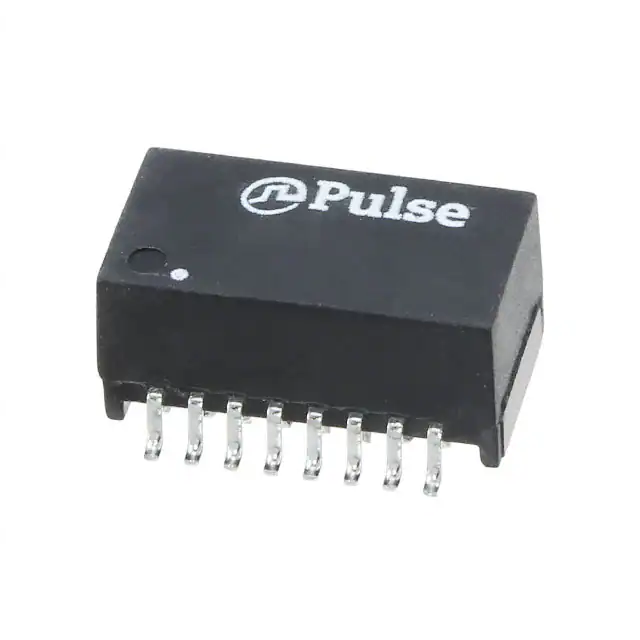

HM1188NLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	18894	6.94	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.235 (5.97mm)
HM2102NLT XFMR CMC MODULE AECQ BATT MNGT Pulse Electronics Network	6391	6.75	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	150µH	-	1:1	Surface Mount	0.583 L x 0.460 W (14.81mm x 11.68mm)	0.197 (5.00mm)
749020100 TRANSFORMER LAN 10/100/1000 SMD Würth Elektronik	2504	6.91	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.505 L x 0.264 W (12.83mm x 6.70mm)	0.085 (2.16mm)
749010110 TRANSFORMER LAN 10/100 SMD Würth Elektronik	1586	6.56	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.505 L x 0.280 W (12.83mm x 7.11mm)	0.085 (2.16mm)
1001C TRANSFORMER PULSE 1:1 200VUS Murata Power Solutions Inc.	10690	4.31	- + Add To Cart Inquiry Now	Datasheet	Tube	1000	Active	-	3mH	200VµS	1:1	Through Hole	0.593 L x 0.593 W (15.06mm x 15.06mm)	0.640 (16.25mm)
PH9185.011NL TRANSFORMER 750UH 1:1 SMD Pulse Electronics Power	1965	4.55	- + Add To Cart Inquiry Now	Datasheet	Tray	PH9185	Active	-	-	-	-	Surface Mount	0.394 L x 0.394 W (10.00mm x 10.00mm)	0.492 (12.50mm)
S558-5999-AZ-F MODULE XFRMR GIGABIT MINIPCI SMD Bel Fuse Inc.	2474	7.45	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.880 L x 0.540 W (22.35mm x 13.72mm)	0.084 (2.13mm)

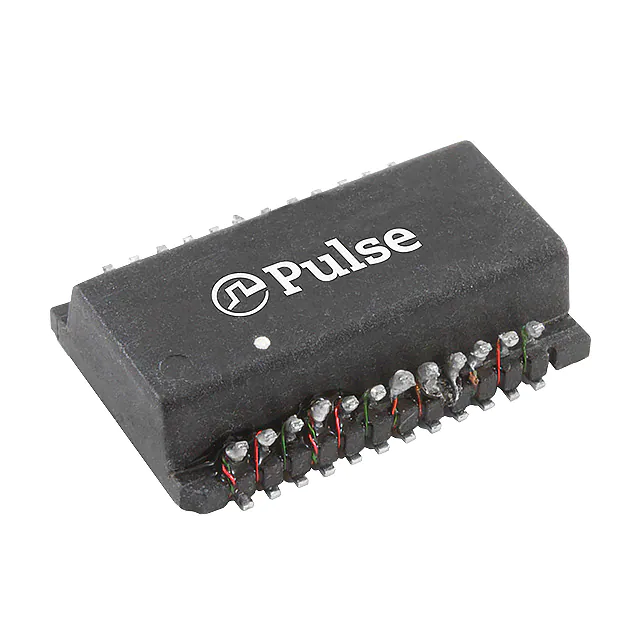

HX5084FNLT MOD MAGNETIC 1PORT 1000BASE-T Pulse Electronics Network	13755	7.46	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	Surface Mount	0.600 L x 0.385 W (15.24mm x 9.78mm)	0.163 (4.14mm)

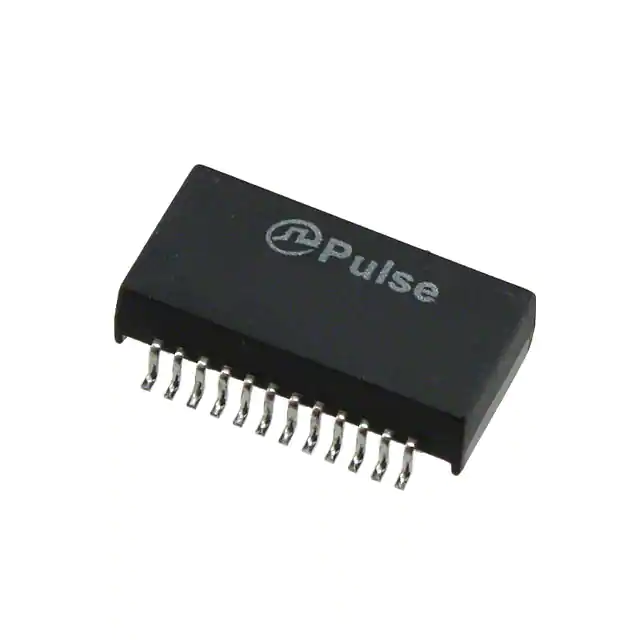

HX5084NLT PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics Network	3628	7.46	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.600 L x 0.385 W (15.24mm x 9.78mm)	0.163 (4.14mm)
76253/55ENC XFRMR 5V IN/OUT MAX253 EN Murata Power Solutions Inc.	2970	4.47	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	250µH	-	1:1.33	Through Hole	0.591 L x 0.591 W (15.00mm x 15.00mm)	0.502 (12.75mm)
76253/35ENC XFRMR 3.3V IN/5V OUT MAX253 EN Murata Power Solutions Inc.	2555	4.47	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	200µH	-	1:2.24	Through Hole	0.591 L x 0.591 W (15.00mm x 15.00mm)	0.502 (12.75mm)
HX2019FNLT PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics Network	1142	7.51	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)
S558-5999-Q2-F MODULE XFRMR LAN GIGABIT 48P SMD Bel Fuse Inc.	8948	7.45	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095 L x 0.480 W (27.81mm x 12.19mm)	0.295 (7.49mm)
PH9185.012NL TRANSFORMER 450UH 1:2 SMD Pulse Electronics Power	8093	4.55	- + Add To Cart Inquiry Now	Datasheet	Tray	PH9185	Active	-	-	-	-	Surface Mount	0.394 L x 0.394 W (10.00mm x 10.00mm)	0.492 (12.50mm)
H2019FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics Network	4651	7.66	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.358 W (12.70mm x 9.09mm)	0.236 (5.99mm)

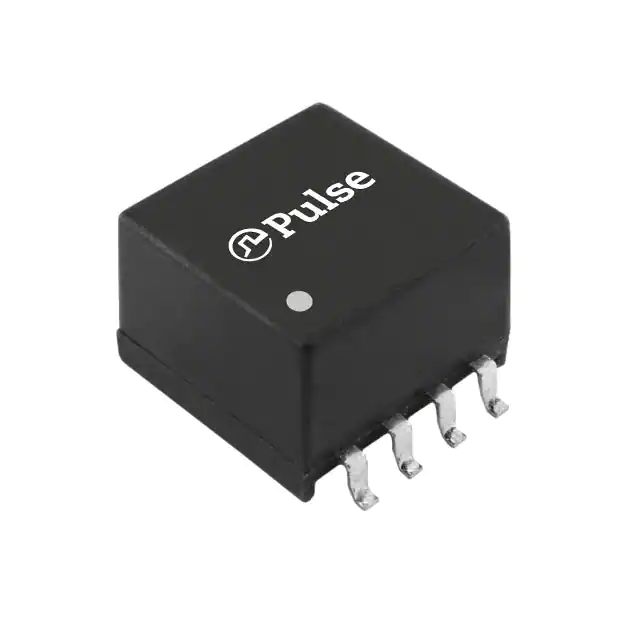

PE-65848NLT XFRMR 1CS:1CS FOR ECHELON/NEURON Pulse Electronics Network	250	7.66	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	3.5mH	-	1CS:1CS	Surface Mount	0.475 L x 0.475 W (12.06mm x 12.06mm)	0.340 (8.64mm)

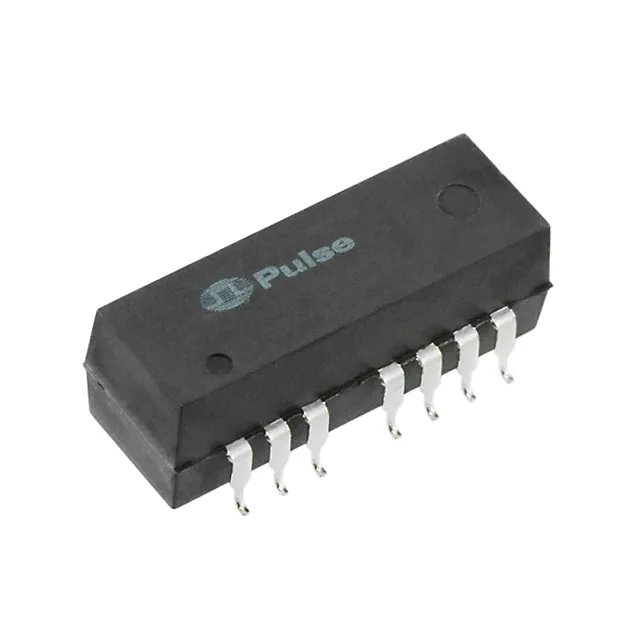

PE-68515LNLT XFRMR MODULE 1PORT 1:1 10/100B-T Pulse Electronics Network	6735	7.56	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1:1	Surface Mount	1.000 L x 0.350 W (25.40mm x 8.89mm)	0.370 (9.40mm)

Total 7775 Records«Prev 1 2 3 456 7 8...389 Next»
