Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
PA0185NLT PULSE XFMR 1:1 980UH Pulse Electronics Power	9130	3.20	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	980µH	17.2VµS	1:1	Surface Mount	0.340 L x 0.460 W (8.64mm x 11.68mm)	0.160 (4.06mm)
SM51625EL XFRMR LAN POE+ 1.2A 24SMD Bourns Inc.	7469	3.11	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SM	Active	LAN	10µH	-	1:1	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.246 (6.25mm)
PH9572.111ANLT GDT, FUNCTIONAL, EP7, SMT Pulse Electronics Power	3795	2.30	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Gate Drive	4mH	84.7VµS	1:1:1	Surface Mount	0.402 L x 0.295 W (10.20mm x 7.50mm)	0.433 (11.00mm)
SM51589PEL PULSE XFMR 1CT:1CT 350UH Bourns Inc.	184	3.22	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.691 L x 0.480 W (17.55mm x 12.20mm)	0.236 (6.00mm)

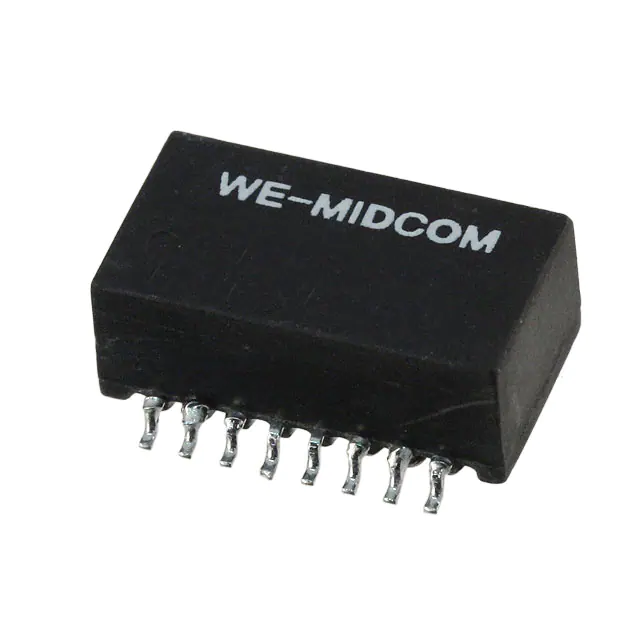

749013011 TRANSFORMER LAN 10/100 POE SMD Würth Elektronik	3815	2.45	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	350µH	-	1:1	Surface Mount	0.510 L x 0.280 W (12.95mm x 7.11mm)	0.210 (5.33mm)
P0544NLT PULSE XFMR 1:1:1 3.3MH Pulse Electronics Power	364	3.51	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	3.3mH	45.1VµS	1:1:1	Surface Mount	0.355 L x 0.340 W (9.02mm x 8.64mm)	0.300 (7.62mm)
PA0184NLT PULSE XFMR 1:1 1.2MH Pulse Electronics Power	14241	3.57	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	1.2mH	27.2VµS	1:1	Surface Mount	0.355 L x 0.340 W (9.02mm x 8.64mm)	0.300 (7.62mm)
782482/53VC XFRMR CONV ADM2482 5.0V IN Murata Power Solutions Inc.	25080	2.10	- + Add To Cart Inquiry Now	Datasheet	Tube	782482	Active	Isolation and Data Interface (Encapsulated)	260µH	-	1.14CT:1CT	Through Hole	0.360 L x 0.385 W (9.14mm x 9.77mm)	0.250 (6.35mm)
782482/33VC XFRMR CONV ADM2482 3.3V IN Murata Power Solutions Inc.	10138	2.10	- + Add To Cart Inquiry Now	Datasheet	Tube	782482	Active	Isolation and Data Interface (Encapsulated)	310µH	-	1CT:1.33CT	Through Hole	0.360 L x 0.385 W (9.14mm x 9.77mm)	0.250 (6.35mm)
PA2467NLT PULSE XFMR 37UH Pulse Electronics Power	9646	3.81	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	37µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
S558-5999-M8-F MODULE XFRMR LAN GIGABIT 24P SMD Bel Fuse Inc.	9642	3.95	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.20mm)	0.230 (5.84mm)
PA1138NLT XFRMR 12V 13.5W 127UH POE EP13 Pulse Electronics Power	4641	4.00	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP13	Active	Isolation and Data Interface (Encapsulated)	127µH	-	1:0.292:0.208	Surface Mount	0.551 L x 0.695 W (14.00mm x 17.65mm)	0.500 (12.70mm)
SM91502ALE BMS XFORMER 1-CH 1000V AECQ +125 Bourns Inc.	10236	4.30	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200, SM	Active	-	150µH	-	1CT:1CT	Surface Mount	0.300 L x 0.265 W (7.62mm x 6.73mm)	0.225 (5.72mm)
PA1284NLT XFRMR 12V 7W 155UH POE EP10 SMD Pulse Electronics Power	11609	4.09	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP10	Active	Isolation and Data Interface (Encapsulated)	155µH	-	1:0.682:0.682	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PA1133NLT XFRMR 3.3V 7W 253UH POE EP10 SMD Pulse Electronics Power	215	4.16	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP10	Active	Isolation and Data Interface (Encapsulated)	253.4µH	-	1:0.083:0.208	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)

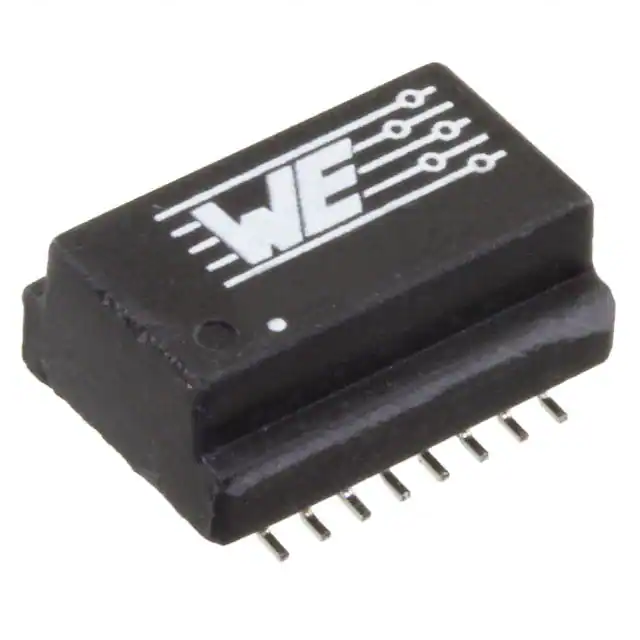

749013011A TRANS WE-LAN 10/100 POE SMD Würth Elektronik	12716	3.93	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-LAN	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	350µH	-	1:1	Surface Mount	0.500 L x 0.346 W (12.70mm x 8.80mm)	0.250 (6.35mm)
ALANL100X1-DE12DT XFRMR LAN 1CT:1CT 350UH Abracon LLC	2000	4.83	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.085 (2.16mm)
B82804A0354A110 PULSE XFMR 1:1 350UH EPCOS - TDK Electronics	3712	4.52	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP5	Active	Gate Drive	350µH	25.8VµS	1:1	Surface Mount	0.264 L x 0.240 W (6.70mm x 6.10mm)	0.213 (5.40mm)
B82804A0264A210 PULSE XFMR 1:1:1 264UH EPCOS - TDK Electronics	7899	4.52	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP5	Active	Gate Drive	264µH	22.4VµS	1:1:1	Surface Mount	0.264 L x 0.240 W (6.70mm x 6.10mm)	0.213 (5.40mm)
B82804A0474A125 PULSE XFMR 2.5:1 473UH EPCOS - TDK Electronics	3028	4.52	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP5	Active	Gate Drive	473µH	30.6VµS	2.5:1	Surface Mount	0.264 L x 0.240 W (6.70mm x 6.10mm)	0.213 (5.40mm)

Total 7775 Records«Prev 123 4 5...389 Next»
