Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SI1013R-T1-GE3MOSFET P-CH 20V 350MA SC75A |
109931 | 0.47 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 350mA (Ta) | 1.8V, 4.5V | 1.2Ohm @ 350mA, 4.5V | 450mV @ 250µA (Min) | 1.5 nC @ 4.5 V | ±6V | - | - | 150mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
RSM002P03T2LMOSFET P-CH 30V 200MA VMT3 |
31386 | 0.51 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 200mA (Ta) | 4V, 10V | 1.4Ohm @ 200mA, 10V | 2.5V @ 1mA | - | ±20V | 30 pF @ 10 V | - | 150mW (Ta) | 150°C (TJ) | Surface Mount | |
DMS3015SSS-13MOSFET N-CH 30V 11A 8SO |
14775 | 0.48 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 11.9mOhm @ 11A, 10V | 2.5V @ 250µA | 30.6 nC @ 10 V | ±12V | 1276 pF @ 15 V | Schottky Diode (Body) | 1.55W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
DMN4800LSS-13MOSFET N-CH 30V 9A 8SOP |
3996 | 0.48 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4.5V, 10V | 16mOhm @ 9A, 10V | 1.6V @ 250µA | 9.47 nC @ 5 V | ±25V | 798 pF @ 10 V | - | 1.46W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
AOTS21115CMOSFET P-CH 20V 6.6A 6TSOP |
8224 | 0.48 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 6.6A (Ta) | 1.8V, 4.5V | 40mOhm @ 6.6A, 4.5V | 950mV @ 250µA | 17 nC @ 4.5 V | ±8V | 930 pF @ 10 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
SSM3K361TU,LFMOSFET N-CH 100V 3.5A UFM |
5613 | 0.49 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII-H | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 3.5A (Ta) | 4.5V, 10V | 69mOhm @ 2A, 10V | 2.5V @ 100µA | 3.2 nC @ 4.5 V | ±20V | 430 pF @ 15 V | - | 1W (Ta) | 175°C | Surface Mount | |
PMPB11EN,115MOSFET N-CH 30V 9A DFN2020MD-6 |
67000 | 0.49 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4.5V, 10V | 14.5mOhm @ 9A, 10V | 2V @ 250µA | 20.6 nC @ 10 V | ±20V | 840 pF @ 10 V | - | 1.7W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
AON6414AMOSFET N-CH 30V 13A/30A 8DFN |
29941 | 0.49 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta), 30A (Tc) | 4.5V, 10V | 8mOhm @ 20A, 10V | 2.5V @ 250µA | 24 nC @ 10 V | ±20V | 1380 pF @ 15 V | - | 2.3W (Ta), 31W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
2SK209-GR(TE85L,F)TRANS SJT N-CH 10MA SC59 |
14677 | 0.50 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | - | 10mA (Ta) | - | - | - | - | - | 13 pF @ 10 V | - | 150mW (Ta) | -55°C ~ 125°C (TA) | Surface Mount | |
SSM6K514NU,LFMOSFET N-CH 40V 12A 6UDFNB |
5240 | 0.50 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIX-H | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 12A (Ta) | 4.5V, 10V | 11.6mOhm @ 4A, 10V | 2.4V @ 100µA | 7.5 nC @ 4.5 V | ±20V | 1110 pF @ 20 V | - | 2.5W (Ta) | 150°C | Surface Mount | |
RSF010P05TLMOSFET P-CH 45V 1A TUMT3 |
4928 | 0.50 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 45 V | 1A (Ta) | 4V, 10V | 460mOhm @ 1A, 10V | 2.5V @ 1mA | 2.3 nC @ 5 V | ±20V | 160 pF @ 10 V | - | 800mW (Ta) | 150°C (TJ) | Surface Mount | |
ZVP3306FTAMOSFET P-CH 60V 90MA SOT23-3 |
2012 | 0.51 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 90mA (Ta) | 10V | 14Ohm @ 200mA, 10V | 3.5V @ 1mA | - | ±20V | 50 pF @ 18 V | - | 330mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
SSM6K202FE,LFMOSFET N-CH 30V 2.3A ES6 |
15994 | 0.48 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 2.3A (Ta) | 1.8V, 4V | 85mOhm @ 1.5A, 4V | 1V @ 1mA | - | ±12V | 270 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | Surface Mount | |
CSD17571Q2MOSFET N-CH 30V 22A 6SON |
24957 | 0.53 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | NexFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 22A (Ta) | 4.5V, 10V | 29mOhm @ 5A, 4.5V | 2V @ 250µA | 3.1 nC @ 4.5 V | ±20V | 468 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
SI2303CDS-T1-E3MOSFET P-CH 30V 2.7A SOT23-3 |
2083 | 0.53 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.7A (Tc) | 4.5V, 10V | 190mOhm @ 1.9A, 10V | 3V @ 250µA | 8 nC @ 10 V | ±20V | 155 pF @ 15 V | - | 2.3W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
DMN3033LDM-7MOSFET N-CH 30V 6.9A SOT-26 |
13971 | 0.53 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.9A (Ta) | 4.5V, 10V | 33mOhm @ 6.9A, 10V | 2.1V @ 250µA | 13 nC @ 10 V | ±20V | 755 pF @ 10 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |

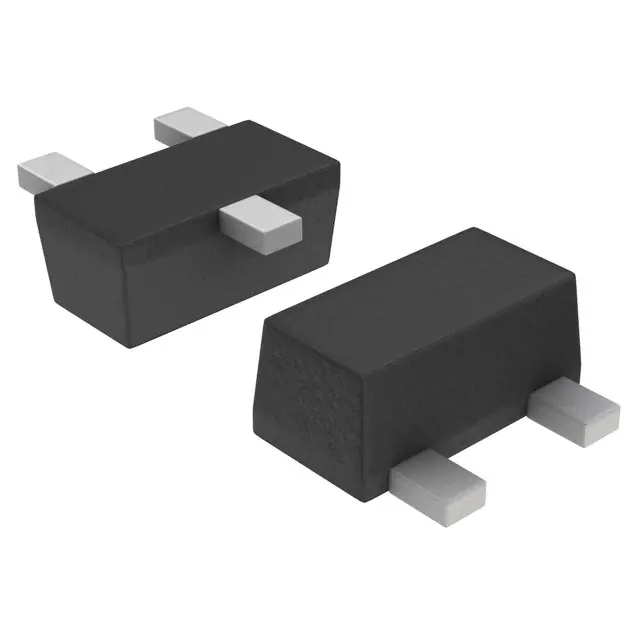

NVE4153NT1GMOSFET N-CH 20V 915MA SC89 |
3465 | 0.53 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 915mA (Ta) | 1.5V, 4.5V | 230mOhm @ 600mA, 4.5V | 1.1V @ 250µA | 1.82 nC @ 4.5 V | ±6V | 110 pF @ 16 V | - | 300mW (Tj) | -55°C ~ 150°C (TJ) | Surface Mount | |
NTLJF3117PT1GMOSFET P-CH 20V 2.3A 6WDFN |
36994 | 0.54 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | µCool™ | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.3A (Ta) | 1.8V, 4.5V | 100mOhm @ 2A, 4.5V | 1V @ 250µA | 6.2 nC @ 4.5 V | ±8V | 531 pF @ 10 V | Schottky Diode (Isolated) | 710mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
SSM3J132TU,LFMOSFET P-CH 12V 5.4A UFM |
15645 | 0.54 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 5.4A (Ta) | 1.2V, 4.5V | 17mOhm @ 5A, 4.5V | 1V @ 1mA | 33 nC @ 4.5 V | ±6V | 2700 pF @ 10 V | - | 500mW (Ta) | 150°C | Surface Mount | |
MCU30N02-TPMOSFET N-CH 20V 30A DPAK |
14075 | 0.55 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 30A (Tc) | 1.8V, 4.5V | 7mOhm @ 15A, 4.5V | 1V @ 250µA | 29 nC @ 4.5 V | ±10V | 1700 pF @ 10 V | - | 30W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
