Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

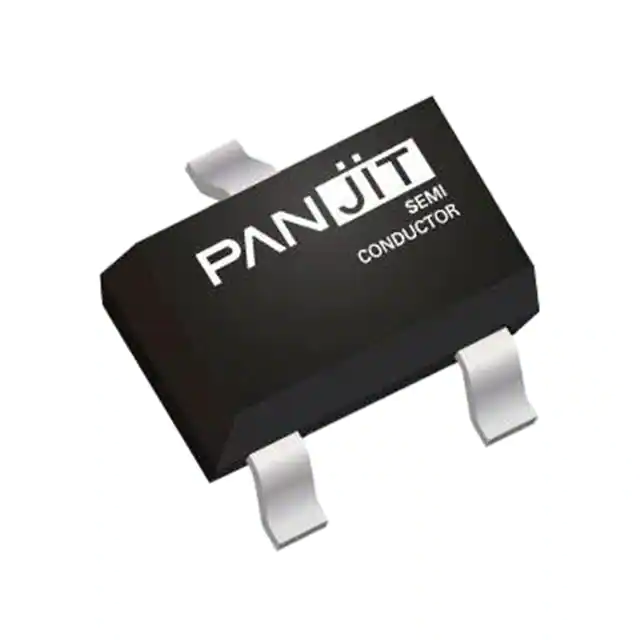

PJC7400_R1_00001SOT-323, MOSFET |
7754 | 0.47 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.9A (Ta) | 1.8V, 10V | 70mOhm @ 1.9A, 10V | 1.2V @ 250µA | 4.8 nC @ 10 V | ±12V | 447 pF @ 15 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
DMN1045UFR4-7MOSFET N-CH 12V 3.2A 3DFN |
21795 | 0.50 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 12 V | 3.2A (Ta) | 1.5V, 4.5V | 45mOhm @ 3.2A, 4.5V | 1V @ 250µA | 4.8 nC @ 4.5 V | ±8V | 375 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |

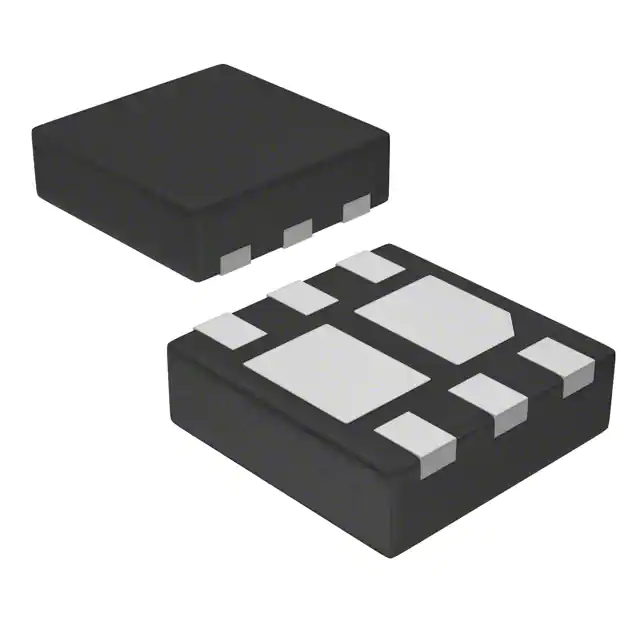

SSM6H19NU,LFMOSFET N-CH 40V 2A 6UDFN |
52240 | 0.39 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVII-H | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 2A (Ta) | 1.8V, 8V | 185mOhm @ 1A, 8V | 1.2V @ 1mA | 2.2 nC @ 4.2 V | ±12V | 130 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | Surface Mount | |
SSM3J117TU,LFMOSFET P-CHANNEL 30V 2A UFM |
16350 | 0.39 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSII | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 2A (Ta) | 4V, 10V | 117mOhm @ 1A, 10V | 2.6V @ 1mA | - | ±20V | 280 pF @ 15 V | - | 500mW (Ta) | 150°C | Surface Mount | |
SSM3J145TU,LFMOSFET P-CH 20V 3A UFM |
14281 | 0.39 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3A (Ta) | 1.5V, 4.5V | 103mOhm @ 1A, 4.5V | 1V @ 1mA | 4.6 nC @ 4.5 V | +6V, -8V | 270 pF @ 10 V | - | 500mW (Ta) | 150°C | Surface Mount | |
BSS127SSN-7MOSFET N-CH 600V 50MA SC59 |
19774 | 0.50 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 50mA (Ta) | 5V, 10V | 160Ohm @ 16mA, 10V | 4.5V @ 250µA | 1.08 nC @ 10 V | ±20V | 21.8 pF @ 25 V | - | 610mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
RV2C014BCT2CLMOSFET P-CH 20V 700MA DFN1006-3 |
13185 | 0.42 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 700mA (Ta) | 1.8V, 4.5V | 300mOhm @ 1.4A, 4.5V | 1V @ 100µA | - | ±8V | 100 pF @ 10 V | - | 400mW (Ta) | 150°C (TJ) | Surface Mount | |
PJA3441-AU_R1_000A1SOT-23, MOSFET |
3000 | 0.48 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 3.1A (Ta) | 4.5V, 10V | 88mOhm @ 3.1A, 10V | 2.5V @ 250µA | 6 nC @ 4.5 V | ±20V | 505 pF @ 20 V | - | 1.25W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
SSM3J375F,LXHFAECQ MOSFET PCH -20V -2A SOT346 |
21258 | 0.51 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2A (Ta) | 1.5V, 4.5V | 150mOhm @ 1A, 4.5V | 1V @ 1mA | 4.6 nC @ 4.5 V | +6V, -8V | 270 pF @ 10 V | - | 600mW (Ta) | 150°C | Surface Mount | |
PMN16XNEXMOSFET N-CH 20V 6.9A 6TSOP |
15087 | 0.40 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 6.9A (Ta) | 1.5V, 4.5V | 19mOhm @ 6.9A, 4.5V | 900mV @ 250µA | 17 nC @ 4.5 V | ±12V | 1136 pF @ 10 V | - | 550mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
CSD25484F4MOSFET P-CH 20V 2.5A 3PICOSTAR |
60204 | 0.40 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FemtoFET™ | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.5A (Ta) | 1.8V, 8V | 94mOhm @ 500mA, 8V | 1.2V @ 250µA | 1.42 nC @ 4.5 V | -12V | 230 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
BSD316SNH6327XTSA1MOSFET N-CH 30V 1.4A SOT363-6 |
2954 | 0.52 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.4A (Ta) | 4.5V, 10V | 160mOhm @ 1.4A, 10V | 2V @ 3.7µA | 0.6 nC @ 5 V | ±20V | 94 pF @ 15 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
SI2300-TPMOSFET N-CH 20V 4.5A SOT23 |
10803 | 0.52 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 4.5A (Tj) | 2.5V, 4.5V | 25mOhm @ 4.5A, 4.5V | 900mV @ 250µA | 4.2 nC @ 4.5 V | ±10V | 482 pF @ 10 V | - | 1W | -55°C ~ 150°C (TJ) | Surface Mount | |
RRF015P03GTLMOSFET P-CH 30V 1.5A TUMT3 |
10783 | 0.47 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 1.5A (Ta) | 4V, 10V | 160mOhm @ 1.5A, 10V | 2.5V @ 1mA | 6.4 nC @ 10 V | ±20V | 230 pF @ 10 V | - | 320mW (Ta) | 150°C (TJ) | Surface Mount | |
BSS806NEH6327XTSA1MOSFET N-CH 20V 2.3A SOT23-3 |
7708 | 0.52 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 2.3A (Ta) | 1.8V, 2.5V | 57mOhm @ 2.3A, 2.5V | 750mV @ 11µA | 1.7 nC @ 2.5 V | ±8V | 529 pF @ 10 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
PMV60ENEARMOSFET N-CH 40V 3A TO236AB |
1949 | 0.41 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 3A (Ta) | 4.5V, 10V | 75mOhm @ 3A, 10V | 2.5V @ 250µA | 5 nC @ 10 V | ±20V | 180 pF @ 20 V | - | 615mW (Ta), 7.5W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
RJK005N03T146MOSFET N-CH 30V 500MA SMT3 |
5833 | 0.41 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 500mA (Ta) | 2.5V, 4.5V | 580mOhm @ 500mA, 4.5V | 1.5V @ 1mA | 4 nC @ 4 V | ±12V | 60 pF @ 10 V | - | 200mW (Ta) | 150°C (TJ) | Surface Mount | |
RQ3E070BNTBMOSFET N-CH 30V 7A 8HSMT |
4892 | 0.50 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 7A (Ta) | 4.5V, 10V | 27mOhm @ 7A, 10V | 2.5V @ 1mA | 8.9 nC @ 10 V | ±20V | 410 pF @ 15 V | - | 2W (Ta) | 150°C (TJ) | Surface Mount | |
SSM6J214FE(TE85L,FMOSFET P-CH 30V 3.6A ES6 |
25896 | 0.41 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 3.6A (Ta) | 1.8V, 10V | 50mOhm @ 3A, 10V | 1.2V @ 1mA | 7.9 nC @ 4.5 V | ±12V | 560 pF @ 15 V | - | 500mW (Ta) | 150°C | Surface Mount | |
BSS138BKAHZGT116NCH 60V 400MA, SOT-23, SMALL SIG |
9876 | 0.53 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 400mA (Ta) | 2.5V, 10V | 680mOhm @ 400mA, 10V | 2V @ 10µA | - | ±20V | 47 pF @ 30 V | - | 350mW (Ta) | 150°C (TJ) | Surface Mount |
