Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint
750815040 OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	3505	6.79	- + Add To Cart Inquiry Now	Datasheet	Tray	MID-OLTI	Active	For AC/DC Converters	Flyback Converters	-	Texas Instruments	-	15V	4500Vrms	-	65kHz	-40°C ~ 125°C	Through Hole	0.874 L x 0.984 W (22.20mm x 25.00mm)	0.630 (16.00mm)	-

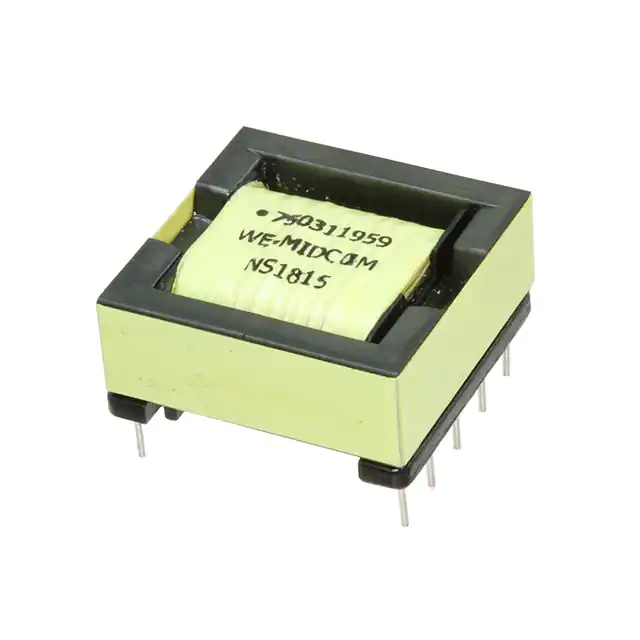

750311959 OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	2298	6.79	- + Add To Cart Inquiry Now	Datasheet	Tray	MID-OLTI	Active	For AC/DC Converters	Flyback Converters	-	Texas Instruments	120V	-	1875Vrms	-	80kHz	-40°C ~ 125°C	Through Hole	1.025 L x 1.050 W (26.04mm x 26.67mm)	-	-

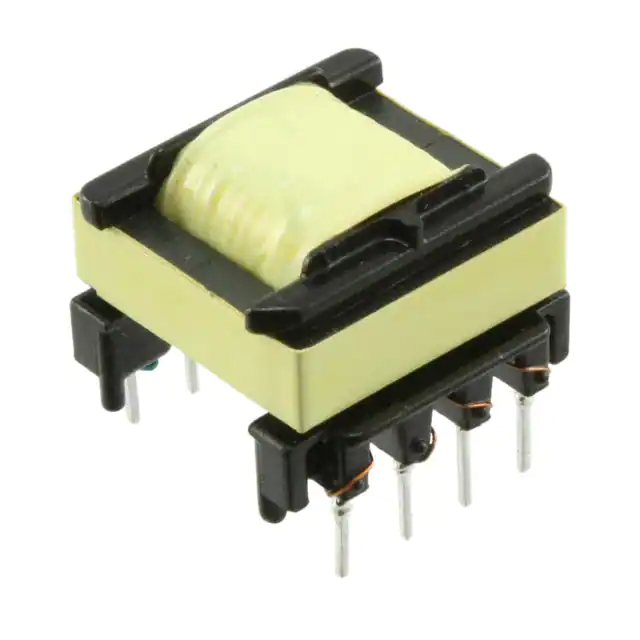

750311402 TRANS FLYBACK NXPSSL2101 SSL2102 Würth Elektronik	2975	6.91	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	SSL2101, SSL2102	NXP Semiconductors	120 ~ 375V	-	4000Vrms	1.48mH @ 10kHz	60kHz	-40°C ~ 125°C	Through Hole	0.707 L x 0.799 W (17.96mm x 20.30mm)	0.568 (14.43mm)	0.707 L x 0.799 W (17.96mm x 20.30mm)
750311598 TRANS FLYBACK LT3748 8.3UH SMD Würth Elektronik	3978	8.96	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FB	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	20 ~ 48V	-	1500Vrms	8.3µH @ 10kHz	-	-40°C ~ 125°C	Surface Mount	-	0.455 (11.56mm)	0.910 L x 1.150 W (23.11mm x 29.08mm)
750311600 TRANS FLYBACK LT3748 12UH SMD Würth Elektronik	2969	8.96	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FB	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	30 ~ 75V	-	1500Vrms	12µH @ 10kHz	-	-40°C ~ 125°C	Surface Mount	-	0.455 (11.56mm)	0.910 L x 1.150 W (23.11mm x 29.08mm)
750311605 TRANS FLYBACK LT3748 15UH SMD Würth Elektronik	2908	8.96	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FB	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	30 ~ 75V	-	1500Vrms	15µH @ 150kHz	-	-40°C ~ 125°C	Surface Mount	-	0.455 (11.56mm)	0.910 L x 1.150 W (23.11mm x 29.08mm)
750311553 TRANSFORMER FLYBACK LM3445 Würth Elektronik	3634	7.20	- + Add To Cart Inquiry Now	Datasheet	Tray	WE-FB, MID-OLTI	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	LM3445	National Semiconductor	115V	-	4500Vrms	803.5µH @ 100kHz, 50.2µH @ 100kHz	100kHz	-40°C ~ 125°C	Through Hole	-	0.635 (16.13mm)	0.800 L x 0.960 W (20.32mm x 24.38mm)
750811512 OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	3448	6.79	- + Add To Cart Inquiry Now	Datasheet	Tray	MID-OLEFD	Active	For DC/DC Converters	Flyback Converters	-	-	120 ~ 375V	20V	4500Vrms	770µH @ 10kHz	68 ~ 120kHz	-40°C ~ 125°C	Surface Mount	-	0.551 (14.00mm)	-
7508112334 OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	2336	6.79	- + Add To Cart Inquiry Now	Datasheet	Tray	MID-OLEFD	Active	For DC/DC Converters	Flyback Converters	-	-	120 ~ 375V	20V	4500Vrms	-	68 ~ 110kHz	-40°C ~ 125°C	Through Hole	-	0.551 (14.00mm)	-
7508112515 OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	3338	6.79	- + Add To Cart Inquiry Now	Datasheet	Tray	MID-OLEFD	Active	For DC/DC Converters	Flyback Converters	-	-	120 ~ 375V	20V	4500Vrms	500µH @ 10kHz	68 ~ 150kHz	-40°C ~ 125°C	Through Hole	-	0.551 (14.00mm)	-
750811616 OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	3679	6.79	- + Add To Cart Inquiry Now	Datasheet	Tray	MID-OLEFD	Active	For DC/DC Converters	Flyback Converters	-	-	120 ~ 375V	20V	4500Vrms	770µH @ 10kHz	68 ~ 120kHz	-40°C ~ 125°C	Surface Mount	-	0.551 (14.00mm)	-
750811617 OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	2383	6.79	- + Add To Cart Inquiry Now	Datasheet	Tray	MID-OLEFD	Active	For DC/DC Converters	Flyback Converters	-	-	120 ~ 375V	20V	4500Vrms	-	68 ~ 170kHz	-40°C ~ 125°C	Surface Mount	-	0.583 (14.81mm)	-
VPH4-0860TR-R PULSE XFMR 159.65UH SMD Eaton - Electronics Division	2877	8.91	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	VERSA-PAC®	Active	-	-	-	-	-	-	-	-	-	-40°C ~ 125°C	Surface Mount	0.709 L x 0.969 W (18.00mm x 24.60mm)	0.394 (10.00mm)	-
750845455 FLYBACK TRANSFORMER Würth Elektronik	3238	9.11	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-
750841152 FLYBACK TRANSFORMER Würth Elektronik	3556	9.11	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	WE-FB	Active	For AC/DC Converters	Flyback Converters	SSL2103	NXP Semiconductors	207 ~ 253V	20V @ 30mA	3000Vrms	1mH @ 50kHz	85kHz	-40°C ~ 125°C	Surface Mount	1.213 L x 0.740 W (30.81mm x 18.80mm)	0.472 (12.00mm)	1.460 L x 0.740 W (37.09mm x 18.80mm)
750841150 FLYBACK TRANSFORMER Würth Elektronik	2069	9.11	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-
750841151 FLYBACK TRANSFORMER Würth Elektronik	3674	9.11	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-
750844150 FLYBACK TRANSFORMER Würth Elektronik	2164	9.34	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-

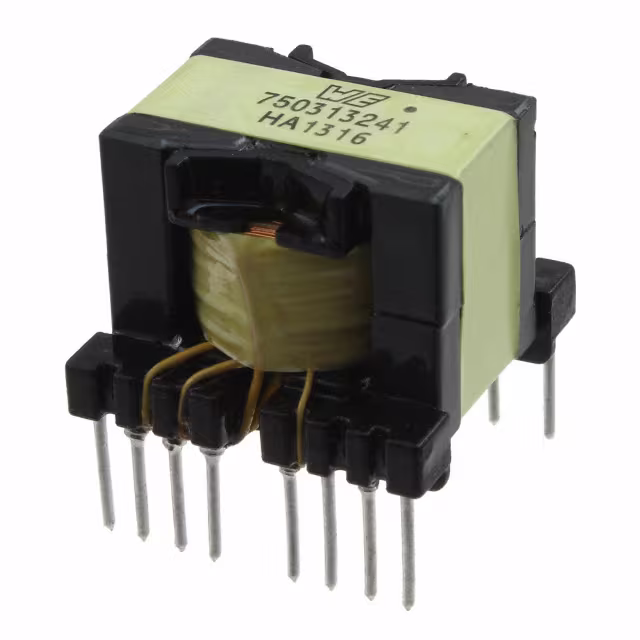

750313241 OFFLINE XFRM WE-UNIT NXP SSL4101 Würth Elektronik	3797	7.56	- + Add To Cart Inquiry Now	Datasheet	Tray	WE-UNIT	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	SSL4101	NXP Semiconductors	127 ~ 432V	16V @ 20mA	3000Vrms	3.52mH @ 10kHz	-	-40°C ~ 125°C	Through Hole	-	0.740 (18.80mm)	0.945 L x 0.945 W (24.00mm x 24.00mm)

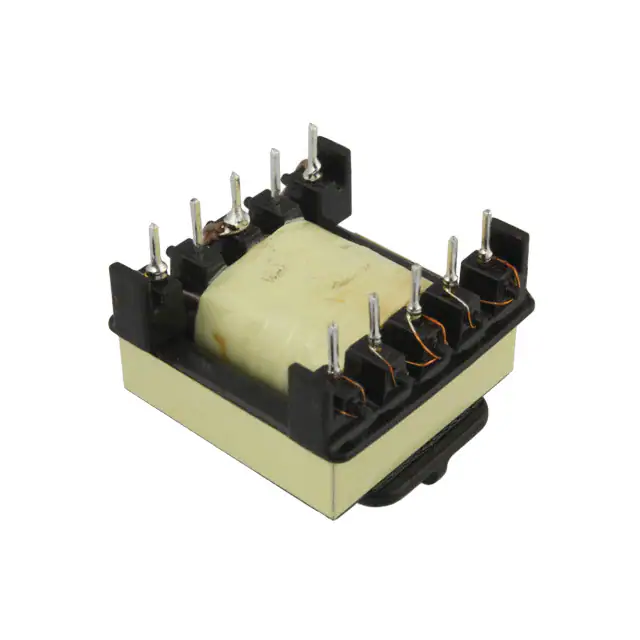

760871631 TRANS FLYBACK NXP TEA1733 2.2MH Würth Elektronik	2492	7.67	- + Add To Cart Inquiry Now	Datasheet	Tray	WE-UNIT	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	TEA1733	NXP Semiconductors	120 ~ 385V	12V @ 10mA	1500Vrms	2.2mH @ 10kHz	100kHz	-40°C ~ 125°C	Through Hole	1.150 L x 1.100 W (29.21mm x 27.94mm)	0.850 (21.59mm)	1.150 L x 1.100 W (29.21mm x 27.94mm)
