Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint
749196248 WE-FLEX FLEXIBLE TRANSFORMER FOR Würth Elektronik	2527	7.16	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FLEX	Active	For DC/DC Converters	Flexible	-	-	-	-	1500Vrms	6.6µH @ 100kHz	-	-40°C ~ 125°C	Surface Mount	0.472 L x 0.642 W (11.99mm x 16.31mm)	0.291 (7.40mm)	0.661 L x 0.642 W (16.79mm x 16.31mm)
750813530 TRANS 3000V SMD Würth Elektronik	3589	6.46	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-UNIT, MID-OLEE	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	85 ~ 130V	-	3000Vrms	1.5mH @ 10kHz	80 ~ 200kHz	-40°C ~ 125°C	Surface Mount	-	0.548 (13.92mm)	0.700 L x 1.028 W (17.78mm x 26.10mm)
750813540 TRANS 3000V SMD Würth Elektronik	2364	6.46	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-UNIT, MID-OLEE	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	85 ~ 130V	-	3000Vrms	1.25mH @ 10kHz	80 ~ 200kHz	-40°C ~ 125°C	Surface Mount	-	0.548 (13.92mm)	0.700 L x 1.028 W (17.78mm x 26.10mm)
750813551 TRANS 3000V SMD Würth Elektronik	3054	6.46	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	WE-UNIT, MID-OLEE	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	85 ~ 130V	-	3000Vrms	1.5mH @ 10kHz	80 ~ 200kHz	-40°C ~ 125°C	Surface Mount	-	0.548 (13.92mm)	0.700 L x 1.028 W (17.78mm x 26.10mm)
750815530 TRANS 3000V SMD Würth Elektronik	2179	6.46	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	WE-UNIT, MID-OLEE	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	195 ~ 265V	-	3000Vrms	8mH @ 10kHz	80 ~ 200kHz	-40°C ~ 125°C	Surface Mount	-	0.548 (13.92mm)	0.700 L x 1.028 W (17.78mm x 26.10mm)
750811116 TRANS 3000V SMD Würth Elektronik	3732	6.46	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	WE-UNIT, MID-OLEE	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	85 ~ 265V	-	3000Vrms	1.31mH @ 10kHz	80 ~ 200kHz	-40°C ~ 125°C	Surface Mount	-	0.548 (13.92mm)	0.700 L x 1.028 W (17.78mm x 26.10mm)
750815542 TRANS 3000V SMD Würth Elektronik	2125	6.46	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-UNIT, MID-OLEE	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	195 ~ 265V	-	3000Vrms	5mH @ 10kHz	80 ~ 200kHz	-40°C ~ 125°C	Surface Mount	-	0.548 (13.92mm)	0.700 L x 1.028 W (17.78mm x 26.10mm)
750815550 TRANS 3000V SMD Würth Elektronik	3426	6.46	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-UNIT, MID-OLEE	Active	For AC/DC Converters	LED Drivers, AC/DC SMPS	-	-	195 ~ 265V	-	3000Vrms	6mH @ 10kHz	80 ~ 200kHz	-40°C ~ 125°C	Surface Mount	-	0.548 (13.92mm)	0.700 L x 1.028 W (17.78mm x 26.10mm)
750311303 TRANS FLYBACK LT3575 50UH SMD Würth Elektronik	2754	7.36	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FB	Active	For DC/DC Converters	Flyback Converters	LT3573, LT3574, LT3575, LT3748	Linear Technology	9 ~ 30V	10V @ 20mA	1500Vrms	50µH @ 10kHz	100kHz	-40°C ~ 125°C	Surface Mount	-	0.455 (11.56mm)	0.525 L x 0.600 W (13.34mm x 15.24mm)
750311715 FLYBACK TRANSFORMER WE-FB LT3748 Würth Elektronik	3494	6.57	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WE-FB	Active	For DC/DC Converters	Flyback Converters	LT3748	Linear Technology	60 ~ 600V	8V	2000Vrms	280µH @ 10kHz, 2.8µH @ 10kHz, 224µH @ 10kHz	-	-	Surface Mount	-	0.544 (13.82mm)	1.064 L x 1.272 W (27.03mm x 32.31mm)
760874040 OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	3206	6.05	- + Add To Cart Inquiry Now	Datasheet	Tray	WE-UNIT, MID-OLNXP	Active	For AC/DC Converters	Flyback Converters	-	NXP Semiconductors	-	20V @ 10mA	6000Vrms	-	100kHz	-40°C ~ 125°C	Through Hole	0.550 L x 0.550 W (13.97mm x 13.97mm)	0.500 (12.70mm)	-
750313309 OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	3547	6.05	- + Add To Cart Inquiry Now	Datasheet	Tray	MID-OLON	Active	For DC/DC Converters	Flyback Converters	-	On Semiconductor	-	-	1250Vrms	120µH @ 10kHz	110kHz	-40°C ~ 125°C	Through Hole	0.707 L x 0.799 W (17.96mm x 20.30mm)	0.563 (14.30mm)	-

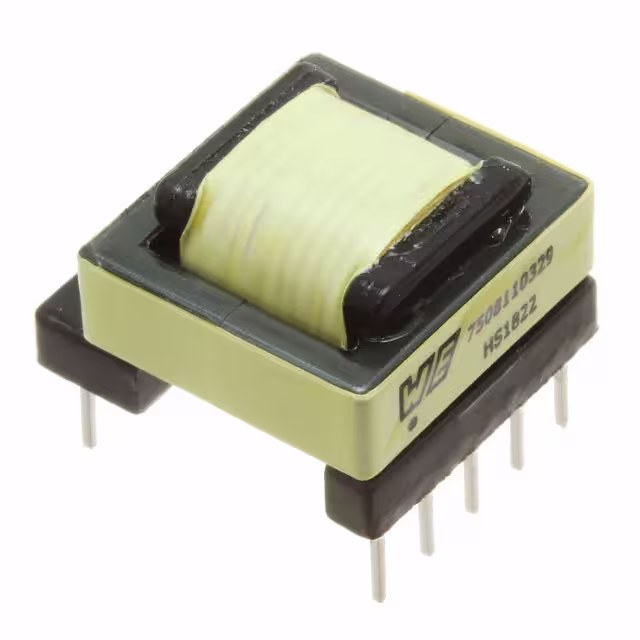

7508110329 OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	2119	6.05	- + Add To Cart Inquiry Now	Datasheet	Tray	MID-OLTI	Active	For AC/DC Converters	Flyback Converters	-	Texas Instruments	-	15V	4000Vrms	700µH @ 100kHz	130kHz	-40°C ~ 125°C	Through Hole	0.665 L x 0.740 W (16.90mm x 18.80mm)	0.665 (16.90mm)	-

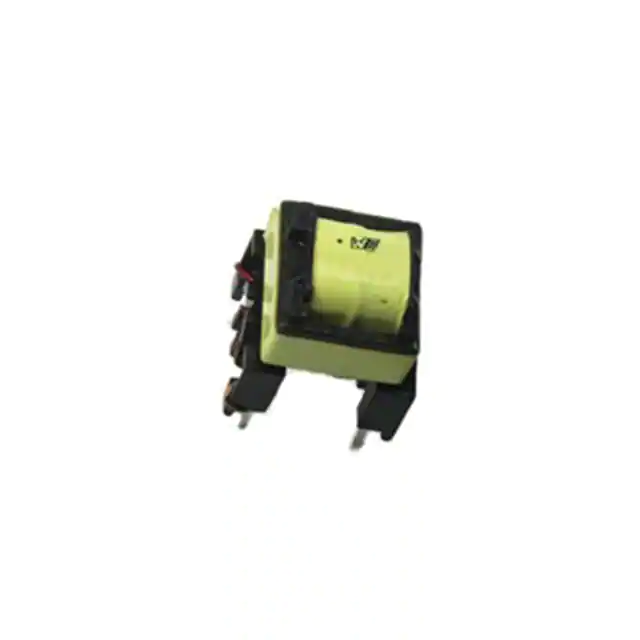

760871038 OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	3952	6.79	- + Add To Cart Inquiry Now	Datasheet	Tray	WE-UNIT, MID-OLNXP	Active	For AC/DC Converters	Flyback Converters	-	NXP Semiconductors	-	-	6000Vrms	1.85mH @ 10kHz	100kHz	-40°C ~ 125°C	Through Hole	0.591 L x 0.620 W (15.00mm x 15.75mm)	0.728 (18.50mm)	-
7508112349 OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	3404	6.79	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	For AC/DC Converters	Flyback Converters	-	-	120 ~ 375V	16V @ 50mA	-	-	-	-40°C ~ 125°C	Through Hole	-	-	-

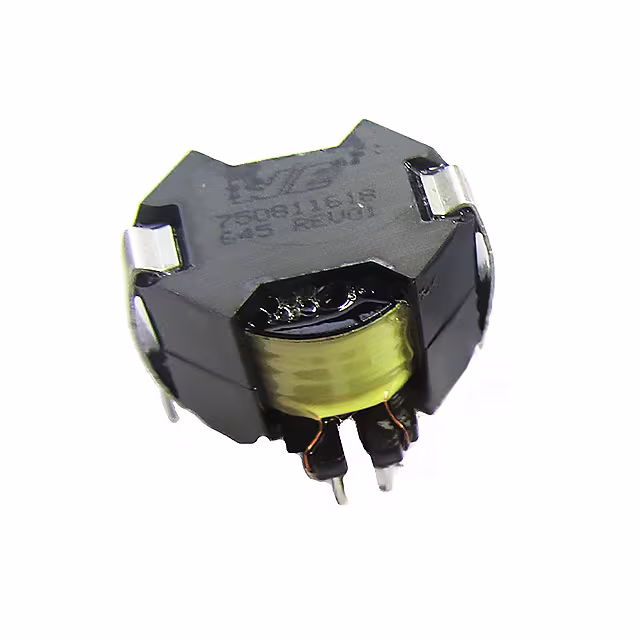

750811618 OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	3163	6.79	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	For AC/DC Converters	Flyback Converters	-	-	120 ~ 375V	16V @ 50mA	-	-	-	-40°C ~ 125°C	Through Hole	-	-	-

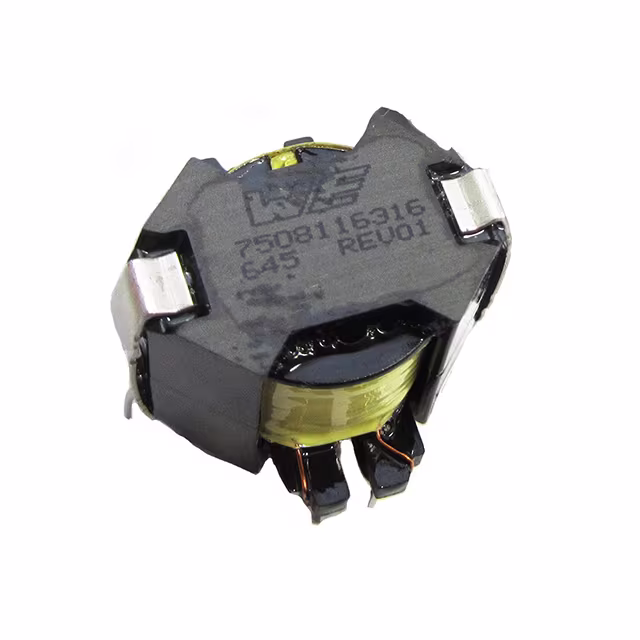

7508116316 OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	3604	6.79	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	For AC/DC Converters	Flyback Converters	-	-	120 ~ 375V	16V @ 50mA	-	-	-	-40°C ~ 125°C	Through Hole	-	-	-
7508112110 OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	2533	6.79	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	For AC/DC Converters	Flyback Converters	-	-	120 ~ 375V	16V @ 50mA	-	-	-	-40°C ~ 125°C	Through Hole	-	-	-
7508110160 OFFLINE TRANSFORMER WE-UNIT Würth Elektronik	3850	6.79	- + Add To Cart Inquiry Now	Datasheet	Tray	WE-UNIT, MID-OLEE	Active	For AC/DC Converters	Flyback Converters	-	-	-	-	4500Vrms	-	-	-40°C ~ 125°C	Through Hole	-	0.575 (14.60mm)	-

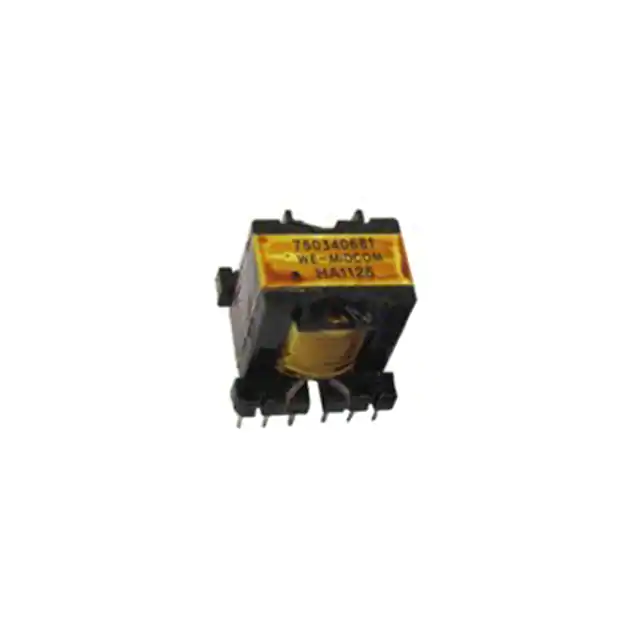

750340681 POWER TRANSFORMER Würth Elektronik	3652	5.27	- + Add To Cart Inquiry Now	Datasheet	Tray	MID-OLON	Active	For DC/DC Converters	Flyback Converters	-	On Semiconductor	-	-	3750Vrms	-	-	-40°C ~ 125°C	Surface Mount	-	-	-
