Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

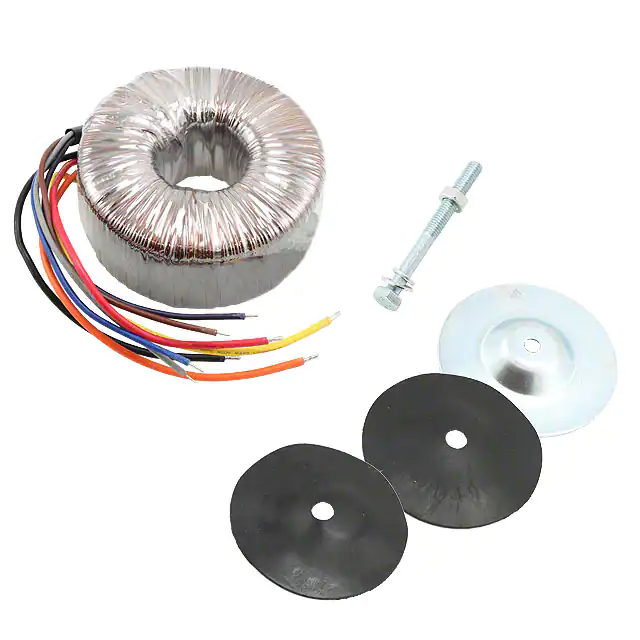

VPT24-6670 PWR XFMR TORO 160VA CHAS MT Triad Magnetics	3097	51.28	- + Add To Cart Inquiry Now	Datasheet	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 13.34A, Series 6.67A	Dual	Dual	No	160VA	Chassis Mount	Wire Leads	103.00mm Dia x 48.00mm W	52.0mm	4000Vrms
167G120 PWR XFMR LAMINATED 60VA CHAS MT Hammond Manufacturing	2401	52.93	- + Add To Cart Inquiry Now	Datasheet	Bulk	167	Active	Laminated Core	115V	120V	500mA	Single	Single	Yes	60VA	Chassis Mount	Wire Leads	63.50mm L x 69.85mm W	77.72mm	2000Vrms
1182E110 TRANSFORMER TOROIDAL POWER Hammond Manufacturing	2865	53.54	- + Add To Cart Inquiry Now	Datasheet	Box	1182	Active	Toroidal	117V, 234V	Parallel 110V, Series 220V	Parallel 272mA, Series 136mA	Dual	Dual	No	30VA	Chassis Mount	Wire Leads	76.20mm Dia	-	4000Vrms
167M25 PWR XFMR LAMINATED 75VA CHAS MT Hammond Manufacturing	3414	53.77	- + Add To Cart Inquiry Now	Datasheet	Bulk	167	Active	Laminated Core	115V	25V	3A	Single	Single	Yes	75VA	Chassis Mount	Wire Leads	63.50mm L x 69.85mm W	77.72mm	2000Vrms
1182G110 PWR XFMR TORO 50VA CHAS MT Hammond Manufacturing	2769	58.24	- + Add To Cart Inquiry Now	Datasheet	Box	1182	Active	Toroidal	117V	Parallel 110V, Series 220V	Parallel 454mA, Series 227mA	Dual	Dual	No	50VA	Chassis Mount	Wire Leads	82.55mm Dia	38.10mm	4000Vrms
1182M9 PWR XFMR TORO 50VA CHAS MT Hammond Manufacturing	3262	58.24	- + Add To Cart Inquiry Now	Datasheet	Box	1182	Active	Toroidal	117V	Parallel 9V, Series 18V	Parallel 5.56A, Series 2.78A	Dual	Dual	No	50VA	Chassis Mount	Wire Leads	82.55mm Dia	38.10mm	4000Vrms
166S11 PWR XFMR LAMINATED 110VA CHAS MT Hammond Manufacturing	2779	61.58	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	11V	10A	Single	Single	Yes	110VA	Chassis Mount	Wire Leads	114.30mm L x 63.50mm W	76.20mm	2000Vrms
1182P12 PWR XFMR TORO 120VA CHAS MT Hammond Manufacturing	2441	65.75	- + Add To Cart Inquiry Now	Datasheet	Box	1182	Active	Toroidal	117V	Parallel 12V, Series 24V	Parallel 10A, Series 5A	Dual	Dual	No	120VA	Chassis Mount	Wire Leads	101.60mm Dia	41.40mm	4000Vrms
1182M22 PWR XFMR TORO 120VA CHAS MT Hammond Manufacturing	3722	65.75	- + Add To Cart Inquiry Now	Datasheet	Box	1182	Active	Toroidal	117V	Parallel 22V, Series 44V	Parallel 5.46A, Series 2.73A	Dual	Dual	No	120VA	Chassis Mount	Wire Leads	101.60mm Dia	41.40mm	4000Vrms

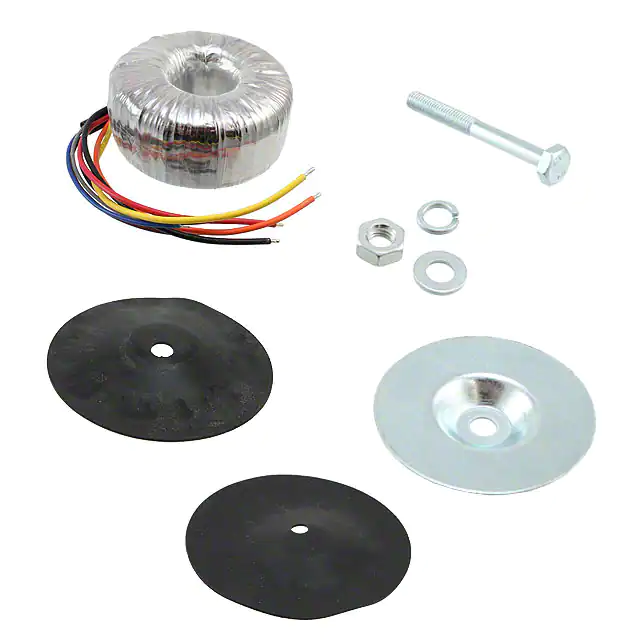

VPT36-6940 PWR XFMR TORO 250VA CHAS MT Triad Magnetics	2980	69.21	- + Add To Cart Inquiry Now	Datasheet	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 18V, Series 36V	Parallel 13.88A, Series 6.94A	Dual	Dual	No	250VA	Chassis Mount	Wire Leads	112.00mm Dia x 54.00mm W	58.0mm	4000Vrms

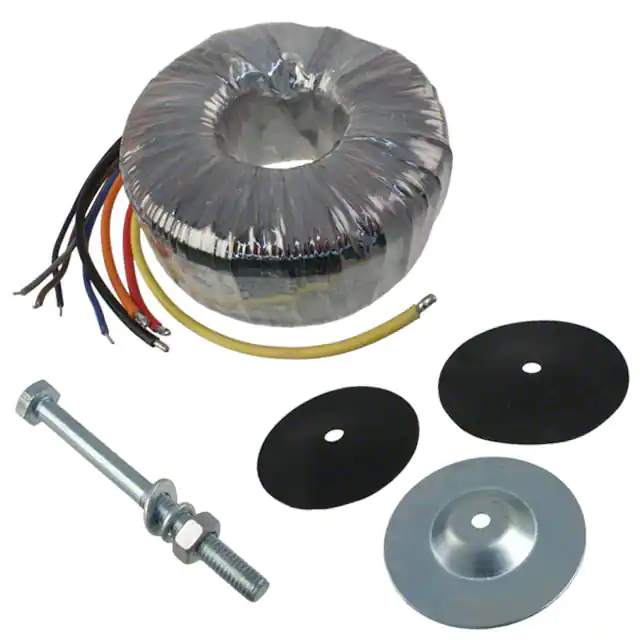

VPT12-20800 PWR XFMR TORO 250VA CHAS MT Triad Magnetics	2465	69.21	- + Add To Cart Inquiry Now	Datasheet	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 6V, Series 12V	Parallel 41.6A, Series 20.8A	Dual	Dual	No	250VA	Chassis Mount	Wire Leads	112.00mm Dia x 54.00mm W	58.0mm	4000Vrms
260A6 PWR XFMR CHAS MT Hammond Manufacturing	3672	72.72	- + Add To Cart Inquiry Now	Datasheet	Bulk	260	Active	-	-	-	-	-	-	-	-	Chassis Mount	-	-	-	-
BF2G PWR XFMR LAMINATED 75VA CHAS MT Hammond Manufacturing	2351	73.22	- + Add To Cart Inquiry Now	Datasheet	Bulk	BF	Active	Laminated Core	120V	24V	3.13A	Single	Single	No	75VA	Chassis Mount	Wire Leads	76.20mm L x 63.50mm W	95.25mm	-
266M25 PWR XFMR LAMINATED 75VA CHAS MT Hammond Manufacturing	3713	74.28	- + Add To Cart Inquiry Now	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 12.5V, Series 25V	Parallel 6A, Series 3A	Dual	Dual	No	75VA	Chassis Mount	Wire Leads	114.30mm L x 63.50mm W	73.66mm	2000Vrms
266PA12 PWR XFMR LAMINATED 72VA CHAS MT Hammond Manufacturing	2024	74.28	- + Add To Cart Inquiry Now	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 6V, Series 12V	Parallel 12A, Series 6A	Dual	Dual	No	72VA	Chassis Mount	Wire Leads	102.36mm L x 63.50mm W	66.80mm	2000Vrms
1182K110 PWR XFMR TORO 160VA CHAS MT Hammond Manufacturing	3537	75.13	- + Add To Cart Inquiry Now	Datasheet	Box	1182	Active	Toroidal	117V	Parallel 110V, Series 220V	Parallel 1.454A, Series 727mA	Dual	Dual	No	160VA	Chassis Mount	Wire Leads	110.49mm Dia	44.45mm	4000Vrms
VPM240-670 PWR XFMR TORO 160VA CHAS MT Triad Magnetics	2069	75.87	- + Add To Cart Inquiry Now	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 120V, Series 240V	Parallel 1.33A, Series 670mA	Dual, Multiple Taps	Dual	No	160VA	Chassis Mount	Wire Leads	113.00mm Dia	52.00mm	4000Vrms
E100E PWR XFMR LAMINATED 100VA CHAS MT SolaHD	2349	87.06	- + Add To Cart Inquiry Now	Datasheet	Bulk	SBE	Active	Laminated Core	120V, 240V	24V	-	Dual, Multiple Taps	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	-	-	-
165P25 PWR XFMR LAMINATED 125VA CHAS MT Hammond Manufacturing	2541	77.16	- + Add To Cart Inquiry Now	Datasheet	Bulk	165	Active	Laminated Core	115V	25V	5A	Single	Single	Yes	125VA	Chassis Mount	Wire Leads	76.20mm L x 101.60mm W	65.02mm	2000Vrms
260A PWR XFMR LAMINATED 25VA CHAS MT Hammond Manufacturing	2344	78.34	- + Add To Cart Inquiry Now	Datasheet	Box	260	Active	Laminated Core	100V, 120V, 220V, 240V	400V, 6.3V	40mA, 1A	Dual, Multiple Taps	Dual	Yes	25VA	Chassis Mount	Wire Leads	85.55mm L x 50.80mm W	50.80mm	-

Total 6768 Records«Prev 1... 34 35 36 373839 40 41...339 Next»
