Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
3FD-456 PWR XFMR LAMINATED 6VA TH Tamura	3265	9.50	- + Add To Cart Inquiry Now	Datasheet	Tube	3FD-4xx	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 220mA, Series 110mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.50mm L x 34.83mm W	38.00mm	2500Vrms
3FL16-150 PWR XFMR LAMINATED 2.5VA TH Tamura	599	10.18	- + Add To Cart Inquiry Now	Datasheet	Bulk	3FL	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 300mA, Series 150mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	27.05mm	1500Vrms
241-6-12 PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	2818	18.65	- + Add To Cart Inquiry Now	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	12.6V	2.5A	Single	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect	82.60mm L x 44.30mm W	49.80mm	2500Vrms
DST-7-28 PWR XFMR LAMINATED 36VA TH Signal Transformer	2297	18.69	- + Add To Cart Inquiry Now	Datasheet	Box	DST	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 2.6A, Series 1.3A	Dual	Dual	No	36VA	Through Hole	PC Pin	66.70mm L x 55.50mm W	40.40mm	2500Vrms
187D28 PWR XFMR LAMINATED 30VA CHAS MT Hammond Manufacturing	2257	18.73	- + Add To Cart Inquiry Now	Datasheet	Box	187	Active	Laminated Core	115V	28V	1.07A	Single	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect	82.55mm L x 52.20mm W	49.02mm	2000Vrms
187D120 PWR XFMR LAMINATED 30VA CHAS MT Hammond Manufacturing	2327	18.73	- + Add To Cart Inquiry Now	Datasheet	Box	187	Active	Laminated Core	115V	120V	250mA	Single	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect	82.55mm L x 52.20mm W	49.02mm	2000Vrms
187D20 PWR XFMR LAMINATED 30VA CHAS MT Hammond Manufacturing	3257	18.73	- + Add To Cart Inquiry Now	Datasheet	Box	187	Active	Laminated Core	115V	20V	1.5A	Single	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect	82.55mm L x 52.20mm W	49.02mm	2000Vrms
162H36 PWR XFMR LAMINATED 20VA TH Hammond Manufacturing	3030	19.26	- + Add To Cart Inquiry Now	Datasheet	Bulk	162	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 1.1A, Series 550mA	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.52mm	2500Vrms
162H28 PWR XFMR LAMINATED 20VA TH Hammond Manufacturing	2248	19.26	- + Add To Cart Inquiry Now	Datasheet	Bulk	162	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 1.4A, Series 700mA	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.52mm	2500Vrms

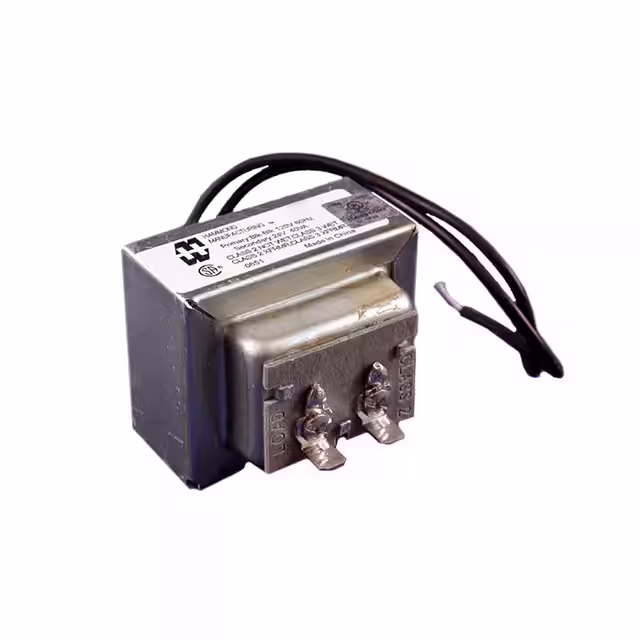

BA2DA PWR XFMR LAMINATED 5VA CHAS MT Hammond Manufacturing	2899	19.33	- + Add To Cart Inquiry Now	Datasheet	Bulk	BA	Active	Laminated Core	120V	10V	500mA	Single	Single	No	5VA	Chassis Mount	Wire Leads, Quick Connect	59.18mm L x 56.39mm W	50.29mm	-

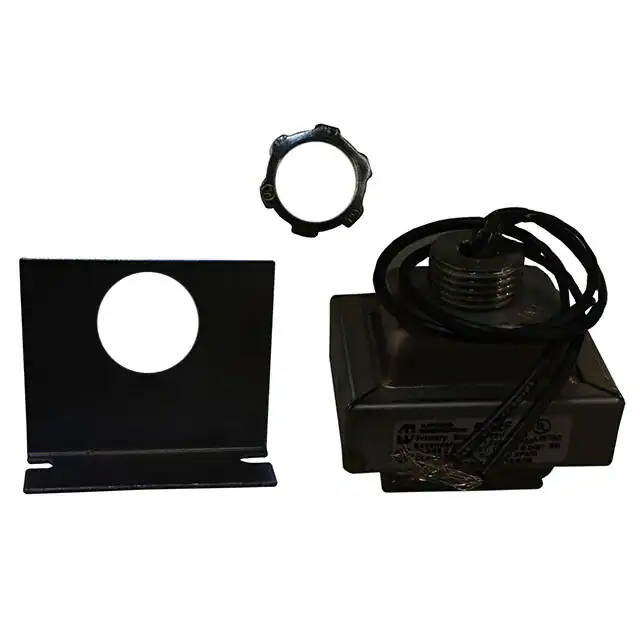

BC2F PWR XFMR LAMINATED 12VA CHAS MT Hammond Manufacturing	3982	19.33	- + Add To Cart Inquiry Now	Datasheet	Bulk	BC	Active	Laminated Core	120V	16V	750mA	Single	Single	No	12VA	Chassis Mount	Wire Leads, Quick Connect	59.18mm L x 56.39mm W	50.29mm	-
BC2G PWR XFMR LAMINATED 12VA CHAS MT Hammond Manufacturing	2544	19.33	- + Add To Cart Inquiry Now	Datasheet	Bulk	BC	Active	Laminated Core	120V	24V	500mA	Single	Single	No	12VA	Chassis Mount	Wire Leads, Quick Connect	59.18mm L x 56.39mm W	50.29mm	-
DMPC-Y-15 PWR XFMR LAMINATED 24VA TH Signal Transformer	2257	20.98	- + Add To Cart Inquiry Now	Datasheet	Bulk	DMPC	Active	Laminated Core	115V, 230V	Parallel 5V, Series 15V	Parallel 360mA, Series 130mA	Dual	Dual	Yes	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.90mm	1500Vrms
70020K XFRMR TOROIDAL 5VA THRU HOLE Talema Group LLC	114	21.22	- + Add To Cart Inquiry Now	Datasheet	Tray	7XXXX	Active	Toroidal	115V, 230V	Parallel 7V, Series 14V	Parallel 714mA, Series 357mA	Dual	Dual	No	5VA	Through Hole	PC Pin	49.70mm L x 49.70mm W	19.50mm	4000Vrms
187E12 XFRMR LAMINATED 50.4VA CHAS MNT Hammond Manufacturing	3061	21.33	- + Add To Cart Inquiry Now	Datasheet	Box	187	Active	Laminated Core	115V	12.6V	4A	Single	Single	Yes	50.4VA	Chassis Mount	Solder, Quick Connect	93.47mm L x 55.50mm W	57.15mm	2000Vrms
187E120 XFRMR LAMINATED 60VA CHAS MOUNT Hammond Manufacturing	2149	21.33	- + Add To Cart Inquiry Now	Datasheet	Box	187	Active	Laminated Core	115V	120V	500mA	Single	Single	Yes	60VA	Chassis Mount	Solder, Quick Connect	93.47mm L x 55.50mm W	57.15mm	2000Vrms
187E56 XFRMR LAMINATED 56VA CHAS MOUNT Hammond Manufacturing	2702	21.33	- + Add To Cart Inquiry Now	Datasheet	Box	187	Active	Laminated Core	115V	56V	1A	Single	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect	93.47mm L x 55.50mm W	57.15mm	2000Vrms
166L8 PWR XFMR LAMINATED 17VA CHAS MT Hammond Manufacturing	2196	28.45	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	8.5V	2A	Single	Single	Yes	17VA	Chassis Mount	Wire Leads	71.37mm L x 38.10mm W	42.93mm	2000Vrms
266JB24 PWR XFMR CHAS MT Hammond Manufacturing	3655	28.69	- + Add To Cart Inquiry Now	Datasheet	Bulk	266	Active	-	-	-	-	-	-	-	-	Chassis Mount	-	-	-	-
166G50 PWR XFMR LAMINATED 25VA CHAS MT Hammond Manufacturing	3967	29.74	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	50V	500mA	Single	Single	Yes	25VA	Chassis Mount	Wire Leads	82.55mm L x 44.45mm W	50.80mm	2000Vrms

Total 6768 Records«Prev 1... 30 31 32 333435 36 37...339 Next»
