Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
228H PWR XFMR SEMI-TORO 10VA TH Hammond Manufacturing	2984	94.75	- + Add To Cart Inquiry Now	Datasheet	Bulk	228	Active	Semi-Toroidal	115V	Parallel 20V, Series 40V	Parallel 500mA, Series 250mA	Single	Dual	No	10VA	Through Hole	PC Pin	69.85mm L x 56.64mm W	30.99mm	-
227P PWR XFMR SEMI-TORO 40VA TH Hammond Manufacturing	3670	94.75	- + Add To Cart Inquiry Now	Datasheet	Bulk	227	Active	Semi-Toroidal	115V	Parallel 13V, Series 26V	Parallel 3.08A, Series 1.54A	Single	Dual	No	40VA	Through Hole	PC Pin	51.31mm L x 41.40mm W	26.67mm	-
227N PWR XFMR SEMI-TORO 40VA TH Hammond Manufacturing	3279	94.75	- + Add To Cart Inquiry Now	Datasheet	Bulk	227	Active	Semi-Toroidal	115V	Parallel 10V, Series 20V	Parallel 4A, Series 2A	Single	Dual	No	40VA	Through Hole	PC Pin	51.31mm L x 41.40mm W	26.67mm	-
710 PWR XFMR LAMINATED 110VA CHAS MT Hammond Manufacturing	3382	96.10	- + Add To Cart Inquiry Now	Datasheet	Bulk	700	Active	Laminated Core	115V	750V	147mA	Single	Single	Yes	110VA	Chassis Mount	Wire Leads	95.25mm L x 104.90mm W	114.30mm	-
167T22 PWR XFMR LAMINATED 264VA CHAS MT Hammond Manufacturing	3545	96.41	- + Add To Cart Inquiry Now	Datasheet	Bulk	167	Active	Laminated Core	115V	22V	12A	Single	Single	Yes	264VA	Chassis Mount	Wire Leads	95.25mm L x 114.30mm W	115.82mm	2000Vrms
272DX PWR XFMR LAMINATED 123VA CHAS MT Hammond Manufacturing	3258	98.13	- + Add To Cart Inquiry Now	Datasheet	Bulk	272	Active	Laminated Core	115V	600V, 6.3V, 5V	144mA, 4A, 3A	Single	Triple	Yes	123VA	Chassis Mount	Wire Leads	63.50mm L x 95.25mm W	77.72mm	2000Vrms
HS1B250 PWR XFMR LAMINATED 250VA CHAS MT SolaHD	3821	111.72	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Laminated Core	240V, 480V	120V, 240V	2.08A	Dual	Dual	No	250VA	Chassis Mount	Solder, Quick Connect	-	-	-
167S30 PWR XFMR LAMINATED 300VA CHAS MT Hammond Manufacturing	3652	99.81	- + Add To Cart Inquiry Now	Datasheet	Bulk	167	Active	Laminated Core	115V	30V	10A	Single	Single	Yes	300VA	Chassis Mount	Wire Leads	95.25mm L x 114.30mm W	115.82mm	2000Vrms

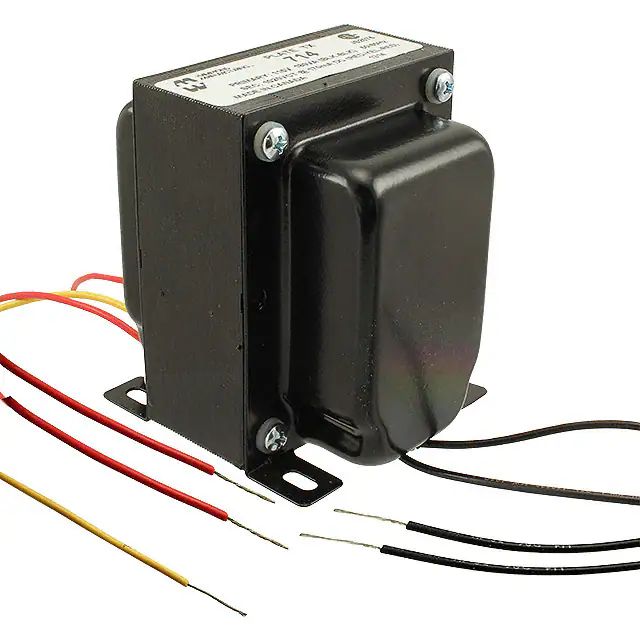

714 PWR XFMR LAMINATED 180VA CHAS MT Hammond Manufacturing	3975	102.81	- + Add To Cart Inquiry Now	Datasheet	Bulk	700	Active	Laminated Core	115V	1020V	170mA	Single	Single	Yes	180VA	Chassis Mount	Wire Leads	79.50mm L x 95.25mm W	95.25mm	-
165V18 PWR XFMR LAMINATED 360VA CHAS MT Hammond Manufacturing	3074	102.96	- + Add To Cart Inquiry Now	Datasheet	Bulk	165	Active	Laminated Core	115V	18V	20A	Single	Single	Yes	360VA	Chassis Mount	Wire Leads	114.30mm L x 101.60mm W	95.25mm	2000Vrms
167U20 PWR XFMR LAMINATED 320VA CHAS MT Hammond Manufacturing	2923	104.93	- + Add To Cart Inquiry Now	Datasheet	Bulk	167	Active	Laminated Core	115V	20V	16A	Single	Single	Yes	320VA	Chassis Mount	Wire Leads	95.25mm L x 114.30mm W	115.82mm	2000Vrms
274AX PWR XFMR LAMINATED 137VA CHAS MT Hammond Manufacturing	3225	108.34	- + Add To Cart Inquiry Now	Datasheet	Bulk	274	Active	Laminated Core	117V	720V, 6.3V, 5V	138mA, 3.5A, 3A	Single	Triple	Yes	137VA	Chassis Mount	Wire Leads	79.50mm L x 88.90mm W	98.55mm	2000Vrms
167V22 PWR XFMR LAMINATED 440VA CHAS MT Hammond Manufacturing	3653	110.60	- + Add To Cart Inquiry Now	Datasheet	Bulk	167	Active	Laminated Core	115V	22V	20A	Single	Single	Yes	440VA	Chassis Mount	Wire Leads	95.25mm L x 127.00mm W	115.82mm	2000Vrms

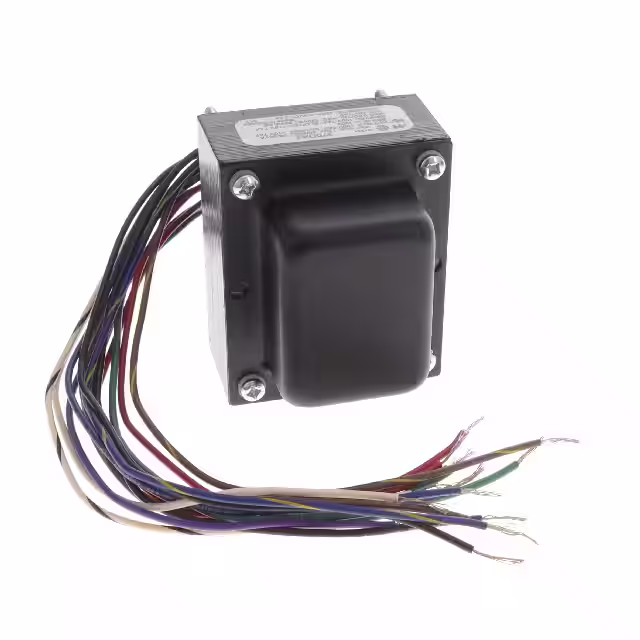

370DAZ PWR XFMR LAMINATED 76VA CHAS MT Hammond Manufacturing	2692	112.03	- + Add To Cart Inquiry Now	Datasheet	Bulk	300	Active	Laminated Core	100V, 110V, 120V, 200V, 220V, 240V	520V, 6.3V	104mA, 3.5A	Dual, Multiple Taps	Four	Yes	76VA	Chassis Mount	Wire Leads	71.37mm L x 57.15mm W	88.90mm	2000Vrms
290BEX PWR XFMR LAMINATED CHAS MT Hammond Manufacturing	2558	112.90	- + Add To Cart Inquiry Now	Datasheet	Box	290	Active	Laminated Core	240V	660V, 6V, 5V	138mA, 3A, 3A	Single	Triple	Yes	-	Chassis Mount	Wire Leads	71.45mm L x 103.20mm W	87.33mm	-
291BX PWR XFMR LAMINATED CHAS MT Hammond Manufacturing	2690	112.90	- + Add To Cart Inquiry Now	Datasheet	Box	291	Active	Laminated Core	120V	660V, 6V, 5V	138mA, 3A, 3A	Single	Triple	Yes	-	Chassis Mount	Wire Leads	71.45mm L x 103.20mm W	87.33mm	-
370DX PWR XFMR LAMINATED 86VA CHAS MT Hammond Manufacturing	2669	113.44	- + Add To Cart Inquiry Now	Datasheet	Bulk	300	Active	Laminated Core	100V, 110V, 120V, 200V, 220V, 240V	550V, 6.3V, 5V	104mA, 3A, 2A	Dual, Multiple Taps	Four	Yes	86VA	Chassis Mount	Wire Leads	84.07mm L x 71.37mm W	86.89mm	2000Vrms
266R24 PWR XFMR LAMINATED 192VA CHAS MT Hammond Manufacturing	2903	115.00	- + Add To Cart Inquiry Now	Datasheet	Box	266	Active	Laminated Core	117V, 234V	Parallel 12V, Series 24V	Parallel 16A, Series 8A	Dual	Dual	No	192VA	Chassis Mount	Wire Leads	87.38mm L x 90.42mm W	104.90mm	2000Vrms
290PAZ PWR XFMR LAMINATED CHAS MT Hammond Manufacturing	2838	117.41	- + Add To Cart Inquiry Now	Datasheet	Bulk	290	Active	Laminated Core	120V, 240V	-	3A	Single, Multiple Taps	Triple	No	-	Chassis Mount	Wire Leads	-	-	-
273DZ PWR XFMR LAMINATED 101VA CHAS MT Hammond Manufacturing	3412	117.53	- + Add To Cart Inquiry Now	Datasheet	Bulk	273	Active	Laminated Core	117V	700V, 6.3V, 5V	103mA, 3A, 2A	Single	Triple	Yes	101VA	Chassis Mount	Wire Leads	71.37mm L x 92.20mm W	85.85mm	2000Vrms

Total 6768 Records«Prev 1... 36 37 38 394041 42 43...339 Next»
