Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
E38/8/25-3C95 FERRITE CORE Ferroxcube	2524	3.10	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	E	E 38 x 8 x 25	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.325 (8.26mm)
3061990911 61 ROD Fair-Rite Products Corp.	3571	3.17	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	ROD	-	61	0.315 (8.00mm)	-	-	Ungapped	18	125	-	-	50.3	-	-	Uncoated	-

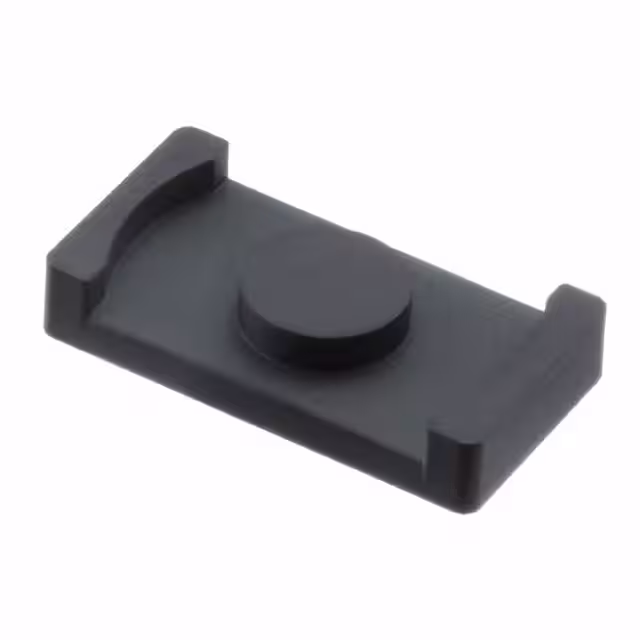

B66481G0000X608 EQ25/6-PC200 EPCOS - TDK Electronics	2284	3.18	- + Add To Cart Inquiry Now	Datasheet	Bulk	EQ25/6/18	Active	-	-	PC200	-	-	-	-	-	-	-	-	-	-	-	-	-
ER41/7.6/32-3C92 FERRITE CORE Ferroxcube	766	3.22	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	ER	ER 41 x 7.6 x 32	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.300 (7.60mm)

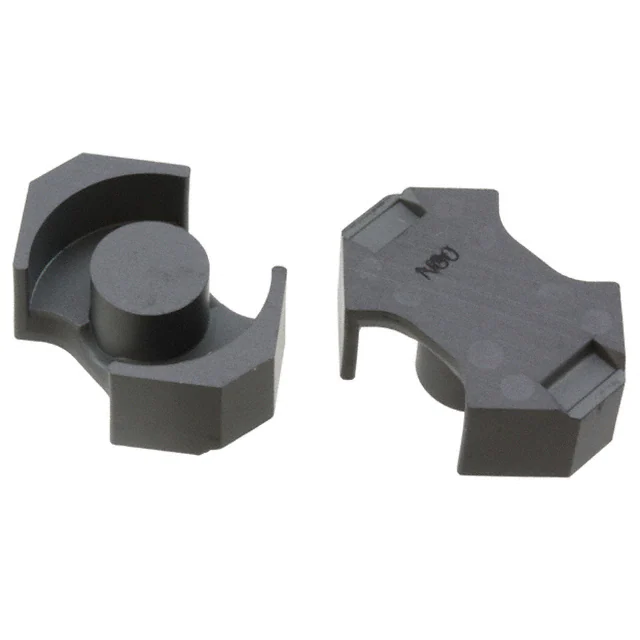

B65811J0000R030 FERRITE CORE RM 5.7UH N30 2PCS EPCOS - TDK Electronics	2707	3.41	- + Add To Cart Inquiry Now	Datasheet	Box	RM8	Active	RM	RM 8	N30	-	5.7 µH	-20%, +30%	Ungapped	2690	4300	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)
TX36/23/15-3C90 FERRITE CORES ROUND Ferroxcube	2685	3.41	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	TX 36 x 23 x 15	3C90	1.463 (37.15mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.630 (16.00mm)

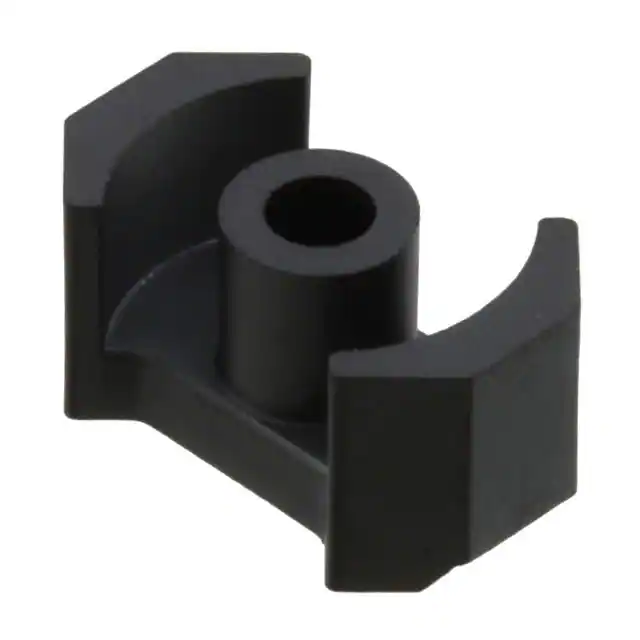

B65803N0160A048 FERRITE CORE RM 160NH N48 2PCS EPCOS - TDK Electronics	3301	3.52	- + Add To Cart Inquiry Now	Datasheet	Box	RM4	Active	RM	RM 4	N48	-	160 nH	±3%	Gapped	243	-	1.9	21	11	-	231	Uncoated	0.207 (5.25mm)

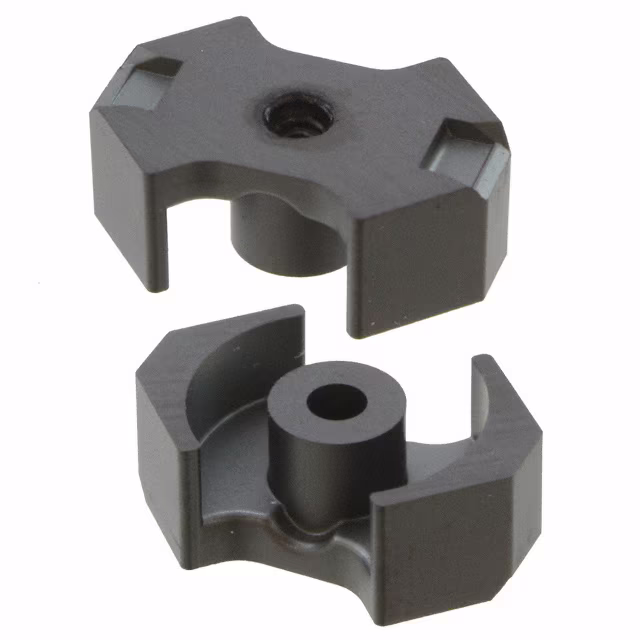

B65805N0250A048 FERRITE CORE RM 250NH N48 2PCS EPCOS - TDK Electronics	2450	3.53	- + Add To Cart Inquiry Now	Datasheet	Box	RM5	Active	RM	RM 5	N48	-	250 nH	±3%	Gapped	199	-	1	20.8	20.8	-	433	Uncoated	0.207 (5.25mm)
PQ26/25-3C97 FERRITE CORE 2PC SET Ferroxcube	340	3.53	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PQ	PQ 26 x 25	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.972 (24.70mm)
5961001721 61 TOROID COATED Fair-Rite Products Corp.	290	3.57	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	61	1.299 (33.00mm)	120 nH	±25%	Ungapped	-	125	1.2947	76.4	59	-	4512	Plastic	0.406 (10.30mm)
T60006L2020W450 NANOCRYSTALLINE CORE, 20X12.5X8 VACUUMSCHMELZE	858	858.00	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	Toroid	-	-	0.890 (22.60mm)	14 µH	-	Ungapped	-	-	-	51.1	24	-	-	Uncoated	0.402 (10.20mm)
RM10/I-3C95 FERRITE CORE 2PC SET Ferroxcube	463	3.68	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	RM	RM 10	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.729 (18.60mm)
ETD49/25/16-3C97 FERRITE CORE Ferroxcube	956	3.70	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	ETD	ETD 49 x 25 x 16	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.972 (24.70mm)

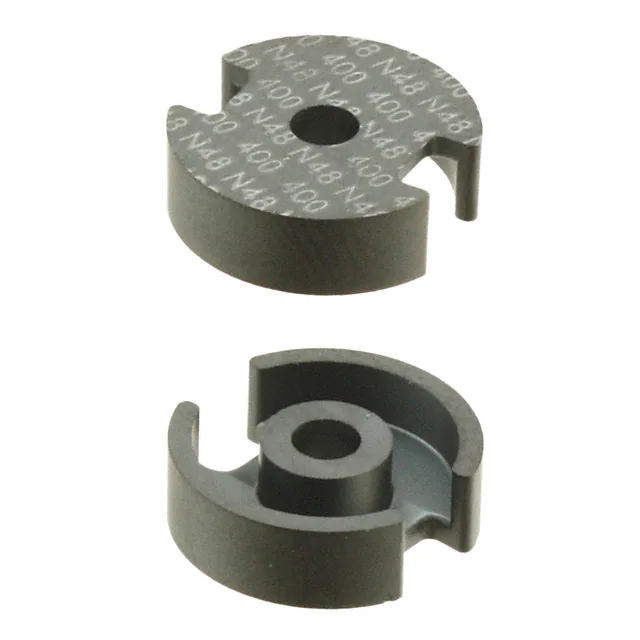

B65541T0400A048 FERRITE CORE P 400NH N48 2PCS EPCOS - TDK Electronics	2347	3.71	- + Add To Cart Inquiry Now	Datasheet	Box	P14/8	Active	P (Pot Core)	P 14 x 8	N48	0.563 (14.30mm)	400 nH	±3%	Gapped	255	-	0.8	20	25	20	500	Uncoated	0.167 (4.25mm)

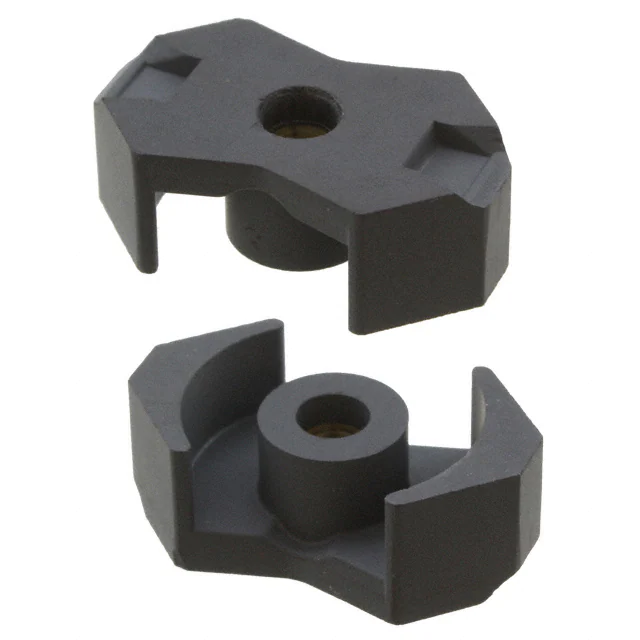

B65807N0160A048 FERRITE CORE RM 160NH N48 2PCS EPCOS - TDK Electronics	2386	3.76	- + Add To Cart Inquiry Now	Datasheet	Box	RM6	Active	RM	RM 6	N48	-	160 nH	±3%	Gapped	109	-	0.86	26.9	31.3	-	840	Uncoated	0.246 (6.25mm)

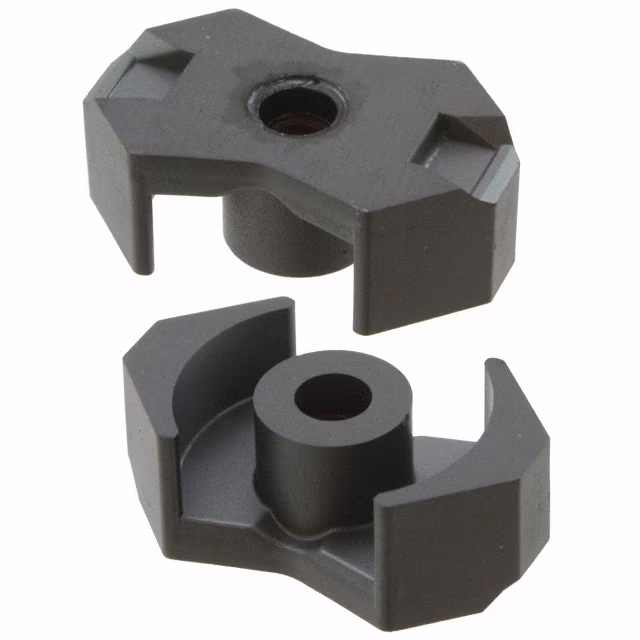

B65807N0250A048 FERRITE CORE RM 250NH N48 2PCS EPCOS - TDK Electronics	2888	3.76	- + Add To Cart Inquiry Now	Datasheet	Box	RM6	Active	RM	RM 6	N48	-	250 nH	±3%	Gapped	171	-	0.86	26.9	31.3	-	840	Uncoated	0.246 (6.25mm)

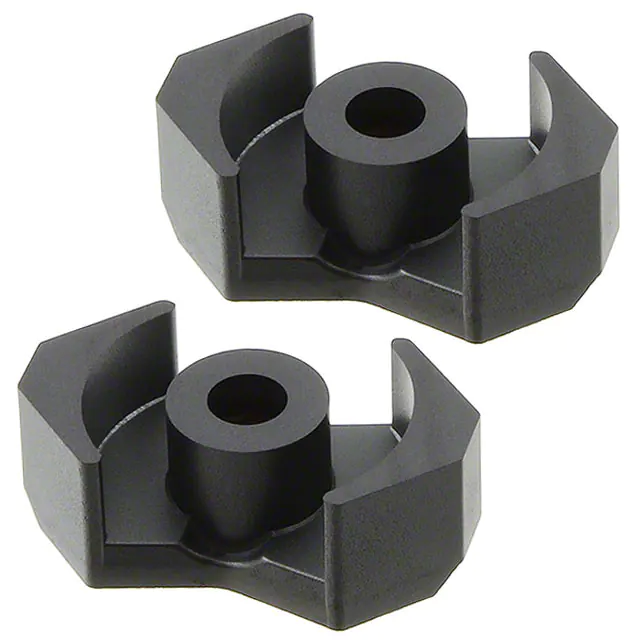

B65807N0400A048 FERRITE CORE RM 400NH N48 2PCS EPCOS - TDK Electronics	3283	3.76	- + Add To Cart Inquiry Now	Datasheet	Box	RM6	Active	RM	RM 6	N48	-	400 nH	±3%	Gapped	274	-	0.86	26.9	31.3	-	840	Uncoated	0.246 (6.25mm)
P22/13-3C91 FERRITE CORE 2PC SET Ferroxcube	3749	3.77	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	P (Pot Core)	P 22 x 13	3C91	0.866 (22.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.528 (13.40mm)
B66363G0000X197 FERRITE CORE ETD N97 1PC EPCOS - TDK Electronics	629	3.77	- + Add To Cart Inquiry Now	Datasheet	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.787 (20.00mm)

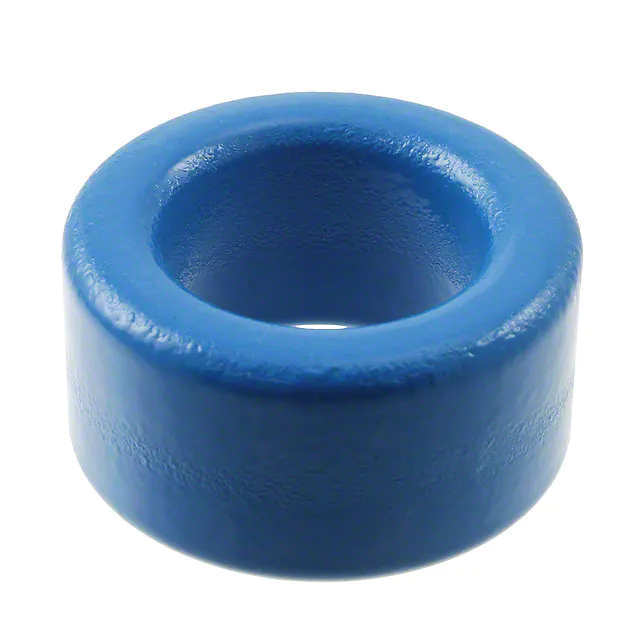

B64290L0647X038 FERRITE CORE TOROID 13.1UH T38 EPCOS - TDK Electronics	740	3.80	- + Add To Cart Inquiry Now	Datasheet	Box	TX29/19/15	Active	Toroid	-	T38	1.220 (31.00mm)	13.1 µH	±30%	Ungapped	-	10000	0.96	73.78	76.98	-	5680	Epoxy	0.634 (16.10mm)

Total 5020 Records«Prev 1... 8 9 10 111213 14 15...251 Next»
