Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

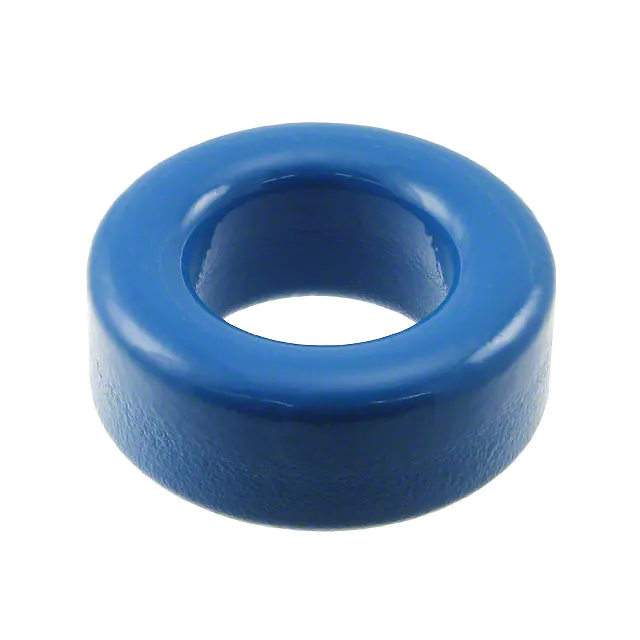

B64290L0618X087 FERRITE CORE TOROID 2.36UH N87 EPCOS - TDK Electronics	2373	1.95	- + Add To Cart Inquiry Now	Datasheet	Box	TX25.3/14.8/10	Active	Toroid	-	N87	1.047 (26.60mm)	2.36 µH	±25%	Ungapped	-	2200	1.17	60.07	51.26	-	3079	Epoxy	0.433 (11.00mm)

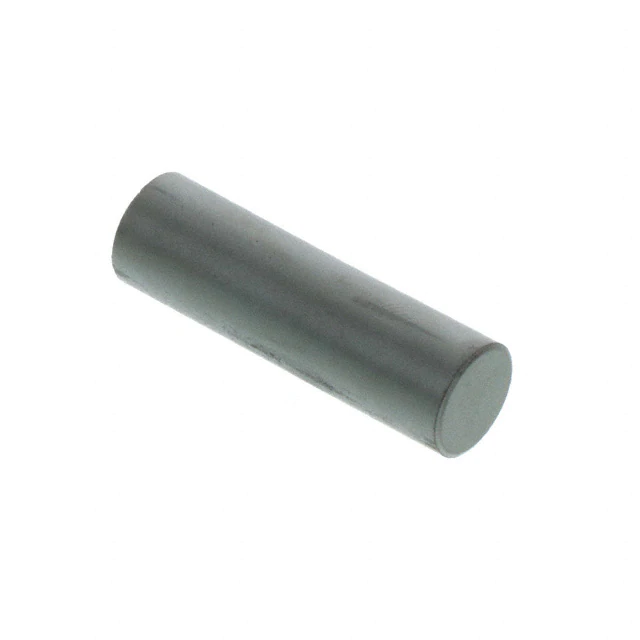

4077484611 77 ROD Fair-Rite Products Corp.	2247	1.95	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	ROD	-	77	0.484 (12.30mm)	-	-	Ungapped	29	2000	-	25	7.07	-	-	Uncoated	-

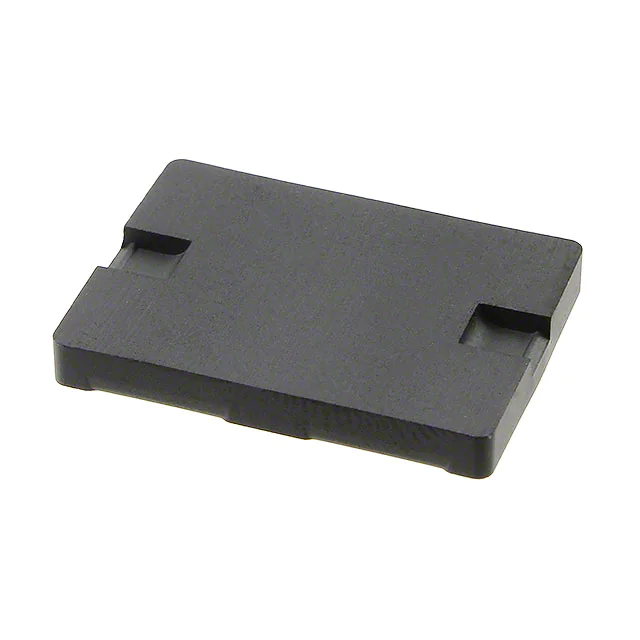

B66285K0000X187 FERRITE CORE I N87 EPCOS - TDK Electronics	2114	1.96	- + Add To Cart Inquiry Now	Datasheet	Tray	I22/2.5/16	Active	I	I 22 x 2.5 x 16	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.098 (2.50mm)
B66281G0000X149 FERRITE CORE ELP N49 1PC EPCOS - TDK Electronics	3830	1.97	- + Add To Cart Inquiry Now	Datasheet	Box	ELP14/3.5/5	Active	ELP	ELP 14 x 3.5 x 5	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.138 (3.50mm)

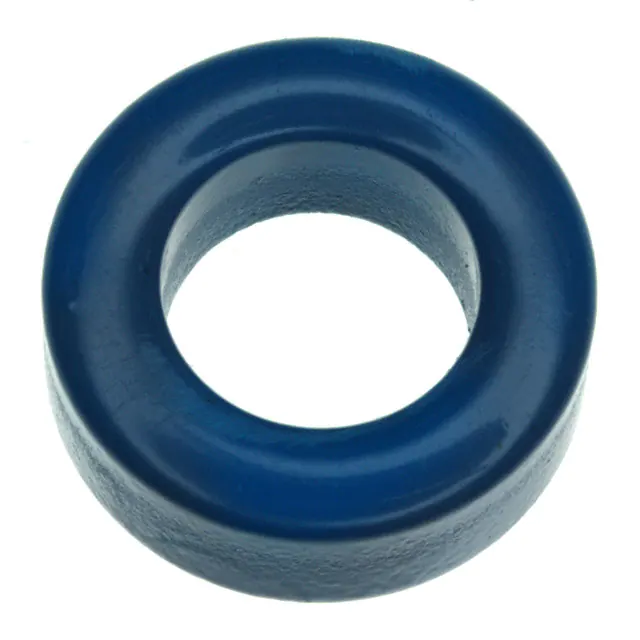

B64290L0618X035 FERRITE CORE TOROID 5.4UH T35 EPCOS - TDK Electronics	2807	1.98	- + Add To Cart Inquiry Now	Datasheet	Bulk	TX25.3/14.8/10	Active	Toroid	-	T35	1.047 (26.60mm)	5.4 µH	±25%	Ungapped	-	5000	1.17	60.07	51.26	-	3079	Epoxy	0.433 (11.00mm)
PLT32/20/3.2/R-3F36 FERRITE CORE Ferroxcube	2545	2.04	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PLT	PLT 32 x 20 x 3.2	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.125 (3.18mm)
PQ20/20-3C97 FERRITE CORE 2PC SET Ferroxcube	2304	2.13	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PQ	PQ 20 x 20	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.795 (20.20mm)

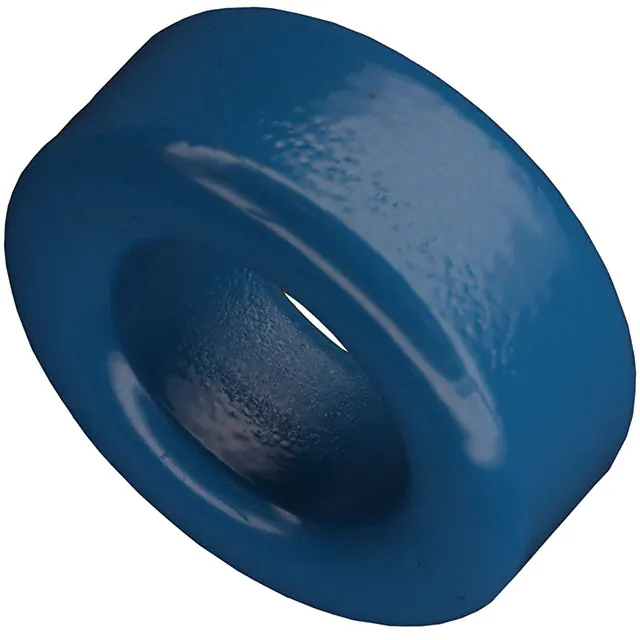

B64290L0618X037 FERRITE CORE TOROID 6.97UH T37 EPCOS - TDK Electronics	3886	2.13	- + Add To Cart Inquiry Now	Datasheet	Bulk	TX25.3/14.8/10	Active	Toroid	-	T37	1.047 (26.60mm)	6.97 µH	±25%	Ungapped	-	6500	1.17	60.07	51.26	-	3079	Epoxy	0.433 (11.00mm)
EQ30-3C95 FERRITE CORE Ferroxcube	2519	2.16	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	EQ	EQ 30	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.315 (8.00mm)

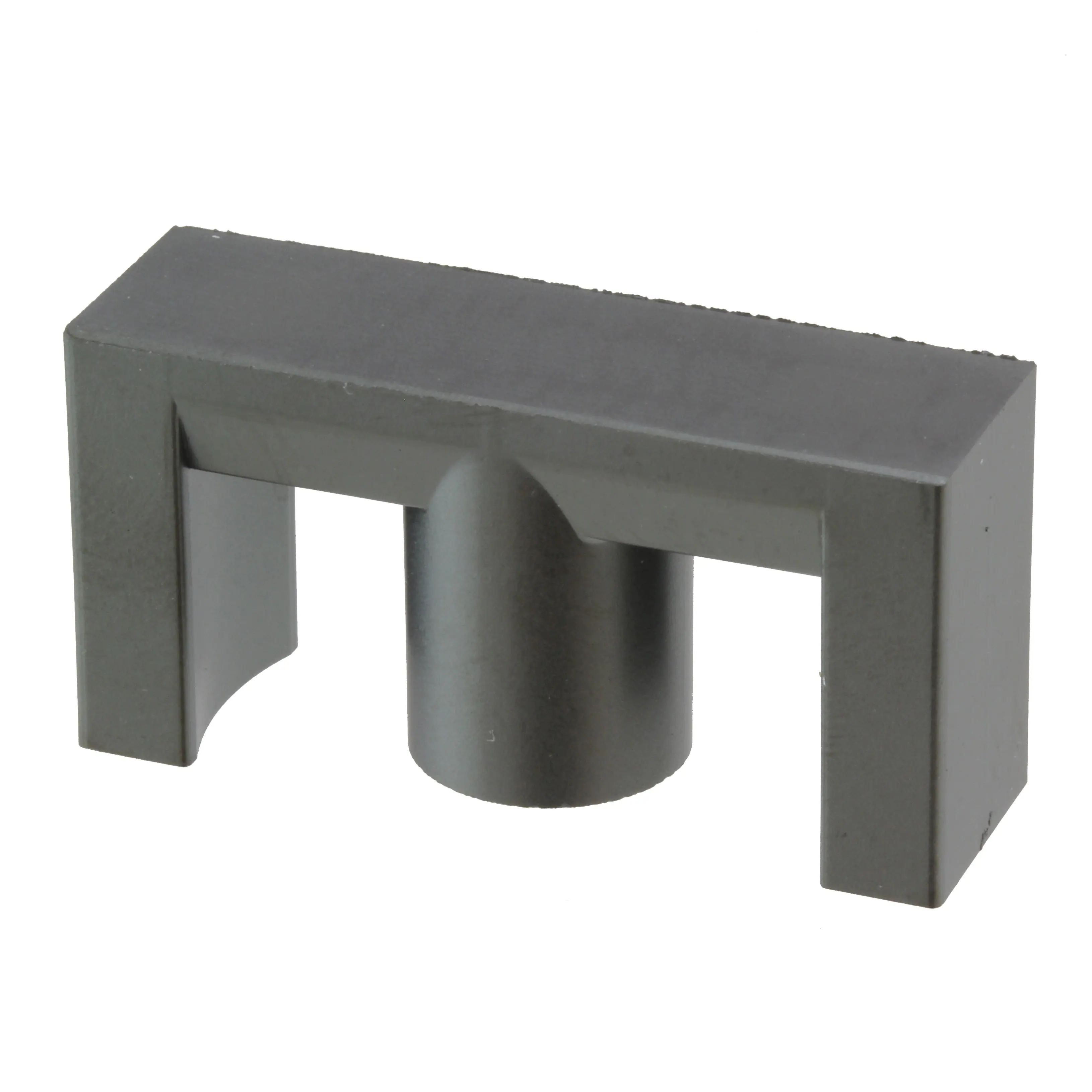

B66361G1000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	2935	2.19	- + Add To Cart Inquiry Now	Datasheet	Box	ETD34/17/11	Active	ETD	ETD 34 x 17 x 11	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.689 (17.50mm)
E32/6/20/R-3F4 FERRITE CORE Ferroxcube	3120	2.19	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	E	E 32 x 6 x 20	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
5978007601 78 TOROID Fair-Rite Products Corp.	2796	2.20	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	78	0.870 (22.10mm)	-	±25%	Ungapped	-	2300	-	54	52	-	2830	Uncoated	0.500 (12.70mm)
B65517D0100A048 FERRITE CORE P 100NH N48 2PCS EPCOS - TDK Electronics	2618	2.28	- + Add To Cart Inquiry Now	Datasheet	Box	P9/5	Active	P (Pot Core)	P 9 x 5	N48	0.366 (9.30mm)	100 nH	±3%	Gapped	100	-	1.25	12.5	10	-	125	Uncoated	0.106 (2.70mm)
B65517D0160A048 FERRITE CORE P 160NH N48 2PCS EPCOS - TDK Electronics	2701	2.28	- + Add To Cart Inquiry Now	Datasheet	Box	P9/5	Active	P (Pot Core)	P 9 x 5	N48	0.366 (9.30mm)	160 nH	±3%	Gapped	159	-	1.25	12.5	10	-	125	Uncoated	0.106 (2.70mm)
B66480G0000X197 FERRITE CORE ER N97 1PC EPCOS - TDK Electronics	3653	2.29	- + Add To Cart Inquiry Now	Datasheet	Box	ER18/3/10	Active	ER	ER 18 x 3 x 10	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.124 (3.15mm)
B66480G0000X149 FERRITE CORE ER N49 1PC EPCOS - TDK Electronics	2163	2.31	- + Add To Cart Inquiry Now	Datasheet	Box	ER18/3/10	Active	ER	ER 18 x 3 x 10	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.124 (3.15mm)

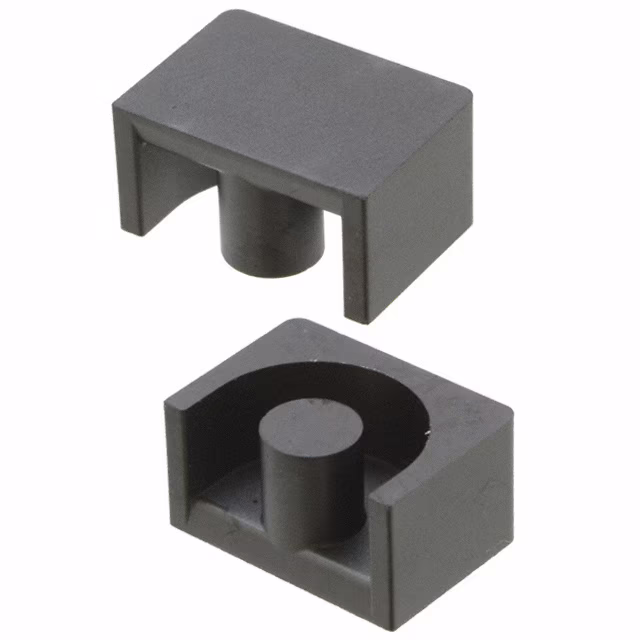

B65843A0000Y038 FERRITE CORE EP 7UH T38 2PCS EPCOS - TDK Electronics	3854	2.40	- + Add To Cart Inquiry Now	Datasheet	Box	EP13	Active	EP	EP 13	T38	-	7 µH	-30%, +40%	Ungapped	6910	10000	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
RM8/I-3C95 FERRITE CORE 2PC SET Ferroxcube	2784	2.41	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	RM	RM 8	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.646 (16.40mm)

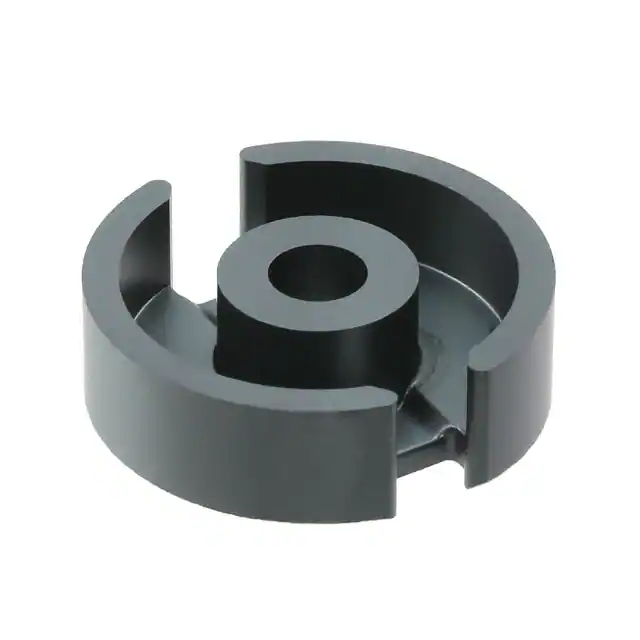

P14/8-3C91 FERRITE CORE 2PC SET Ferroxcube	2354	2.42	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	P (Pot Core)	P 14 x 8	3C91	0.563 (14.30mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.165 (4.20mm)
B64290L0615X830 FERRITE CORE TOROID 6.93UH N30 EPCOS - TDK Electronics	3421	2.44	- + Add To Cart Inquiry Now	Datasheet	Box	TX25.3/14.8/15	Active	Toroid	-	N30	1.047 (26.60mm)	6.93 µH	±25%	Ungapped	-	4300	0.78	60.07	76.89	-	4619	Epoxy	0.638 (16.20mm)

Total 5020 Records«Prev 1... 6 7 8 91011 12 13...251 Next»
