Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
ETD59/31/22-3C97 FERRITE CORE Ferroxcube	231	8.04	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	ETD	ETD 59 x 31 x 22	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.220 (31.00mm)

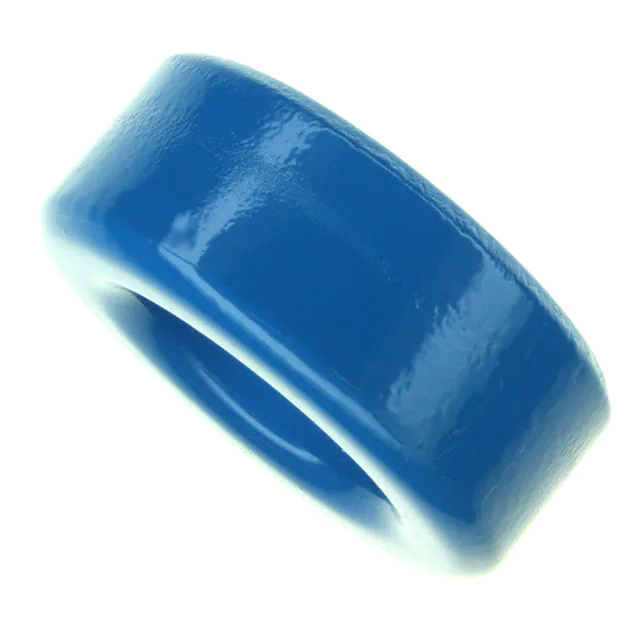

B64290L0659X830 FERRITE CORE TOROID 7UH N30 EPCOS - TDK Electronics	391	8.26	- + Add To Cart Inquiry Now	Datasheet	Tray	TX40/24/16	Active	Toroid	-	N30	1.646 (41.80mm)	7 µH	±25%	Ungapped	-	4300	0.77	96.29	125.3	125.3	12070	Epoxy	0.677 (17.20mm)

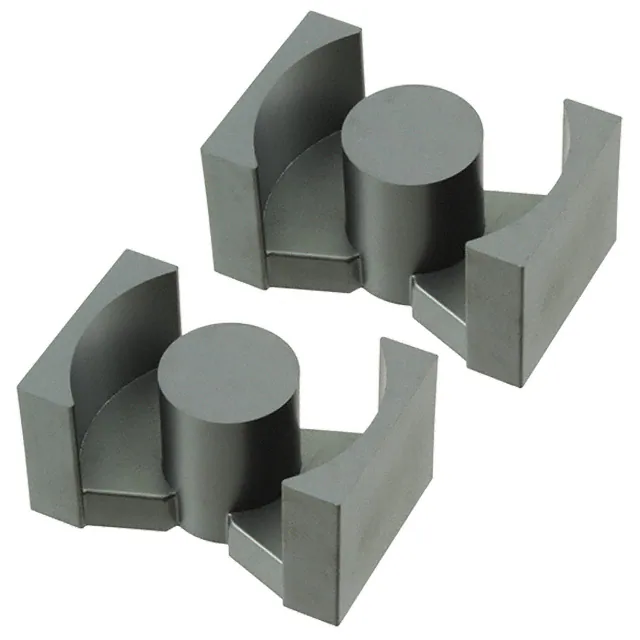

B65879B0000R095 FERRITE CORE PQ 6.1UH N95 2PCS EPCOS - TDK Electronics	154	8.58	- + Add To Cart Inquiry Now	Datasheet	Box	PQ32/30	Active	PQ	PQ 32 x 30	N95	-	6.1 µH	-20%, +30%	Ungapped	2140	2000	0.441	67.8	153.8	127.5	10440	Uncoated	0.597 (15.17mm)

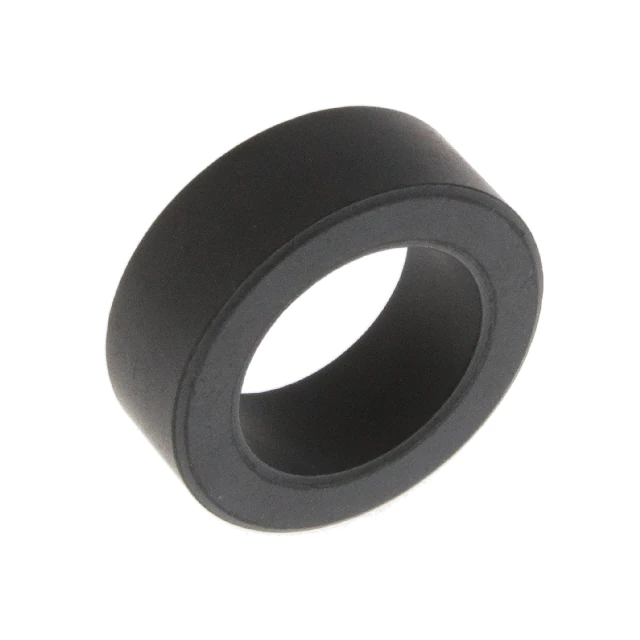

5968002701 68 TOROID Fair-Rite Products Corp.	3265	8.60	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	68	1.400 (35.56mm)	-	-	Ungapped	-	16	-	89	78	-	7000	Uncoated	0.500 (12.70mm)
T60004L2030W676 NANOCRYSTALLINE CORE, 30X25X15 VACUUMSCHMELZE	472	472.00	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	Toroid	-	-	1.272 (32.30mm)	26.5 µH	-	Ungapped	-	-	-	86.4	27	-	-	Epoxy	0.689 (17.50mm)
E80/38/20-3C94 FERRITE CORE Ferroxcube	3366	8.69	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	E	E 80 x 38 x 20	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.500 (38.10mm)

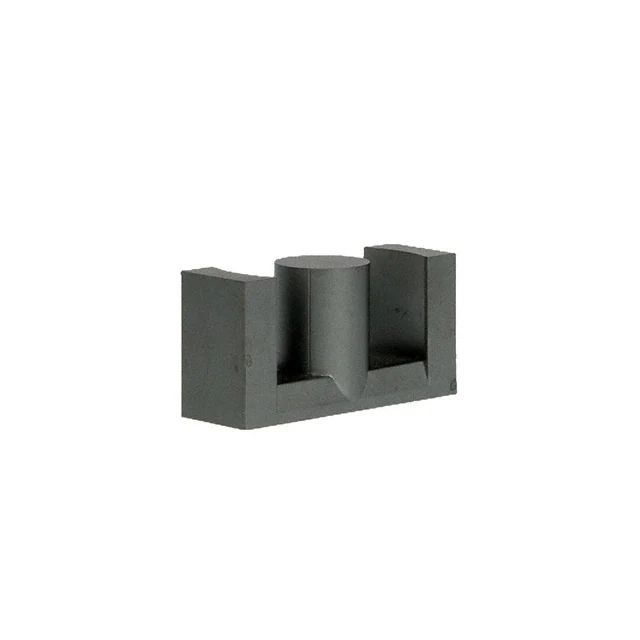

B66367G0000X197 FERRITE CORE ETD N97 1PC EPCOS - TDK Electronics	101	8.85	- + Add To Cart Inquiry Now	Datasheet	Box	ETD49/25/16	Active	ETD	ETD 49 x 25 x 16	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.980 (24.90mm)
B65879Q0100K095 PQ32/30-N95-DG100 EPCOS - TDK Electronics	216	9.18	- + Add To Cart Inquiry Now	Datasheet	Bulk	PQ32/30	Active	PQ	PQ 32 x 30	N95	-	100 nH	±10%	Distributed Gapped	-	3000	0.441	67.8	153.8	127.5	10440	Uncoated	0.597 (15.17mm)

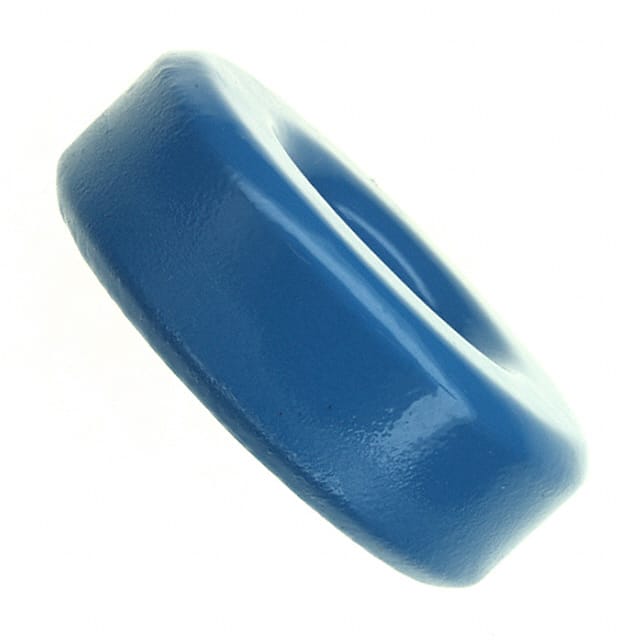

B64290L0668X038 FERRITE CORE TOROID 17.6UH T38 EPCOS - TDK Electronics	3038	9.23	- + Add To Cart Inquiry Now	Datasheet	Tray	TX38/19/13	Active	Toroid	-	T38	1.551 (39.40mm)	17.6 µH	±30%	Ungapped	-	10000	0.71	82.97	116.2	-	9644	Epoxy	0.543 (13.80mm)
PLT64/50/5-3F4 FERRITE CORE Ferroxcube	3089	9.28	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PLT	PLT 64 x 50 x 5	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.200 (5.08mm)
E65/32/27-3C92 FERRITE CORE Ferroxcube	529	9.49	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	E	E 65 x 32 x 27	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.291 (32.80mm)
5943018601 43 TOROID Fair-Rite Products Corp.	400	9.97	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	43	-	-	±25%	Ungapped	-	800	-	98	178	-	17500	Uncoated	-
PLT64/50/5-3F36 FERRITE CORE Ferroxcube	335	10.13	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PLT	PLT 64 x 50 x 5	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.200 (5.08mm)
RM14/I-3C95 FERRITE CORE 2PC SET Ferroxcube	477	10.35	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	RM	RM 14	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.185 (30.10mm)

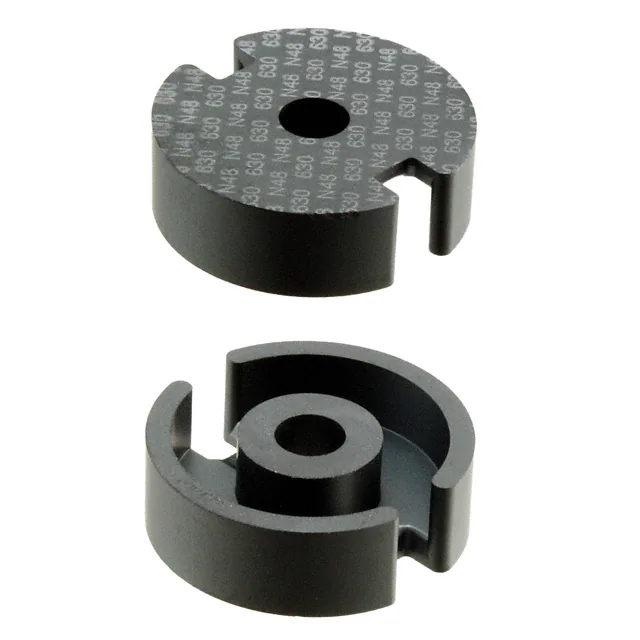

B65671T0630A048 FERRITE CORE P 630NH N48 2PCS EPCOS - TDK Electronics	2331	10.46	- + Add To Cart Inquiry Now	Datasheet	Box	P26/16	Active	P (Pot Core)	P 26 x 16	N48	1.024 (26.00mm)	630 nH	±3%	Gapped	201	-	0.4	37.2	93	76.5	3460	Uncoated	0.321 (8.15mm)

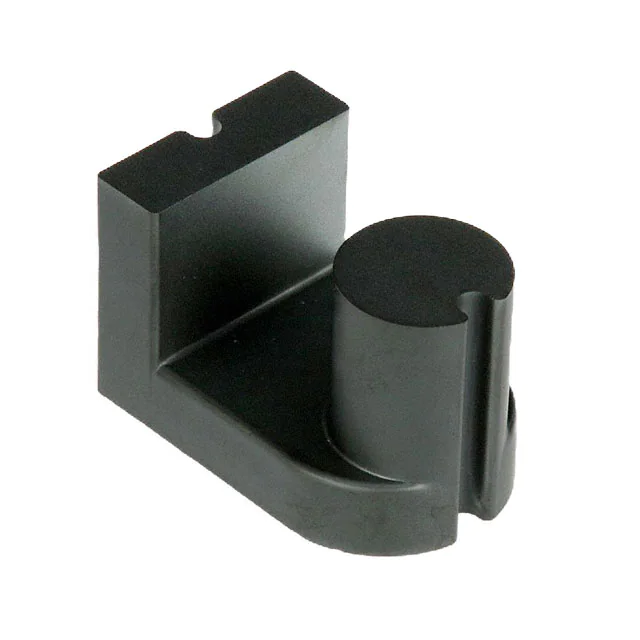

UR55/38/36-3C90 UR CORES Ferroxcube	264	13.17	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	UR	UR 55 x 38 x 36	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.476 (37.50mm)

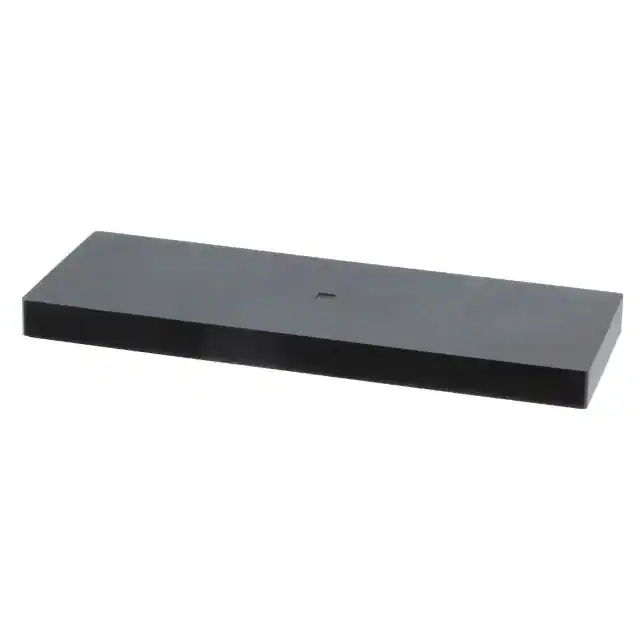

B66297K0000X187 FERRITE CORE I N87 EPCOS - TDK Electronics	709	13.38	- + Add To Cart Inquiry Now	Datasheet	Bulk	I102/7/38	Active	I	I 102 x 20 x 38	N87	-	-	±25%	Ungapped	-	-	-	-	-	-	-	Uncoated	0.275 (7.00mm)
T60006L2040W453 NANOCRYSTALLINE CORE, 40X25X15 VACUUMSCHMELZE	2021	0.00	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	Toroid	-	-	1.697 (43.10mm)	25 µH	-	Ungapped	-	-	-	102	85.5	-	-	Uncoated	0.728 (18.50mm)

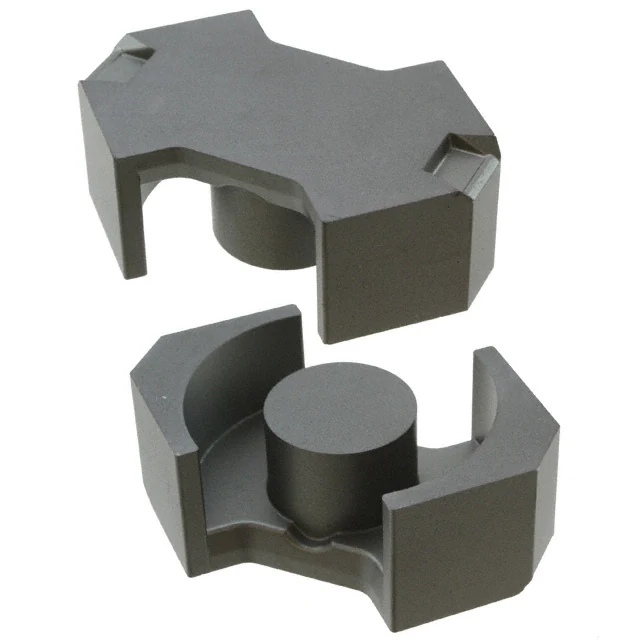

B65887E0160A041 FERRITE CORE RM 160NH N41 2PCS EPCOS - TDK Electronics	549	13.61	- + Add To Cart Inquiry Now	Datasheet	Box	RM14	Active	RM	RM 14	N41	-	160 nH	±3%	Gapped	45	2800	0.35	70	200	170	14000	Uncoated	0.594 (15.10mm)

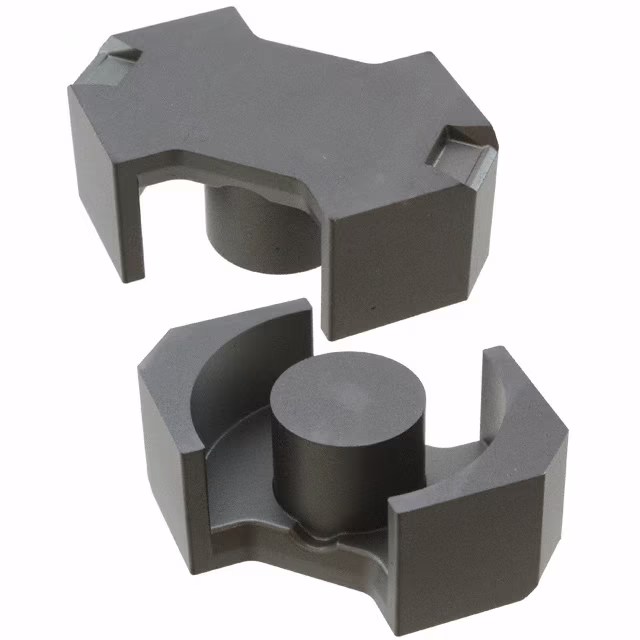

B65887E0400A041 FERRITE CORE RM 400NH N41 2PCS EPCOS - TDK Electronics	473	13.61	- + Add To Cart Inquiry Now	Datasheet	Box	RM14	Active	RM	RM 14	N41	-	400 nH	±3%	Gapped	111	2800	0.35	70	200	170	14000	Uncoated	0.594 (15.10mm)
