Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DMP32D4SFB-7BMOSFET P-CH 30V 400MA 3DFN |
10695 | 0.45 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 400mA (Ta) | 2.5V, 10V | 2.4Ohm @ 200mA, 10V | 2.3V @ 250µA | 1.3 nC @ 10 V | ±20V | 51 pF @ 15 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
RV2C001ZPT2LMOSFET P-CH 20V 100MA DFN1006-3 |
15300 | 0.48 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 100mA (Ta) | 1.2V, 4.5V | 3.8Ohm @ 100mA, 4.5V | 1V @ 100µA | - | ±10V | 15 pF @ 10 V | - | 100mW (Ta) | 150°C (TJ) | Surface Mount | |
BS870Q-7-FMOSFET N-CH 60V 250MA SOT23 |
11828 | 0.33 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 250mA (Ta) | 10V | 5Ohm @ 200mA, 10V | 3V @ 250µA | - | ±20V | 50 pF @ 10 V | - | 300mW | -55°C ~ 150°C (TJ) | Surface Mount | |
SSM3J65CTC,L3FMOSFET P-CH 20V 700MA CST3C |
20000 | 0.41 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVII | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 700mA (Ta) | 1.2V, 4.5V | 500mOhm @ 500mA, 4.5V | 1V @ 1mA | - | ±10V | 48 pF @ 10 V | - | 500mW (Ta) | 150°C | Surface Mount | |
PMZB200UNEYLMOSFET N-CH 30V 1.4A DFN1006B-3 |
39049 | 0.45 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.4A (Ta) | 1.5V, 4.5V | 250mOhm @ 1.4A, 4.5V | 950mV @ 250µA | 2.7 nC @ 4.5 V | ±8V | 89 pF @ 15 V | - | 350mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
DMP2078LCA3-7MOSFET P-CH 20V 3.4A X4DSN1006-3 |
19470 | 0.49 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.4A (Ta) | 1.8V, 8V | 78mOhm @ 500mA, 8V | 1.2V @ 250µA | 1.6 nC @ 4.5 V | -12V | 228 pF @ 10 V | - | 810mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
BSS84WQ-7-FMOSFET P-CH 50V 130MA SOT323 |
61310 | 0.44 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 50 V | 130mA (Ta) | 5V | 10Ohm @ 100mA, 5V | 2V @ 1mA | - | ±20V | 45 pF @ 25 V | - | 200mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
NTA4151PT1HMOSFET P-CH 20V 760MA SC75 |
48000 | 0.45 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 760mA (Tj) | 1.8V, 4.5V | 360mOhm @ 350mA, 4.5V | 1.2V @ 250µA | 2.1 nC @ 4.5 V | ±6V | 156 pF @ 5 V | - | 301mW (Tj) | - | Surface Mount | |
AONR32320CMOSFET N-CH 30V 9.5A/12A 8DFN |
14952 | 0.46 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.5A (Ta), 12A (Tc) | 4.5V, 10V | 21mOhm @ 9.5A, 10V | 2.3V @ 250µA | 20 nC @ 10 V | ±20V | 650 pF @ 15 V | - | 3.1W (Ta), 11W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |

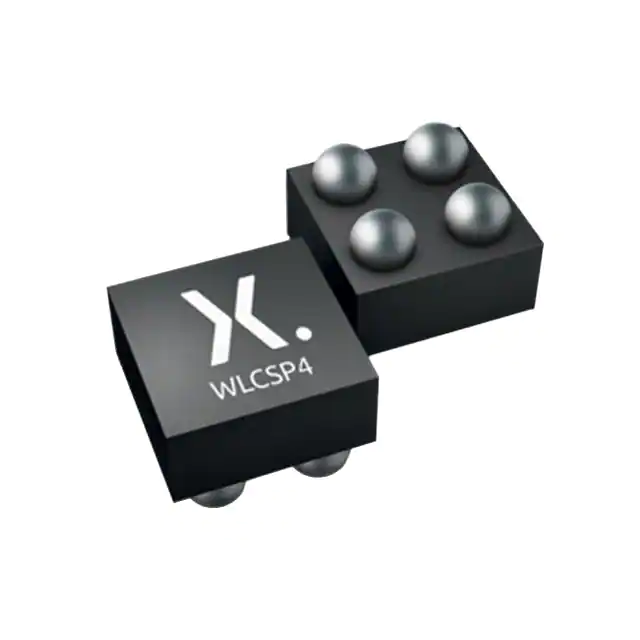

PMCM4402UPEZMOSFET P-CH 20V 4WLCSP |
15924 | 0.47 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.2A (Tj) | 2.5V, 4.5V | - | - | 6.2 nC @ 4.5 V | - | - | - | 400mW | 150°C (TJ) | Surface Mount | |
AON3414MOSFET N-CH 30V 10.5A 8DFN |
4305 | 0.47 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10.5A (Ta) | 4.5V, 10V | 17mOhm @ 9A, 10V | 2.4V @ 250µA | 25 nC @ 10 V | ±20V | 690 pF @ 15 V | - | 3.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
DMP2104V-7MOSFET P-CH 20V 2.1A SOT563 |
4825 | 0.47 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.1A (Ta) | 1.8V, 4.5V | 150mOhm @ 950mA, 4.5V | 1V @ 250µA | - | ±12V | 320 pF @ 16 V | - | 850mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
PMXB65ENEZMOSFET N-CH 30V 3.2A DFN1010D-3 |
8765 | 0.50 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.2A (Ta) | 4.5V, 10V | 67mOhm @ 3.2A, 10V | 2.5V @ 250µA | 11 nC @ 10 V | ±20V | 295 pF @ 15 V | - | 400mW (Ta), 8.33W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
TSM301K12CQ RFGMOSFET P-CH 20V 4.5A 6TDFN |
9584 | 0.86 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.5A (Ta) | 1.8V, 4.5V | 94mOhm @ 2.8A, 4.5V | 500mV @ 250µA (Min) | 4.5 nC @ 4.5 V | ±12V | 5.2 pF @ 6 V | - | 6.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
DMT3006LFG-7MOSFET N-CH 30V PWRDI3333 |
4000 | 0.87 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta), 55.6A (Tc) | 4.5V, 10V | 6mOhm @ 12A, 10V | 3V @ 250µA | 22.6 nC @ 10 V | ±20V | 1320 pF @ 15 V | - | 27.8W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
RSR015P06HZGTLMOSFET P-CH 60V 1.5A TSMT3 |
3000 | 0.68 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 1.5A (Ta) | 4V, 10V | 280mOhm @ 1.5A, 10V | 3V @ 1mA | 10 nC @ 10 V | ±20V | 500 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | Surface Mount | |
STT6N3LLH6MOSFET N-CH 30V 6A SOT23-6 |
49339 | 0.79 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DeepGATE™, STripFET™ VI | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6A (Tc) | 4.5V, 10V | 25mOhm @ 3A, 10V | 1V @ 250µA | 3.6 nC @ 4.5 V | ±20V | 283 pF @ 24 V | - | 1.6W (Tc) | 150°C (TJ) | Surface Mount | |
NTJS3151PT1GMOSFET P-CH 12V 2.7A SC88/SC70-6 |
19826 | 0.48 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 2.7A (Ta) | 1.8V, 4.5V | 60mOhm @ 3.3A, 4.5V | 1.2V @ 100µA | 8.6 nC @ 4.5 V | ±12V | 850 pF @ 12 V | - | 625mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
SSM6J424TU,LFMOSFET P-CH 20V 6A UF6 |
5519 | 0.49 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 6A (Ta) | 1.5V, 4.5V | 22.5mOhm @ 6A, 4.5V | 1V @ 1mA | 23.1 nC @ 4.5 V | +6V, -8V | 1650 pF @ 10 V | - | 1W (Ta) | 150°C | Surface Mount | |
DMN3025LFV-13MOSFET N-CH 30V 25A POWERDI3333 |
995 | 0.50 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 25A (Tc) | 4.5V, 10V | 18mOhm @ 7A, 10V | 2V @ 250µA | 9.8 nC @ 10 V | ±20V | 500 pF @ 15 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
