Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Applications	IntendedChipset	ChipsetManufacturer	Voltage-Primary	Voltage-Auxiliary	Voltage-Isolation	Inductance@Frequency	Frequency	OperatingTemperature	MountingType	Size/Dimension	Height-Seated(Max)	Footprint

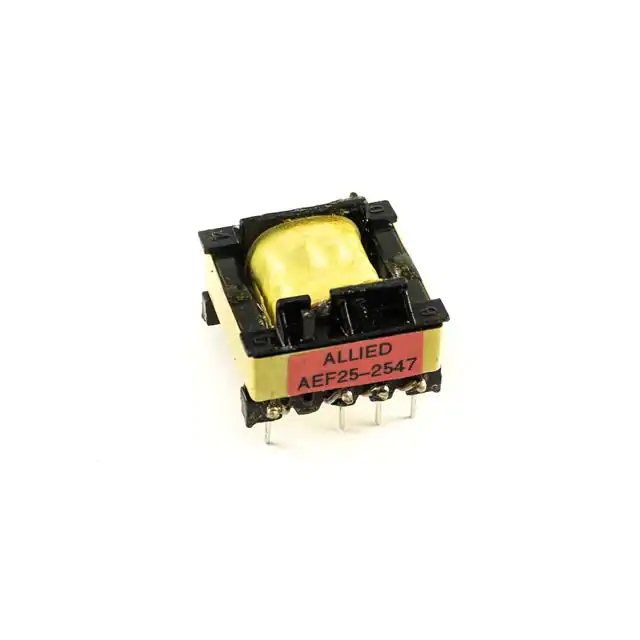

AEF25-2547 1850UH 10% EF25 TRANSFORMER Allied Components International	2899	7.98	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	Configurable (For DC/DC)	Flyback Converters	-	-	-	-	3000V	1.85mH	-	-40°C ~ 130°C	Through Hole	1.181 L x 1.102 W (30.00mm x 28.00mm)	0.827 (21.00mm)	1.142 L x 1.102 W (29.00mm x 28.00mm)

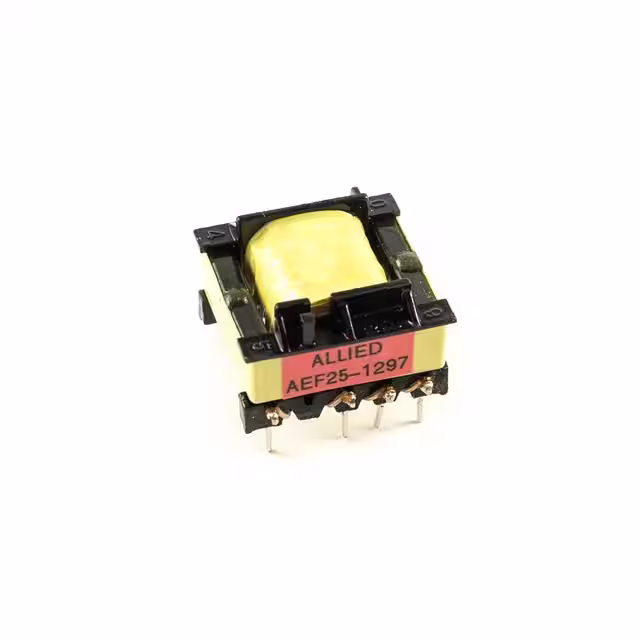

AEF25-1297 380UH 10% EF25 TRANSFORMER Allied Components International	2030	7.98	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	Configurable (For DC/DC)	Flyback Converters	-	-	-	-	3000V	380µH	-	-40°C ~ 130°C	Through Hole	1.181 L x 1.102 W (30.00mm x 28.00mm)	0.827 (21.00mm)	1.142 L x 1.102 W (29.00mm x 28.00mm)

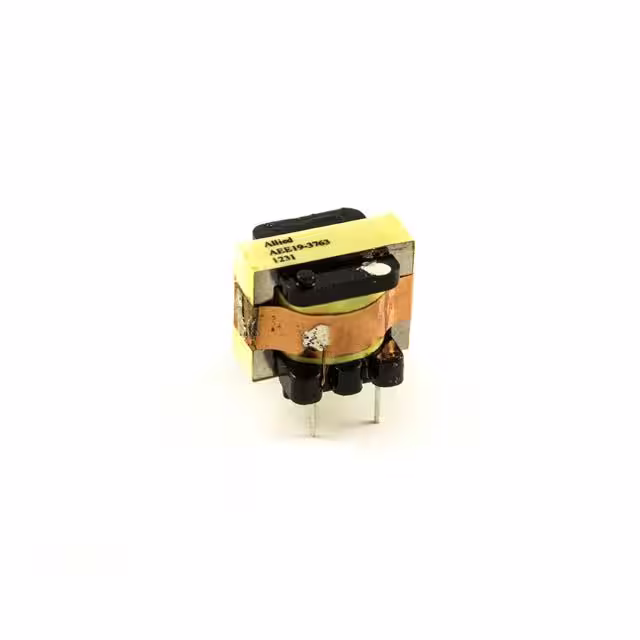

AEE19-3763 140 KOHM 20% EE19 TRANSFORMER Allied Components International	2327	7.98	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	-	-	-	-	-	-	1000VAC	-	-	-	Through Hole	0.847 L x 0.790 W (21.51mm x 20.07mm)	0.750 (19.05mm)	-
AEE30-3608E 2.60MH 10% EE30 TRANSFORMER Allied Components International	3577	7.98	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	-	-	-	-	-	-	3600VAC	-	-	-	Through Hole	1.299 L x 1.240 W (33.00mm x 31.50mm)	0.944 (24.00mm)	-
TLP24-250 UI29 8-pin Thru-Hole Hrzl Mnt Allied Components International	3689	8.25	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	-	-	-	-	115V, 230V	-	2000V	-	-	-	Through Hole	1.875 L x 1.441 W (47.63mm x 36.6mm)	0.875 (22.23mm)	-

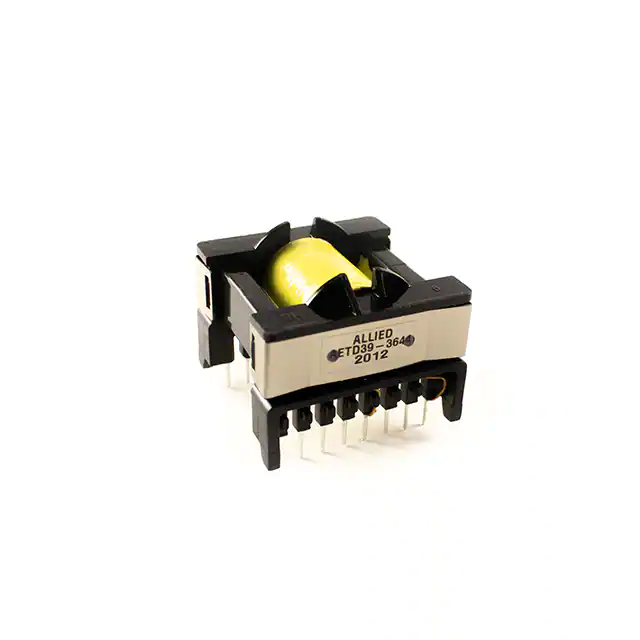

AETD39-3644 600UH, ETD39 TRANSFORMER Allied Components International	3399	9.50	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	-	-	-	-	-	-	3000VAC	600µH	-	-	Through Hole	1.811 L x 1.811 W (46.00mm x 46.00mm)	1.339 (34.00mm)	-
AEF25-4411 EF25 TRANSFORMER Allied Components International	3647	9.50	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	-	-	-	-	-	-	1500VAC	-	-	-	Through Hole	1.142 L x 1.024 W (29.00mm x 26.00mm)	0.827 (21.00mm)	-

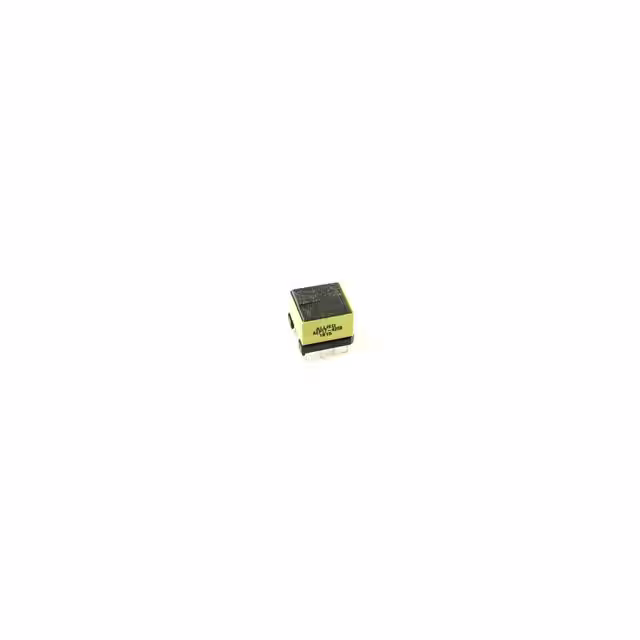

AEP17-4208 291UH 10% EP17 THRU-HOLE TRANSF Allied Components International	2680	9.50	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	-	-	-	-	-	-	1650V	291µH	-	-	Through Hole	0.807 L x 0.807 W (20.50mm x 20.50mm)	0.669 (17.00mm)	-
FWPQ3221-4613-RC 145UH20% FLAT WIRE TRANSFORMER Allied Components International	3645	9.75	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	-	-	-	-	-	-	1000V	145µH	-	-	Chassis Mount	1.693 L x 1.319 W (43.00mm x 33.50mm)	1.024 (26.00mm)	-

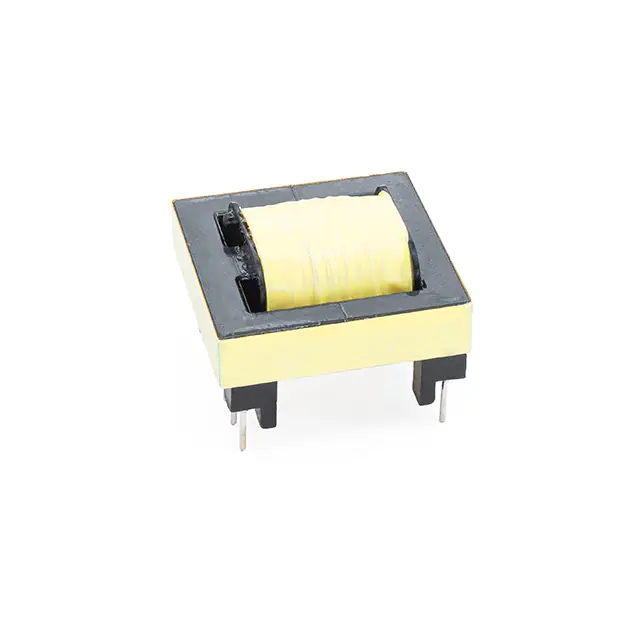

AEE30-4623 POWER TRANSFORMER Allied Components International	2873	9.95	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	-	-	-	-	-	-	-	-	-	-	Through Hole	1.220 L x 1.220 W (31.00mm x 31.00mm)	0.984 (25.00mm)	-
AEFD20-1477 EFD20 12PIN SMD, 38.3UH LP, FLYB Allied Components International	3748	9.98	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	For DC/DC Converters	Flyback Converters	-	-	36 ~ 72V	13V @ 20mA	1800VAC	38.3µH	200kHz	-20°C ~ 125°C	Surface Mount	0.866 L x 0.866 W (22.00mm x 22.00mm)	0.457 (11.60mm)	1.161 L x 0.866 W (29.50mm x 22.00mm)
EPC3577G-LF POE FORWARD XFM 12V, 90W PCA Electronics, Inc.	3305	0.00	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	EFC-EFD20	Active	For DC/DC Converters	Forward Converters	LT4276A, LT4295	Analog Devices	33 ~ 57V	12V	1500Vrms	180µH @ 100KHz	200kHz	-40°C ~ 125°C	Surface Mount	-	0.453 (11.51mm)	0.830 L x 1.140 W (21.08mm x 28.86mm)
AEE32-4236 100uH min EE32 15-pin Thru-Hole Allied Components International	2906	10.25	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	-	-	-	-	35V, 74V	-	2250V	100µH	-	-	Through Hole	2.008 L x 1.299 W (51.00mm x 33.00mm)	0.551 (14.00mm)	-

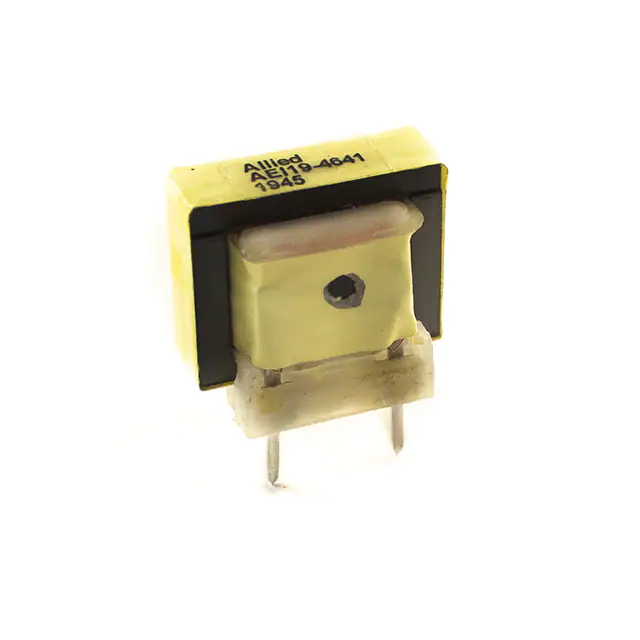

AEI19-4641 600 OHM, EI19 TRANSFORMER Allied Components International	3426	10.50	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	-	-	-	-	-	-	1500VAC	-	-	-	Through Hole	0.810 L x 0.655 W (20.57mm x 16.64mm)	0.750 (19.05mm)	-
AEI35-3855 24V, 2.4VA, EI35, POWER TRANSFOR Allied Components International	3053	10.75	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	-	-	-	-	24V	-	2500VAC	-	-	-	Through Hole	1.457 L x 1.260 W (37.01mm x 32.00mm)	1.240 (31.50mm)	-

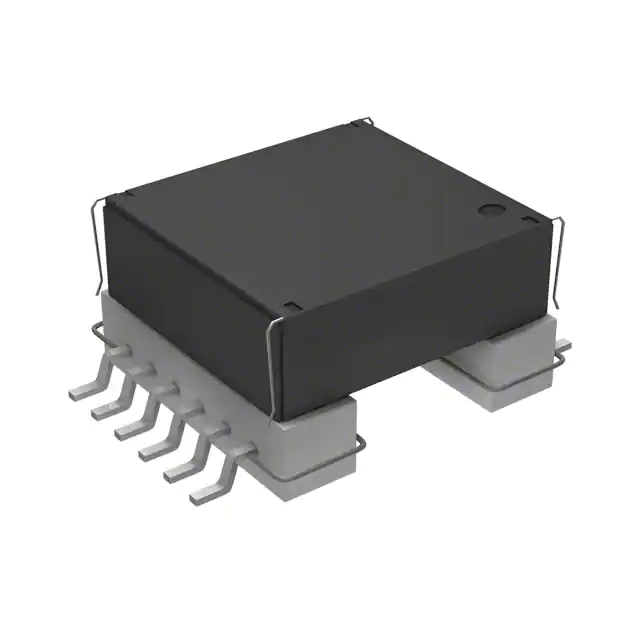

PCA20EFD-U04S002 INDUCTOR/XFRMR 9.9UH MULTIWIND TDK Corporation	2293	0.00	- + Add To Cart Inquiry Now	Datasheet	Tray	PCA20EFD	Obsolete	Configurable (For DC/DC)	Capacitor Charger	-	-	-	-	500Vrms	Parallel 9.9µH @ 10kHz, Series 357µH @ 10kHz	-	-40°C ~ 85°C	Surface Mount	0.866 L x 0.850 W (22.00mm x 21.60mm)	0.472 (12.00mm)	0.866 L x 1.173 W (22.00mm x 29.80mm)
PCA20EFD-U05S003 INDUCTOR/XFRMR 12.0UH MULTIWIND TDK Corporation	3548	0.00	- + Add To Cart Inquiry Now	Datasheet	Tray	PCA20EFD	Obsolete	Configurable (For DC/DC)	Capacitor Charger	-	-	-	-	500Vrms	Parallel 12µH @ 10kHz, Series 430µH @ 10kHz	-	-40°C ~ 85°C	Surface Mount	0.866 L x 0.850 W (22.00mm x 21.60mm)	0.472 (12.00mm)	0.866 L x 1.173 W (22.00mm x 29.80mm)
PCA20EFD-U02S002 INDUCTOR/XFRMR 87.7UH MULTIWIND TDK Corporation	2864	0.00	- + Add To Cart Inquiry Now	Datasheet	Tray	PCA20EFD	Obsolete	Configurable (For DC/DC)	Capacitor Charger	-	-	-	-	500Vrms	Parallel 87.7µH @ 10kHz, Series 3.2mH @ 10kHz	-	-40°C ~ 85°C	Surface Mount	0.866 L x 0.850 W (22.00mm x 21.60mm)	0.472 (12.00mm)	0.866 L x 1.173 W (22.00mm x 29.80mm)
PCA20EFD-U01S003 INDUCTOR/XFRMR 197.3UH MULTIWIND TDK Corporation	3675	0.00	- + Add To Cart Inquiry Now	Datasheet	Tray	PCA20EFD	Obsolete	Configurable (For DC/DC)	Capacitor Charger	-	-	-	-	500Vrms	Parallel 197.3µH @ 10kHz, Series 7.14mH @ 10kHz	-	-40°C ~ 85°C	Surface Mount	0.866 L x 0.850 W (22.00mm x 21.60mm)	0.472 (12.00mm)	0.866 L x 1.173 W (22.00mm x 29.80mm)
PA1877NL TRANSFORMER POE 13W BASIC SMD Pulse Electronics Power	3783	0.00	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	For DC/DC Converters	Flyback Converters	-	-	34 ~ 57V	13V @ 15mA	1500Vrms	-	250kHz	-40°C ~ 130°C	Surface Mount	0.860 L x 0.930 W (21.84mm x 23.62mm)	0.450 (11.43mm)	0.860 L x 1.150 W (21.84mm x 29.21mm)
