Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
229B120 PWR XFMR SEMI-TORO 12VA TH Hammond Manufacturing	2593	18.25	- + Add To Cart Inquiry Now	Datasheet	Bulk	229	Active	Semi-Toroidal	115V, 230V	Parallel 60V, Series 120V	Parallel 200mA, Series 100mA	Dual	Dual	No	12VA	Through Hole	PC Pin	50.80mm L x 63.50mm W	27.18mm	1750Vrms
229B34 PWR XFMR SEMI-TORO 12VA TH Hammond Manufacturing	2141	18.25	- + Add To Cart Inquiry Now	Datasheet	Bulk	229	Active	Semi-Toroidal	115V, 230V	Parallel 17V, Series 34V	Parallel 680mA, Series 340mA	Dual	Dual	No	12VA	Through Hole	PC Pin	50.80mm L x 63.50mm W	27.18mm	1750Vrms
229B16 PWR XFMR SEMI-TORO 12VA TH Hammond Manufacturing	2158	18.25	- + Add To Cart Inquiry Now	Datasheet	Bulk	229	Active	Semi-Toroidal	115V, 230V	Parallel 8V, Series 16V	Parallel 1.4A, Series 700mA	Dual	Dual	No	12VA	Through Hole	PC Pin	50.80mm L x 63.50mm W	27.18mm	1750Vrms
229B30 PWR XFMR SEMI-TORO 12VA TH Hammond Manufacturing	3254	18.25	- + Add To Cart Inquiry Now	Datasheet	Bulk	229	Active	Semi-Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 800mA, Series 400mA	Dual	Dual	No	12VA	Through Hole	PC Pin	50.80mm L x 63.50mm W	27.18mm	1750Vrms
229B12 PWR XFMR SEMI-TORO 12VA TH Hammond Manufacturing	3224	18.25	- + Add To Cart Inquiry Now	Datasheet	Bulk	229	Active	Semi-Toroidal	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 1.8A, Series 900mA	Dual	Dual	No	12VA	Through Hole	PC Pin	50.80mm L x 63.50mm W	27.18mm	1750Vrms
229B40 PWR XFMR SEMI-TORO 12VA TH Hammond Manufacturing	2575	18.25	- + Add To Cart Inquiry Now	Datasheet	Bulk	229	Active	Semi-Toroidal	115V, 230V	Parallel 20V, Series 40V	Parallel 600mA, Series 300mA	Dual	Dual	No	12VA	Through Hole	PC Pin	50.80mm L x 63.50mm W	27.18mm	1750Vrms
L01-6333 PWR XFMR TORO 7VA TH Amgis, LLC	3724	18.39	- + Add To Cart Inquiry Now	Datasheet	Tray	L01	Active	Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 466mA, Series 233mA	Dual	Dual	No	7VA	Through Hole	PC Pin	49.70mm L x 49.70mm W	23.10mm	4000Vrms
L01-6332 PWR XFMR TORO 7VA TH Amgis, LLC	2501	18.39	- + Add To Cart Inquiry Now	Datasheet	Tray	L01	Active	Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 584mA, Series 292mA	Dual	Dual	No	7VA	Through Hole	PC Pin	49.70mm L x 49.70mm W	23.10mm	4000Vrms
166G25 PWR XFMR LAMINATED 12.5VA CHAS Hammond Manufacturing	3656	18.79	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	25V	500mA	Single	Single	Yes	12.5VA	Chassis Mount	Wire Leads	71.37mm L x 41.40mm W	42.93mm	2000Vrms
VPL2-10000 PWR XFMR LAMINATED 25.0VA CHAS Triad Magnetics	2038	19.15	- + Add To Cart Inquiry Now	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	2.5V	10A	Dual	Dual	No	25.0VA	Chassis Mount	Wire Leads	53.98mm L x 82.55mm W	49.22 mm	3500Vrms
14A-30-512 PWR XFMR LAMINATED 30VA TH Signal Transformer	950	19.08	- + Add To Cart Inquiry Now	Datasheet	Bulk	One-4-All™	Active	Laminated Core	115V, 230V	5V, ±12V	1.25A, 250mA	Dual	Dual	Yes	30VA	Through Hole	PC Pin	66.70mm L x 55.50mm W	39.70mm	4000Vrms

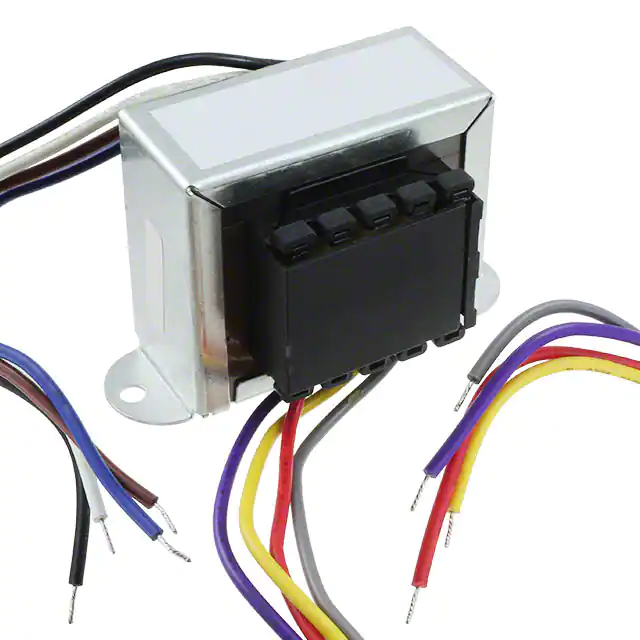

VPL24-1100 PWR XFMR LAMINATED 25.0VA CHAS Triad Magnetics	144	19.15	- + Add To Cart Inquiry Now	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	24V	1.04A	Dual	Dual	No	25.0VA	Chassis Mount	Wire Leads	53.98mm L x 82.55mm W	49.22 mm	3500Vrms

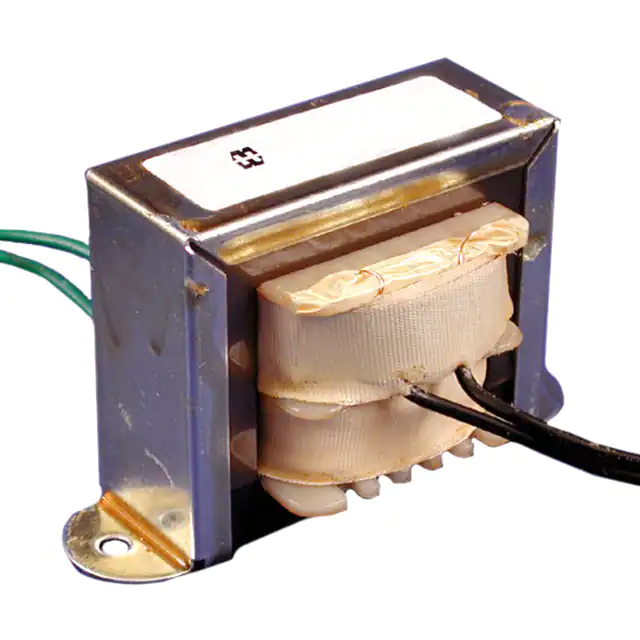

166F12D PWR XFMR LAMINATED 4.2VA CHAS MT Hammond Manufacturing	2158	19.17	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	117V	12V	350mA	Single	Single	Yes	4.2VA	Chassis Mount	Wire Leads	60.45mm L x 35.05mm W	35.05mm	2000Vrms
162H16 PWR XFMR LAMINATED 20VA TH Hammond Manufacturing	2936	19.26	- + Add To Cart Inquiry Now	Datasheet	Bulk	162	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 2.5A, Series 1.25A	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.52mm	2500Vrms
166G6 PWR XFMR LAMINATED 3.78VA CHAS Hammond Manufacturing	3243	19.40	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	6.3V	600mA	Single	Single	Yes	3.78VA	Chassis Mount	Wire Leads	60.45mm L x 35.05mm W	35.05mm	2000Vrms
166F14 PWR XFMR LAMINATED 3.5VA CHAS MT Hammond Manufacturing	2516	19.89	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	14V	250mA	Single	Single	Yes	3.5VA	Chassis Mount	Wire Leads	60.45mm L x 34.29mm W	36.32mm	2000Vrms
BD2FF PWR XFMR LAMINATED 20VA CHAS MT Hammond Manufacturing	2417	19.93	- + Add To Cart Inquiry Now	Datasheet	Bulk	BD	Active	Laminated Core	120V	18V	1.11A	Single	Single	No	20VA	Chassis Mount	Wire Leads, Quick Connect	59.18mm L x 59.44mm W	50.29mm	-
164H56 PWR XFMR LAMINATED 20VA TH Hammond Manufacturing	3941	20.17	- + Add To Cart Inquiry Now	Datasheet	Bulk	164	Active	Laminated Core	115V	Parallel 28V, Series 56V	Parallel 700mA, Series 350mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.52mm	2500Vrms
164H48 PWR XFMR LAMINATED 20VA TH Hammond Manufacturing	2464	20.17	- + Add To Cart Inquiry Now	Datasheet	Bulk	164	Active	Laminated Core	115V	Parallel 24V, Series 48V	Parallel 800mA, Series 400mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.52mm	2500Vrms
166L10 PWR XFMR LAMINATED 20VA CHAS MT Hammond Manufacturing	2987	20.34	- + Add To Cart Inquiry Now	Datasheet	Bulk	166	Active	Laminated Core	115V	10V	2A	Single	Single	Yes	20VA	Chassis Mount	Wire Leads	82.55mm L x 44.45mm W	50.80mm	2000Vrms

Total 6768 Records«Prev 1... 24 25 26 272829 30 31...339 Next»
