Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
164G48 PWR XFMR LAMINATED 12VA TH Hammond Manufacturing	2026	15.82	- + Add To Cart Inquiry Now	Datasheet	Bulk	164	Active	Laminated Core	115V	Parallel 24V, Series 48V	Parallel 500mA, Series 250mA	Single	Dual	No	12VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	38.10mm	2500Vrms
183G12 PWR XFMR LAMINATED 10VA TH Hammond Manufacturing	2210	15.93	- + Add To Cart Inquiry Now	Datasheet	Bulk	183	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 1.6A, Series 800mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	34.93mm	4000Vrms
183G36 PWR XFMR LAMINATED 10VA TH Hammond Manufacturing	3655	15.93	- + Add To Cart Inquiry Now	Datasheet	Bulk	183	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 560mA, Series 280mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	34.93mm	4000Vrms
183G16 PWR XFMR LAMINATED 10VA TH Hammond Manufacturing	2195	15.93	- + Add To Cart Inquiry Now	Datasheet	Bulk	183	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 1.25A, Series 625mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	34.93mm	4000Vrms
183G24 PWR XFMR LAMINATED 10VA TH Hammond Manufacturing	3715	15.93	- + Add To Cart Inquiry Now	Datasheet	Bulk	183	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 840mA, Series 420mA	Dual	Dual	No	10VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	34.93mm	4000Vrms
187C16 PWR XFMR LAMINATED 12.8VA CHAS Hammond Manufacturing	3823	15.95	- + Add To Cart Inquiry Now	Datasheet	Box	187	Active	Laminated Core	115V	16V	800mA	Single	Single	Yes	12.8VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 43.82mm W	41.15mm	2000Vrms
187C10 PWR XFMR LAMINATED 12VA CHAS MT Hammond Manufacturing	2578	15.95	- + Add To Cart Inquiry Now	Datasheet	Box	187	Active	Laminated Core	115V	10V	1.2A	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 43.82mm W	41.15mm	2000Vrms
187C28 PWR XFMR LAMINATED 12VA CHAS MT Hammond Manufacturing	2423	15.95	- + Add To Cart Inquiry Now	Datasheet	Box	187	Active	Laminated Core	115V	28V	420mA	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 43.82mm W	41.15mm	2000Vrms
187C20 PWR XFMR LAMINATED 12VA CHAS MT Hammond Manufacturing	3035	15.95	- + Add To Cart Inquiry Now	Datasheet	Box	187	Active	Laminated Core	115V	20V	600mA	Single	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 43.82mm W	41.15mm	2000Vrms
187C12 PWR XFMR LAMINATED 12.6VA CHAS Hammond Manufacturing	3579	15.95	- + Add To Cart Inquiry Now	Datasheet	Box	187	Active	Laminated Core	115V	12.6V	1A	Single	Single	Yes	12.6VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 43.82mm W	41.15mm	2000Vrms

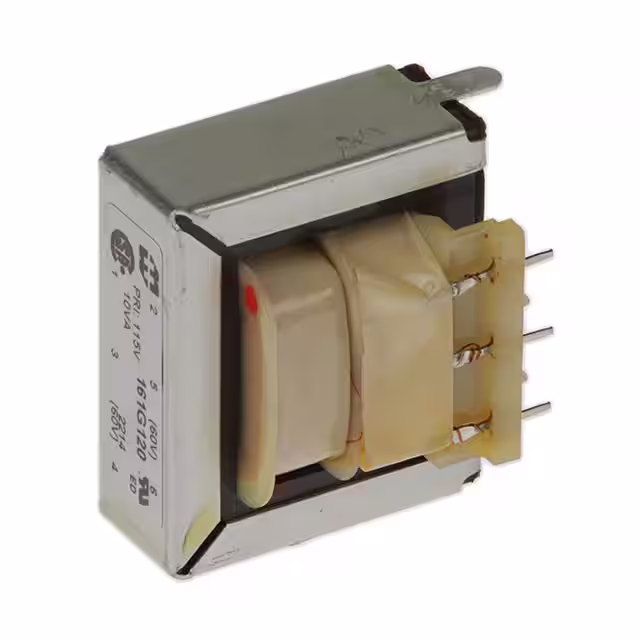

161G120 PWR XFMR LAMINATED 10VA TH Hammond Manufacturing	2149	15.98	- + Add To Cart Inquiry Now	Datasheet	Bulk	161	Active	Laminated Core	115V	Parallel 60V, Series 120V	Parallel 170mA, Series 85mA	Single	Single, Multiple Taps	No	10VA	Through Hole	PC Pin	49.28mm L x 36.58mm W	42.93mm	2000Vrms
161G56 PWR XFMR LAMINATED 10VA TH Hammond Manufacturing	3278	15.98	- + Add To Cart Inquiry Now	Datasheet	Bulk	161	Active	Laminated Core	115V	Parallel 28V, Series 56V	Parallel 360mA, Series 180mA	Single	Single, Multiple Taps	No	10VA	Through Hole	PC Pin	49.28mm L x 36.58mm W	42.93mm	2000Vrms
186B10 PWR XFMR LAMINATED 6VA CHAS MT Hammond Manufacturing	2437	16.06	- + Add To Cart Inquiry Now	Datasheet	Box	186	Active	Laminated Core	115V, 230V	10V	600mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect	60.20mm L x 41.28mm W	34.80mm	2000Vrms

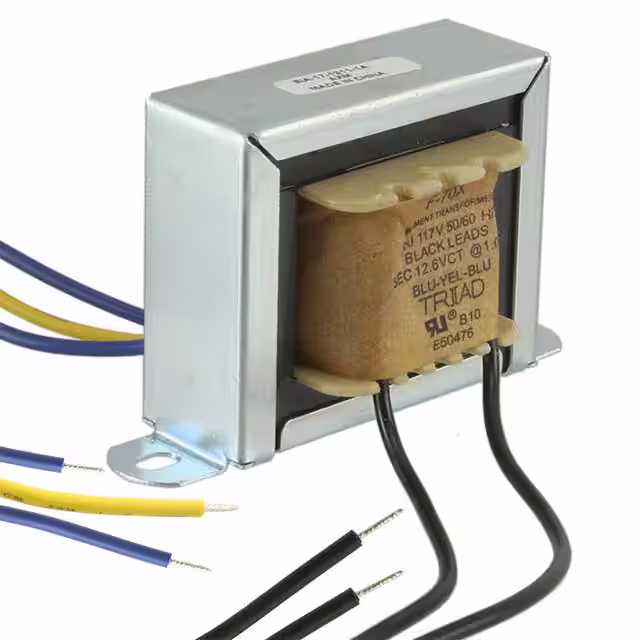

F-70X PWR XFMR LAMINATED 12.6VA CHAS Triad Magnetics	2722	16.42	- + Add To Cart Inquiry Now	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	12.6V	1A	Single	Single	Yes	12.6VA	Chassis Mount	Wire Leads	84.12mm L x 44.45mm W	49.20mm	1500Vrms

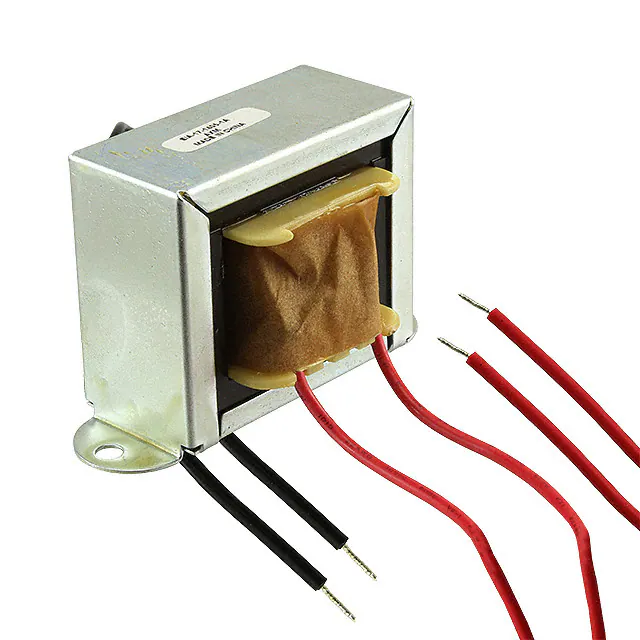

F-46X PWR XFMR LAMINATED 24VA CHAS MT Triad Magnetics	3369	16.47	- + Add To Cart Inquiry Now	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	24V	1A	Single	Single	No	24VA	Chassis Mount	Wire Leads	82.55mm L x 53.97mm W	49.20mm	1500Vrms
229E230 XFRMR SEMI-TORO 2VA THRU HOLE Hammond Manufacturing	2830	16.52	- + Add To Cart Inquiry Now	Datasheet	Bulk	229	Active	Semi-Toroidal	115V, 230V	Parallel 115V, Series 230V	Parallel 20mA, Series 10mA	Dual	Dual	No	2VA	Through Hole	PC Pin	39.62mm L x 47.75mm W	16.51mm	1750Vrms
229E24 XFRMR SEMI-TORO 2VA THRU HOLE Hammond Manufacturing	3437	16.52	- + Add To Cart Inquiry Now	Datasheet	Bulk	229	Active	Semi-Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 200mA, Series 100mA	Dual	Dual	No	2VA	Through Hole	PC Pin	39.62mm L x 47.75mm W	16.51mm	1750Vrms
162F24 PWR XFMR LAMINATED 6VA TH Hammond Manufacturing	3016	16.60	- + Add To Cart Inquiry Now	Datasheet	Bulk	162	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 500mA, Series 250mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
162F20 PWR XFMR LAMINATED 6VA TH Hammond Manufacturing	2855	16.60	- + Add To Cart Inquiry Now	Datasheet	Bulk	162	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 600mA, Series 300mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
161K12 PWR XFMR LAMINATED 10VA TH Hammond Manufacturing	3959	16.78	- + Add To Cart Inquiry Now	Datasheet	Bulk	161	Active	Laminated Core	115V	Parallel 6.3V, Series 12.6V	Parallel 1.6A, Series 800mA	Single	Single, Multiple Taps	No	10VA	Through Hole	PC Pin	49.28mm L x 36.58mm W	42.93mm	2000Vrms

Total 6768 Records«Prev 1... 22 23 24 252627 28 29...339 Next»
