Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	NumberofChannels	Inputs-Side1/Side2	Voltage-Isolation	CommonModeTransientImmunity(Min)	InputType	OutputType	Current-Output/Channel	DataRate	PropagationDelaytpLH/tpHL(Max)	Rise/FallTime(Typ)	Voltage-Forward(Vf)(Typ)	Current-DCForward(If)(Max)	Voltage-Supply	OperatingTemperature	MountingType

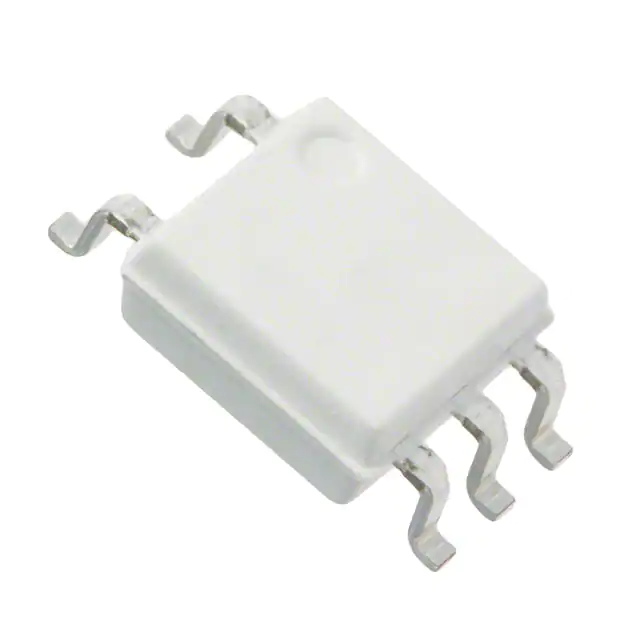

FODM611 OPTOISO 3.75KV OPEN COLL 5MFP onsemi	2736	1.90	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	20kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10Mbps	100ns, 100ns	20ns, 10ns	1.45V	50mA	4.5V ~ 5.5V	-40°C ~ 85°C	Surface Mount
TLP2955(F) PHOTOCOUPLER DIP8 THROUGH-HOLE Toshiba Semiconductor and Storage	3642	1.91	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Last Time Buy	1	1/0	5000Vrms	20kV/µs	DC	Push-Pull, Totem Pole	25 mA	-	250ns, 250ns	16ns, 14ns	1.55V	25mA	3V ~ 20V	-40°C ~ 125°C	Through Hole
FOD0721R2 OPTOISO 3.75KV PUSH PULL 8SO onsemi	3999	4.72	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1	1/0	3750Vrms	20kV/µs	Logic	Push-Pull, Totem Pole	10 mA	25Mbps	40ns, 40ns	5ns, 4.5ns	-	-	4.5V ~ 5.5V	-40°C ~ 100°C	Surface Mount
HCPL-0710-560E OPTOISO 3.75KV PUSH PULL 8SO Broadcom Limited	3071	5.77	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1	1/0	3750Vrms	10kV/µs	Logic	Push-Pull, Totem Pole	10 mA	12.5MBd	40ns, 40ns	13ns, 5ns	-	-	4.5V ~ 5.5V	-40°C ~ 100°C	Surface Mount
HCPL2630 OPTOISO 2.5KV 2CH OPEN COLL 8DIP onsemi	3358	2.61	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Last Time Buy	2	2/0	2500Vrms	10kV/µs (Typ)	DC	Open Collector	50 mA	10Mbps	75ns, 75ns	50ns, 12ns	1.4V	30mA	4.5V ~ 5.5V	-40°C ~ 85°C	Through Hole
HCPL-4506-000E OPTOISO 3.75KV OPEN COLL 8DIP Broadcom Limited	3576	2.86	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	15kV/µs	DC	Open Collector, Schottky Clamped	15 mA	-	550ns, 400ns	-	1.5V	25mA	4.5V ~ 30V	-40°C ~ 100°C	Through Hole
FOD8163 LOGIC GATE OPTOCOUPLER IN SOP 6- onsemi	3805	3.04	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	5000Vrms	20kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10Mbps	-	10ns, 20ns	1.45V	25mA	3V ~ 5.5V	-40°C ~ 100°C	Surface Mount
HCPL2631M OPTOISO 5KV 2CH OPEN COLL 8DIP onsemi	2299	3.24	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	2	2/0	5000Vrms	5kV/µs	DC	Open Collector	25 mA	10Mbps	75ns, 75ns	30ns, 10ns	1.45V	30mA	4.5V ~ 5.5V	-40°C ~ 110°C	Through Hole
H11N1SR2M OPTOISO 4.17KV OPN COLL 6SMD onsemi	2078	7.44	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT),Bulk	-	Active	1	1/0	4170Vrms	-	DC	Open Collector	50 mA	5MHz	330ns, 330ns	7.5ns, 12ns	1.4V	30mA	4V ~ 15V	-40°C ~ 85°C	Surface Mount
HCPL-0601 OPTOISO 3.75KV OPN COLLECTOR 8SO Broadcom Limited	3496	3.52	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	10kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10MBd	100ns, 100ns	24ns, 10ns	1.5V	20mA	4.5V ~ 5.5V	-40°C ~ 85°C	Surface Mount
HCPL0638 OPTOISO 3.75KV 2CH OPEN COLL 8SO onsemi	3244	4.12	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	2	2/0	3750Vrms	10kV/µs	DC	Open Collector, Schottky Clamped	15 mA	10Mbps	75ns, 75ns	17ns, 5ns	1.75V (Max)	-	4.5V ~ 5.5V	-40°C ~ 85°C	Surface Mount
ACPL-P480-000E OPTOISO 3.75KV PUSH PULL 6SO Broadcom Limited	3734	4.15	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	20kV/µs	DC	Push-Pull, Totem Pole	25 mA	-	350ns, 350ns	16ns, 20ns	1.7V	10mA	4.5V ~ 20V	-40°C ~ 100°C	Surface Mount
ACPL-K75T-500E OPTOISO 5KV 2CH PUSH PULL 8SO Broadcom Limited	2936	8.49	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	2	2/0	5000Vrms	25kV/µs	DC	Push-Pull, Totem Pole	-	-	100ns, 100ns	10ns, 10ns	1.5V	20mA	3V ~ 5.5V	-40°C ~ 125°C	Surface Mount
ACPL-P483-000E OPTOISO 3.75KV PUSH PULL 6SO Broadcom Limited	3640	4.25	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	30kV/µs	DC	Push-Pull, Totem Pole	50 mA	-	120ns, 120ns	6ns, 6ns	1.5V	10mA	4.5V ~ 30V	-40°C ~ 105°C	Surface Mount
ACPL-P484-000E OPTOISO 3.75KV PUSH PULL 6SO Broadcom Limited	899	4.25	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	30kV/µs	DC	Push-Pull, Totem Pole	50 mA	-	120ns, 150ns	6ns, 6ns	1.5V	10mA	4.5V ~ 30V	-40°C ~ 105°C	Surface Mount
ACPL-W483-000E OPTOISO 5KV PUSH PULL 6SO Broadcom Limited	3479	4.25	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	5000Vrms	30kV/µs	DC	Push-Pull, Totem Pole	50 mA	-	120ns, 120ns	6ns, 6ns	1.5V	10mA	4.5V ~ 30V	-40°C ~ 105°C	Surface Mount
HCPL-2212-300E OPTOISO 3.75KV PUSH PULL 8DIP GW Broadcom Limited	2168	4.36	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	5kV/µs, 10kV/µs	DC	Push-Pull, Totem Pole	25 mA	5MBd	300ns, 300ns	30ns, 7ns	1.5V	10mA	4.5V ~ 20V	-40°C ~ 85°C	Surface Mount
RV1S9160ACCSP-100V#SC0 HI-SPEED OPTOCPLR SO-5 Renesas Electronics America Inc	2588	4.56	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	1	1/0	3750Vrms	50kV/µs	-	CMOS	10 mA	15Mbps	60ns, 60ns	5ns, 5ns	1.55V	6mA	2.7V ~ 5.5V	-40°C ~ 125°C	Surface Mount
RV1S9160ACCSP-100C#SC0 HI-SPEED OPTOCPLR SO-5 Renesas Electronics America Inc	2501	4.63	- + Add To Cart Inquiry Now	Datasheet	Strip	-	Active	1	1/0	3750Vrms	50kV/µs	-	CMOS	10 mA	15Mbps	60ns, 60ns	5ns, 5ns	1.55V	6mA	2.7V ~ 5.5V	-55°C ~ 150°C	Surface Mount
FOD0721 OPTOISO 3.75KV PUSH PULL 8SO onsemi	2743	4.82	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	20kV/µs	Logic	Push-Pull, Totem Pole	10 mA	25Mbps	40ns, 40ns	5ns, 4.5ns	-	-	4.5V ~ 5.5V	-40°C ~ 100°C	Surface Mount
