Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	NumberofChannels	Inputs-Side1/Side2	Voltage-Isolation	CommonModeTransientImmunity(Min)	InputType	OutputType	Current-Output/Channel	DataRate	PropagationDelaytpLH/tpHL(Max)	Rise/FallTime(Typ)	Voltage-Forward(Vf)(Typ)	Current-DCForward(If)(Max)	Voltage-Supply	OperatingTemperature	MountingType
HCPL-7710-500E OPTOISO 3.75KV PUSH PULL 8DIP GW Broadcom Limited	2036	6.78	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1	1/0	3750Vrms	10kV/µs	Logic	Push-Pull, Totem Pole	10 mA	12.5MBd	40ns, 40ns	13ns, 5ns	-	-	4.5V ~ 5.5V	-40°C ~ 100°C	Surface Mount
HCPL-2231-500E OPTOISO 3.75KV PUSH PULL 8DIP GW Broadcom Limited	3201	6.89	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	2	2/0	3750Vrms	1kV/µs	DC	Push-Pull, Totem Pole	25 mA	5MBd	300ns, 300ns	30ns, 7ns	1.5V	10mA	4.5V ~ 20V	-40°C ~ 85°C	Surface Mount
ACPL-074L-500E OPTOISO 3.75KV 2CH PUSH PULL 8SO Broadcom Limited	3898	6.89	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	2	2/0	3750Vrms	10kV/µs	DC	Push-Pull, Totem Pole	10 mA	15MBd	50ns, 50ns	20ns, 25ns	1.5V	20mA	3V ~ 3.6V, 4.5V ~ 5.5V	-40°C ~ 105°C	Surface Mount
ACPL-077L-000E OPTOISO 3.75KV PUSH PULL 8SO Broadcom Limited	3888	3.52	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	35kV/µs	Logic	Push-Pull, Totem Pole	10 mA	25MBd	40ns, 40ns	4ns, 3ns	-	-	3V ~ 3.6V, 4.5V ~ 5.5V	-40°C ~ 105°C	Surface Mount

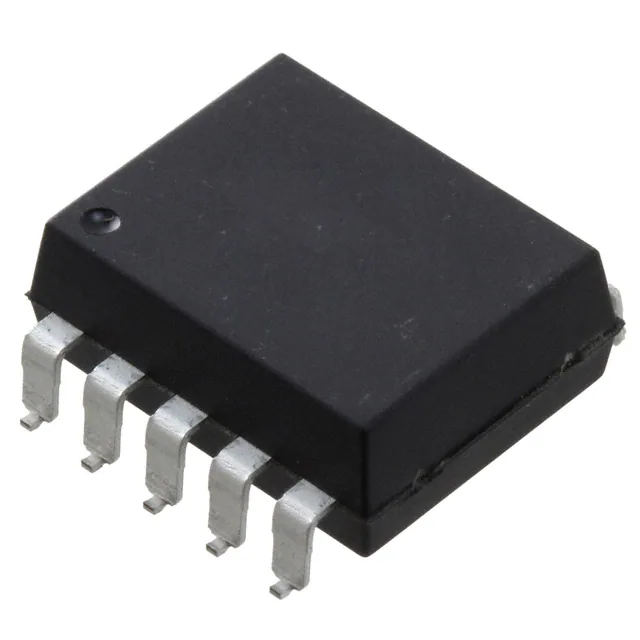

ACNV2601-500E OPTOISO 7.5KV OPEN COLL 10DIP GW Broadcom Limited	3745	7.43	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1	1/0	7500Vrms	20kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10MBd	80ns, 80ns	25ns, 10ns	1.64V	20mA	4.5V ~ 5.5V	-40°C ~ 105°C	Surface Mount
FODM8071 OPTOISO 3.75KV PUSH PULL 5MFP onsemi	3060	3.64	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	20kV/µs	DC	Push-Pull, Totem Pole	10 mA	20Mbps	55ns, 55ns	5.8ns, 5.3ns	1.35V	20mA	3V ~ 5.5V	-40°C ~ 110°C	Surface Mount
HCPL-0211-000E OPTOISO 3.75KV PUSH PULL 8SO Broadcom Limited	2066	3.70	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	5kV/µs, 10kV/µs	DC	Push-Pull, Totem Pole	25 mA	5MBd	300ns, 300ns	30ns, 7ns	1.5V	10mA	4.5V ~ 20V	-40°C ~ 85°C	Surface Mount
HCNW2601-000E OPTOISO 5KV OPEN COLLECTOR 8DIP Broadcom Limited	3150	3.91	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	5000Vrms	10kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10MBd	100ns, 100ns	24ns, 10ns	1.64V	20mA	4.5V ~ 5.5V	-40°C ~ 85°C	Through Hole
HCNW4506-300E OPTOISO 5KV OPEN COLL 8DIP GW Broadcom Limited	2184	3.94	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	5000Vrms	15kV/µs	DC	Open Collector, Schottky Clamped	15 mA	-	550ns, 400ns	-	1.6V	25mA	4.5V ~ 30V	-40°C ~ 100°C	Surface Mount
HCPL-2211-000E OPTOISO 3.75KV PUSH PULL 8DIP Broadcom Limited	2672	4.29	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	3750Vrms	5kV/µs, 10kV/µs	DC	Push-Pull, Totem Pole	25 mA	5MBd	300ns, 300ns	30ns, 7ns	1.5V	10mA	4.5V ~ 20V	-40°C ~ 85°C	Through Hole
HCNW2611-300E OPTOISO 5KV OPEN COLL 8DIP GW Broadcom Limited	3552	4.29	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	5000Vrms	15kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10MBd	100ns, 100ns	24ns, 10ns	1.64V	20mA	4.5V ~ 5.5V	-40°C ~ 85°C	Surface Mount
HCPL-2630-000E OPTOISO 3.75KV 2CH OPEN COL 8DIP Broadcom Limited	2312	4.40	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	2	2/0	3750Vrms	5kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10MBd	100ns, 100ns	24ns, 10ns	1.5V	15mA	4.5V ~ 5.5V	-40°C ~ 85°C	Through Hole
HCPL-2630-300E OPTOISO 3.75KV OPEN COLL 8DIP GW Broadcom Limited	2902	4.47	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	2	2/0	3750Vrms	5kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10MBd	100ns, 100ns	24ns, 10ns	1.5V	15mA	4.5V ~ 5.5V	-40°C ~ 85°C	Surface Mount
ACPL-024L-000E OPTOISO 3.75KV 2CH PUSH PULL 8SO Broadcom Limited	3575	4.57	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	2	2/0	3750Vrms	25kV/µs	DC	Push-Pull, Totem Pole	10 mA	5MBd	250ns, 250ns	11ns, 11ns	1.5V	8mA	2.7V ~ 5.5V	-40°C ~ 105°C	Surface Mount
HCNW2201-300E OPTOISO 5KV PUSH PULL 8DIP GW Broadcom Limited	3167	4.61	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	5000Vrms	1kV/µs	DC	Push-Pull, Totem Pole	25 mA	5MBd	180ns, 160ns (Typ)	30ns, 7ns	1.5V	10mA	4.5V ~ 20V	-40°C ~ 85°C	Surface Mount
HCPL-0300-500E OPTOISO 3.75KV OPN COLLECTOR 8SO Broadcom Limited	160	9.65	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1	1/0	3750Vrms	100V/µs	DC	Open Collector, Schottky Clamped	25 mA	5MBd	160ns, 200ns	40ns, 20ns	1.3V	5mA (Typ)	4.75V ~ 5.25V	-40°C ~ 85°C	Surface Mount
HCNW2211-000E OPTOISO 5KV PUSH PULL 8DIP Broadcom Limited	3112	4.93	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	1	1/0	5000Vrms	10kV/µs	DC	Push-Pull, Totem Pole	25 mA	5MBd	180ns, 160ns (Typ)	30ns, 7ns	1.5V	10mA	4.5V ~ 20V	-40°C ~ 85°C	Through Hole
HCPL-263L-300E OPTOISO 3.75KV OPEN COLL 8DIP GW Broadcom Limited	2057	5.70	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	2	2/0	3750Vrms	10kV/µs	DC	Open Collector, Schottky Clamped	50 mA	15MBd	75ns, 75ns	24ns, 10ns	1.5V	15mA	2.7V ~ 3.6V, 4.5V ~ 5.5V	-40°C ~ 85°C	Surface Mount
ACPL-K64L-060E OPTOISO 5KV 2CH PUSH PULL 8SO Broadcom Limited	2948	6.40	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	2	2/0	5000Vrms	20kV/µs	DC	Push-Pull, Totem Pole	10 mA	10MBd	80ns, 80ns	12ns, 12ns	1.3V	8mA	2.7V ~ 5.5V	-40°C ~ 105°C	Surface Mount
ACSL-7210-00RE OPTOISO 3.75KV 2CH PUSH PULL 8SO Broadcom Limited	2570	6.51	- + Add To Cart Inquiry Now	Datasheet	Tube	-	Active	2	1/1	3750Vrms	25kV/µs	Logic	Push-Pull, Totem Pole	10 mA	25MBd	40ns, 40ns	5.1ns, 3.8ns	-	-	3V ~ 3.6V, 4.5V ~ 5.5V	-40°C ~ 105°C	Surface Mount
