Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	LogicType	NumberofCircuits	NumberofInputs	Features	Voltage-Supply	Current-Quiescent(Max)	Current-OutputHighLow	LogicLevel-Low	LogicLevel-High	MaxPropagationDelay@VMaxCL	OperatingTemperature	MountingType
74LVC1G86W5-7 IC GATE XOR 1CH 2-INP SOT25 Diodes Incorporated	11902	0.40	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LVC	Active	XOR (Exclusive OR)	1	2	-	1.65V ~ 5.5V	200 µA	32mA, 32mA	0.7V ~ 0.8V	1.7V ~ 2V	4ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
SN74AHCT1G02DBVR IC GATE NOR 1CH 2-INP SOT23-5 Texas Instruments	20335	0.40	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AHCT	Active	NOR Gate	1	2	-	4.5V ~ 5.5V	1 µA	8mA, 8mA	0.8V	2V	7.5ns @ 5V, 50pF	-40°C ~ 85°C	Surface Mount
SN74AHCT1G00DBVR IC GATE NAND 1CH 2-INP SOT23-5 Texas Instruments	12530	0.40	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AHCT	Active	NAND Gate	1	2	-	4.5V ~ 5.5V	1 µA	8mA, 8mA	0.8V	2V	7.9ns @ 5V, 15pF	-40°C ~ 125°C	Surface Mount
SN74AHCT1G32DBVR IC GATE OR 1CH 2-INP SOT23-5 Texas Instruments	11340	0.40	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AHCT	Active	OR Gate	1	2	-	4.5V ~ 5.5V	1 µA	8mA, 8mA	0.8V	2V	7.9ns @ 5V, 50pF	-40°C ~ 85°C	Surface Mount

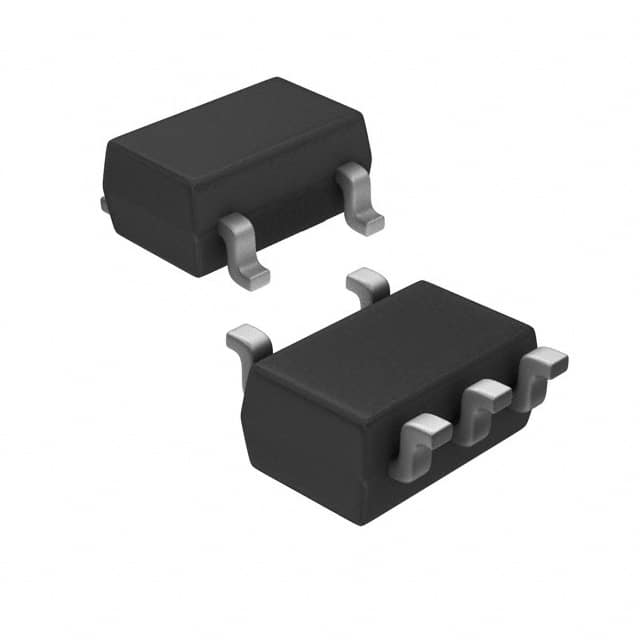

TC7SZ14F,LJ(CT IC INVERTER SCHMITT 1CH 1-IN SMV Toshiba Semiconductor and Storage	3984	0.40	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TC7SZ	Active	Inverter	1	1	Schmitt Trigger	1.65V ~ 5.5V	1 µA	32mA, 32mA	0.2V ~ 1.2V	1.4V ~ 3.6V	5.9ns @ 5V, 50pF	-40°C ~ 85°C	Surface Mount
TC7SH14F,LJ(CT IC INVERTER SCHMITT 1CH 1-IN SMV Toshiba Semiconductor and Storage	12026	0.40	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TC7SH	Active	Inverter	1	1	Schmitt Trigger	2V ~ 5.5V	2 µA	8mA, 8mA	0.9V ~ 1.65V	2.2V ~ 3.85V	10.6ns @ 5V, 50pF	-40°C ~ 85°C	Surface Mount
74AHCT1G32GW,165 IC GATE OR 1CH 2-INP 5TSSOP Nexperia USA Inc.	2675	0.00	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR)	74AHCT	Obsolete	OR Gate	1	2	-	4.5V ~ 5.5V	1 µA	8mA, 8mA	0.8V	2V	7.9ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74AHCT1G32GW,125 IC GATE OR 1CH 2-INP 5TSSOP Nexperia USA Inc.	9079	0.40	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AHCT	Active	OR Gate	1	2	-	4.5V ~ 5.5V	1 µA	8mA, 8mA	0.8V	2V	7.9ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74LVC1G06QW5-7 IC INVERT OD 1CH 1IN SOT25 TR/3K Diodes Incorporated	5909	0.41	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q100, 74LVC	Active	Inverter	1	1	Open Drain	1.65V ~ 5.5V	4 µA	32mA	0.7V ~ 0.8V	1.7V ~ 2V	4ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74AHC1G09QW5-7 IC GATE AND 1CH 2-INP SOT25 Diodes Incorporated	5953	0.42	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q100, 74AHC	Active	AND Gate	1	2	-	2V ~ 5.5V	1 µA	8mA, 8mA	0.5V ~ 1.65V	1.5V ~ 3.85V	7.5ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
SN74AHCT1G04DBVR IC INVERTER 1CH 1-INP SOT23-5 Texas Instruments	19301	0.42	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AHCT	Active	Inverter	1	1	-	4.5V ~ 5.5V	1 µA	8mA, 8mA	0.8V	2V	9ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
SN74LVC1GU04DBVR IC INVERTER 1CH 1-INP SOT23-5 Texas Instruments	16079	0.43	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LVC	Active	Inverter	1	1	-	1.65V ~ 5.5V	10 µA	32mA, 32mA	-	-	3.5ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74LVC1G08FW5-7 IC GATE AND 1CH 2-INP DFN1010-6 Diodes Incorporated	36719	0.39	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LVC	Active	AND Gate	1	2	-	1.65V ~ 5.5V	200 µA	32mA, 32mA	0.7V ~ 0.8V	1.7V ~ 2V	5.5ns @ 5V, 50pF	-40°C ~ 125°C (TA)	Surface Mount
74LVC2G02HD4-7 IC GATE NOR 2CH 2-INP DFN2010-8 Diodes Incorporated	7741	0.50	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LVC	Active	NOR Gate	2	2	-	1.65V ~ 5.5V	40 µA	32mA, 32mA	-	-	5.5ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
MC74VHC1G02DTT1G IC GATE NOR 1CH 2-INP 5TSOP onsemi	3534	0.45	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74VHC	Active	NOR Gate	1	2	-	2V ~ 5.5V	1 µA	8mA, 8mA	0.5V ~ 1.65V	1.5V ~ 3.85V	7.5ns @ 5V, 50pF	-55°C ~ 125°C	Surface Mount
TC7SET08F,LJ(CT IC GATE AND 1CH 2-INP SMV Toshiba Semiconductor and Storage	33000	0.46	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TC7SET	Active	AND Gate	1	2	-	4.5V ~ 5.5V	2 µA	8mA, 8mA	0.8V	2V	9ns @ 5V, 50pF	-40°C ~ 85°C	Surface Mount

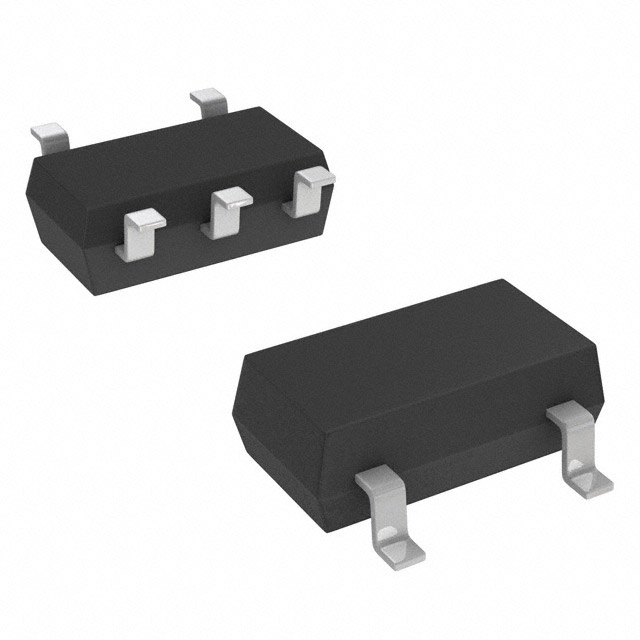

TC7S32FU,LF IC GATE OR 1CH 2-INP USV Toshiba Semiconductor and Storage	19603	0.46	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TC7S	Active	OR Gate	1	2	-	2V ~ 6V	1 µA	2.6mA, 2.6mA	0.5V ~ 1.8V	1.5V ~ 4.2V	17ns @ 6V, 50pF	-40°C ~ 85°C	Surface Mount
SN74AHC1GU04DBVR IC INVERTER 1CH 1-INP SOT23-5 Texas Instruments	15964	0.46	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AHC	Active	Inverter	1	1	-	2V ~ 5.5V	1 µA	8mA, 8mA	0.3V ~ 1.1V	1.7V ~ 4.4V	7ns @ 5V, 50pF	-40°C ~ 85°C	Surface Mount
TC7S04FU,LF IC INVERTER 1CH 1-INP USV Toshiba Semiconductor and Storage	2834	0.46	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TC7S	Active	Inverter	1	1	-	2V ~ 6V	1 µA	2.6mA, 2.6mA	0.5V ~ 1.8V	1.5V ~ 4.2V	17ns @ 6V, 50pF	-40°C ~ 85°C	Surface Mount
TC7S08FU,LF IC GATE AND 1CH 2-INP USV Toshiba Semiconductor and Storage	12138	0.46	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TC7S	Active	AND Gate	1	2	-	2V ~ 6V	1 µA	2.6mA, 2.6mA	0.5V ~ 1.8V	1.5V ~ 4.2V	17ns @ 6V, 50pF	-40°C ~ 85°C	Surface Mount

Total 15259 Records«Prev 1 2 345 6 7...763 Next»
