Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

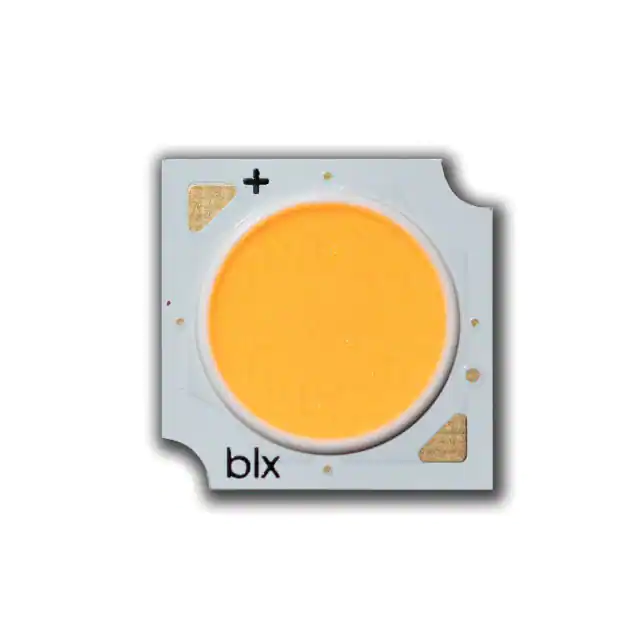

BXRE-57E1001-C-83V10C COOL WHITE LED ARRAY |
600 | 5.32 |
Add To CartInquiry Now |
Datasheet |
Tube | Gen 8 V10 Array | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 1641lm (Typ) | 300mA | 25°C | 30.7V | 178 lm/W | 1A | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.65mm | 10.20mm Dia | |
BXRE-50G1001-C-83V10C COOL WHITE LED ARRAY |
599 | 5.32 |
Add To CartInquiry Now |
Datasheet |
Tube | Gen 8 V10 Array | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 1477lm (Typ) | 300mA | 25°C | 30.7V | 160 lm/W | 1A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.65mm | 10.20mm Dia | |
BXRE-65E1001-C-83V10C COOL WHITE LED ARRAY |
574 | 5.32 |
Add To CartInquiry Now |
Datasheet |
Tube | Gen 8 V10 Array | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 1660lm (Typ) | 300mA | 25°C | 30.7V | 180 lm/W | 1A | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.65mm | 10.20mm Dia | |
SPHWHAHDNE27YZR3D4LED |
250 | 5.43 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
SPHWHAHDNE25YZP3D4LED |
250 | 5.43 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
SPHWHAHDNE25YZT3D4LED |
250 | 5.43 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
SPHWHAHDNE25YZQ3D4LED |
250 | 5.43 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
SPHWHAHDNE27YZV3D4LED |
250 | 5.43 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
SPHWHAHDNE25YZV3D4LED |
250 | 5.43 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
SPHWHAHDNE27YZT3D4LED |
250 | 5.43 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
SPHWHAHDNE25YZU3D4LED |
250 | 5.43 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
SPHWHAHDNE27YZU3D4LED |
250 | 5.43 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
SPHWHAHDNE27YZW3D4LED |
250 | 5.43 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
SPHWHAHDNE25YZR3D4LED |
250 | 5.43 |
Add To CartInquiry Now |
Datasheet |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
CMU1519-0000-000N0Z0A40HXLAMP CMU LIGHT EMITTING DIODE W |
215 | 5.76 |
Add To CartInquiry Now |
Datasheet |
Tray | XLamp® CMU1519 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 2322lm (Typ) | 540mA | 85°C | 33.7V | 128 lm/W | 1.44A | 95 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | |

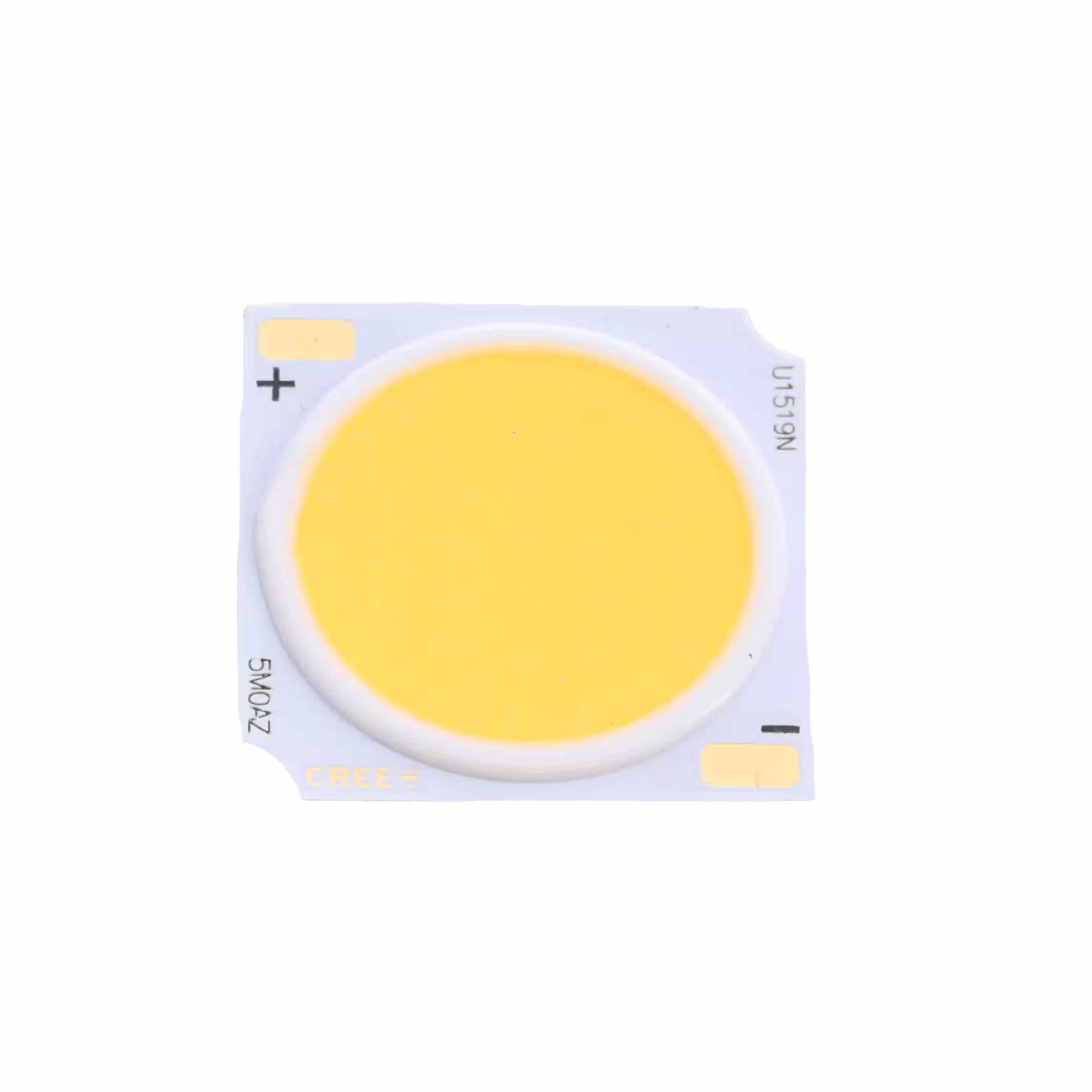

CMU1519-0000-000N0Z0A30HXLAMP CMU LIGHT EMITTING DIODE W |
185 | 5.76 |
Add To CartInquiry Now |
Datasheet |
Tray | XLamp® CMU1519 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2243lm (Typ) | 540mA | 85°C | 33.7V | 123 lm/W | 1.44A | 95 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | |

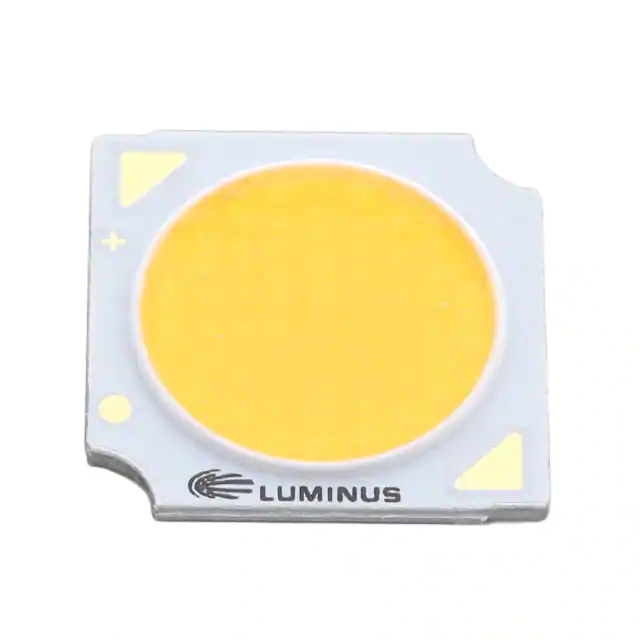

CXM-9-40-90-36-AC40-F5-3COB |
390 | 5.81 |
Add To CartInquiry Now |
Datasheet |
Tray | CXM-9 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1650lm (Typ) | 360mA | 85°C | 33.5V | 137 lm/W | 1.1A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 9.80mm Dia | |
CXM-9-30-90-36-AC40-F5-3COB |
350 | 5.81 |
Add To CartInquiry Now |
Datasheet |
Tray | CXM-9 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1570lm (Typ) | 360mA | 85°C | 33.5V | 130 lm/W | 1.1A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 9.80mm Dia | |
BXRH-27E3000-D-83V9 HD WARM WHITE LED ARRAY |
600 | 5.93 |
Add To CartInquiry Now |
Datasheet |
Tube | Gen 8 V9 HD LED Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 3416lm (Typ) | 700mA | 25°C | 36.6V | 133 lm/W | 1.2A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.63mm | 8.80mm Dia | |
BXRH-30E3000-D-83V9 HD WARM WHITE LED ARRAY |
600 | 5.93 |
Add To CartInquiry Now |
Datasheet |
Tube | Gen 8 V9 HD LED Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3630lm (Typ) | 700mA | 25°C | 36.6V | 142 lm/W | 1.2A | 80 | 120° | - | 19.00mm L x 19.00mm W | 1.63mm | 8.80mm Dia |
