Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SPHWHAHDNE25YZT3DCLED COB 3 STEP |
238 | 4.27 |
Add To CartInquiry Now |
Datasheet |
Box | COB D Gen3 Plus | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2669lm (Typ) | 450mA | 85°C | 33.7V | 176 lm/W | 900mA | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | |
SPHWHAHDNE27YZV3DCLED COB 3 STEP |
226 | 4.27 |
Add To CartInquiry Now |
Datasheet |
Box | COB D Gen3 Plus | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2154lm (Typ) | 450mA | 85°C | 33.7V | 142 lm/W | 900mA | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | |
SPHWHAHDNE27YZT3DCLED COB 3 STEP |
146 | 4.27 |
Add To CartInquiry Now |
Datasheet |
Box | COB D Gen3 Plus | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2273lm (Typ) | 450mA | 85°C | 33.7V | 150 lm/W | 900mA | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | |
SPHWHAHDNE25YZR3DCLED COB 3 STEP |
135 | 4.27 |
Add To CartInquiry Now |
Datasheet |
Box | COB D Gen3 Plus | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 2713lm (Typ) | 450mA | 85°C | 33.7V | 178 lm/W | 900mA | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | |
BXEB-L0570A-35E3000-E-C3EB EDGE LED MODULE, 570 MM, 3500 |
2347 | 4.83 |
Add To CartInquiry Now |
Datasheet |
Bulk | EB Edge Gen 3 | Active | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2705lm (Typ) | 700mA | 25°C | 23.5V | 164 lm/W | - | 80 | - | - | 570.00mm L x 6.00mm W | - | - | |
BXEB-L0570A-50E3000-E-C3EB EDGE LED MODULE, 570 MM, 5000 |
120 | 4.83 |
Add To CartInquiry Now |
Datasheet |
Bulk | EB Edge Gen 3 | Active | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2885lm (Typ) | 700mA | 25°C | 23.5V | 175 lm/W | - | 80 | - | - | 570.00mm L x 6.00mm W | - | - | |
SPHWHAHDNF27YZT3DCLED COB 3 STEP |
405 | 4.98 |
Add To CartInquiry Now |
Datasheet |
Box | COB D Gen3 Plus | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 2738lm (Typ) | 540mA | 85°C | 33.7V | 150 lm/W | 1.08A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | |
SPHWHAHDNF27YZV3DCLED COB 3 STEP |
308 | 4.98 |
Add To CartInquiry Now |
Datasheet |
Box | COB D Gen3 Plus | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2597lm (Typ) | 540mA | 85°C | 33.7V | 143 lm/W | 1.08A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | |
SPHWHAHDNF25YZT3DCLED COB 3 STEP |
250 | 4.98 |
Add To CartInquiry Now |
Datasheet |
Box | COB D Gen3 Plus | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 3218lm (Typ) | 540mA | 85°C | 33.7V | 177 lm/W | 1.08A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | |
SPHWHAHDNF27YZU3DCLED COB 3 STEP |
250 | 4.98 |
Add To CartInquiry Now |
Datasheet |
Box | COB D Gen3 Plus | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2680lm (Typ) | 540mA | 85°C | 33.7V | 147 lm/W | 1.08A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | |
SPHWHAHDNF25YZU3DCLED COB 3 STEP |
240 | 4.98 |
Add To CartInquiry Now |
Datasheet |
Box | COB D Gen3 Plus | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3161lm (Typ) | 540mA | 85°C | 33.7V | 174 lm/W | 1.08A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | |
SPHWHAHDNF27YZR3DCLED COB 3 STEP |
249 | 4.98 |
Add To CartInquiry Now |
Datasheet |
Box | COB D Gen3 Plus | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 2804lm (Typ) | 540mA | 85°C | 33.7V | 154 lm/W | 1.08A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | |
SPHWHAHDNF25YZR3DCLED COB 3 STEP |
249 | 4.98 |
Add To CartInquiry Now |
Datasheet |
Box | COB D Gen3 Plus | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 3271lm (Typ) | 540mA | 85°C | 33.7V | 180 lm/W | 1.08A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | |
SPHWHAHDNF27YZW3DCLED COB 3 STEP |
230 | 4.98 |
Add To CartInquiry Now |
Datasheet |
Box | COB D Gen3 Plus | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2469lm (Typ) | 540mA | 85°C | 33.7V | 136 lm/W | 1.08A | 90 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | |
SPHWHAHDNF25YZV3DCLED COB 3 STEP |
147 | 4.98 |
Add To CartInquiry Now |
Datasheet |
Box | COB D Gen3 Plus | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 3044lm (Typ) | 540mA | 85°C | 33.7V | 167 lm/W | 1.08A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | |
BXRE-40G1000-C-83V10C NEUTRAL WHITE LED ARRAY |
598 | 5.05 |
Add To CartInquiry Now |
Datasheet |
Tube | Gen 8 V10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1409lm (Typ) | 300mA | 25°C | 30.7V | 153 lm/W | 1A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.65mm | 10.20mm Dia | |
BXRE-27G1000-C-83V10C WARM WHITE LED ARRAY |
570 | 5.05 |
Add To CartInquiry Now |
Datasheet |
Tube | Gen 8 V10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1274lm (Typ) | 300mA | 25°C | 30.7V | 138 lm/W | 1A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.65mm | 10.20mm Dia | |
BXRE-35E1000-C-83V10C WARM WHITE LED ARRAY |
578 | 5.05 |
Add To CartInquiry Now |
Datasheet |
Tube | Gen 8 V10 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1680lm (Typ) | 300mA | 25°C | 30.7V | 182 lm/W | 1A | 80 | 120° | - | 13.50mm L x 13.50mm W | 1.65mm | 10.20mm Dia | |

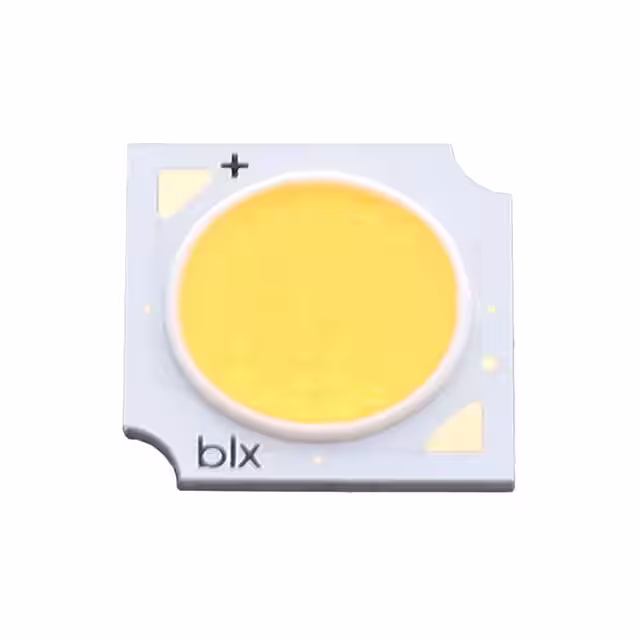

BXRE-30G10H0-C-83V10C WARM WHITE LED ARRAY |
557 | 5.05 |
Add To CartInquiry Now |
Datasheet |
Tube | Gen 8 V10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1395lm (Typ) | 300mA | 25°C | 30.7V | 151 lm/W | 1A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.65mm | 10.20mm Dia | |
BXRE-35G1000-C-83V10C WARM WHITE LED ARRAY |
542 | 5.05 |
Add To CartInquiry Now |
Datasheet |
Tube | Gen 8 V10 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1380lm (Typ) | 300mA | 25°C | 30.7V | 150 lm/W | 1A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.65mm | 10.20mm Dia |
