Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CDM-9-3018-90-36-DW02LED COB CDM9 WHITE |
1648 | 7.17 |
Add To CartInquiry Now |
Datasheet |
Tray | CDM, Human Centric (HCL) | Active | LED Module | White, Warm | 1800K ~ 3000K | - | Rectangle | 870lm (Typ) | 300mA | 85°C | 35.5V | 82 lm/W | 440mA | 97 | 130° | Dimming - Warm | 15.00mm L x 12.00mm W | 1.58mm | 9.50mm Dia | |
CDM-9-3018-90-36-DW01LED COB CDM9 WHITE |
602 | 7.17 |
Add To CartInquiry Now |
Datasheet |
Tray | CDM, Human Centric (HCL) | Active | LED Module | White, Warm | 1800K ~ 3000K | - | Rectangle | 925lm (Typ) | 300mA | 85°C | 35.5V | 87 lm/W | 440mA | 97 | 130° | Dimming - Warm | 15.00mm L x 12.00mm W | 1.58mm | 9.50mm Dia | |
CXA2530-0000-000N0YR227GLED COB CXA2530 2700K WHITE SMD |
117 | 7.32 |
Add To CartInquiry Now |
Datasheet |
Tray | XLamp® CXA2530 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 800mA | 85°C | 36V | 87 lm/W | 1.6A | 93 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | |
XPEBRY-L1-0000-00R01-SB01LED XLAMP XPE2 BLUE STARBOARD |
268 | 7.42 |
Add To CartInquiry Now |
Datasheet |
Tray | XLamp® XP-E2 | Active | LED Module | Blue | - | 458nm (450nm ~ 465nm) | Starboard | - | 350mA | 25°C | 3.1V | - | 1A | - | 135° | - | 19.89mm Dia | - | - | |
BXRC-40E4000-D-73-SELED COB VERO SE 4000K ROUND |
738 | 7.63 |
Add To CartInquiry Now |
Datasheet |
Tray | Vero® SE 18 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 4345lm (Typ) | 1.05A | 85°C | 28.3V | 146 lm/W | 2.1A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia | |
BXRC-35E4000-B-73-SELED COB VERO SE 3500K ROUND |
452 | 7.63 |
Add To CartInquiry Now |
Datasheet |
Tray | Vero® SE 18 Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Round | 4426lm (Typ) | 900mA | 85°C | 34.1V | 144 lm/W | 1.8A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia | |
BXRC-50C4001-D-74-SELED COB VERO SE 5000K ROUND |
285 | 7.63 |
Add To CartInquiry Now |
Datasheet |
Tray | Vero® SE 18 Array | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 4763lm (Typ) | 1.05A | 85°C | 28.3V | 160 lm/W | 2.1A | 70 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia | |
BXRC-30E4000-B-73-SELED COB VERO SE 3000K ROUND |
279 | 7.63 |
Add To CartInquiry Now |
Datasheet |
Tray | Vero® SE 18 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 4337lm (Typ) | 900mA | 85°C | 34.1V | 141 lm/W | 1.8A | 80 | 120° | - | 36.20mm Dia | 3.60mm | 18.40mm Dia | |
BXRE-40E4000-B-73LED COB V18 4000K SQUARE |
187 | 7.71 |
Add To CartInquiry Now |
Datasheet |
Tube | Gen 7 V18 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4528lm (Typ) | 900mA | 85°C | 34V | 148 lm/W | 1.8A | 80 | - | - | 24.00mm L x 24.00mm W | 1.70mm | 19.20mm Dia | |

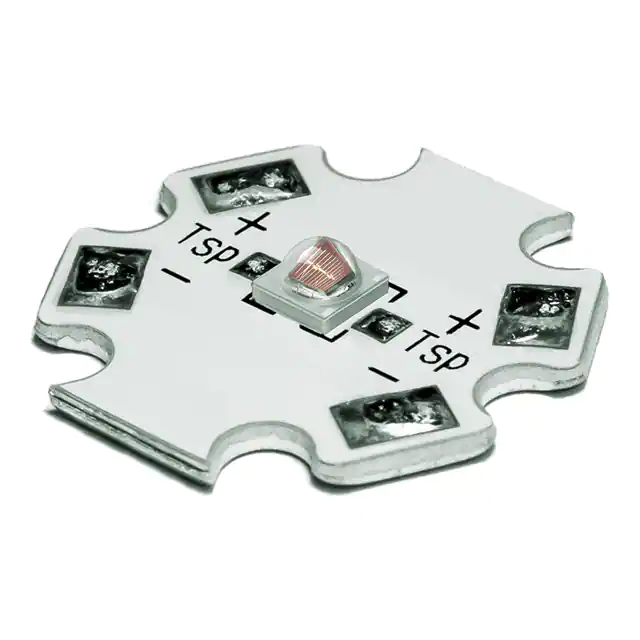

LST1-01G01-FRD1-00STARBOARD, LUMINUS SST-10-FR-B13 |
801 | 7.74 |
Add To CartInquiry Now |
Datasheet |
Tray | SST-10 | Active | Chip On Board (COB) | Red | - | 730nm | Starboard | 310mW | 350mA | 25°C | 2.1V | - | - | - | 130° | - | - | - | - | |
BXRE-35E2000-C-83V13C WARM WHITE LED ARRAY |
2555 | 7.83 |
Add To CartInquiry Now |
Datasheet |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | - | - | 25°C | - | 182 lm/W | - | 80 | - | - | - | - | 13.00mm Dia | |

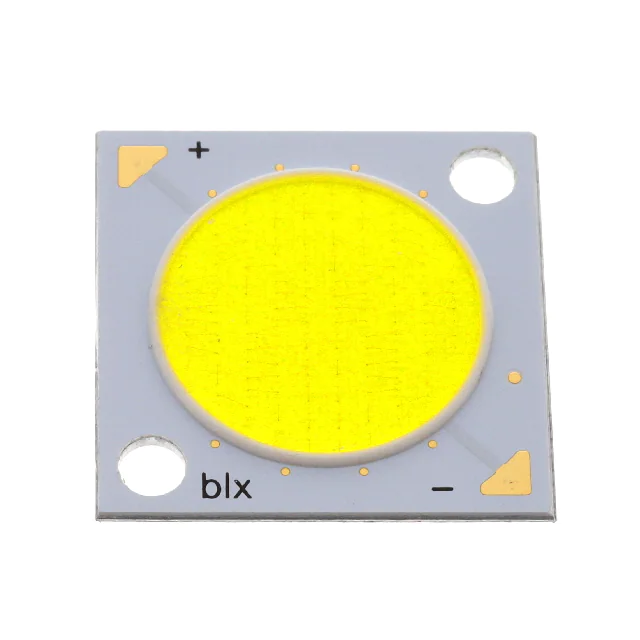

BXRE-50C3001-D-84V15D COOL WHITE LED ARRAY |
387 | 7.83 |
Add To CartInquiry Now |
Datasheet |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 3214lm (Typ) | 500mA | 25°C | 33.7V | 192 lm/W | - | 70 | - | - | - | - | 15.00mm Dia | |

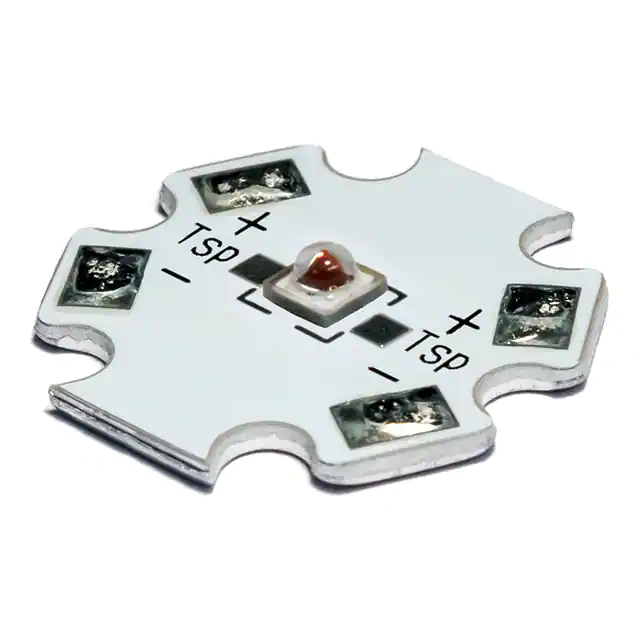

LST1-01F06-FRD1-00STARBOARD, OSRAM OSLON SSL 120 |
737 | 737.00 |
Add To CartInquiry Now |
Datasheet |
Tray | OSLON® SSL 120 Horticulture | Active | Chip On Board (COB) | Far Red | - | 735nm | Starboard | 282mW | 350mA | 25°C | 1.85V | - | - | - | 120° | - | - | - | ||
XPEBPA-L1-0000-00D01-SB01LED XLAMP XPE2 AMBER STARBOARD |
280 | 8.19 |
Add To CartInquiry Now |
Datasheet |
Tray | XLamp® XP-E2 | Active | LED Module | Amber | - | - | Starboard | 111lm (107lm ~ 114lm) | 350mA | 25°C | 3.05V | 104 lm/W | 1A | - | 110° | - | 19.89mm Dia | - | - | |
XQEAWT-H0-0000-00000HBE8-SB01LED XLAMP XQE 2700K STARBOARD |
312 | 8.21 |
Add To CartInquiry Now |
Datasheet |
Tray | XLamp® XQ-E | Active | LED Module | White, Warm | 2700K | - | Starboard | - | 350mA | 85°C | 2.9V | 96 lm/W | 1A | 80 | 120° | - | 19.89mm Dia | - | - | |
CXA2540-0000-000N00V40E5LED HB XLAMP CXA2540 |
2920 | 8.24 |
Add To CartInquiry Now |
Datasheet |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 4703lm (4545lm ~ 4860lm) | 1.1A | 85°C | 37V | 116 lm/W | 2.1A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | |
BXEB-L1120Z-50E4000-C-B34000 LM COOL WHITE LINEAR MODULE |
108 | 8.40 |
Add To CartInquiry Now |
Datasheet |
Bulk | EB Series™ Gen 2 | Active | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 4920lm (Typ) | 700mA | 25°C | 39V | 180 lm/W | 1.4A | 80 | 120° | - | 1120.00mm L x 24.00mm W | 6.10mm | - | |
LST1-01F09-IR03-00STARBOARD, OSLON BLACK, INFRARED |
101 | 8.52 |
Add To CartInquiry Now |
Datasheet |
Bulk | OSLON® Black | Active | LED Module | - | - | 940nm | Starboard | 970mW | 350mA | 25°C | 2.75V | - | 1A | - | 150° | - | - | - | - | |

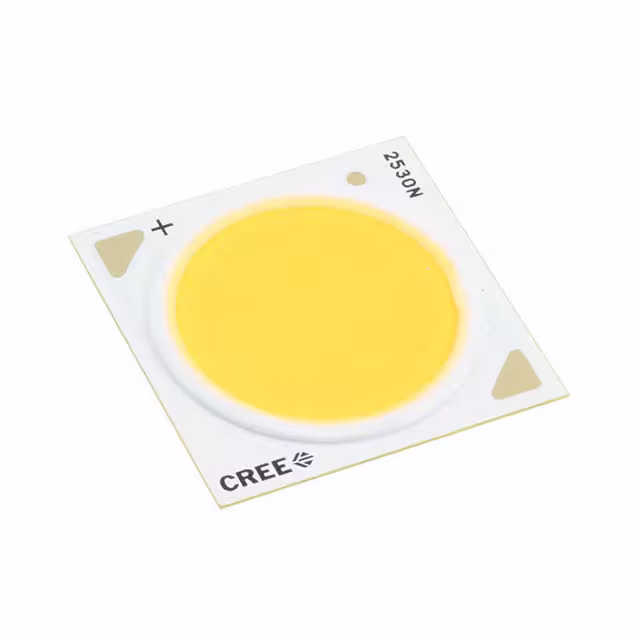

CXB2530-0000-000N0HU440GLED COB CXB2530 4000K WHT SMD |
107 | 8.60 |
Add To CartInquiry Now |
Datasheet |
Tray | Xlamp® CXB2530 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4093lm (3955lm ~ 4230lm) | 800mA | 85°C | 36V | 142 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | |
LST1-01G01-IR02-00STARBOARD, SST-10-IR, INFRARED |
111 | 111.00 |
Add To CartInquiry Now |
Datasheet |
Bulk | SST-10 | Active | LED Module | - | - | 850nm | Starboard | 280mW | 350mA | 25°C | 1.5V | - | 1.5A | - | 90° | - | - | - |
