Photo | Mfr. Part # | Stock | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CXM-4-30-95-36-AC40-F5-3LED COB CXM4 3000K |
2397 | 2.46 |
Add To CartInquiry Now |
Datasheet |
Tray | CXM-4 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 435lm (Typ) | 120mA | 25°C | 33.8V | 107 lm/W | 400mA | 95 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 4.50mm Dia | |
CMA1303-0000-000C0H0A40GLED COB CMA1304 4000K WHT SMD |
162 | 2.56 |
Add To CartInquiry Now |
Datasheet |
Tray | XLamp® CMA1303 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 823lm (Typ) | 700mA | 85°C | 9.35V | 126 lm/W | 1.4A | 80 | 116° | - | 13.35mm L x 13.35mm W | 1.70mm | 4.50mm Dia | |
A007-CE20ROY37LIGHT MOD ROY BLUE 455NM |
190 | 2.75 |
Add To CartInquiry Now |
Datasheet |
Tray | Indus Star™ | Active | LED Module | Blue | - | 455nm | Starboard | - | - | 25°C | - | - | - | - | - | - | 20.20mm Dia | 3.75mm | - | |
BXRC-30G1000-D-73-SELED COB VERO SE 3000K ROUND |
502 | 2.79 |
Add To CartInquiry Now |
Datasheet |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1024lm (Typ) | 350mA | 85°C | 25.3V | 116 lm/W | 700mA | 90 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia | |
BXRC-40E1000-D-73-SELED COB VERO SE 4000K ROUND |
269 | 2.79 |
Add To CartInquiry Now |
Datasheet |
Tray | Vero® SE 10 Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 1278lm (Typ) | 350mA | 85°C | 25.3V | 144 lm/W | 700mA | 80 | 120° | - | 30.80mm Dia | 3.60mm | 9.90mm Dia | |
CXA1512-0000-000F0HM450FLED COB CXA1512 COOL WHT SQUARE |
188 | 2.80 |
Add To CartInquiry Now |
Datasheet |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 1538lm (1485lm ~ 1590lm) | 700mA | 85°C | 18V | 122 lm/W | 1.2A | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | |
BXRE-50C0801-D-84V8D COOL WHITE LED ARRAY |
567 | 3.27 |
Add To CartInquiry Now |
Datasheet |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 953lm (Typ) | 300mA | 25°C | 16.8V | 189 lm/W | - | 70 | - | - | - | - | 8.00mm Dia | |
BXRE-30E0800-D-83V8D WARM WHITE LED ARRAY |
435 | 3.27 |
Add To CartInquiry Now |
Datasheet |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 880lm (Typ) | 300mA | 25°C | 16.8V | 175 lm/W | - | 80 | - | - | - | - | 8.00mm Dia | |
BXRE-27G0800-D-83V8D WARM WHITE LED ARRAY |
140 | 3.27 |
Add To CartInquiry Now |
Datasheet |
Tube | V Series™ Gen 8 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | - | - | 25°C | - | 138 lm/W | - | 90 | - | - | - | - | 8.00mm Dia | |
BXRC-27G1000-B-73LED COB VERO 10 2700K STARBOARD |
2212 | 3.36 |
Add To CartInquiry Now |
Datasheet |
Tray | Gen 7 Vero® 10 Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Starboard | 1161lm (Typ) | 270mA | 25°C | 34.8V | 124 lm/W | 540mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | |
LST1-01H07-GRN1-01STARBOARD, LUXEON CZ, GREEN, 120 |
479 | 3.50 |
Add To CartInquiry Now |
Datasheet |
Tray | LUXEON CZ | Active | LED Module | Green | - | - | Starboard | - | 350mA | 85°C | 3.05V | 117 lm/W | 1.05A | - | 120° | - | 19.89mm Dia | 3.05mm | - | |

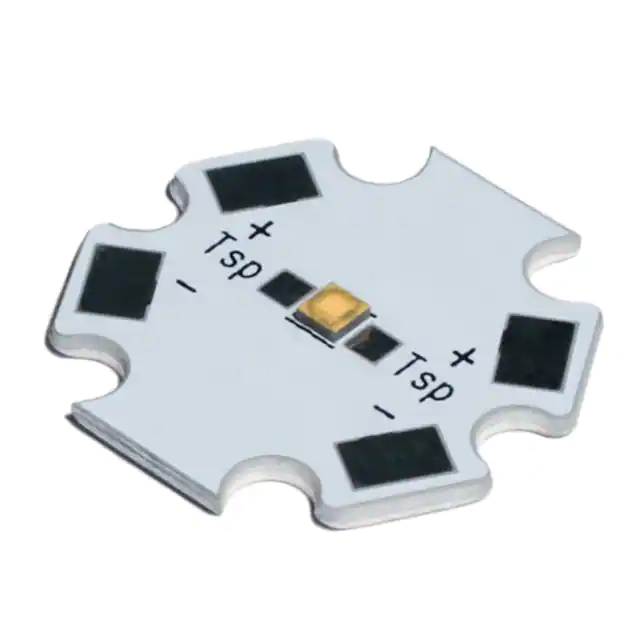

LST1-01H07-3080-01STARBOARD, LUXEON CZ, 3000K, 120 |
447 | 3.50 |
Add To CartInquiry Now |
Datasheet |
Tray | LUXEON CZ | Active | LED Module | White, Warm | 3000K | - | Starboard | - | 350mA | 85°C | 2.75V | 95 lm/W | 1.23A | - | 120° | - | 19.89mm Dia | 3.05mm | - | |
LST1-01H07-RED1-01STARBOARD LUXEON CZ RED 120DEG |
181 | 3.50 |
Add To CartInquiry Now |
Datasheet |
Tray | LUXEON CZ | Active | LED Module | Red | - | - | Starboard | - | 350mA | 85°C | 2V | 31 lm/W | 1.05A | - | 120° | - | 19.89mm Dia | 3.05mm | - | |
BXRH-40S1001-B-73LED COB WHITE |
364 | 3.55 |
Add To CartInquiry Now |
Datasheet |
Tray | V6 HD Thrive™ Array | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1338lm (Typ) | 350mA | 25°C | 36.4V | 105 lm/W | 480mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.30mm Dia | |
BXRH-27S1001-B-73LED COB WHITE |
438 | 3.55 |
Add To CartInquiry Now |
Datasheet |
Tube | V6 HD Thrive™ Array | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 1147lm (Typ) | 350mA | 25°C | 36.4V | 90 lm/W | 480mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.30mm Dia | |
BXRH-65S1001-G-74LED COB WHITE |
302 | 3.55 |
Add To CartInquiry Now |
Datasheet |
Tube | V6 HD Thrive™ Array | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 1414lm (Typ) | 700mA | 25°C | 18.2V | 111 lm/W | 960mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.30mm Dia | |
BXRH-35S1001-G-73LED COB WHITE |
265 | 3.55 |
Add To CartInquiry Now |
Datasheet |
Tube | V6 HD Thrive™ Array | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1287lm (Typ) | 700mA | 25°C | 18.2V | 101 lm/W | 960mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.30mm Dia | |
BXRH-57S1001-B-74LED COB WHITE |
121 | 3.55 |
Add To CartInquiry Now |
Datasheet |
Tray | V6 HD Thrive™ Array | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 1401lm (Typ) | 350mA | 25°C | 36.4V | 110 lm/W | 480mA | 98 (Typ) | 120° | - | 13.50mm L x 13.50mm W | 1.63mm | 6.30mm Dia | |

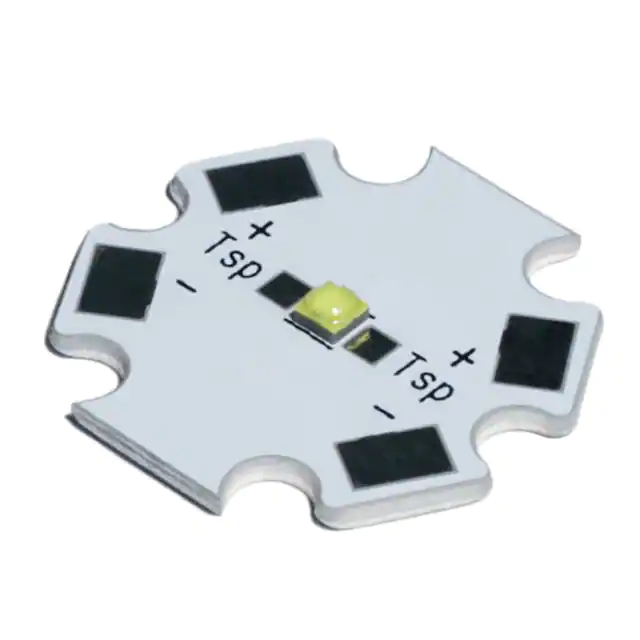

LST1-01H06-LME1-01STARBOARD LUXEON C LIME 145DEG |
481 | 3.58 |
Add To CartInquiry Now |
Datasheet |
Tray | LUXEON C | Active | LED Module | Lime | - | - | Starboard | - | 350mA | 85°C | 2.75V | 135 lm/W | 1.23A | - | 145° | - | 19.89mm Dia | 3.05mm | - | |
LST1-01H07-LME1-01STARBOARD LUXEON CZ LIME 120DEG |
270 | 3.58 |
Add To CartInquiry Now |
Datasheet |
Tray | LUXEON CZ | Active | LED Module | Lime | - | - | Starboard | - | 350mA | 85°C | 2.75V | 122 lm/W | 1.23A | - | 120° | - | 19.89mm Dia | 3.05mm | - |
