Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

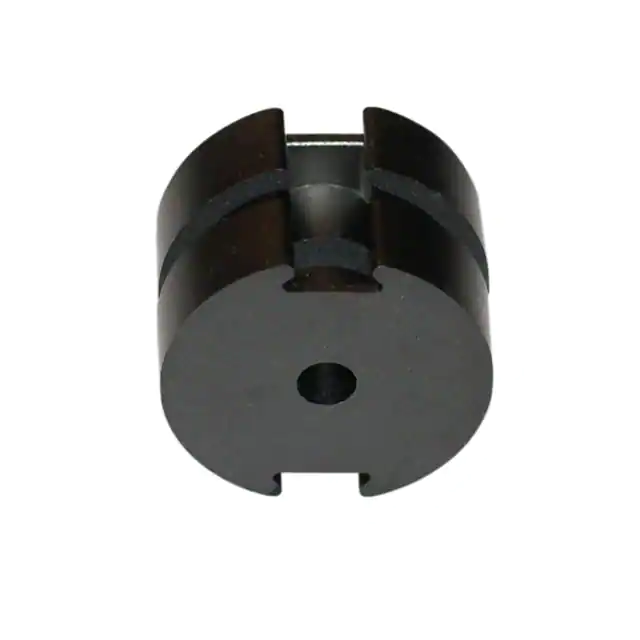

5695110821 95 POT CORE SET Fair-Rite Products Corp.	2846	1.16	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PS	-	95	0.437 (11.10mm)	-	±25%	Ungapped	-	3000	95	16.5	17.3	-	284	Uncoated	0.130 (3.30mm)
B65523J0400K087 FERRITE CORE EPCOS - TDK Electronics	2791	1.36	- + Add To Cart Inquiry Now	Datasheet	Box	ER9.5	Active	ER	ER 9.5 x 5	N87	-	400 nH	±10%	Gapped	-	2200	1.54	13.6	8.81	7.6	120	Uncoated	0.098 (2.50mm)
E22/6/16/R-3C90 PLANAR E CORES Ferroxcube	3417	1.43	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	E	E 22 x 6 x 16	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
RM6S/I-3C90-A250 RM CORES 2PC SET Ferroxcube	2712	1.56	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	RM	RM 6	3C90	-	-	±3%	Gapped	157	-	0.784	29.2	37	31.2	1090	Uncoated	0.488 (12.40mm)
8995252521 95 EFD CORE SET Fair-Rite Products Corp.	3310	1.56	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	EFD	-	95	-	-	±25%	Ungapped	-	3000	104	58.8	58	55	3320	Uncoated	0.492 (12.50mm)

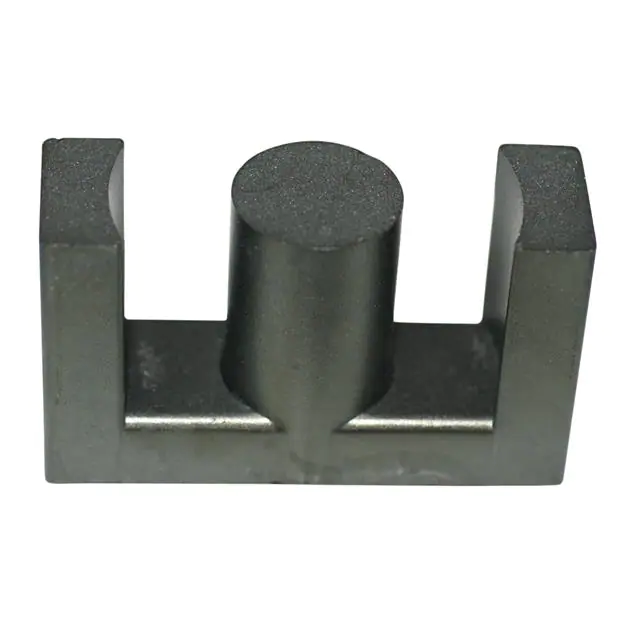

9598282802 98 EER CORE SET Fair-Rite Products Corp.	2413	1.69	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	EER	-	-	-	-	±25%	Ungapped	-	2400	73	62.9	85.9	77	5398	Uncoated	0.551 (14.00mm)

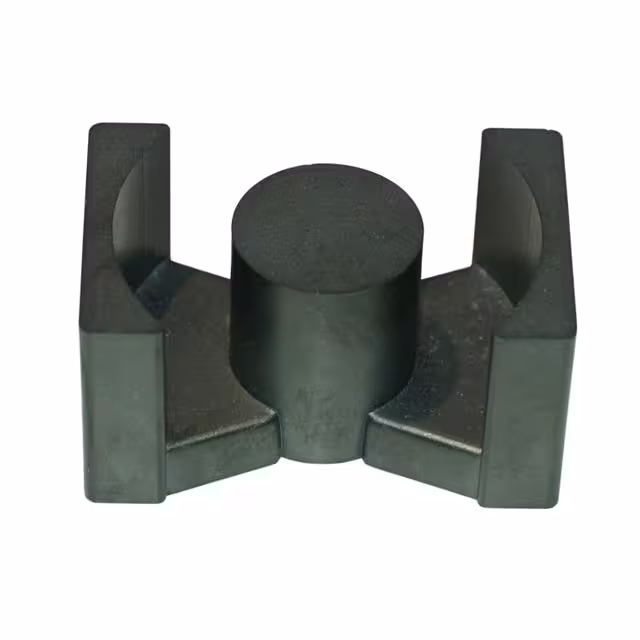

6698272021 98 PQ CORE SET Fair-Rite Products Corp.	2134	1.85	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PQ	-	-	-	-	±25%	Ungapped	-	2400	37.2	44.8	120.3	113.1	5385	Uncoated	-
5698261721 98 POT CORE SET Fair-Rite Products Corp.	3432	1.89	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PS	-	-	1.004 (25.50mm)	-	±25%	Ungapped	-	2400	44	38	86.7	-	3310	Uncoated	0.317 (8.05mm)
9595282802 95 EER CORE SET Fair-Rite Products Corp.	2756	1.90	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	EER	-	95	-	-	±25%	Ungapped	-	3000	73	62.9	85.9	77	5398	Uncoated	0.551 (14.00mm)
RM7/I-3C90 RM CORES 2PC SET Ferroxcube	3486	1.95	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	RM	RM 7	3C90	-	-	-	Ungapped	-	-	0.68	30	44.1	39.6	1325	Uncoated	0.528 (13.40mm)
6678272521 78 PQ CORE SET Fair-Rite Products Corp.	3160	1.98	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PQ	-	78	-	-	±25%	Ungapped	-	2300	45.9	54	117.7	113.1	6359	Uncoated	0.492 (12.50mm)
7878400321 78 PLANAR EI CORE SET Fair-Rite Products Corp.	3343	2.21	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	E	-	78	-	-	±25%	Ungapped	-	2300	33	26.1	79	79	2060	Uncoated	0.224 (5.70mm)
5975006401 75 TOROID Fair-Rite Products Corp.	3233	2.28	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	75	1.000 (25.40mm)	-	±20%	Ungapped	-	5000	-	62	62	-	3800	Uncoated	0.500 (12.70mm)
9595283402 95 EER CORE SET Fair-Rite Products Corp.	2139	2.35	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	EER	-	95	-	-	±25%	Ungapped	-	3000	87	74.4	85.2	77	6337	Uncoated	-
6695272521 95 PQ CORE SET Fair-Rite Products Corp.	2997	2.38	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PQ	-	95	-	-	±25%	Ungapped	-	3000	45.9	54	117.7	113.1	6359	Uncoated	0.492 (12.50mm)
9578354202 78 EER CORE SET Fair-Rite Products Corp.	2565	2.53	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	EER	-	78	-	-	±25%	Ungapped	-	2300	82	91.1	111	100	10140	Uncoated	-
5678302021 78 POT CORE SET Fair-Rite Products Corp.	3837	2.55	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PS	-	78	1.181 (30.00mm)	-	±25%	Ungapped	-	2300	35.6	45.3	127	-	5750	Uncoated	-

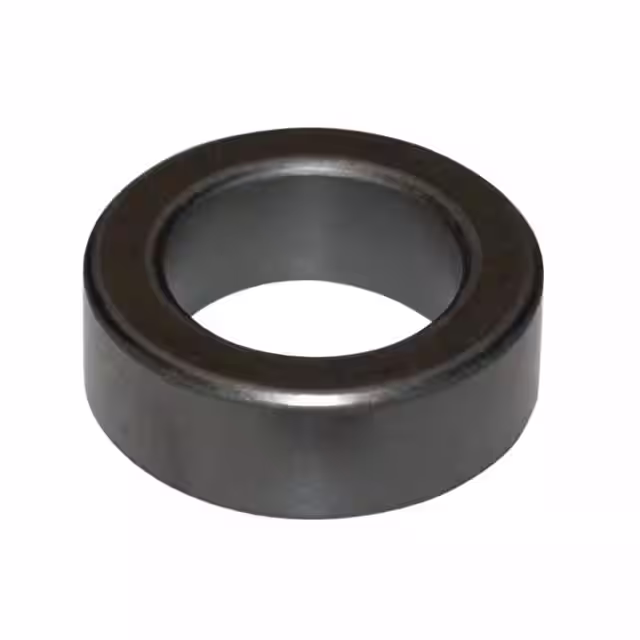

5978002701 78 TOROID Fair-Rite Products Corp.	3863	2.62	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	78	1.400 (35.56mm)	-	±25%	Ungapped	-	2300	-	89	79	-	7000	Uncoated	0.500 (12.70mm)

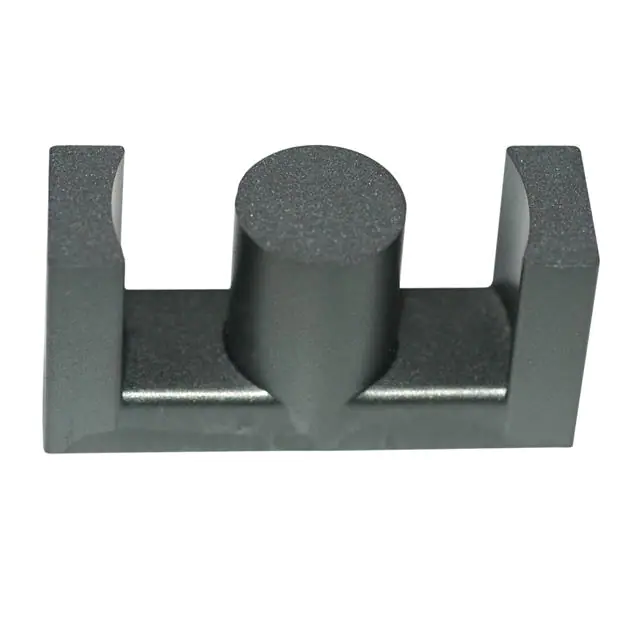

9578394002 78 ETD CORE SET Fair-Rite Products Corp.	3488	2.69	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	ETD	-	78	-	-	±25%	Ungapped	-	2300	72	92.4	128	126.7	11850	Uncoated	-
ER32/6/25-3C96 PLANAR ER CORES Ferroxcube	3929	2.73	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	ER	ER 32 x 6 x 25	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.236 (6.00mm)
