Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
PC95PQ60/42-Z FERRITE CORE PQ 14.3UH 2PC SET TDK Corporation	2597	43.98	- + Add To Cart Inquiry Now	Datasheet	Tray	Large PQ	Active	PQ	PQ 60 x 42	PC95	-	14.3 µH	±25%	Ungapped	-	-	0.2	98.1	483	-	47360	Uncoated	1.634 (41.50mm)
B64290L0730X830 FERRITE CORE TOROID 5.4UH N30 EPCOS - TDK Electronics	3682	50.61	- + Add To Cart Inquiry Now	Datasheet	Box	TX87/54.3/13.5	Active	Toroid	-	N30	3.516 (89.30mm)	5.4 µH	±25%	Ungapped	-	4300	0.99	213.9	216.7	-	46360	Epoxy	0.573 (14.80mm)
U93/76/30-3C92 CORES Ferroxcube	2506	52.39	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	U	U 93 x 76 x 30	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	2.992 (76.00mm)
B64290A0084X038 FERRITE CORE EPCOS - TDK Electronics	3118	54.16	- + Add To Cart Inquiry Now	Datasheet	Box	T102/66/15	Active	Toroid	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-
T102/66/15-4C65 FERRITE CORES ROUND Ferroxcube	2088	65.26	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	-	-	4C65	4.016 (102.00mm)	164.4 nH	±25%	-	-	-	-	-	-	-	-	-	0.591 (15.00mm)

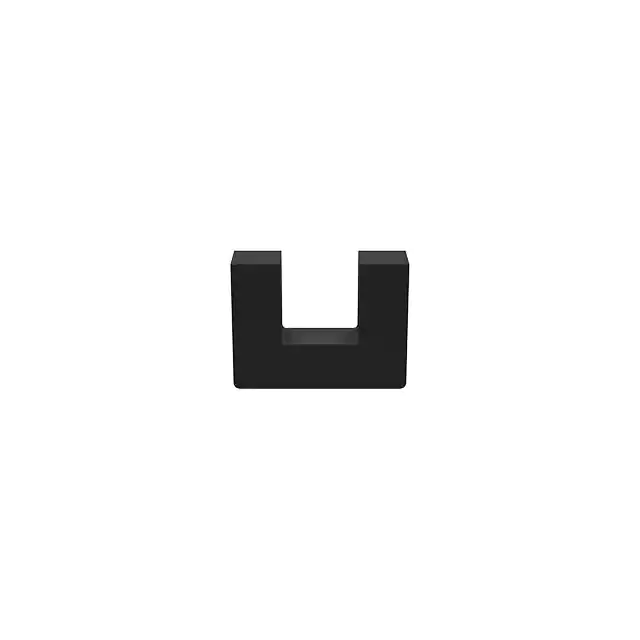

B67370A0002X027 FERRITE CORE U N27 1PC EPCOS - TDK Electronics	3797	77.54	- + Add To Cart Inquiry Now	Datasheet	Box	U101/76/30	Active	U	U 101 x 76 x 30	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	2.992 (76.00mm)

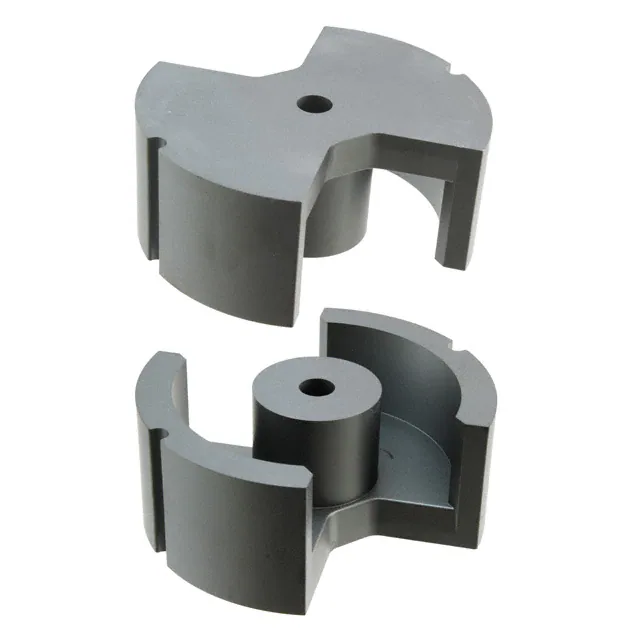

B65713A0000R027 FERRITE CORE PM 12UH N27 2PCS EPCOS - TDK Electronics	3482	98.06	- + Add To Cart Inquiry Now	Datasheet	Box	PM87/70	Active	PM	PM 87 x 70	N27	3.425 (87.00mm)	12 µH	-20%, +30%	Ungapped	1530	2000	0.16	146	910	700	133000	Uncoated	1.378 (35.00mm)
TX140/106/25-3C90 FERRITE CORES ROUND Ferroxcube	3634	102.12	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	TX 140 x 106 x 25	3C90	5.528 (140.40mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.996 (25.30mm)
TX102/66/15-4C65 FERRITE CORES ROUND Ferroxcube	2776	104.25	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	4C65	4.031 (102.40mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.602 (15.30mm)
B67345B0001X097 FERRITE CORE U N97 1PC EPCOS - TDK Electronics	2183	104.28	- + Add To Cart Inquiry Now	Datasheet	Box	U93/76/30	Active	U	U 93 x 76 x 30	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	2.992 (76.00mm)
B65713A0400A027 FERRITE CORE PM 400NH N27 2PCS EPCOS - TDK Electronics	3997	104.72	- + Add To Cart Inquiry Now	Datasheet	Box	PM87/70	Active	PM	PM 87 x 70	N27	3.425 (87.00mm)	400 nH	±3%	Gapped	51	2000	0.16	146	910	700	133000	Uncoated	1.378 (35.00mm)
TX140/106/25-3E27 FERRITE CORES ROUND Ferroxcube	2978	112.34	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	TX 140 x 106 x 25	3E27	5.528 (140.40mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.996 (25.30mm)
T60004L2160W758 NANOCRYSTALLINE CORE , 160X110X2 VACUUMSCHMELZE	2562	338.72	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	-	-	-	6.496 (165.00mm)	-	-	Ungapped	-	-	-	424	475	-	-	Uncoated	1.122 (28.50mm)

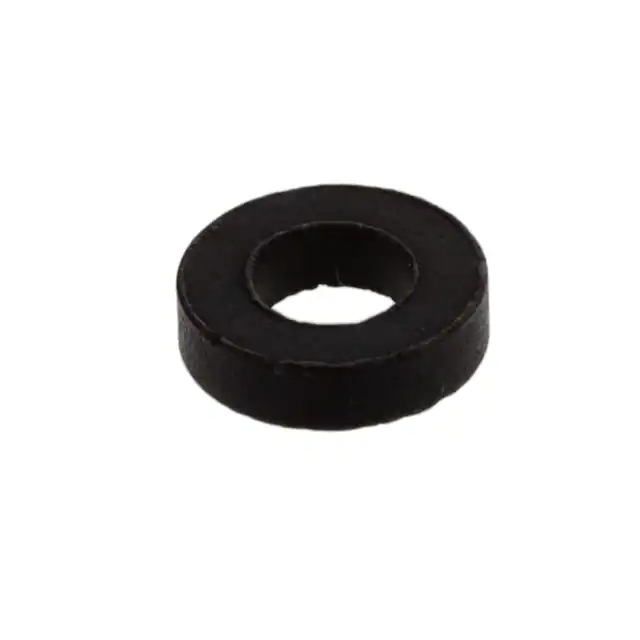

5943000111 43 TOROID PARYLENE COATED Fair-Rite Products Corp.	3874	0.17	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	Toroid	-	43	0.236 (6.00mm)	158 nH	±20%	Ungapped	-	800	6.3677	13	2.04	-	26.6	Parylene	0.067 (1.70mm)
3078990841 78 ROD Fair-Rite Products Corp.	3891	0.31	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Tube	-	78	-	-	-	Ungapped	48	2300	-	-	1.77	-	-	Uncoated	-
5961000801 61 TOROID Fair-Rite Products Corp.	3688	0.31	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	61	0.155 (3.94mm)	-	-	Ungapped	-	125	-	9.2	1.1	-	9.7	Uncoated	0.050 (1.27mm)
5978002101 78 TOROID Fair-Rite Products Corp.	3012	0.32	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	78	-	-	±25%	Ungapped	-	2300	-	10.4	1.5	-	15.7	Uncoated	0.050 (1.27mm)
5952020201 52 TOROID Fair-Rite Products Corp.	3386	0.33	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	52	-	-	±25%	Ungapped	-	250	-	12.8	2	-	25.6	Uncoated	0.060 (1.52mm)
3078990861 78 ROD Fair-Rite Products Corp.	2815	0.35	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	ROD	-	78	-	-	-	Ungapped	34	2300	-	-	4.91	-	-	Uncoated	-
5975000101 75 TOROID Fair-Rite Products Corp.	3011	0.35	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	75	0.230 (5.84mm)	-	±20%	Ungapped	-	5000	-	13	2	-	27	Uncoated	0.060 (1.52mm)
