Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
PC95PQI26/12Z-12 FERRITE CORE PQI 11.95UH 1SET TDK Corporation	2039	4.25	- + Add To Cart Inquiry Now	Datasheet	Tray	Planar	Active	HPQ, PQD	PQI 26 x 12	PC95	-	11.95 µH	±25%	Ungapped	-	-	0.22	123	27.7	109	3410	Uncoated	0.287 (7.30mm)
B65511A0000Y048 FERRITE CORE P 1UH N48 2PCS EPCOS - TDK Electronics	2288	4.26	- + Add To Cart Inquiry Now	Datasheet	Box	P7/4	Active	P (Pot Core)	P 7 x 4	N48	0.289 (7.35mm)	1 µH	-30%, +40%	Ungapped	1140	-	1.43	10	7	-	70	Uncoated	0.083 (2.10mm)
B65541T0100A033 FERRITE CORE P 100NH M33 2PCS EPCOS - TDK Electronics	3802	4.27	- + Add To Cart Inquiry Now	Datasheet	Box	P14/8	Active	P (Pot Core)	P 14 x 8	M33	0.563 (14.30mm)	100 nH	±3%	Gapped	64	750	0.8	20	25	20	500	Uncoated	0.167 (4.25mm)
B65813J0250A087 FERRITE CORE EPCOS - TDK Electronics	3826	4.37	- + Add To Cart Inquiry Now	Datasheet	Bulk	RM10	Active	RM	RM 10	N87	-	-	-	Gapped	-	2200	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)

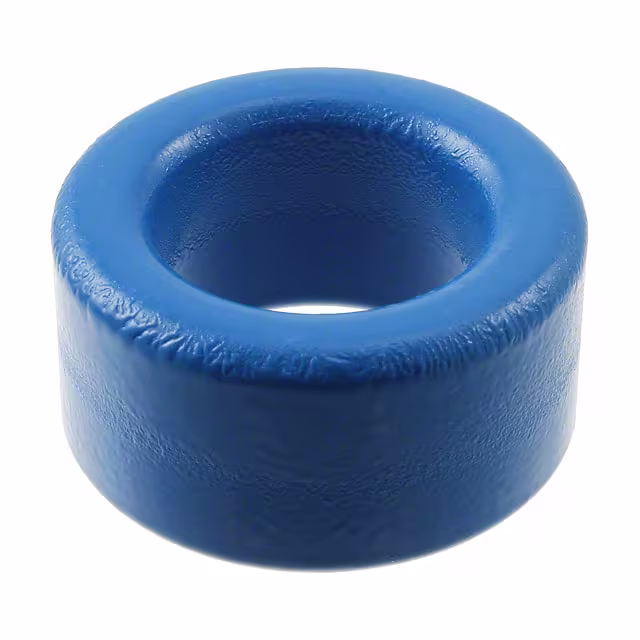

B64290L0647X037 FERRITE CORE TOROID 8.5UH T37 EPCOS - TDK Electronics	3760	4.44	- + Add To Cart Inquiry Now	Datasheet	Box	TX29/19/15	Active	Toroid	-	T37	1.220 (31.00mm)	8.5 µH	±25%	Ungapped	-	6500	0.96	73.78	76.98	-	5680	Epoxy	0.634 (16.10mm)
PQ32/25-3F36 FERRITE CORE 2PC SET Ferroxcube	2684	4.51	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PQ	PQ 32 x 25	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.984 (25.00mm)

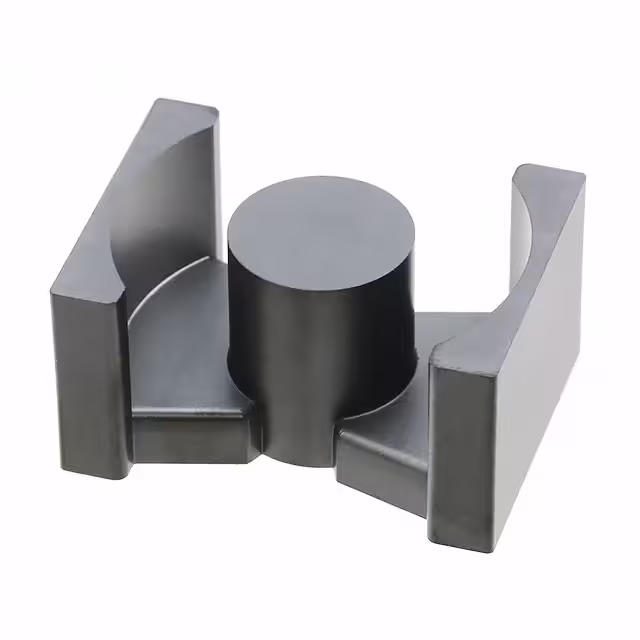

PC44PQ40/40Z-12 FERRITE CORE 2PC SET TDK Corporation	2142	4.64	- + Add To Cart Inquiry Now	Datasheet	Tray	-	Active	PQ	PQ 40 x 40	PC44	-	-	±25%	Ungapped	-	-	0.508	102	201	-	20500	Uncoated	1.565 (39.75mm)
B65813J0000R041 FERRITE CORE RM 5.5UH N41 2PCS EPCOS - TDK Electronics	3752	4.76	- + Add To Cart Inquiry Now	Datasheet	Box	RM10	Active	RM	RM 10	N41	-	5.5 µH	-20%, +30%	Ungapped	1960	2800	0.45	44	98	90	4310	Uncoated	0.368 (9.35mm)
PC95ELT25X8.6-Z FERRITE CORE ELT 7.54UH 1SET TDK Corporation	3627	4.76	- + Add To Cart Inquiry Now	Datasheet	Tray	Planar	Active	ELH, PLT	ELT 25 x 8.6	PC95	-	7.54 µH	±25%	Ungapped	-	-	0.35	85.6	30	83	2570	Uncoated	0.248 (6.30mm)
B66287K0000X149 FERRITE CORE I N49 EPCOS - TDK Electronics	2656	4.82	- + Add To Cart Inquiry Now	Datasheet	Tray	I32/3/20	Active	I	I 32 x 3 x 20	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.124 (3.15mm)
PC47EER35-Z FERRITE CORE EER 2.77UH 2PC SET TDK Corporation	2857	5.27	- + Add To Cart Inquiry Now	Datasheet	Tray	E	Active	E	EER 35	PC47	-	2.77 µH	±25%	Ungapped	-	-	0.85	90.8	107	-	9720	Uncoated	0.815 (20.70mm)

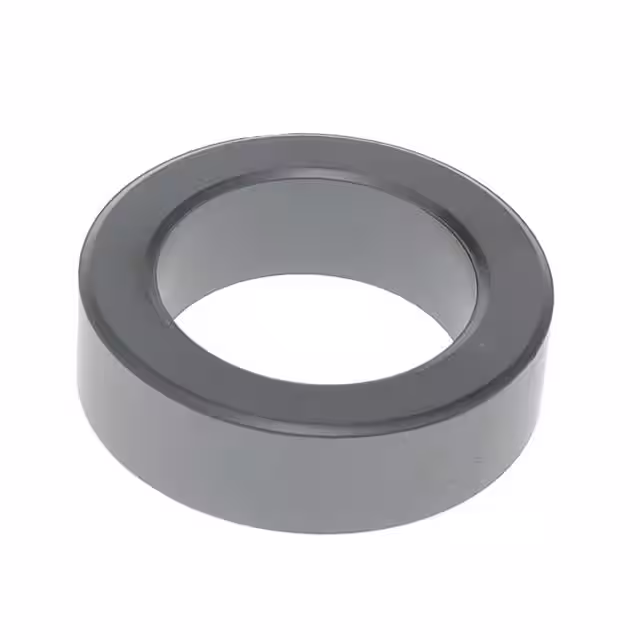

HF60T44.5X13X30 TOROIDAL CORE FOR EMI/RFI FILTER TDK Corporation	3984	5.50	- + Add To Cart Inquiry Now	Datasheet	Tray	T	Active	Toroid	-	-	1.752 (44.50mm)	-	-	Ungapped	-	1600	-	-	-	-	-	Uncoated	0.512 (13.00mm)

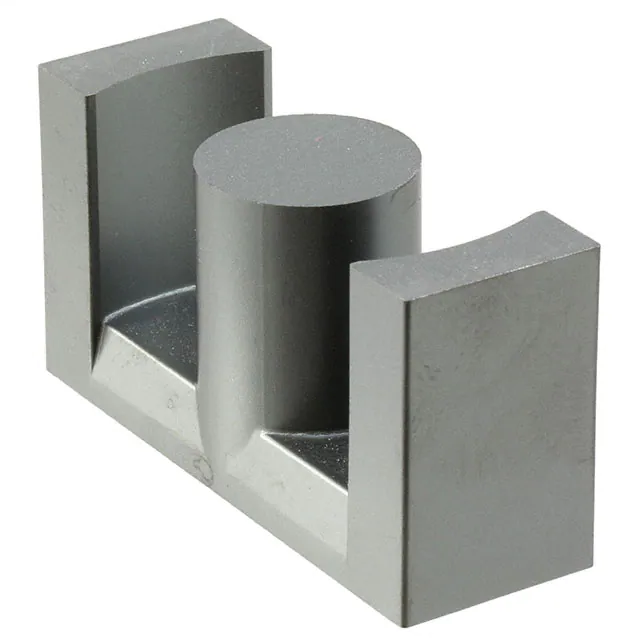

B66367G0500X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	2313	5.54	- + Add To Cart Inquiry Now	Datasheet	Box	ETD49/25/16	Active	ETD	ETD 49 x 25 x 16	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.980 (24.90mm)
E55/28/25-3C94 FERRITE CORE Ferroxcube	2996	5.58	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	E	E 55 x 28 x 25	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.083 (27.50mm)
PC47EER40-Z FERRITE CORE EER 3.62UH 2PC SET TDK Corporation	2040	5.81	- + Add To Cart Inquiry Now	Datasheet	Tray	E	Active	E	EER 40	PC47	-	3.62 µH	±25%	Ungapped	-	-	0.66	98	149	-	14600	Uncoated	0.882 (22.40mm)
B66461G0000X197 FERRITE CORE ELP N97 1PC EPCOS - TDK Electronics	3213	5.92	- + Add To Cart Inquiry Now	Datasheet	Box	ELP43/10/28	Active	ELP	ELP 43 x 10 x 28	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.374 (9.50mm)
B65815E0400J087 FERRITE CORE EPCOS - TDK Electronics	2225	6.23	- + Add To Cart Inquiry Now	Datasheet	Box	RM12	Active	RM	RM 12	N87	-	-	-	Gapped	-	2200	0.39	57	146	125	8320	Uncoated	0.484 (12.30mm)
B65877B0000R049 FERRITE CORE PQ 3.85UH N49 2PCS EPCOS - TDK Electronics	3945	0.00	- + Add To Cart Inquiry Now	Datasheet	Box	PQ26/25	Active	PQ	PQ 26 x 20	N49	-	3.85 µH	-20%, +30%	Ungapped	1110	1500	0.363	44.4	122.3	108.8	5435	Uncoated	0.397 (10.08mm)
E56/24/19-3C94 FERRITE CORE Ferroxcube	2088	6.24	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	E	E 56 x 24 x 19	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.929 (23.60mm)
HF60T38X14X22 TOROIDAL CORE FOR EMI/RFI FILTER TDK Corporation	2569	6.55	- + Add To Cart Inquiry Now	Datasheet	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	1600	-	-	-	-	-	Epoxy	0.551 (14.00mm)
