Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
ER23/3.6/13-3C92-S FERRITE CORE 2PC SET Ferroxcube	2256	2.38	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	ER	ER 23 x 3.6 x 13	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.142 (3.60mm)

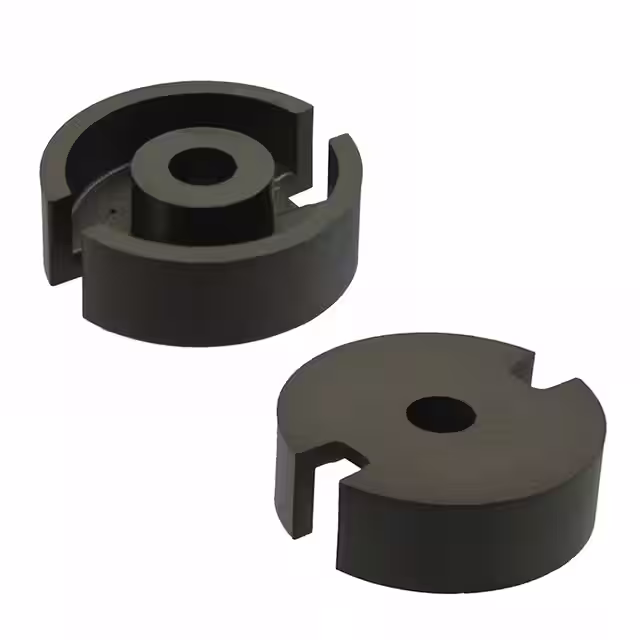

5695261721 95 POT CORE SET Fair-Rite Products Corp.	2862	2.53	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	P (Pot Core)	-	95	0.118 (3.00mm)	-	±25%	Ungapped	-	3000	44	38	86.7	74	3310	Uncoated	0.317 (8.05mm)
B66484G0000X197 FERRITE CORE ER N97 1PC EPCOS - TDK Electronics	2915	2.55	- + Add To Cart Inquiry Now	Datasheet	Box	ER25/6/15	Active	ER	ER 25 x 6 x 15	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.216 (5.50mm)
B65531D0000R033 FERRITE CORE P 780NH M33 2PCS EPCOS - TDK Electronics	2275	2.76	- + Add To Cart Inquiry Now	Datasheet	Tray	P11/7	Active	P (Pot Core)	P 11 x 7	M33	0.445 (11.30mm)	780 nH	-20%, +30%	Ungapped	620	750	1	15.9	15.9	-	253	Uncoated	0.130 (3.30mm)
B66482G0000X149 FERRITE CORE ER N49 1PC EPCOS - TDK Electronics	3805	2.81	- + Add To Cart Inquiry Now	Datasheet	Box	ER23/5/13	Active	ER	ER 23 x 5 x 13	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.201 (5.10mm)
B66482G0000X192 FERRITE CORE ER N92 1PC EPCOS - TDK Electronics	2256	2.82	- + Add To Cart Inquiry Now	Datasheet	Box	ER23/5/13	Active	ER	ER 23 x 5 x 13	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.201 (5.10mm)
HF90T31X13X19 TOROIDAL CORE FOR COMMON MODE CH TDK Corporation	2280	2.86	- + Add To Cart Inquiry Now	Datasheet	Tray	T	Active	Toroid	-	-	-	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.512 (13.00mm)
RM10/ILP-3C95 FERRITE CORE 2PC SET Ferroxcube	3984	2.93	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	RM	RM 10	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.512 (13.00mm)
EP20-3C90 EP AND EPX CORES 2PC SET Ferroxcube	3083	2.95	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	EP	EP 20	3C90	-	4.435 µH	±25%	Ungapped	1840	-	0.52	41.1	78.7	60.8	3230	Uncoated	0.843 (21.40mm)
HF60T28X13X16 TOROIDAL CORE FOR EMI/RFI FILTER TDK Corporation	3462	2.95	- + Add To Cart Inquiry Now	Datasheet	Tray	T	Active	Toroid	-	-	1.102 (28.00mm)	-	-	Ungapped	-	1600	-	-	-	-	-	Epoxy	0.512 (13.00mm)
B66325G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	2059	2.99	- + Add To Cart Inquiry Now	Datasheet	Box	E42/21/15	Active	E	E 42 x 21 x 15	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)

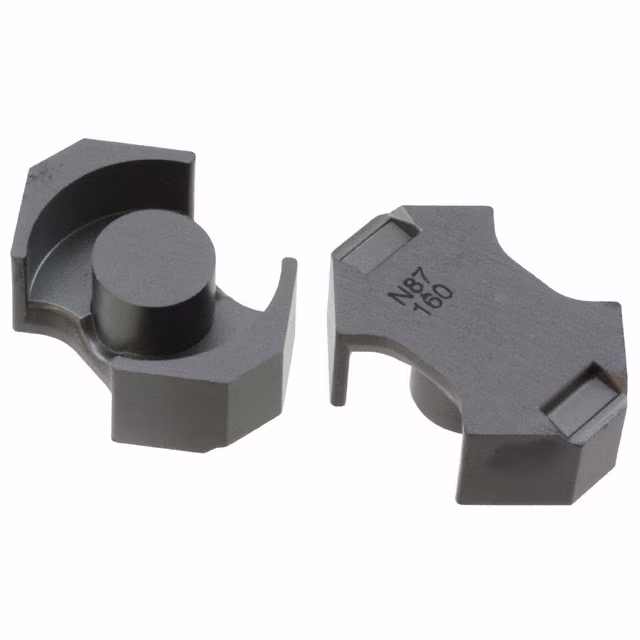

B65807J0160A087 FERRITE CORE RM 160NH N87 2PCS EPCOS - TDK Electronics	2392	3.09	- + Add To Cart Inquiry Now	Datasheet	Box	RM6	Active	RM	RM 6	N87	-	160 nH	±3%	Gapped	99	-	0.78	28.6	36.6	31	1050	Uncoated	0.246 (6.25mm)
B65811J0160A087 FERRITE CORE RM N87 2PCS EPCOS - TDK Electronics	3909	3.28	- + Add To Cart Inquiry Now	Datasheet	Box	RM8	Active	RM	RM 8	N87	-	-	-	Gapped	-	-	0.59	38	64	55	2430	Uncoated	0.324 (8.25mm)
B66365G0000X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	3444	3.35	- + Add To Cart Inquiry Now	Datasheet	Box	ETD44/22/15	Active	ETD	ETD 44 x 22 x 15	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.886 (22.50mm)
PLT43/28/4.1-3F4 FERRITE CORE Ferroxcube	3369	3.49	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PLT	PLT 43 x 28 x 4.1	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.161 (4.10mm)
B65875B0000R087 FERRITE CORE PQ 3.1UH N87 2PCS EPCOS - TDK Electronics	3249	3.58	- + Add To Cart Inquiry Now	Datasheet	Box	PQ20/16	Active	PQ	PQ 20 x 16	N87	-	3.1 µH	-20%, +30%	Ungapped	1430	2200	0.579	37	64	57.6	2367	Uncoated	0.319 (8.10mm)
PC95ELT22X8-Z FERRITE CORE ELT 6.54UH 1SET TDK Corporation	3117	3.70	- + Add To Cart Inquiry Now	Datasheet	Tray	Planar	Active	ELH, PLT	ELT 22 x 8	PC95	-	6.54 µH	±25%	Ungapped	-	-	0.41	66.2	27.3	64.2	1810	Uncoated	0.237 (6.02mm)
P26/16/I-3F46 FERRITE CORE 2PC SET Ferroxcube	3440	3.76	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	P (Pot Core)	P 26 x 16	3F46	1.004 (25.50mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.638 (16.20mm)
PQ32/15-3C95 FERRITE CORE 2PC SET Ferroxcube	3478	3.88	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PQ	PQ 32 x 15	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
B65807J0000R608 RM6-PC200 EPCOS - TDK Electronics	3028	3.97	- + Add To Cart Inquiry Now	Datasheet	Bulk	RM6	Active	RM	RM 6	PC200	-	-	-20%, +30%	Ungapped	680	800	0.78	28.6	36.6	31	1050	Uncoated	0.492 (12.50mm)

Total 5020 Records«Prev 1... 69 70 71 727374 75 76...251 Next»
