Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
TX25/15/13-3E65 FERRITE CORES ROUND Ferroxcube	295	2.16	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	TX 25 x 15 x 13	-	1.007 (25.95mm)	-	±25%	Ungapped	5200	-	0.97	60.1	62.1	-	3740	Epoxy	0.539 (13.70mm)
PC95ELT20X7.7-Z FERRITE CORE ELT 5.63UH 1SET TDK Corporation	248	2.23	- + Add To Cart Inquiry Now	Datasheet	Tray	Planar	Active	ELH, PLT	ELT 20 x 7.7	PC95	-	5.63 µH	±25%	Ungapped	-	-	0.47	54.6	25.6	52.9	1400	Uncoated	0.230 (5.84mm)
TX26/15/10-3E12 FERRITE CORES ROUND Ferroxcube	393	2.34	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	TX 26 x 15 x 10	-	1.061 (26.95mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.429 (10.90mm)
B66484K0000X187 FERRITE CORE I N87 1PC EPCOS - TDK Electronics	370	2.35	- + Add To Cart Inquiry Now	Datasheet	Box	I25/3/15	Active	I	I 25 x 3 x 15	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.098 (2.50mm)
TX26/15/20-3E10-M FERRITE CORES ROUND Ferroxcube	107	2.38	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	TX 26 x 15 x 20	-	1.061 (26.95mm)	-	±30%	Ungapped	10000	-	0.538	60.1	112	-	6720	Epoxy	0.827 (21.00mm)
EC41/19/12-3C94 FERRITE CORE Ferroxcube	163	2.46	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	EC	EC 41 x 19 x 12	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.768 (19.50mm)
HF90T28X13X16 TOROIDAL CORE FOR COMMON MODE CH TDK Corporation	400	2.55	- + Add To Cart Inquiry Now	Datasheet	Tray	T	Active	Toroid	-	-	1.102 (28.00mm)	-	-	Ungapped	-	5000	-	-	-	-	-	Epoxy	0.512 (13.00mm)

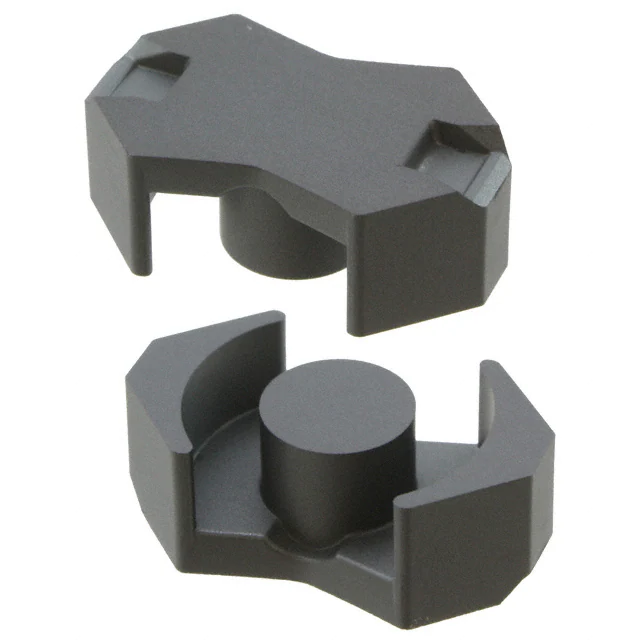

B65819J0000R087 FERRITE CORE RM 2.7UH N87 2PCS EPCOS - TDK Electronics	862	2.60	- + Add To Cart Inquiry Now	Datasheet	Box	RM7	Active	RM	RM 7	N87	-	2.7 µH	-20%, +30%	Ungapped	1520	2200	0.7	30.4	43	39	1310	Uncoated	0.265 (6.75mm)
B66455G0000X197 FERRITE CORE ELP N97 1PC EPCOS - TDK Electronics	425	2.63	- + Add To Cart Inquiry Now	Datasheet	Box	ELP22/6/16	Active	ELP	ELP 22 x 6 x 16	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.224 (5.70mm)
B66482K0000X192 FERRITE CORE I N92 1PC EPCOS - TDK Electronics	2533	2.65	- + Add To Cart Inquiry Now	Datasheet	Box	I23/2/13	Active	I	I 23 x 2 x 13	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.083 (2.10mm)
B66285K0000X192 FERRITE CORE I N92 EPCOS - TDK Electronics	416	2.65	- + Add To Cart Inquiry Now	Datasheet	Tray	I22/2.5/16	Active	I	I 22 x 2.5 x 16	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.098 (2.50mm)

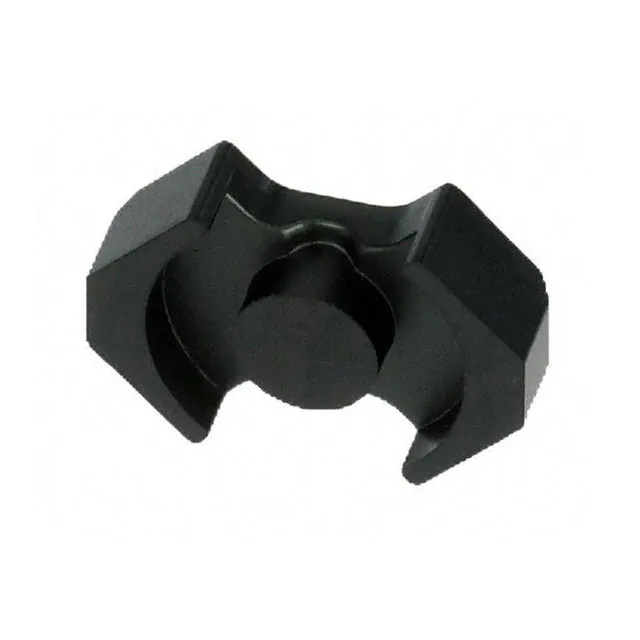

B65805P0000R087 FERRITE CORE RM 2.4UH N87 2PCS EPCOS - TDK Electronics	173	2.68	- + Add To Cart Inquiry Now	Datasheet	Box	RM5/LP	Active	-	-	N87	-	-	-	-	-	-	-	-	-	-	-	-	-
TX26/15/20-3C94 FERRITE CORES ROUND Ferroxcube	113	2.74	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	TX 26 x 15 x 20	3C94	1.061 (26.95mm)	-	±25%	Ungapped	2300	-	0.538	60.1	112	-	6720	Epoxy	0.827 (21.00mm)
B65807C1000K048 FERRITE CORE EPCOS - TDK Electronics	780	2.81	- + Add To Cart Inquiry Now	Datasheet	Box	RM6	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-

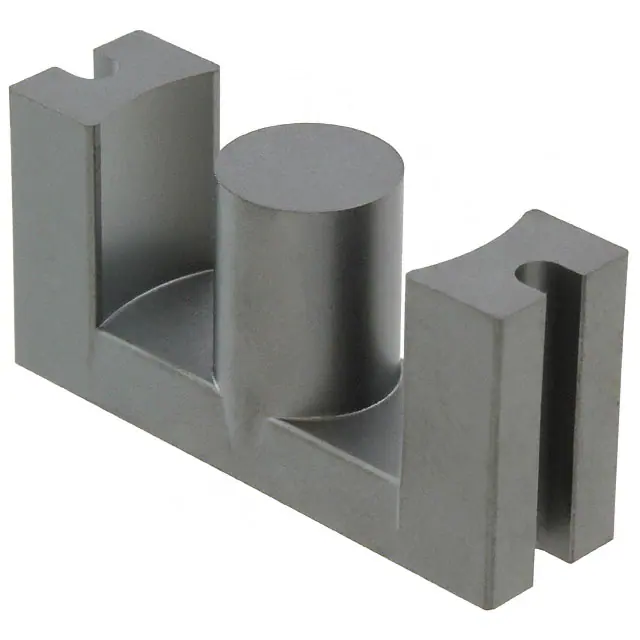

B66339G0000X127 FERRITE CORE EC N27 1PC EPCOS - TDK Electronics	239	2.82	- + Add To Cart Inquiry Now	Datasheet	Box	EC41/20/12	Active	EC	EC 41 x 20 x 12	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.469 (11.90mm)

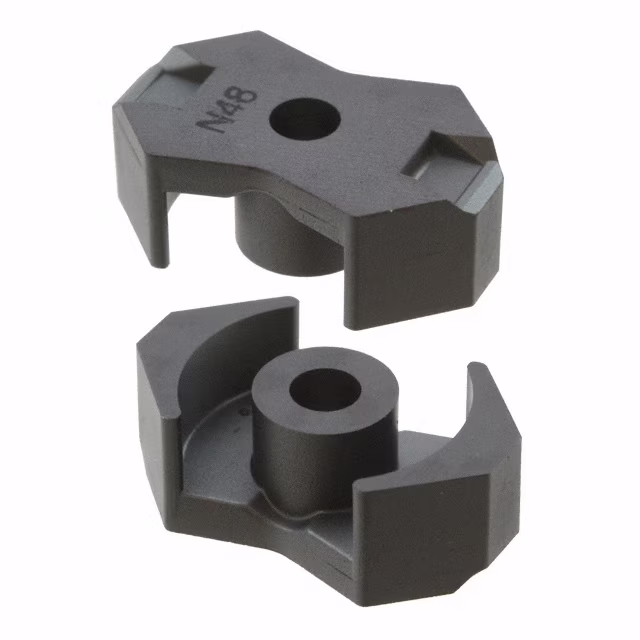

B65807C0000R048 FERRITE CORE RM 2.2UH N48 2PCS EPCOS - TDK Electronics	519	2.84	- + Add To Cart Inquiry Now	Datasheet	Box	RM6	Active	RM	RM 6	N48	-	2.2 µH	-20%, +30%	Ungapped	1500	-	0.86	26.9	31.3	-	840	Uncoated	0.246 (6.25mm)
B66455K0000X149 FERRITE CORE I N49 EPCOS - TDK Electronics	442	2.85	- + Add To Cart Inquiry Now	Datasheet	Tray	I22/2.5/16	Active	I	I 22 x 2.5 x 16	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.098 (2.50mm)
B66484G0000X192 FERRITE CORE ER N92 1PC EPCOS - TDK Electronics	378	2.87	- + Add To Cart Inquiry Now	Datasheet	Box	ER25/6/15	Active	ER	ER 25 x 6 x 15	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.216 (5.50mm)
TX36/23/10-3E65 FERRITE CORES ROUND Ferroxcube	297	2.92	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	TX 36 x 23 x 10	-	1.463 (37.15mm)	-	±25%	Ungapped	5200	-	1.38	89.7	64.9	-	5820	Epoxy	0.430 (10.92mm)
TX36/23/10-3E6 FERRITE CORES ROUND Ferroxcube	138	2.92	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	TX 36 x 23 x 10	-	1.463 (37.15mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.430 (10.92mm)
