Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65981A0000R087 FERRITE CORE PQ 6.5UH N87 2PCS EPCOS - TDK Electronics	3439	16.25	- + Add To Cart Inquiry Now	Datasheet	Box	PQ50/50	Active	PQ	PQ 50 x 50	N87	-	6.5 µH	-20%, +30%	Ungapped	1770	-	0.342	113	330	290	37270	Uncoated	0.984 (25.00mm)
B66293K0000X187 FERRITE CORE I N87 1PC EPCOS - TDK Electronics	3740	17.52	- + Add To Cart Inquiry Now	Datasheet	Box	ILP58/4/38	Active	I	I 58 x 4 x 38	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.160 (4.06mm)
B66371G1500X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	2209	18.08	- + Add To Cart Inquiry Now	Datasheet	Box	E70/33/32	Active	E	E 70 x 33 x 32	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.307 (33.20mm)

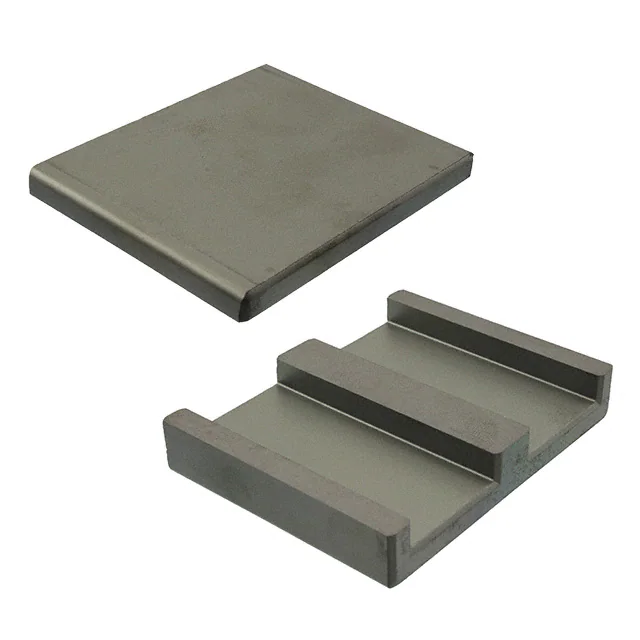

7895400721 95 PLANAR EI CORE SET Fair-Rite Products Corp.	3988	19.33	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Planar E/I	-	95	-	-	±25%	Ungapped	-	3000	14	70	518	515	36300	Uncoated	0.407 (10.34mm)
B64290A0699X087 FERRITE CORE TOROID 5UH N87 EPCOS - TDK Electronics	3122	19.35	- + Add To Cart Inquiry Now	Datasheet	Box	T63/38/25	Active	Toroid	R 63 x 38 x 25	N87	2.480 (63.00mm)	5 µH	±25%	Ungapped	-	2200	0.5	152.1	305.9	-	46530	Uncoated	0.984 (25.00mm)
TX80/40/15-3E10-M FERRITE CORES ROUND Ferroxcube	3640	19.45	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	TX 80 x 40 x 15	-	3.268 (83.00mm)	-	±20%	Ungapped	9500	-	0.604	174	288	-	50200	Epoxy	0.626 (15.90mm)
B66295K0000X149 FERRITE CORE I N49 EPCOS - TDK Electronics	3546	19.62	- + Add To Cart Inquiry Now	Datasheet	Tray	I64/5/50	Active	I	I 64 x 5 x 50	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.201 (5.10mm)
9498207002 98 PLANAR E CORE SET Fair-Rite Products Corp.	2648	20.61	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	E	-	-	-	-	±25%	Ungapped	-	2400	15.4	80.7	520	515	41500	Uncoated	0.407 (10.34mm)

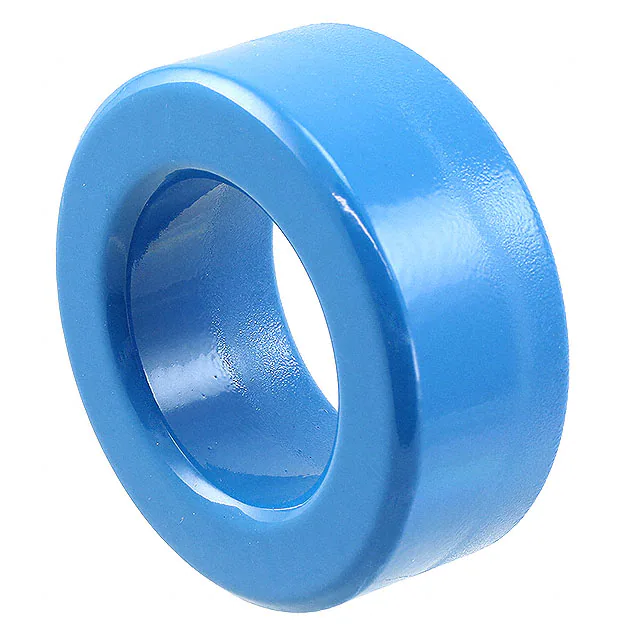

B64290L0699X830 FERRITE CORE TOROID 10.8UH N30 EPCOS - TDK Electronics	3706	23.22	- + Add To Cart Inquiry Now	Datasheet	Box	TX63/38/25	Active	Toroid	-	N30	2.571 (65.30mm)	10.8 µH	±25%	Ungapped	-	4300	0.5	152.1	305.9	-	46530	Epoxy	1.047 (26.60mm)

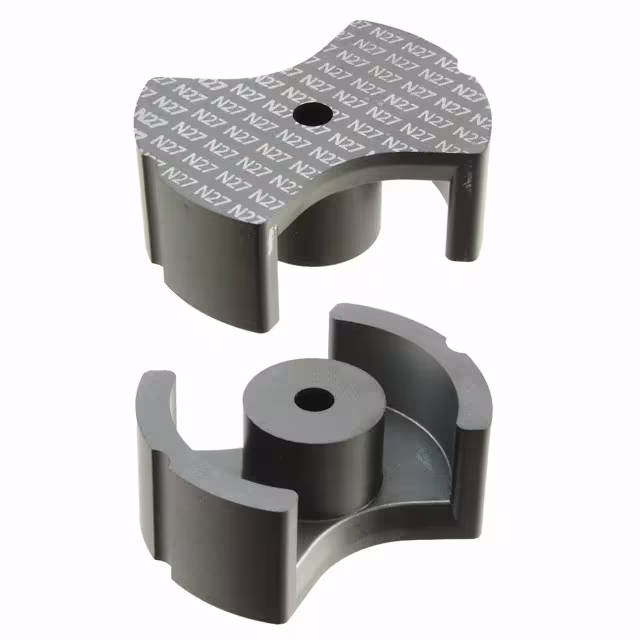

B65646A0000R027 FERRITE CORE PM 7.4UH N27 2PCS EPCOS - TDK Electronics	3189	23.33	- + Add To Cart Inquiry Now	Datasheet	Box	PM50/39	Active	PM	PM 50 x 39	N27	1.969 (50.00mm)	7.4 µH	-20%, +30%	Ungapped	1340	2000	0.227	84	370	280	31000	Uncoated	0.768 (19.50mm)
B65646A0630A027 FERRITE CORE PM 630NH N27 2PCS EPCOS - TDK Electronics	3350	23.34	- + Add To Cart Inquiry Now	Datasheet	Box	PM50/39	Active	PM	PM 50 x 39	N27	1.969 (50.00mm)	630 nH	±3%	Gapped	114	2000	0.227	84	370	280	31000	Uncoated	0.768 (19.50mm)
I100/25/25-3C94 FERRITE CORE Ferroxcube	2584	25.26	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	I	I 100 x 25 x 25	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.000 (25.40mm)
B64290L0699X037 FERRITE CORE TOROID 13.9UH T37 EPCOS - TDK Electronics	3626	25.58	- + Add To Cart Inquiry Now	Datasheet	Box	TX63/38/25	Active	Toroid	-	T37	2.571 (65.30mm)	13.9 µH	±25%	Ungapped	-	5500	0.5	152.1	305.9	-	46530	Epoxy	1.047 (26.60mm)

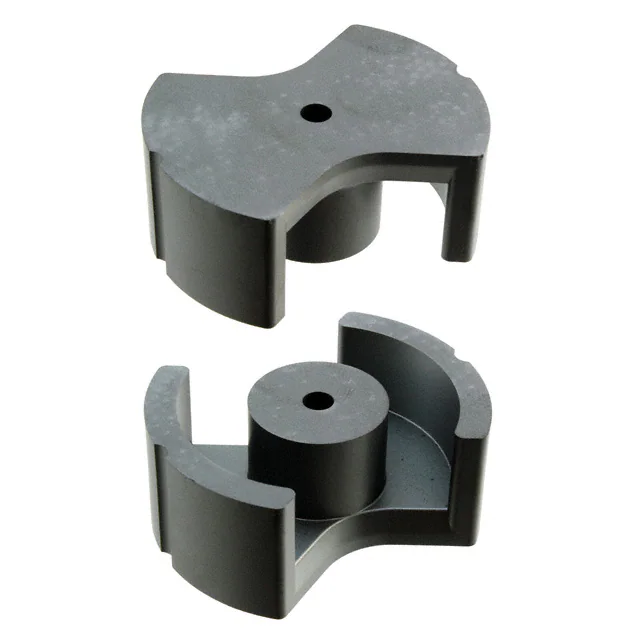

B65684A0000R027 FERRITE CORE PM 9.2UH N27 2PCS EPCOS - TDK Electronics	2353	31.20	- + Add To Cart Inquiry Now	Datasheet	Box	PM62/49	Active	PM	PM 62 x 49	N27	2.441 (62.00mm)	9.2 µH	-20%, +30%	Ungapped	1400	2000	0.191	109	570	470	62000	Uncoated	0.965 (24.50mm)
B65684A0630A027 FERRITE CORE PM 630NH N27 2PCS EPCOS - TDK Electronics	3736	32.63	- + Add To Cart Inquiry Now	Datasheet	Box	PM62/49	Active	PM	PM 62 x 49	N27	2.441 (62.00mm)	630 nH	±3%	Gapped	95	2000	0.191	109	570	470	62000	Uncoated	0.965 (24.50mm)
B67345B0003X027 FERRITE CORE U N27 1PC EPCOS - TDK Electronics	2207	35.01	- + Add To Cart Inquiry Now	Datasheet	Box	U93/76/16	Active	U	U 93 x 76 x 16	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	2.992 (76.00mm)

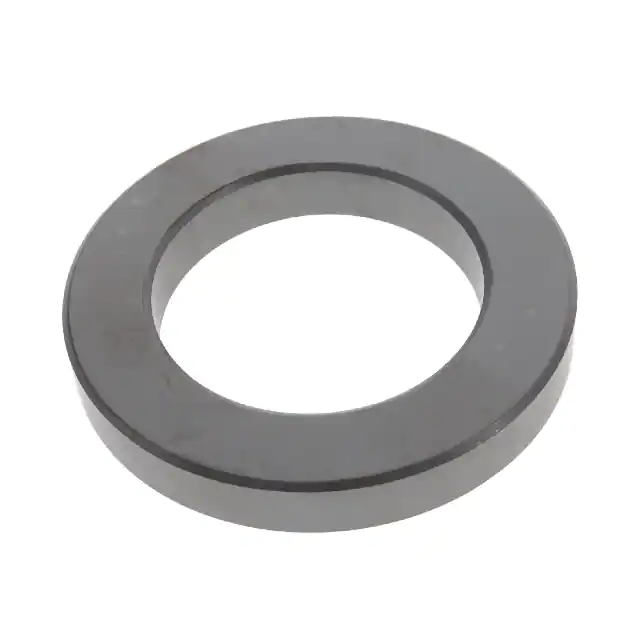

T102/66/15-3C90 FERRITE CORES ROUND Ferroxcube	2489	36.74	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	3C90	4.016 (102.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)

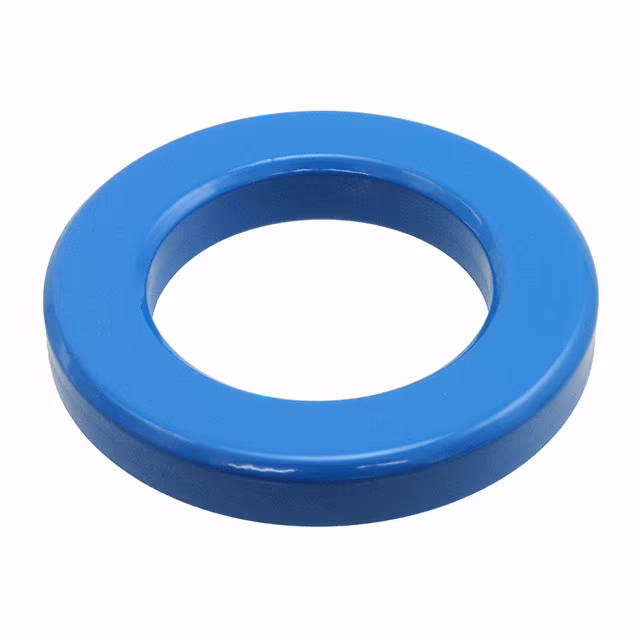

B64290L0730X087 FERRITE CORE TOROID 2.79UH N87 EPCOS - TDK Electronics	3805	37.89	- + Add To Cart Inquiry Now	Datasheet	Box	TX87/54.3/13.5	Active	Toroid	-	N87	3.516 (89.30mm)	2.79 µH	±25%	Ungapped	-	2200	0.99	213.9	216.7	-	46360	Epoxy	0.573 (14.80mm)
U100/57/25-3C94 FERRITE CORE Ferroxcube	3870	37.93	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	U	U 100 x 57 x 25	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	2.248 (57.10mm)
TX102/66/15-3C94 FERRITE CORES ROUND Ferroxcube	2713	40.09	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	3C94	4.031 (102.40mm)	-	±25%	Ungapped	-	4300	0.956	255	267	-	68200	Epoxy	0.602 (15.30mm)
