Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B64290L0038X049 FERRITE CORE TOROID 610NH N49 EPCOS - TDK Electronics	2986	0.56	- + Add To Cart Inquiry Now	Datasheet	Box	TX10/6/4	Active	Toroid	-	N49	0.425 (10.80mm)	610 nH	±25%	Ungapped	-	1500	3.07	24.07	7.83	-	188	Epoxy	0.187 (4.75mm)
B64290L0038X046 FERRITE CORE TOROID 6UH T46 EPCOS - TDK Electronics	3090	0.57	- + Add To Cart Inquiry Now	Datasheet	Box	TX10/6/4	Active	Toroid	-	T46	0.425 (10.80mm)	6 µH	±30%	Ungapped	-	15000	3.07	24.07	7.83	-	188	Epoxy	0.187 (4.75mm)
B64290L0038X035 FERRITE CORE TOROID 2.46UH T35 EPCOS - TDK Electronics	2492	0.57	- + Add To Cart Inquiry Now	Datasheet	Box	TX10/6/4	Active	Toroid	-	T35	0.425 (10.80mm)	2.46 µH	±25%	Ungapped	-	6000	3.07	24.07	7.83	-	188	Epoxy	0.187 (4.75mm)
5980000201 80 TOROID Fair-Rite Products Corp.	3193	0.57	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	-	0.374 (9.50mm)	245 nH	±25%	Ungapped	-	550	286	20.7	7.3	-	150	Uncoated	0.125 (3.18mm)

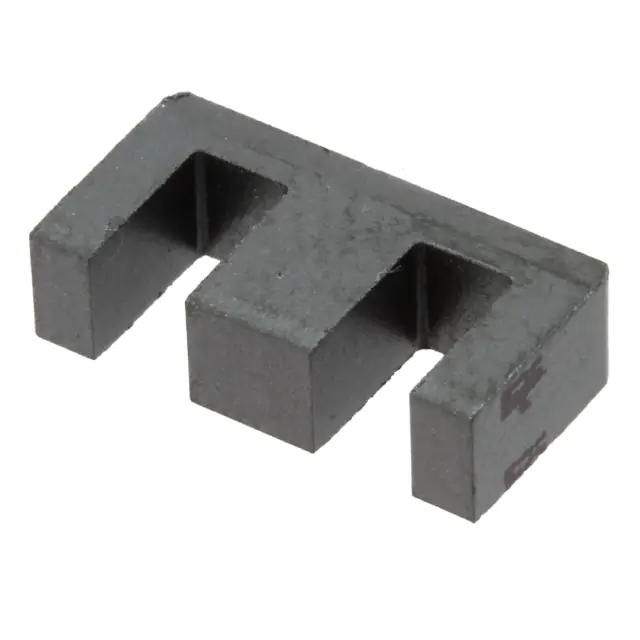

B66305G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	2487	0.57	- + Add To Cart Inquiry Now	Datasheet	Box	E13/7/4	Active	E	E 13 x 7 x 4	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.256 (6.50mm)

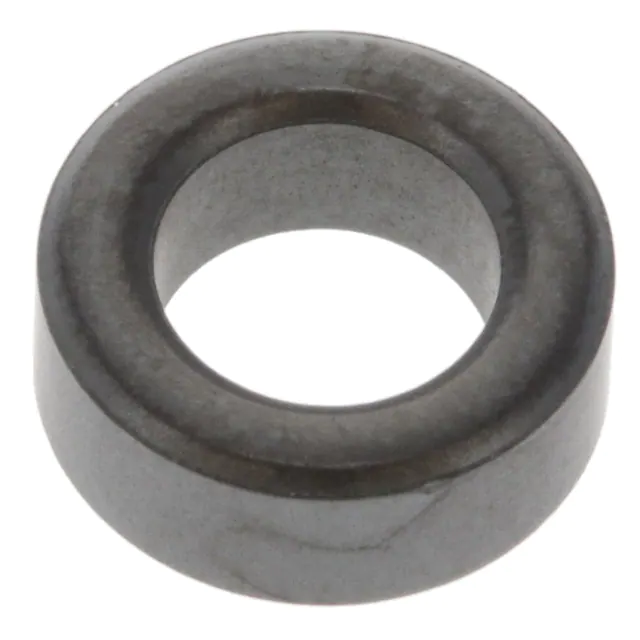

B64290A0038X038 FERRITE CORE TOROID 4.09UH T38 EPCOS - TDK Electronics	2856	0.57	- + Add To Cart Inquiry Now	Datasheet	Box	T10/6/4	Active	Toroid	R 10 x 6 x 4	T38	0.394 (10.00mm)	4.09 µH	±30%	Ungapped	-	10000	3.07	24.07	7.83	-	188	Uncoated	0.157 (4.00mm)
3061990861 61 ROD Fair-Rite Products Corp.	2819	0.58	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	ROD	-	61	0.098 (2.50mm)	-	-	Ungapped	27	125	-	-	4.91	-	-	Uncoated	-
B64290L0044X038 FERRITE CORE TOROID 5.11UH T38 EPCOS - TDK Electronics	3529	0.59	- + Add To Cart Inquiry Now	Datasheet	Bulk	TX12.5/7.5/5	Active	Toroid	-	T38	0.535 (13.60mm)	5.11 µH	±30%	Ungapped	-	10000	2.46	30.09	12.23	-	368	Epoxy	0.234 (5.95mm)
B64290L0658X087 FERRITE CORE TOROID 970NH N87 EPCOS - TDK Electronics	3187	0.59	- + Add To Cart Inquiry Now	Datasheet	Box	TX14/9/5	Active	Toroid	-	N87	0.594 (15.10mm)	970 nH	±25%	Ungapped	-	2200	2.84	34.98	12.3	-	430	Epoxy	0.236 (6.00mm)
B64290P0037X830 FERRITE CORE TOROID 1.09UH N30 EPCOS - TDK Electronics	3348	0.60	- + Add To Cart Inquiry Now	Datasheet	Bulk	TC6.3/3.8/2.5	Active	Toroid	-	N30	0.249 (6.32mm)	1.09 µH	±25%	Ungapped	-	4300	4.97	15.21	3.06	-	46.5	Parylene	0.099 (2.52mm)

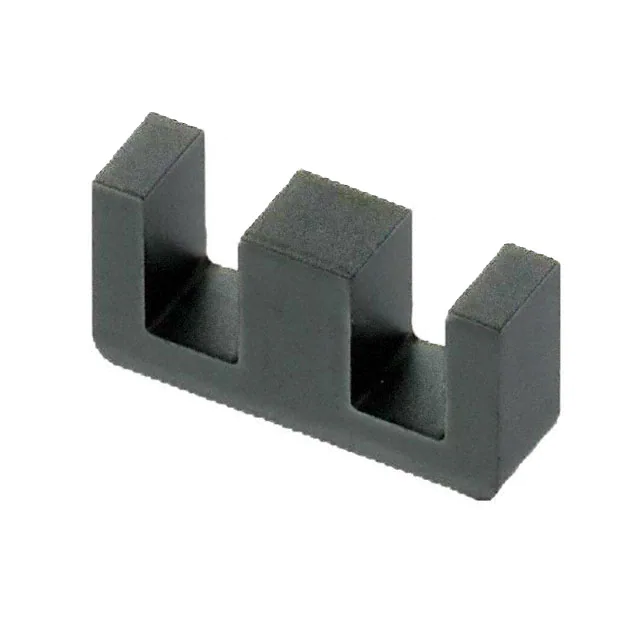

B66305G0130X187 FERRITE CORE EPCOS - TDK Electronics	3178	0.60	- + Add To Cart Inquiry Now	Datasheet	Box	E13/7/4	Active	E	E 13 x 7 x 4	N87	-	112 nH	-	Gapped	215	2200	2.39	29.6	12.4	12.2	367	Uncoated	0.256 (6.50mm)
E20/10/6-3C94 FERRITE CORE Ferroxcube	3849	0.61	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	E	E 20 x 10 x 6	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)

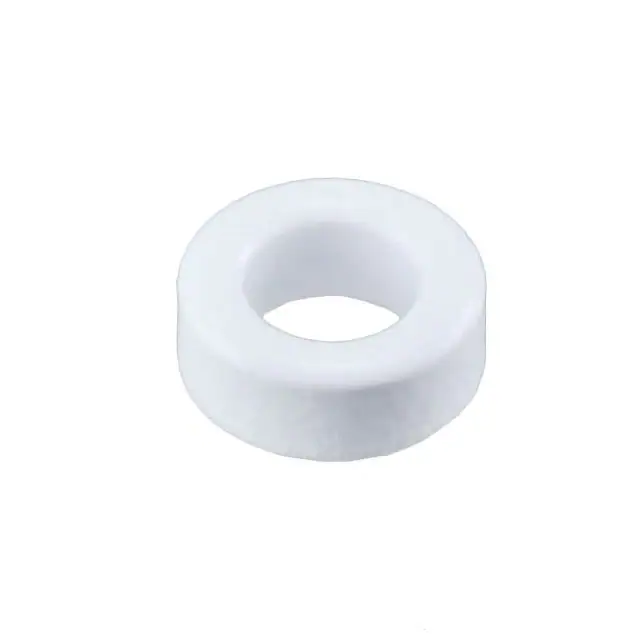

TX14/9/5-3E65 FERRITE CORES ROUND Ferroxcube	3708	0.67	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	TX 14 x 9 x 5	-	0.561 (14.25mm)	-	±30%	Ungapped	-	10000	2.84	35	12.3	-	430	Epoxy	0.207 (5.25mm)

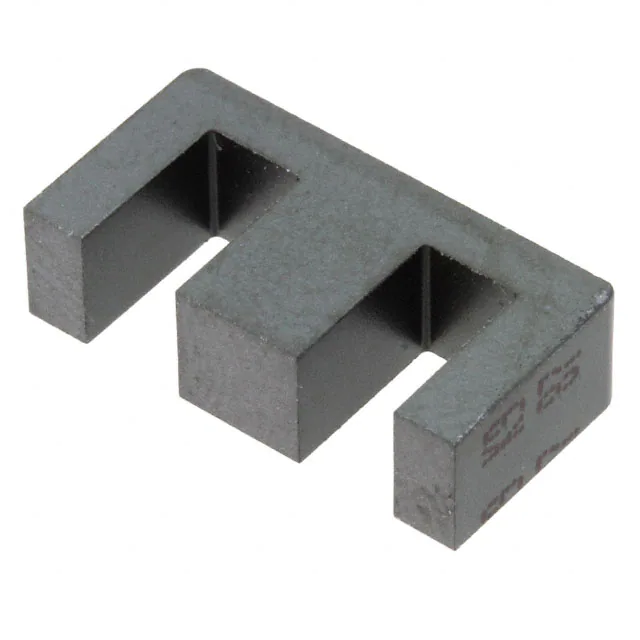

B66307G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	2994	0.69	- + Add To Cart Inquiry Now	Datasheet	Box	E16/8/5	Active	E	E 16 x 8 x 5	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.323 (8.20mm)

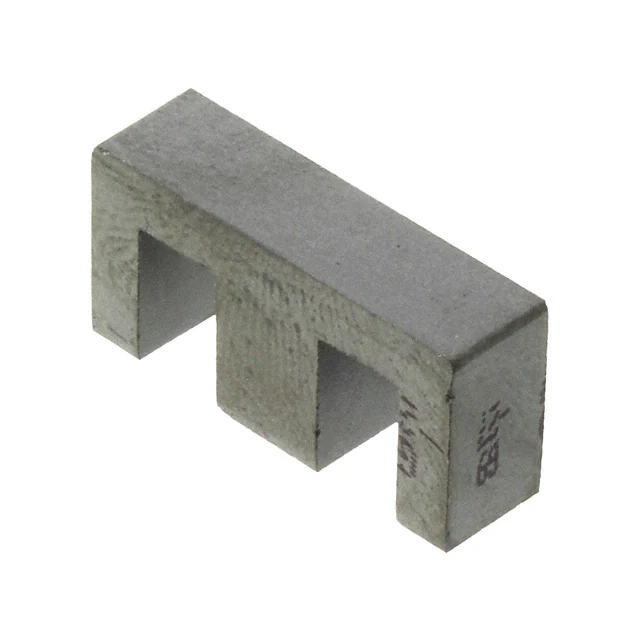

B66311G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	3847	0.69	- + Add To Cart Inquiry Now	Datasheet	Box	E20/10/6	Active	E	E 20 x 10 x 6	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.394 (10.00mm)
3061990871 61 ROD Fair-Rite Products Corp.	2251	0.72	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	ROD	-	61	0.118 (3.00mm)	-	-	Ungapped	29	125	-	-	7.07	-	-	Uncoated	-
B64290P0037X038 FERRITE CORE TOROID 2.53UH T38 EPCOS - TDK Electronics	3717	0.73	- + Add To Cart Inquiry Now	Datasheet	Bulk	TC6.3/3.8/2.5	Active	Toroid	-	T38	0.249 (6.32mm)	2.53 µH	±30%	Ungapped	-	10000	4.97	15.21	3.06	-	46.5	Parylene	0.099 (2.52mm)

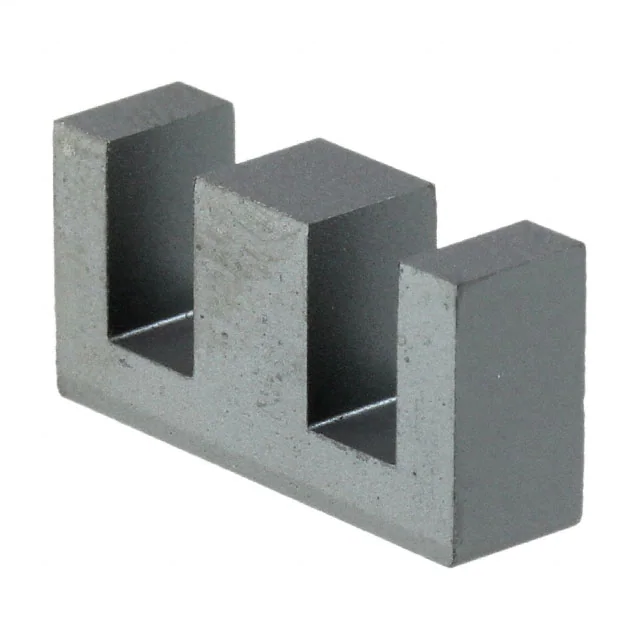

B66311G0000X187 FERRITE CORE E N87 1PC EPCOS - TDK Electronics	3831	0.74	- + Add To Cart Inquiry Now	Datasheet	Box	E20/10/6	Active	E	E 20 x 10 x 6	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.394 (10.00mm)

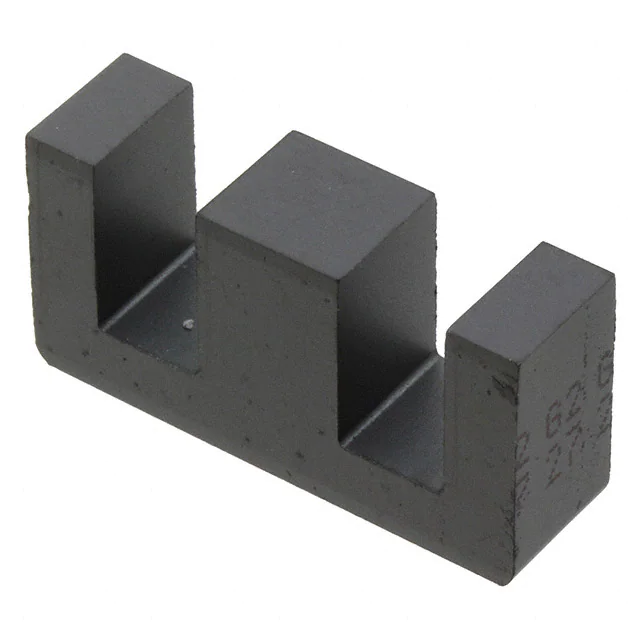

B66317G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	2002	0.74	- + Add To Cart Inquiry Now	Datasheet	Box	E25/13/7	Active	E	E 25 x 13 x 7	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.504 (12.80mm)
4077276011 77 ROD Fair-Rite Products Corp.	2517	0.75	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	ROD	-	77	0.250 (6.35mm)	-	-	Ungapped	29	2000	-	25	7.07	-	-	Uncoated	-
