Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length

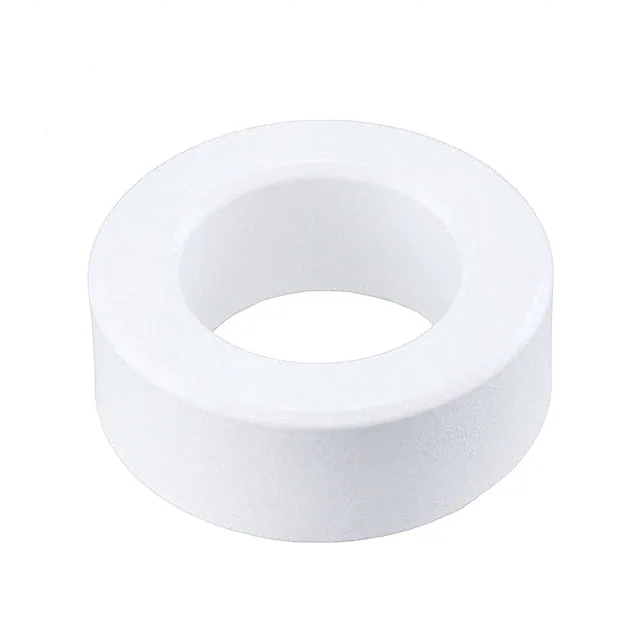

TX36/23/15-4C65 FERRITE CORES ROUND Ferroxcube	3514	10.45	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	TX 36 x 23 x 15	4C65	1.463 (37.15mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.630 (16.00mm)
5943003801 43 TOROID Fair-Rite Products Corp.	2109	10.50	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	43	2.400 (60.96mm)	-	±20%	Ungapped	-	800	-	145	158	-	22800	Uncoated	0.500 (12.70mm)
T60006L2030W514 NANOCRYSTALLINE CORE, 30X20X15 VACUUMSCHMELZE	3891	0.00	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	Toroid	-	-	1.291 (32.80mm)	88 µH	-	Ungapped	-	-	-	78.5	57	-	-	Uncoated	0.701 (17.80mm)
E64/10/50-3C95 FERRITE CORE Ferroxcube	4000	11.31	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	E	E 64 x 10 x 50	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)

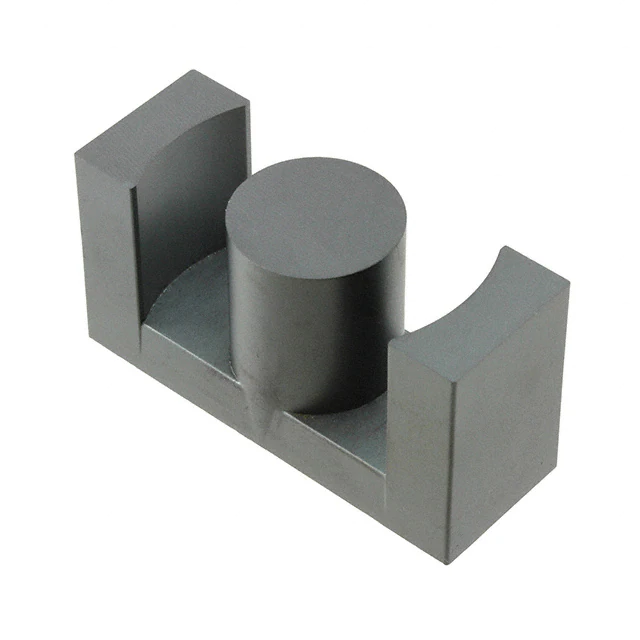

B66397G0000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	3674	11.64	- + Add To Cart Inquiry Now	Datasheet	Box	ETD59/31/22	Active	ETD	ETD 59 x 31 x 22	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.228 (31.20mm)

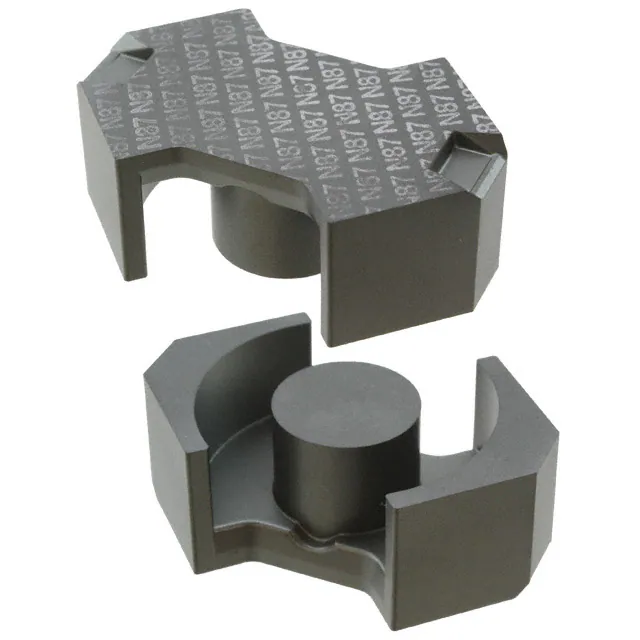

B65887E0000R087 FERRITE CORE RM 6UH N87 2PCS EPCOS - TDK Electronics	453	11.97	- + Add To Cart Inquiry Now	Datasheet	Box	RM14	Active	RM	RM 14	N87	-	6 µH	-20%, +30%	Ungapped	1670	2200	0.35	70	200	170	14000	Uncoated	0.594 (15.10mm)

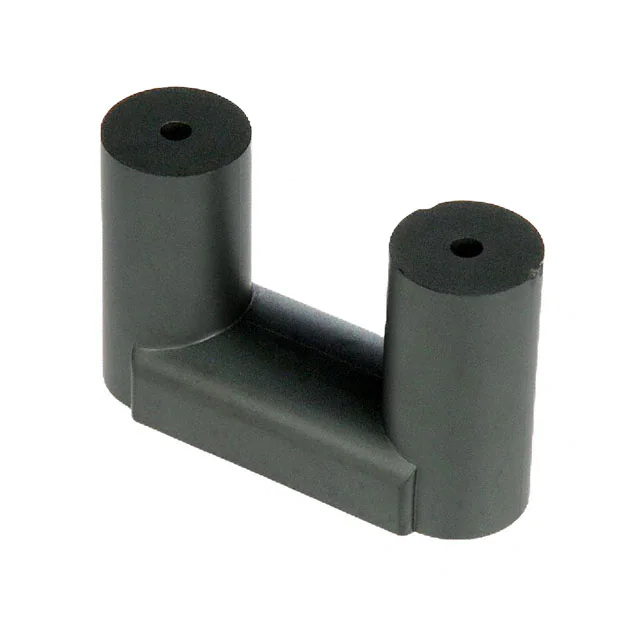

UR64/40/20-3F3 U AND UR CORES Ferroxcube	2369	12.86	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.575 (40.00mm)
T60006L2040W424 NANOCRYSTALLINE CORE, 40X25X15 VACUUMSCHMELZE	2082	0.00	- + Add To Cart Inquiry Now	Datasheet	Box	-	Active	Toroid	-	-	1.697 (43.10mm)	109 µH	-	Ungapped	-	-	-	102	85.5	-	-	Uncoated	0.728 (18.50mm)

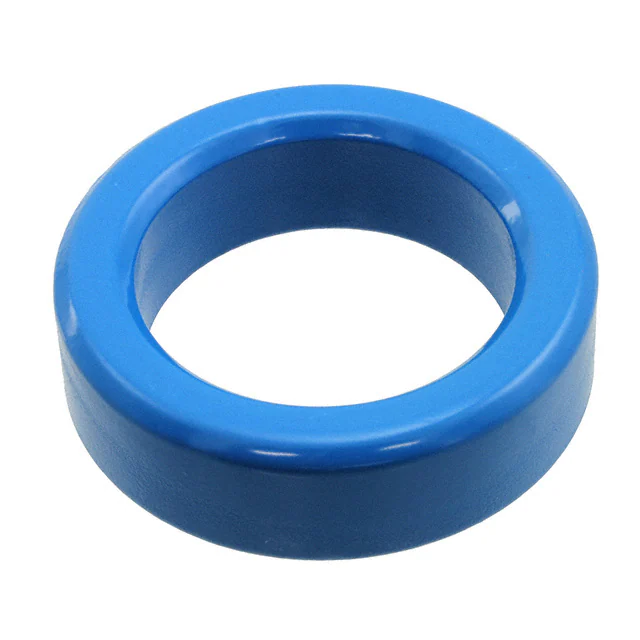

B64290L0040X065 FERRITE CORE TOROID 6.25UH T65 EPCOS - TDK Electronics	573	14.55	- + Add To Cart Inquiry Now	Datasheet	Box	TX58.3/40.8/17.6	Active	Toroid	-	T65	2.366 (60.10mm)	6.25 µH	±30%	Ungapped	-	5000	1	152.4	152.4	-	23230	Epoxy	0.740 (18.80mm)

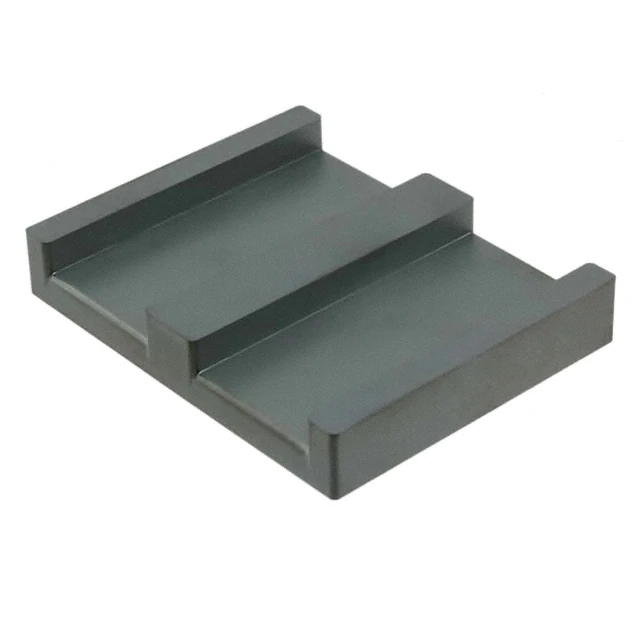

B66295G0000X187 FERRITE CORE ELP N87 1PC EPCOS - TDK Electronics	730	15.43	- + Add To Cart Inquiry Now	Datasheet	Box	ELP64/10/50	Active	ELP	ELP 64 x 10 x50	N87	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.402 (10.20mm)
5968003801 68 TOROID Fair-Rite Products Corp.	493	20.08	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	68	-	-	-	Ungapped	-	16	-	145	158	-	22800	Uncoated	0.500 (12.70mm)
PQ50/50-3C95 FERRITE CORE 2PC SET Ferroxcube	650	20.19	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	PQ	PQ 50 x 50	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.969 (50.00mm)

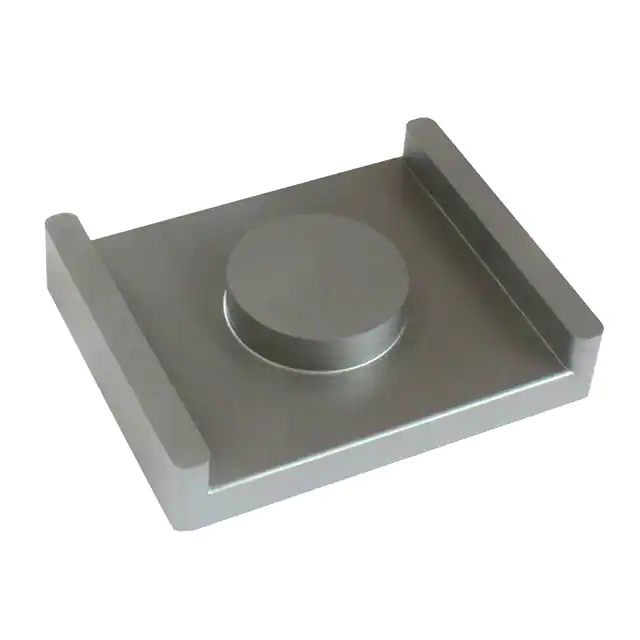

ER64/13/51-3C92 FERRITE CORE Ferroxcube	2824	20.65	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	ER	ER 64 x 13 x 51	3C92	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.500 (12.70mm)

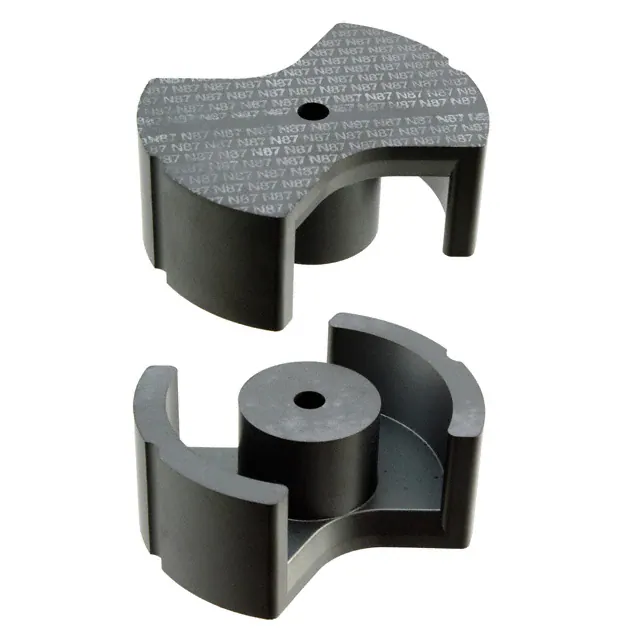

B65684A0000R087 FERRITE CORE PM 9.2UH N87 2PCS EPCOS - TDK Electronics	481	35.03	- + Add To Cart Inquiry Now	Datasheet	Box	PM62/49	Active	PM	PM 62 x 49	N87	2.441 (62.00mm)	9.2 µH	-20%, +30%	Ungapped	1400	2200	0.191	109	570	470	62000	Uncoated	0.965 (24.50mm)

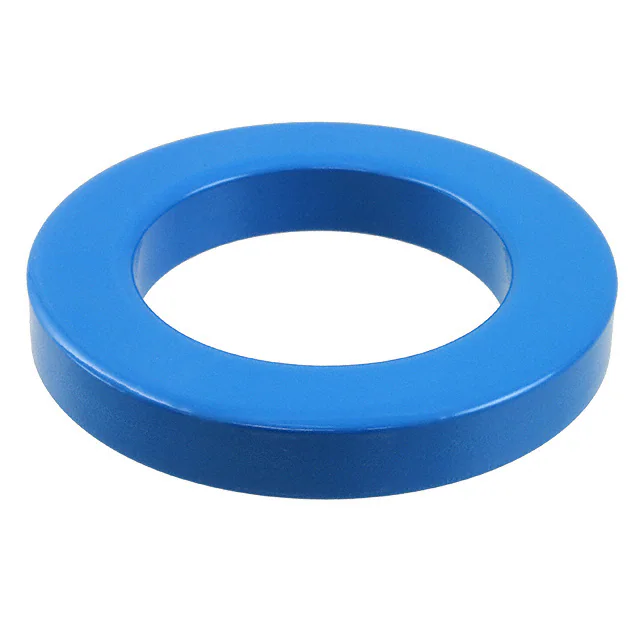

B64290L0084X830 FERRITE CORE TOROID 5.5UH N30 EPCOS - TDK Electronics	3013	57.68	- + Add To Cart Inquiry Now	Datasheet	Box	TX102/66/15	Active	Toroid	-	N30	4.126 (104.80mm)	5.5 µH	±25%	Ungapped	-	4200	0.96	255.3	267.2	-	68220	Epoxy	0.650 (16.50mm)

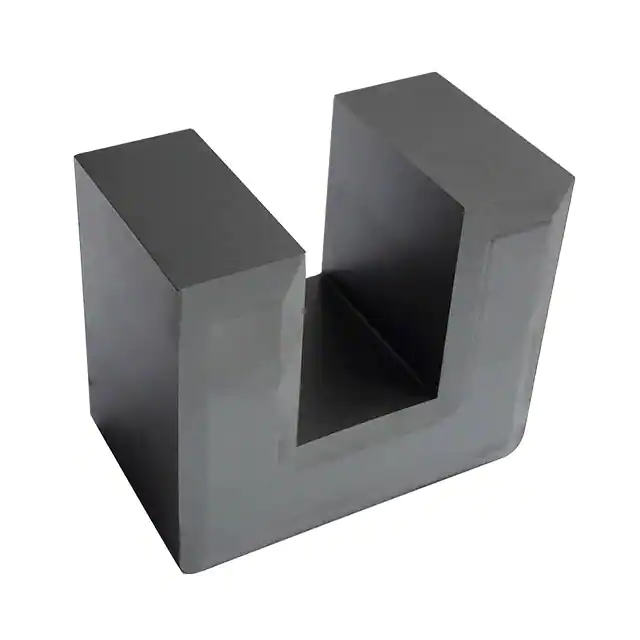

U126/91/20-3C94 FERRITE CORE Ferroxcube	167	59.96	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	U	U 126 x 91 x 20	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	3.583 (91.00mm)
5943017501 43 TOROID Fair-Rite Products Corp.	196	74.73	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	43	-	-	±25%	Ungapped	-	800	-	251	300	-	70500	Uncoated	-
P66/56-3C91 FERRITE CORE 2PC SET Ferroxcube	242	78.05	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	P (Pot Core)	P 66 x 56	3C91	2.610 (66.29mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	2.256 (57.30mm)
5943000901 43 TOROID Fair-Rite Products Corp.	2595	0.16	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	Toroid	-	43	0.230 (5.84mm)	-	±20%	Ungapped	-	800	-	13	4.1	-	53	Uncoated	0.120 (3.05mm)
3078990821 78 ROD Fair-Rite Products Corp.	3933	0.21	- + Add To Cart Inquiry Now	Datasheet	Bulk	-	Active	ROD	-	78	0.030 (0.76mm)	-	-	Ungapped	48	2300	-	-	0.442	-	-	Uncoated	-
