Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
B78476A8065A003 PULSE XFMR 1CT:1CT 350UH EPCOS - TDK Electronics	23063	2.70	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.280 W (12.70mm x 7.11mm)	0.220 (5.60mm)
B78476A8245A003 PULSE XFMR 1CT:1CT 350UH EPCOS - TDK Electronics	15319	2.74	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.272 W (12.70mm x 6.90mm)	0.230 (5.85mm)
B78476A8247A003 PULSE XFMR 1CT:1CT 350UH EPCOS - TDK Electronics	9268	2.96	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.272 W (12.70mm x 6.90mm)	0.230 (5.85mm)

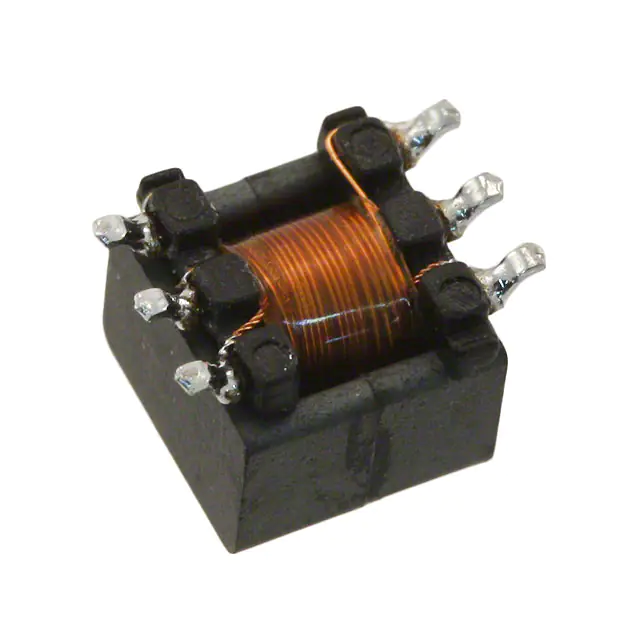

B82804A0354A110 PULSE XFMR 1:1 350UH EPCOS - TDK Electronics	3712	4.52	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP5	Active	Gate Drive	350µH	25.8VµS	1:1	Surface Mount	0.264 L x 0.240 W (6.70mm x 6.10mm)	0.213 (5.40mm)
B82804A0264A210 PULSE XFMR 1:1:1 264UH EPCOS - TDK Electronics	7899	4.52	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP5	Active	Gate Drive	264µH	22.4VµS	1:1:1	Surface Mount	0.264 L x 0.240 W (6.70mm x 6.10mm)	0.213 (5.40mm)
B82804A0474A125 PULSE XFMR 2.5:1 473UH EPCOS - TDK Electronics	3028	4.52	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP5	Active	Gate Drive	473µH	30.6VµS	2.5:1	Surface Mount	0.264 L x 0.240 W (6.70mm x 6.10mm)	0.213 (5.40mm)
B78416A2232A003 SMT TRANSFORMER FOR ULTRASONIC S EPCOS - TDK Electronics	9886	5.13	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B7416A	Active	-	3mH	-	-	Surface Mount	0.260 L x 0.260 W (6.60mm x 6.60mm)	0.280 (7.10mm)

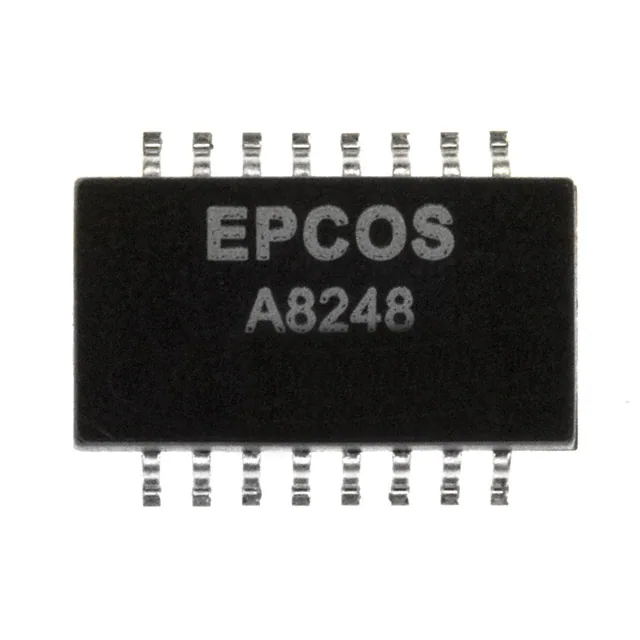

B78476A8248A003 PULSE XFMR 1CT:1CT 350UH EPCOS - TDK Electronics	5570	2.96	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT	Surface Mount	0.500 L x 0.272 W (12.70mm x 6.90mm)	0.230 (5.85mm)

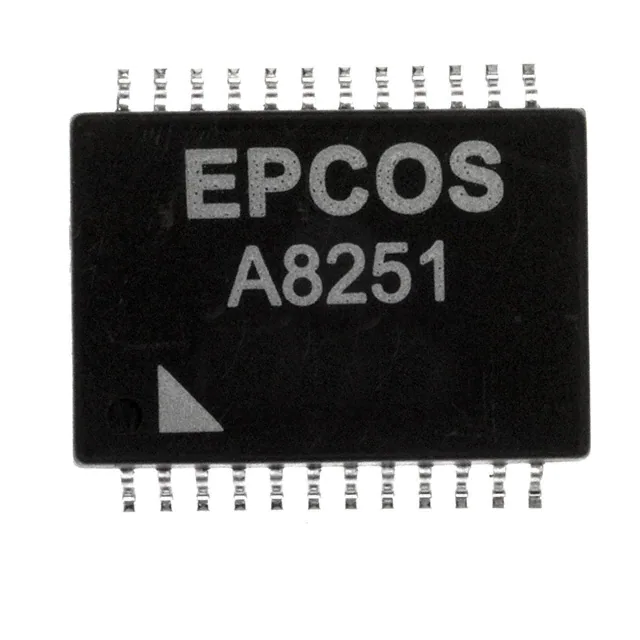

B78476A8251A003 PULSE XFMR 1CT:1CT 350UH EPCOS - TDK Electronics	2267	5.18	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.693 L x 0.476 W (17.60mm x 12.10mm)	0.230 (5.85mm)

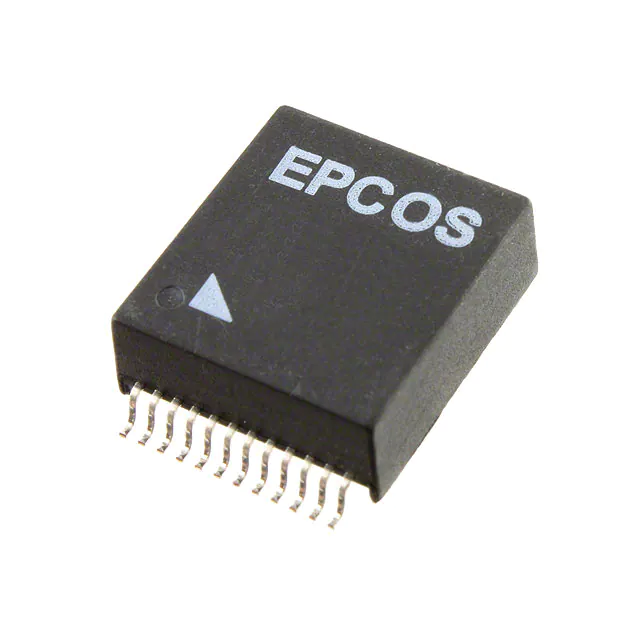

B78476A8135A003 PULSE XFMR 1CT:1CT 350UH EPCOS - TDK Electronics	4462	5.18	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.543 L x 0.598 W (13.80mm x 15.20mm)	0.226 (5.75mm)

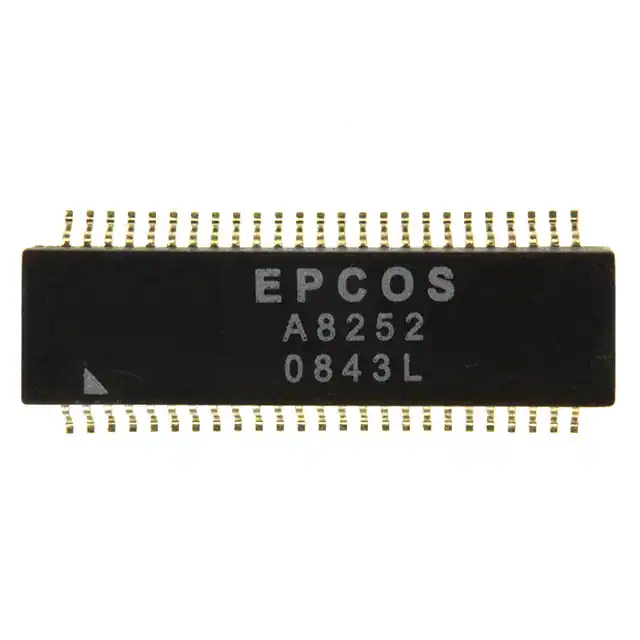

B78476A8252A003 PULSE XFMR 1CT:1CT 350UH EPCOS - TDK Electronics	638	6.74	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT	Surface Mount	1.090 L x 0.287 W (27.69mm x 7.29mm)	0.341 (8.66mm)
B82804A0694A115 PULSE XFMR 1.5:1 690UH EPCOS - TDK Electronics	5781	4.52	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP5	Active	Gate Drive	690µH	40.8VµS	1.5:1	Surface Mount	0.264 L x 0.240 W (6.70mm x 6.10mm)	0.213 (5.40mm)
B82804A0324A220 PULSE XFMR 2:1:1 317UH EPCOS - TDK Electronics	1100	4.52	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP5	Active	Gate Drive	317µH	24.5VµS	2:1:1	Surface Mount	0.264 L x 0.240 W (6.70mm x 6.10mm)	0.213 (5.40mm)
B78416A2430A003 P301598 EP6 SMD TRANSFORMER EPCOS - TDK Electronics	4903	5.13	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B7416A	Active	-	4.2mH	-	1:1:15	Through Hole	0.260 L x 0.260 W (6.60mm x 6.60mm)	0.280 (7.10mm)
B78416A2433A003 P100953 EP6 SMD TRANSFORMER EPCOS - TDK Electronics	4918	5.13	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B7416A	Active	-	5mH	-	1:1:10.1	Through Hole	0.260 L x 0.260 W (6.60mm x 6.60mm)	0.280 (7.10mm)
B82804A0304A225 PULSE XFMR 2.5:1:1 300UH EPCOS - TDK Electronics	347	4.52	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EP5	Active	Gate Drive	300µH	23.8VµS	2.5:1:1	Surface Mount	0.264 L x 0.240 W (6.70mm x 6.10mm)	0.213 (5.40mm)

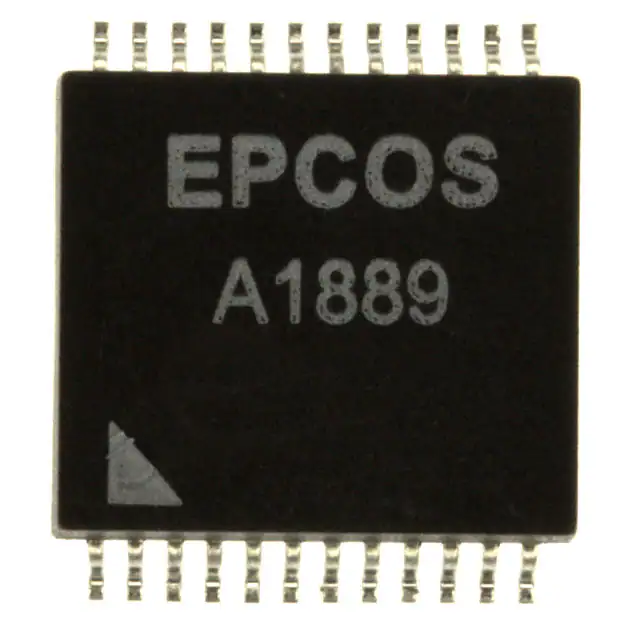

B78476A1889A003 MODULE MAGNETIC LAN 2-PORT SMD EPCOS - TDK Electronics	754	5.21	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN	-	-	-	Surface Mount	0.537 L x 0.470 W (13.64mm x 11.94mm)	0.255 (6.47mm)

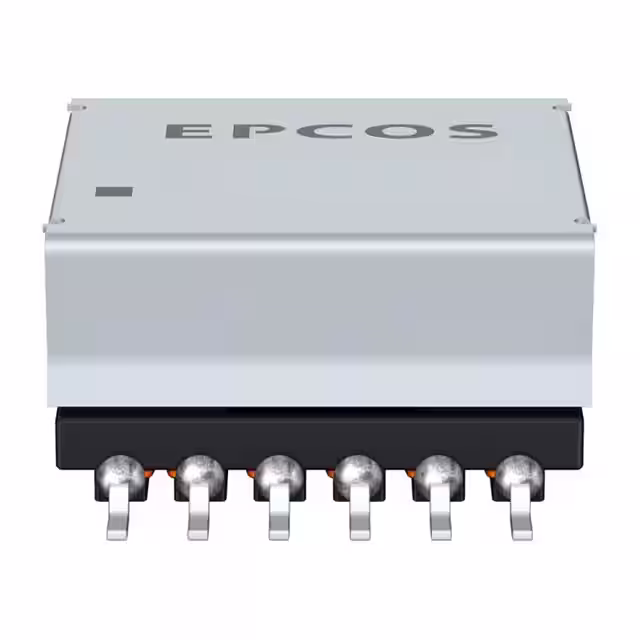

B82806D0060A050 P300869 EFD20 POE TRANSFORMER EPCOS - TDK Electronics	138	6.13	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82806D	Active	-	-	-	-	Surface Mount	0.866 L x 1.181 W (22.00mm x 30.00mm)	-
B82806D0060A033 P300868 EFD20 POE TRANSFORMER EPCOS - TDK Electronics	3617	6.13	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82806D	Active	-	-	-	-	Surface Mount	0.866 L x 1.181 W (22.00mm x 30.00mm)	-
B82806D0060A120 P300870 EFD20 POE TRANSFORMER EPCOS - TDK Electronics	3834	6.13	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	B82806D	Active	-	-	-	-	Surface Mount	0.866 L x 1.181 W (22.00mm x 30.00mm)	-

Total 33 Records«Prev12 Next»
