Results:

Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

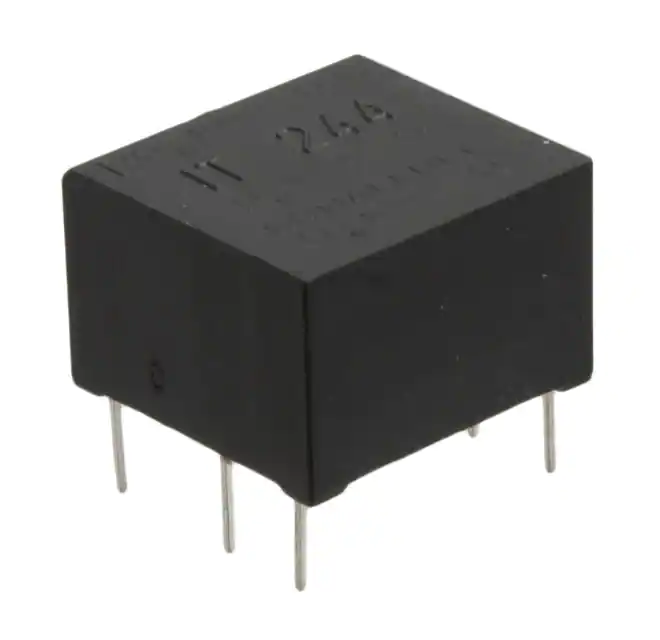

IT255 XFRMR PULSE 1:1 SGL 2.2MH .25A Schaffner EMC Inc.	3975	7.12	- + Add To Cart Inquiry Now	Datasheet	Tray	IT	Active	Data/Voice Coupling	2.2mH	-	1:1	Through Hole	0.693 L x 0.657 W (17.60mm x 16.70mm)	0.445 (11.30mm)
IT258 XFRMR PULSE 1:1 SGL 2.5MH 1A Schaffner EMC Inc.	3029	10.82	- + Add To Cart Inquiry Now	Datasheet	Tray	IT	Active	Data/Voice Coupling	2.5mH	-	1:1	Through Hole	0.693 L x 0.657 W (17.60mm x 16.70mm)	0.445 (11.30mm)
IT260 XFRMR PULSE 3:1 SGL 12MH .1A Schaffner EMC Inc.	1990	11.70	- + Add To Cart Inquiry Now	Datasheet	Tray	IT	Active	Data/Voice Coupling	12mH	-	3:1	Through Hole	0.693 L x 0.657 W (17.60mm x 16.70mm)	0.445 (11.30mm)
IT245 XFRMR PULSE 1:1 SGL 8MH .1A Schaffner EMC Inc.	326	6.84	- + Add To Cart Inquiry Now	Datasheet	Tray	IT	Active	Data/Voice Coupling	8mH	-	1:1	Through Hole	0.693 L x 0.657 W (17.60mm x 16.70mm)	0.445 (11.30mm)
IT249 XFRMR PULSE 2:1:1 DL 17MH .25A Schaffner EMC Inc.	1008	7.37	- + Add To Cart Inquiry Now	Datasheet	Tray	IT	Active	Data/Voice Coupling	17mH	-	2:1:1	Through Hole	0.693 L x 0.657 W (17.60mm x 16.70mm)	0.445 (11.30mm)
IT248 XFRMR PULSE 2:1 SGL 17MH .25A Schaffner EMC Inc.	152	7.50	- + Add To Cart Inquiry Now	Datasheet	Tray	IT	Active	Data/Voice Coupling	17mH	-	2:1	Through Hole	0.693 L x 0.657 W (17.60mm x 16.70mm)	0.445 (11.30mm)

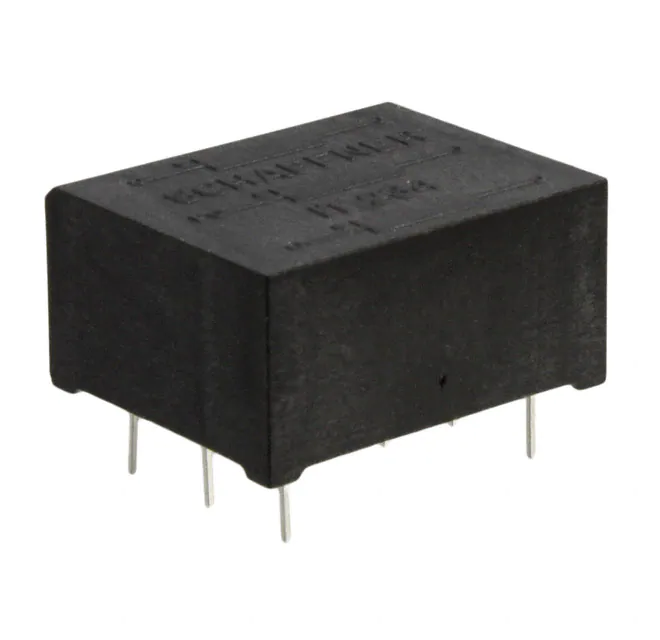

IT239 XFRMR PULSE 1:1 SGL 3MH .25A Schaffner EMC Inc.	625	11.60	- + Add To Cart Inquiry Now	Datasheet	Tray	IT	Active	Data/Voice Coupling	3mH	-	1:1	Through Hole	1.063 L x 0.886 W (27.00mm x 22.50mm)	-
IT246 XFRMR PULSE 2:1 SGL 7MH .1A Schaffner EMC Inc.	939	7.21	- + Add To Cart Inquiry Now	Datasheet	Tray	IT	Active	Data/Voice Coupling	7mH	-	2:1	Through Hole	0.693 L x 0.657 W (17.60mm x 16.70mm)	0.445 (11.30mm)

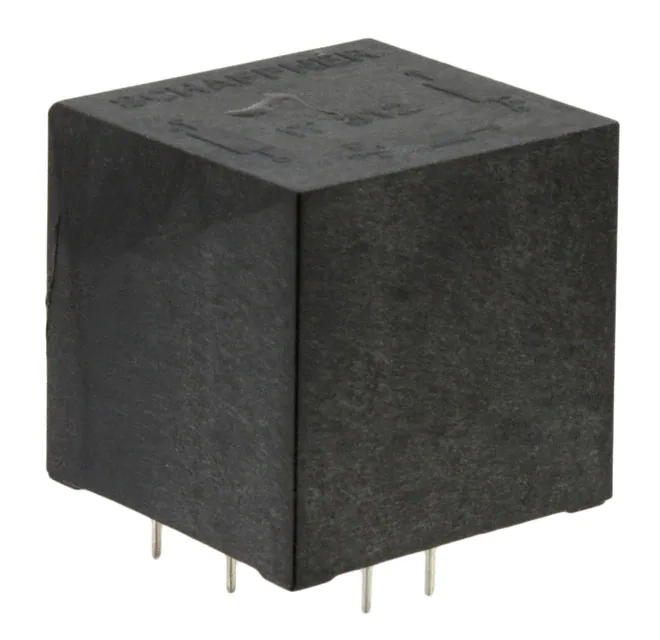

IT313 XFRMR PULSE 1:1:1 DL 3MH 1A Schaffner EMC Inc.	409	17.05	- + Add To Cart Inquiry Now	Datasheet	Tray	IT	Active	Data/Voice Coupling	3mH	-	1:1:1	Through Hole	1.004 L x 1.004 W (25.50mm x 25.50mm)	0.992 (25.20mm)
IT244 XFRMR PULSE 3:1:1 DL 15MH .1A Schaffner EMC Inc.	1756	7.17	- + Add To Cart Inquiry Now	Datasheet	Tray	IT	Active	Data/Voice Coupling	15mH	-	3:1:1	Through Hole	0.693 L x 0.657 W (17.60mm x 16.70mm)	0.445 (11.30mm)
IT253 XFRMR PULSE 1:1:1 DL 1.1MH .25A Schaffner EMC Inc.	397	7.27	- + Add To Cart Inquiry Now	Datasheet	Tray	IT	Active	Data/Voice Coupling	1.1mH	-	1:1:1	Through Hole	0.693 L x 0.657 W (17.60mm x 16.70mm)	0.445 (11.30mm)
IT233 XFRMR PULSE 1:1:1 DL 3MH .25A Schaffner EMC Inc.	268	9.21	- + Add To Cart Inquiry Now	Datasheet	Tray	IT	Active	Data/Voice Coupling	3mH	-	1:1:1	Through Hole	1.063 L x 0.886 W (27.00mm x 22.50mm)	-
IT143 XFRMR PULSE 1:1:1 DL 15MH .025A Schaffner EMC Inc.	100	10.16	- + Add To Cart Inquiry Now	Datasheet	Tray	IT	Active	Data/Voice Coupling	15mH	-	1:1:1	Through Hole	1.063 L x 0.886 W (27.00mm x 22.50mm)	-
IT237 XFRMR PULSE 1:1 SGL 25MH .25A Schaffner EMC Inc.	108	12.11	- + Add To Cart Inquiry Now	Datasheet	Tray	IT	Active	Data/Voice Coupling	25mH	-	1:1	Through Hole	1.063 L x 0.886 W (27.00mm x 22.50mm)	-
IT314 XFRMR PULSE 3:1:1 DUAL 35MH 1A Schaffner EMC Inc.	130	18.09	- + Add To Cart Inquiry Now	Datasheet	Tray	IT	Active	Data/Voice Coupling	35mH	-	3:1:1	Through Hole	1.004 L x 1.004 W (25.50mm x 25.50mm)	0.992 (25.20mm)

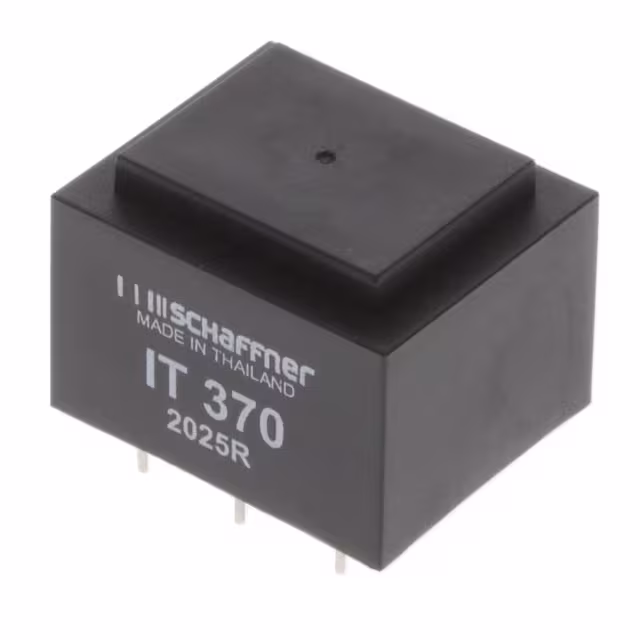

IT370 XFRMR PULSE 1:1 SINGLE 0.3MH 1A Schaffner EMC Inc.	749	26.24	- + Add To Cart Inquiry Now	Datasheet	Tray	IT	Active	Data/Voice Coupling	300µH	-	1:1	Through Hole	1.063 L x 1.268 W (27.00mm x 32.20mm)	0.933 (23.70mm)
IT234 XFRMR PULSE 3:1:1 DL 17MH .25A Schaffner EMC Inc.	306	9.87	- + Add To Cart Inquiry Now	Datasheet	Tray	IT	Active	Data/Voice Coupling	17mH	-	3:1:1	Through Hole	1.063 L x 0.886 W (27.00mm x 22.50mm)	-
IT242 XFRMR PULSE 1:1:1 DL 2.5MH .1A Schaffner EMC Inc.	2073	7.12	- + Add To Cart Inquiry Now	Datasheet	Tray	IT	Active	Data/Voice Coupling	2.5mH	-	1:1:1	Through Hole	0.693 L x 0.657 W (17.60mm x 16.70mm)	0.445 (11.30mm)

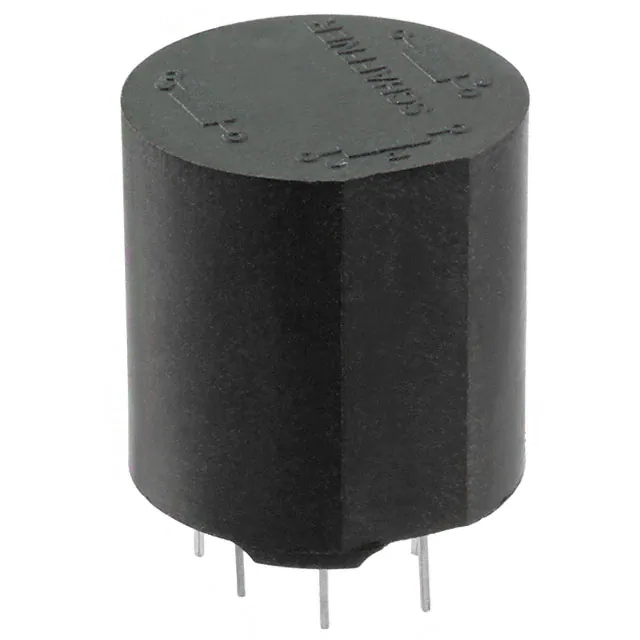

IT213 XFRMR PULSE 1:1:1 DL 6.5MH .25A Schaffner EMC Inc.	138	16.62	- + Add To Cart Inquiry Now	Datasheet	Tray	IT	Active	Data/Voice Coupling	6.5mH	-	1:1:1	Through Hole	0.748 Dia (19.00mm)	0.787 (20.00mm)
IT312 XFRMR PULSE 1:1:1 DL 21MH .25A Schaffner EMC Inc.	193	18.09	- + Add To Cart Inquiry Now	Datasheet	Tray	IT	Active	Data/Voice Coupling	21mH	-	1:1:1	Through Hole	1.004 L x 1.004 W (25.50mm x 25.50mm)	0.992 (25.20mm)

Total 26 Records«Prev12 Next»
