Mfr. Part #	Stock	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	LogicType	NumberofCircuits	NumberofInputs	Features	Voltage-Supply	Current-Quiescent(Max)	Current-OutputHighLow	LogicLevel-Low	LogicLevel-High	MaxPropagationDelay@VMaxCL	OperatingTemperature	MountingType
74AHC1G14SE-7 IC INVERT SCHMITT 1CH 1IN SOT353 Diodes Incorporated	127090	0.29	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AHC	Active	Inverter	1	1	Schmitt Trigger	2V ~ 5.5V	1 µA	8mA, 8mA	0.9V ~ 1.65V	2.2V ~ 3.85V	10.6ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74AHCT1G32SE-7 IC GATE OR 1CH 2-INP SOT353 Diodes Incorporated	9363	0.27	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AHCT	Active	OR Gate	1	2	-	4.5V ~ 5.5V	1 µA	8mA, 8mA	0.8V	2V	7.9ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74LVC1G04SE-7 IC INVERTER 1CH 1-INP SOT353 Diodes Incorporated	2561	0.29	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LVC	Active	Inverter	1	1	-	1.65V ~ 5.5V	200 µA	32mA, 32mA	0.7V ~ 0.8V	1.7V ~ 2V	5ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74AHCT1G04W5-7 IC INVERTER 1CH 1-INP SOT25 Diodes Incorporated	51453	0.32	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AHCT	Active	Inverter	1	1	-	4.5V ~ 5.5V	1 µA	8mA, 8mA	0.8V	2V	7.7ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74AHC1G04W5-7 IC INVERTER 1CH 1-INP SOT25 Diodes Incorporated	29233	0.33	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AHC	Active	Inverter	1	1	-	2V ~ 5.5V	1 µA	8mA, 8mA	0.5V ~ 1.65V	1.5V ~ 3.85V	7.5ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74AHC1G32W5-7 IC GATE OR 1CH 2-INP SOT25 Diodes Incorporated	14794	0.33	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AHC	Active	OR Gate	1	2	-	2V ~ 5.5V	1 µA	8mA, 8mA	0.5V ~ 1.65V	1.5V ~ 3.85V	7.5ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74AHC1G04SE-7 IC INVERTER 1CH 1-INP SOT353 Diodes Incorporated	16595	0.33	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AHC	Active	Inverter	1	1	-	2V ~ 5.5V	1 µA	8mA, 8mA	0.5V ~ 1.65V	1.5V ~ 3.85V	7.5ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74AHC1G14W5-7 IC INVERT SCHMITT 1CH 1-IN SOT25 Diodes Incorporated	25556	0.35	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AHC	Active	Inverter	1	1	Schmitt Trigger	2V ~ 5.5V	1 µA	8mA, 8mA	0.9V ~ 1.65V	2.2V ~ 3.85V	10.6ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74AHC1G08W5-7 IC GATE AND 1CH 2-INP SOT25 Diodes Incorporated	7996	0.36	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74AHC	Active	AND Gate	1	2	-	2V ~ 5.5V	1 µA	8mA, 8mA	0.5V ~ 1.65V	1.5V ~ 3.85V	7.9ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74LVC1G00W5-7 IC GATE NAND 1CH 2-INP SOT25 Diodes Incorporated	10090	0.37	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LVC	Active	NAND Gate	1	2	-	1.65V ~ 5.5V	200 µA	32mA, 32mA	0.7V ~ 0.8V	1.7V ~ 2V	4ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74LVC1G08W5-7 IC GATE AND 1CH 2-INP SOT25 Diodes Incorporated	3081	0.37	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LVC	Active	AND Gate	1	2	-	1.65V ~ 5.5V	200 µA	32mA, 32mA	0.7V ~ 0.8V	1.7V ~ 2V	1.7ns @ 5V, 50pF	-40°C ~ 125°C (TA)	Surface Mount
74LVC1G00QW5-7 IC GATE NAND 1CH 2-INP SOT25 Diodes Incorporated	17993	0.39	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q100, 74LVC	Active	NAND Gate	1	2	-	1.65V ~ 5.5V	4 µA	32mA, 32mA	0.7V ~ 0.8V	1.7V ~ 2V	5.5ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74LVC1G86W5-7 IC GATE XOR 1CH 2-INP SOT25 Diodes Incorporated	11902	0.40	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LVC	Active	XOR (Exclusive OR)	1	2	-	1.65V ~ 5.5V	200 µA	32mA, 32mA	0.7V ~ 0.8V	1.7V ~ 2V	4ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74LVC1G06QW5-7 IC INVERT OD 1CH 1IN SOT25 TR/3K Diodes Incorporated	5909	0.41	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q100, 74LVC	Active	Inverter	1	1	Open Drain	1.65V ~ 5.5V	4 µA	32mA	0.7V ~ 0.8V	1.7V ~ 2V	4ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74AHC1G09QW5-7 IC GATE AND 1CH 2-INP SOT25 Diodes Incorporated	5953	0.42	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q100, 74AHC	Active	AND Gate	1	2	-	2V ~ 5.5V	1 µA	8mA, 8mA	0.5V ~ 1.65V	1.5V ~ 3.85V	7.5ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount

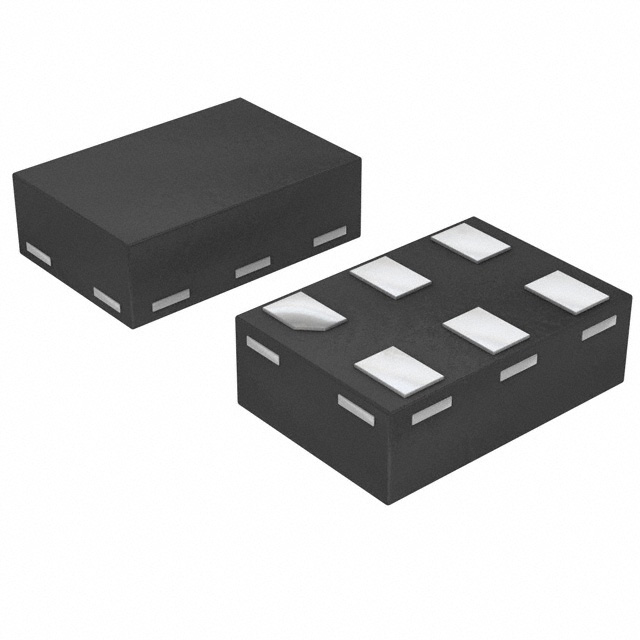

74LVC1G08FW5-7 IC GATE AND 1CH 2-INP DFN1010-6 Diodes Incorporated	36719	0.39	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LVC	Active	AND Gate	1	2	-	1.65V ~ 5.5V	200 µA	32mA, 32mA	0.7V ~ 0.8V	1.7V ~ 2V	5.5ns @ 5V, 50pF	-40°C ~ 125°C (TA)	Surface Mount

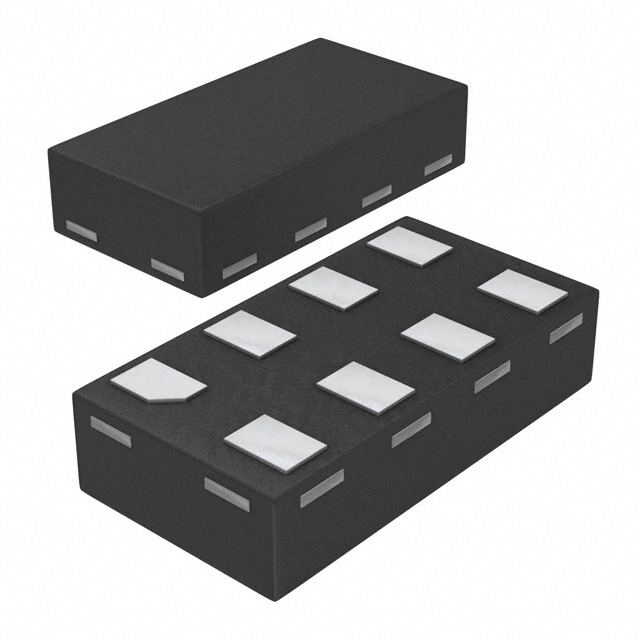

74LVC2G02HD4-7 IC GATE NOR 2CH 2-INP DFN2010-8 Diodes Incorporated	7741	0.50	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LVC	Active	NOR Gate	2	2	-	1.65V ~ 5.5V	40 µA	32mA, 32mA	-	-	5.5ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74LVC1G04Z-7 IC INVERTER 1CH 1-INP SOT553 Diodes Incorporated	183059	0.39	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LVC	Active	Inverter	1	1	-	1.65V ~ 5.5V	200 µA	32mA, 32mA	0.7V ~ 0.8V	1.7V ~ 2V	1.6ns @ 5V, 50pF	-40°C ~ 125°C	Surface Mount
74LVC1G08FZ4-7 IC GATE AND 1CH 2-INP DFN1410-6 Diodes Incorporated	143066	0.45	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	74LVC	Active	AND Gate	1	2	-	1.65V ~ 5.5V	200 µA	32mA, 32mA	0.7V ~ 0.8V	1.7V ~ 2V	5.5ns @ 5V, 50pF	-40°C ~ 125°C (TA)	Surface Mount
74LVC1G32QSE-7 IC GATE OR 1CH 2-INP SOT353 Diodes Incorporated	26957	0.45	- + Add To Cart Inquiry Now	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q100, 74LVC	Active	OR Gate	1	2	-	1.65V ~ 5.5V	4 µA	32mA, 32mA	0.7V ~ 0.8V	0.95V ~ 3.4V	5.5ns @ 5V, 50pF	-40°C ~ 125°C (TA)	Surface Mount
