As technology advances, the need for more efficient energy use becomes crucial. Power Schottky rectifiers, such as the STPSC2H12D, play a significant role in ensuring efficient energy use and conservation. This blog post is all about the STPSC2H12D Power Schottky rectifier, what it is, how it works, and its applications.

Understanding Power Schottky Rectifiers

A power Schottky rectifier is a type of diode that is designed to reduce power losses. It works by using a metal-semiconductor junction to alter the way a diode behaves. The power Schottky rectifier can handle higher frequency and has lower forward voltage drop in comparison to the regular diode.

The STPSC2H12D Power Schottky Rectifier

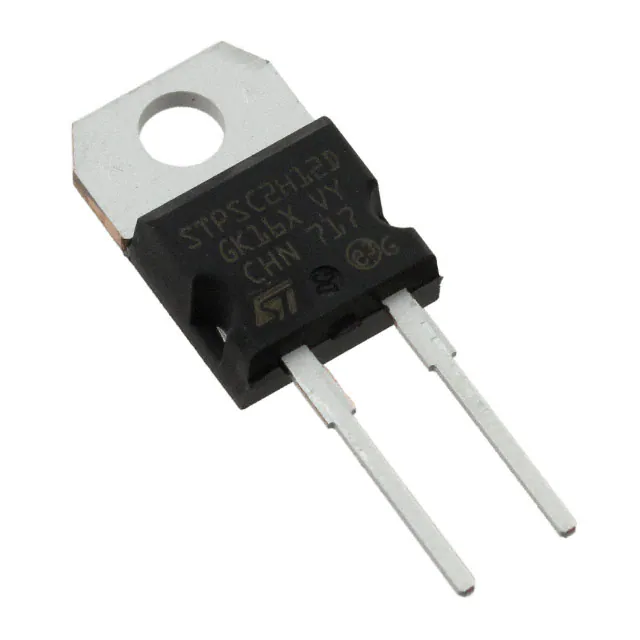

The STPSC2H12D Power Schottky Rectifier is a product of STMicroelectronics, a global leader in microelectronic solutions. The STPSC2H12D is a Power Schottky rectifier that is designed to work efficiently with power factor correction circuitry. It comes in a compact TO-220 package making it suitable for applications that have limited board space.

Features of the STPSC2H12D Power Schottky Rectifier

High-temperature performance

Good thermal stability

Low forward voltage drop (typical for Schottky)

High-frequency operation (up to 100kHz)

Avalanche rated

RoHS compliant

Electrical Characteristics of the STPSC2H12D Power Schottky Rectifier

Maximum repetitive reverse voltage - 1200 V

Maximum average forward rectified current - 2 A

Maximum peak forward surge current - 30 A

Maximum junction capacitance - 170 pF

Operating junction temperature range - -40°C to +175°C

How the STPSC2H12D Power Schottky Rectifier Works

A Schottky diode is a unipolar device that works by simply blocking current flow in one direction. This is done by ensuring that the metal layer has a lower work function than the semiconductor layer. The STPSC2H12D utilizes the same principle to achieve low forward voltage drop. The metal-semiconductor junction of the STPSC2H12D is optimized to ensure that it operates efficiently even at high temperatures.

When reverse-biased, the rectifier operates as an ordinary diode with very low leakage current, making it useful for various applications. The STPSC2H12D rectifier can handle reverse voltage up to 1200V, making it suitable for high voltage application circuits.

Applications of the STPSC2H12D Power Schottky Rectifier

The STPSC2H12D Power Schottky Rectifier has several applications, including:

Power Factor Correction (PFC)

STPSC2H12D Power Schottky Rectifier's high-frequency operation makes it suitable for PFC applications. Power factor correction is essential for managing energy consumption in electrical systems.

Solar Inverters

Solar inverters are an essential component of solar power systems. The STPSC2H12D Power Schottky Rectifier’s ability to handle high-frequency operation and high-temperature performance makes it a suitable choice for solar inverter applications.

Switching Power Supplies

Switching power supplies require the use of a rectifier that can handle high frequency, and the STPSC2H12D Power Schottky Rectifier is an excellent choice for these applications.

Advantages of the STPSC2H12D Power Schottky Rectifier

Low forward voltage drop

High-frequency operation

High-temperature performance

Reduced power losses

Avalanche rated

RoHS compliant

Conclusion

The STPSC2H12D Power Schottky Rectifier is an excellent option for applications that require high frequency, high-temperature performance, and low power losses. Its compact size and RoHS compliance make it an eco-friendly option for power systems. The STPSC2H12D provides a solution for energy-efficient applications, and its ability to handle high frequencies and high temperatures gives it an edge over traditional diodes.

With the STPSC2H12D, power systems can operate more efficiently and help reduce energy consumption.
