Introduction:\

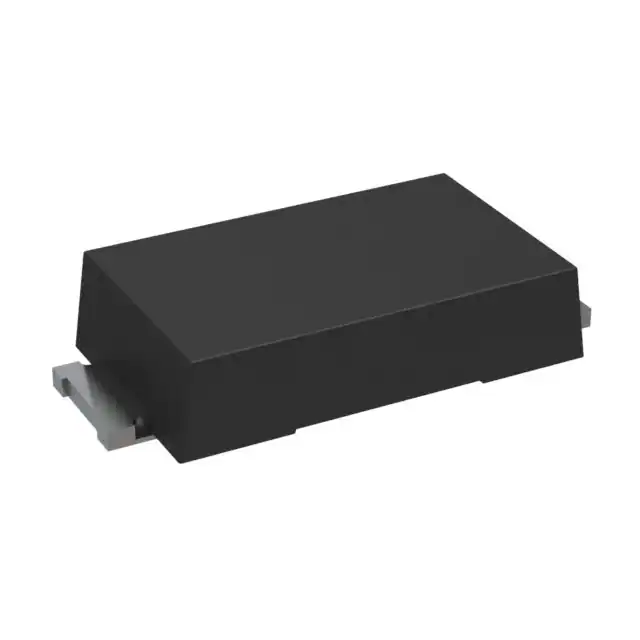

The STPS2L60AFN is a high-performance Schottky rectifier with a forward voltage drop as low as 0.57V at 1A. This rectifier is known for its exceptional efficiency, low power loss, and high surge current capability, making it a popular choice for various applications. In this blog post, we will delve into the features, specifications, and benefits of the STPS2L60AFN, and explore how it can enhance the performance of electronic systems.

1. Understanding the STPS2L60AFN:\

The STPS2L60AFN is a dual Schottky rectifier designed for use in applications where low voltage drop and high current handling capabilities are critical. It offers a maximum average forward current of 2x3A and a peak non-repetitive surge current of 2x50A, ensuring reliable and efficient power delivery. With its low forward voltage drop, this rectifier minimizes power losses, leading to increased system efficiency.

2. Advanced Features and Specifications:\

The STPS2L60AFN comes with several advanced features that contribute to its superior performance. These include low leakage current, fast reverse recovery time, and a high junction temperature of up to 150°C. Additionally, it has a high mechanical robustness, making it suitable for various industrial and automotive applications. The rectifier is RoHS compliant, ensuring it meets environmental regulations.

3. Applications of the STPS2L60AFN:\

Due to its exceptional power characteristics, the STPS2L60AFN finds use in a wide range of electronic systems. Some notable applications include:

a) Power Supplies: The rectifier's low voltage drop and high surge current capability make it an ideal choice for power supplies, helping to minimize energy losses and improve efficiency.

b) Motor Control: In motor control circuits, the STPS2L60AFN helps regulate the flow of power to the motor, ensuring efficient operation and protecting against surge currents.

c) Automotive Systems: With its high temperature tolerance and mechanical robustness, the rectifier is well-suited for use in automotive applications, such as engine control units, lighting systems, and power distribution modules.

d) Solar Energy Systems: The STPS2L60AFN's low forward voltage drop enhances the efficiency of solar energy systems, allowing for more efficient power conversion and utilization.

4. Benefits of the STPS2L60AFN:\

Choosing the STPS2L60AFN for your electronic system offers several benefits:

a) Improved Efficiency: By minimizing voltage drop and power losses, the rectifier enhances overall system efficiency, leading to energy savings.

b) Enhanced Reliability: The rectifier's low leakage current and fast reverse recovery time contribute to a more reliable system operation, reducing the risk of faults or failures.

c) Compact Design: With its high surge current capability, the rectifier allows for the design of more compact systems, as it can handle peak power demands efficiently.

d) Cost Savings: By improving system efficiency, the STPS2L60AFN can lead to cost savings in terms of reduced power consumption and longer-lasting electronic components.

5. Conclusion:\

The STPS2L60AFN is a high-performance Schottky rectifier that offers exceptional efficiency, low power loss, and high surge current capability. Its advanced features and specifications make it a popular choice for various applications, including power supplies, motor control, automotive systems, and solar energy systems. By choosing this rectifier, you can improve the performance, reliability, and efficiency of your electronic systems, leading to potential cost savings and enhanced overall functionality.
