Getting Started with the STM32L4R9ZIY6PTR Microcontroller: Features and Applications

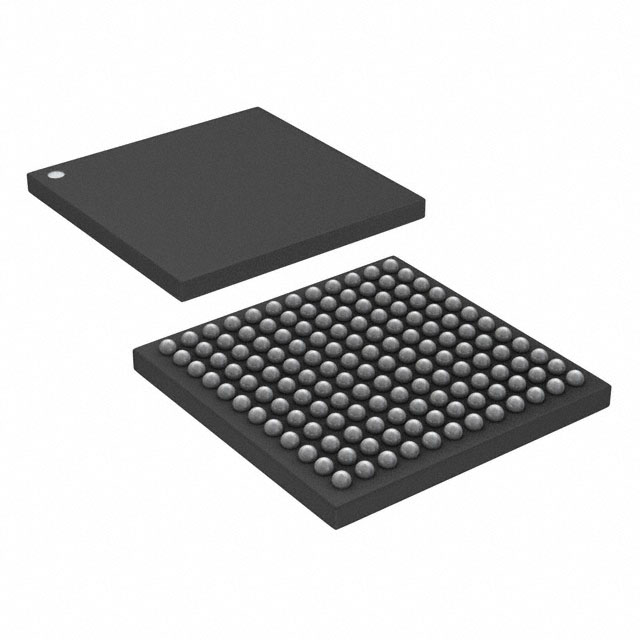

The STM32L4R9ZIY6PTR is a high-performance microcontroller unit (MCU) produced by STMicroelectronics. It offers advanced features and greater performance than its predecessors and is a popular choice for various applications such as smart home automation systems, medical devices, and industrial control systems.

In this blog post, we will discuss the key features of the STM32L4R9ZIY6PTR MCU and explore its potential applications.

Features of STM32L4R9ZIY6PTR Microcontroller

1. Power Efficiency: The STM32L4R9ZIY6PTR MCU is designed to be power-efficient, making it an excellent choice for battery-operated devices. It features a low-power mode that reduces the power consumption to as low as 27 nA.

2. High-performance: The STM32L4R9ZIY6PTR MCU features a 120 MHz Arm? Cortex?-M4 core with a floating-point unit (FPU). This makes it an ideal choice for applications that require high-speed processing, such as audio and graphic processing.

3. Memory: The MCU comes equipped with 2 MB of flash memory, making it suitable for applications that require significant storage. It also features 640 KB of SRAM, which provides high-performance data processing.

4. Security: The STM32L4R9ZIY6PTR includes a range of security measures, such as a Secure Firmware Install (SFI) feature and Secure Bootloader (SB). These features make the MCU an excellent choice for applications that require a high level of security, such as medical devices or payment systems.

5. Connectivity: The STM32L4R9ZIY6PTR MCU includes various connectivity options, such as USB 2.0 full-speed interface and Ethernet MAC 10/100.

Applications of the STM32L4R9ZIY6PTR Microcontroller

1. Smart Home Automation: The STM32L4R9ZIY6PTR MCU is an excellent choice for smart home automation systems. It enables the seamless integration of various sensors, switching devices, and smart appliances. The MCU's low power consumption also ensures that the smart home automation system can run for extended periods without the need for frequent battery replacement.

2. Medical Devices: The STM32L4R9ZIY6PTR MCU is an ideal choice for medical devices, thanks to its advanced security features. It enables the secure processing of sensitive patient data and ensures that patient data remains confidential. Additionally, the MCU's high-performance processing capabilities enable real-time processing of medical data, allowing for accurate diagnosis and treatment.

3. Industrial Control Systems: The STM32L4R9ZIY6PTR MCU is also an excellent choice for industrial control systems. It enables the seamless integration of various sensors and control devices, enabling efficient monitoring and control of industrial processes.

Getting Started with the STM32L4R9ZIY6PTR Microcontroller

Getting started with the STM32L4R9ZIY6PTR MCU is relatively easy. STMicroelectronics provides an STM32L4R9I-DISCO discovery kit, which includes all the necessary tools and software to help developers get started.

The kit includes an STM32L4R9I Discovery board, which features the STM32L4R9ZIY6PTR MCU. It also includes an on-board ST-LINK/V2-1 debugger and programmer that enables the full debugging and programming capabilities of the platform.

Developers can also leverage the STM32CubeMX graphical software configuration tool, which enables hassle-free configuration of the STM32L4R9ZIY6PTR's peripherals and pin assignments.

In addition to the discovery kit, STMicroelectronics provides a range of resources such as user manuals, application notes, and software examples, which enable developers to get up and running with the platform quickly.

In conclusion, the STM32L4R9ZIY6PTR MCU is an excellent choice for developers who seek a high performance and secure microcontroller unit for a wide range of applications. This post has highlighted its key features, applications, and provided resources for getting started with the platform.
