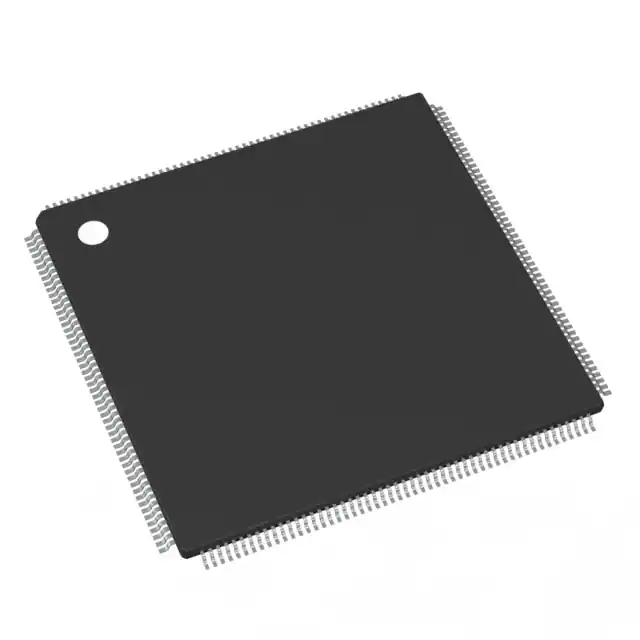

Exploring the STM32H747BGT6: The Power-Packed Microcontroller for Next-Generation Applications

Introduction:

In today's rapidly evolving technological landscape, microcontrollers play a pivotal role in enabling innovative and sophisticated solutions. The STM32H747BGT6 is one such remarkable microcontroller that offers a unique blend of performance, versatility, and advanced features. This blog post aims to explore the capabilities and potential applications of the STM32H747BGT6, shedding light on why it is an exceptional choice for next-generation projects.

I. Overview and Key Features of the STM32H747BGT6 (150 words)

The STM32H747BGT6 belongs to the STM32H7 series of microcontrollers, designed and manufactured by STMicroelectronics. This microcontroller is based on the high-performance Cortex-M7 core, which operates at a frequency of up to 480 MHz. It also integrates a Cortex-M4 core, which manages low-power tasks, making it a dual-core powerhouse.

Some of the key features of the STM32H747BGT6 include:

1. Abundant Memory Options: With up to 2MB of Flash memory and 1MB of RAM, the STM32H747BGT6 provides ample space for storing and executing complex applications.

2. Rich Peripherals: The microcontroller incorporates a wide range of peripherals, including USB, UART, SPI, I2C, CAN, Ethernet, and more, allowing seamless connectivity and communication with various external devices.

3. Advanced Graphics Capabilities: The STM32H747BGT6 features a high-resolution TFT LCD controller, allowing the creation of vibrant user interfaces and graphical displays.

4. Secure Boot and Cryptography: Built-in security features like secure boot and hardware cryptographic accelerators enable robust protection of firmware and sensitive data.

II. Performance and Efficiency (250 words)

The STM32H747BGT6 not only offers impressive performance but also demonstrates exceptional energy efficiency. The Cortex-M7 core utilizes an advanced superscalar architecture with a branch prediction unit, enabling efficient code execution. This microcontroller also incorporates specific power-saving modes, such as Sleep, Stop, Standby, and VBAT, to minimize power consumption during idle periods.

Additionally, the STM32H747BGT6 includes various hardware accelerators that significantly enhance performance in specific tasks. For example, the integrated Chrom-ART Accelerator efficiently handles graphic operations, offloading the main CPU and ensuring smooth real-time rendering.

III. Application Areas and Use Cases (400 words)

The STM32H747BGT6's exceptional capabilities make it well-suited for a wide range of applications in diverse industries. Some notable use cases include:

1. Internet of Things (IoT): The STM32H747BGT6's robust connectivity options, combined with its low power consumption, make it an ideal choice for developing IoT devices. It can efficiently manage multiple sensors, drive wireless communication protocols, and support cloud connectivity, contributing to the growth of smart home automation, industrial automation, and smart agriculture.

2. Industrial Automation: The microcontroller's high-performance computing capabilities and extensive peripheral support make it suitable for industrial automation systems. It can handle precise control tasks, communicate with various sensors and actuators, and support real-time data processing, enabling seamless implementation of advanced control algorithms.

3. Automotive Applications: The STM32H747BGT6's reliability, security features, and automotive-grade certifications make it suitable for automotive applications, including advanced driver-assistance systems (ADAS), in-vehicle infotainment systems, and electric vehicle control units (ECUs). Its rich connectivity options, such as Ethernet and CAN interfaces, facilitate seamless communication within the vehicle's network.

4. Consumer Electronics: With its advanced graphics capabilities, the STM32H747BGT6 is well-positioned for applications in consumer electronics. From smart appliances to portable devices and human-machine interfaces (HMIs), this microcontroller can power visually appealing and intuitive user interfaces.

IV. Development Tools and Ecosystem (200 words)

To facilitate easy development with the STM32H747BGT6, STMicroelectronics provides a comprehensive suite of development tools and resources. The STM32Cube ecosystem offers a software development framework, including middleware, libraries, and code examples, streamlining application development. Additionally, STMicroelectronics' integrated development environments (IDEs) like STM32CubeIDE and STM32CubeMX simplify the configuration, debugging, and programming of the microcontroller.

Moreover, the STM32H747BGT6 is compatible with various third-party development tools and IDEs, providing developers with flexibility and freedom of choice.

Conclusion:

The STM32H747BGT6 is a powerful and versatile microcontroller that caters to the increasing demands of next-generation applications. Its exceptional performance, rich feature set, and low power consumption make it an ideal choice for IoT, industrial automation, automotive, and consumer electronics domains. With a robust development ecosystem and extensive connectivity options, developers can leverage the full potential of the STM32H747BGT6 to create innovative and cutting-edge solutions that will shape the future.
