If you're looking to upgrade your motor control system, you might want to consider STEVAL-IHM022V1. This evaluation board from STMicroelectronics promises a high level of performance and simplicity, whether you're working on a small appliance or a heavy-duty industrial machine. This blog post will provide a comprehensive guide to using STEVAL-IHM022V1, from setting it up to optimizing your control algorithms.

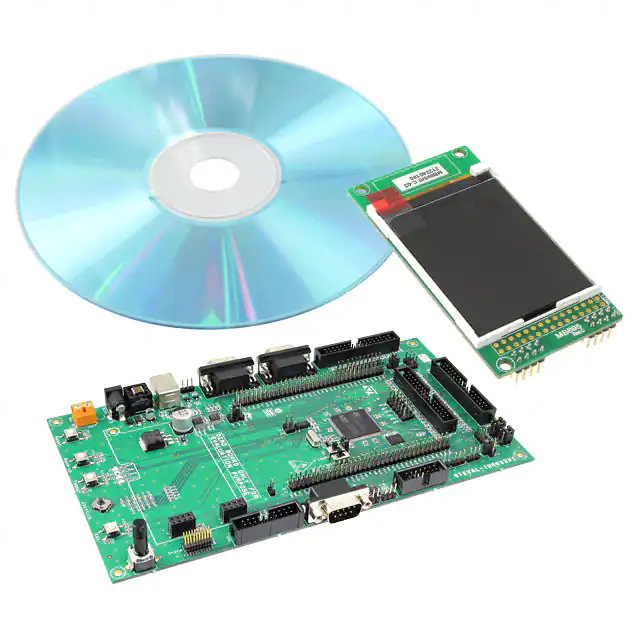

Overview of STEVAL-IHM022V1

Before delving into the nitty-gritty of STEVAL-IHM022V1, let's take a look at its key features. This evaluation board is designed to handle three-phase brushless DC (BLDC) and permanent-magnet synchronous (PMSM) motors, with a voltage range of 7V to 45V and a nominal current of 3A. Some of its main advantages include:

High performance: STEVAL-IHM022V1 incorporates STMicroelectronics' proprietary motor control algorithm, which maximizes efficiency and accuracy, while minimizing noise and vibration.

Easy customization: The board provides a variety of interfaces (e.g. USB, UART, SPI) and software development kits (SDKs) that allow you to tailor the control system to your specific needs.

Flexibility: STEVAL-IHM022V1 can be used with a wide range of applications, from household appliances to industrial machinery, thanks to its compatibility with various sensors and actuators.

Low cost: Despite its high level of performance, STEVAL-IHM022V1 is priced affordably, making it a great option for small businesses or hobbyists.

Overall, STEVAL-IHM022V1 packs a lot of power into a compact and user-friendly package. Let's see how you can start using it in your motor control system.

Setting up STEVAL-IHM022V1

First things first: you need to assemble and connect the board to your motor. STEVAL-IHM022V1 comes with a user manual that provides step-by-step instructions on how to do this, so make sure you consult it before proceeding. Here are some general tips to keep in mind:

Make sure you have all the necessary tools (e.g. screwdrivers, pliers, cables) before starting.

Double-check the polarity of your power supply and the motor connectors, to avoid damaging the board or the motor.

Test the connections with a multimeter, to ensure there are no short circuits or loose wires.

Connect the board to your PC with the USB cable provided, and install the relevant drivers.

Once you've set up the hardware and software, you're ready to move on to the next step: configuring the control parameters.

Configuring the Control Parameters

STEVAL-IHM022V1 includes two modes of operation: the field-oriented control (FOC) mode and the six-step commutation mode. The former is more advanced and provides better performance, while the latter is simpler and more suitable for low-power applications. For the purposes of this blog post, we'll focus on FOC.

FOC requires setting several parameters that determine the motor's behavior, such as the current limits, the speed reference, the PI gains, and the sensor configuration. These parameters can be set using the provided software tools, such as STMC Workbench or Motor Profiler, which allow you to visualize the motor's response in real-time and fine-tune the settings accordingly. Here are some guidelines for optimizing your control parameters with STEVAL-IHM022V1:

Start with the default settings provided by STMicroelectronics, and test the motor's performance in free and loaded conditions (e.g. no load, full load, reverse).

Measure the motor's parameters, such as the back-EMF constant, the phase resistance, and the inductance, and input them into the software.

Adjust the current limits to prevent overloading or overheating the motor or the board.

Tune the PI gains to achieve the desired response time, overshoot, and settling time, while minimizing the steady-state error.

Test the motor's performance under different load and speed conditions, and adjust the speed reference and the sensor configuration accordingly.

By following these steps, you can optimize the control parameters of your motor control system with STEVAL-IHM022V1, and achieve a high level of performance while minimizing cost and complexity.

Conclusion

STEVAL-IHM022V1 is a powerful and versatile evaluation board that can help you take your motor control system to the next level. By following the steps outlined in this blog post, you can set it up, configure it, and optimize it for your specific needs. Whether you're building a simple fan or a complex robotics system, STEVAL-IHM022V1 can provide the performance, flexibility, and affordability you need. So, why not give it a try?
