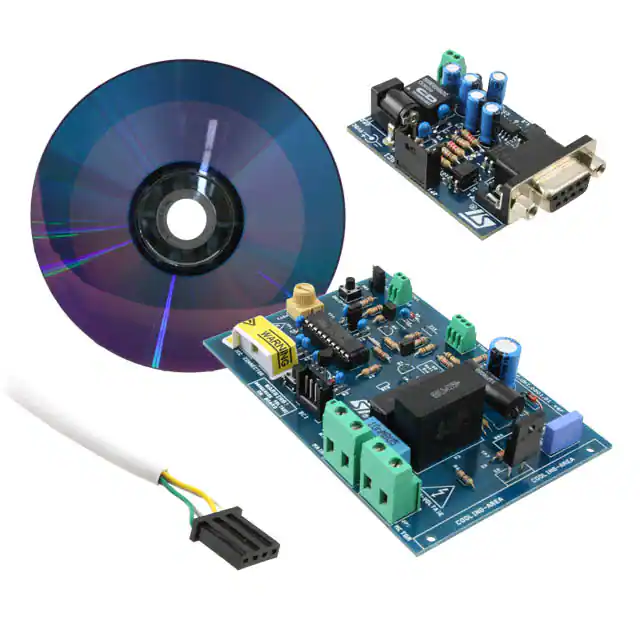

Exploring the STEVAL-IHM007V1: A Comprehensive Review of a Revolutionary Motor Driver

Introduction:\

The STEVAL-IHM007V1 is a cutting-edge motor driver developed by STMicroelectronics. Designed to deliver exceptional performance and versatility, this motor driver has gained significant attention in the industry due to its advanced features and capabilities. In this blog post, we will delve into the functionality, key features, and potential applications of the STEVAL-IHM007V1.

1. Introduction to the STEVAL-IHM007V1:\

The STEVAL-IHM007V1 is a motor driver module that incorporates the L6387E high and low-side gate driver from STMicroelectronics. It is primarily designed for driving three-phase brushless DC (BLDC) motors. This state-of-the-art motor driver offers exceptional performance and precise control, making it suitable for a wide range of applications, including robotics, industrial automation, electric vehicles, and more.

2. Key Features and Specifications:\

The STEVAL-IHM007V1 comes with a host of impressive features that set it apart from other motor drivers in the market. Some of the notable features include:

Operating voltage range: 8 V to 45 V, making it compatible with a wide range of power sources.

Maximum output current: 2 A, providing sufficient power for driving various motor types.

Integrated bootstrap diodes and adjustable dead-time generation, simplifying the overall design.

UART communication interface, enabling easy control and monitoring via a microcontroller or PC.

Support for various motor control techniques, including sensorless control, field-oriented control (FOC), and more.

Protection features such as overcurrent, overvoltage, and over-temperature protection, ensuring safe operation and longevity.

3. Understanding the Motor Control Techniques:\

The STEVAL-IHM007V1 offers multiple motor control techniques, making it a versatile solution for different motor applications. Let's explore some of these techniques:

Sensorless Control: This technique allows the motor to be driven without the need for additional position or speed sensors. Instead, the motor driver uses the back-emf (electromotive force) information obtained from the motor phases to estimate the rotor position and control the motor's speed and torque.

Field-Oriented Control (FOC): FOC is a sophisticated technique that provides precise control over the motor's torque and speed. It requires the use of additional sensors, such as Hall sensors or encoders, to accurately estimate the rotor position and align the magnetic field with the current flow for optimal motor performance.

4. Applications:\

The STEVAL-IHM007V1 finds its application in a wide range of industries and fields. Some of the potential applications include:

Robotics: The precise control and high-performance characteristics of the STEVAL-IHM007V1 make it an excellent choice for robotics applications, such as robotic arms, autonomous vehicles, and drones.

Industrial Automation: With its ability to drive three-phase BLDC motors, the motor driver is ideal for various industrial automation applications, including conveyor systems, automated machinery, and robotics.

Electric Vehicles: The STEVAL-IHM007V1 can be used in the electric vehicle industry for motor control, enabling efficient and reliable performance in electric cars, bikes, and scooters.

Home Automation: The motor driver's versatility makes it suitable for home automation tasks, such as controlling motorized blinds, HVAC systems, and smart appliances.

5. Conclusion:\

The STEVAL-IHM007V1 is an exceptional motor driver that offers advanced features and precise control for a wide range of applications. Its high-performance characteristics, support for various motor control techniques, and comprehensive protection features make it a reliable choice for engineers and developers alike. Whether you're working on a robotics project, industrial automation system, or electric vehicle, the STEVAL-IHM007V1 is sure to meet your motor control needs and deliver outstanding performance.
